Direct answer: SUNLU PETG-CF is worth buying when a recurring bracket, fixture, housing, or machine-side part is too flexible in plain PETG. Skip it when ordinary PETG already passes, when the feature must flex repeatedly, or when the printer lacks an abrasion-resistant nozzle and a verified feed path.
SUNLU currently identifies this as 1.75 mm PETG with 10% carbon fiber and lists a 240-250 C nozzle range, no more than 150 mm/s, and a 50-70 C bed. Those are manufacturer starting limits, not a universal profile or a finished-part rating.
| Job | Verdict | Decisive tradeoff |
|---|---|---|
| Rigid jig, fixture, bracket, guard, or housing | Good candidate | Prove lower deflection on the real geometry. |
| Plain PETG already passes | Skip PETG-CF | The filled spool adds abrasion and moisture-control work without a measured gain. |
| Clip, snap arm, or repeated-flex feature | Choose by fatigue, not stiffness | Carbon fill can work against a feature whose job is to bend. |
| Soft brass nozzle or unverified feeder | Prepare the printer first | Temperature compatibility alone does not make the abrasive path suitable. |
Disclosure: GoodPrints may earn from qualifying purchases through labeled links. This is manufacturer-sourced buyer analysis, not hands-on testing or certification for structural, pressure, electrical, food-contact, or other consequential use.
SUNLU PETG-CF buyer verdict
| Buyer situation | Verdict | Why |
|---|---|---|
| A PETG bracket or fixture deflects too much | Good fit | The filled formulation is intended for a stiffer functional-material lane |
| Plain PETG already passes the job | Skip it | Standard PETG avoids abrasive wear and is usually simpler to own |
| The printer has only a soft brass nozzle | Upgrade first | Carbon-filled filament is abrasive even when the temperature range fits |
| The part is a clip, hinge, or repeated-flex feature | Test another material | Stiffness can work against a part whose job is to bend |
| You need a qualified high-temperature engineering part | Do not assume fit | PETG-CF is not automatically a nylon-CF, PC, or certified-material substitute |
For the current exact spool, check SUNLU PETG-CF availability on Amazon. Confirm the selected diameter, color, weight, and product identity before ordering.
What SUNLU currently documents

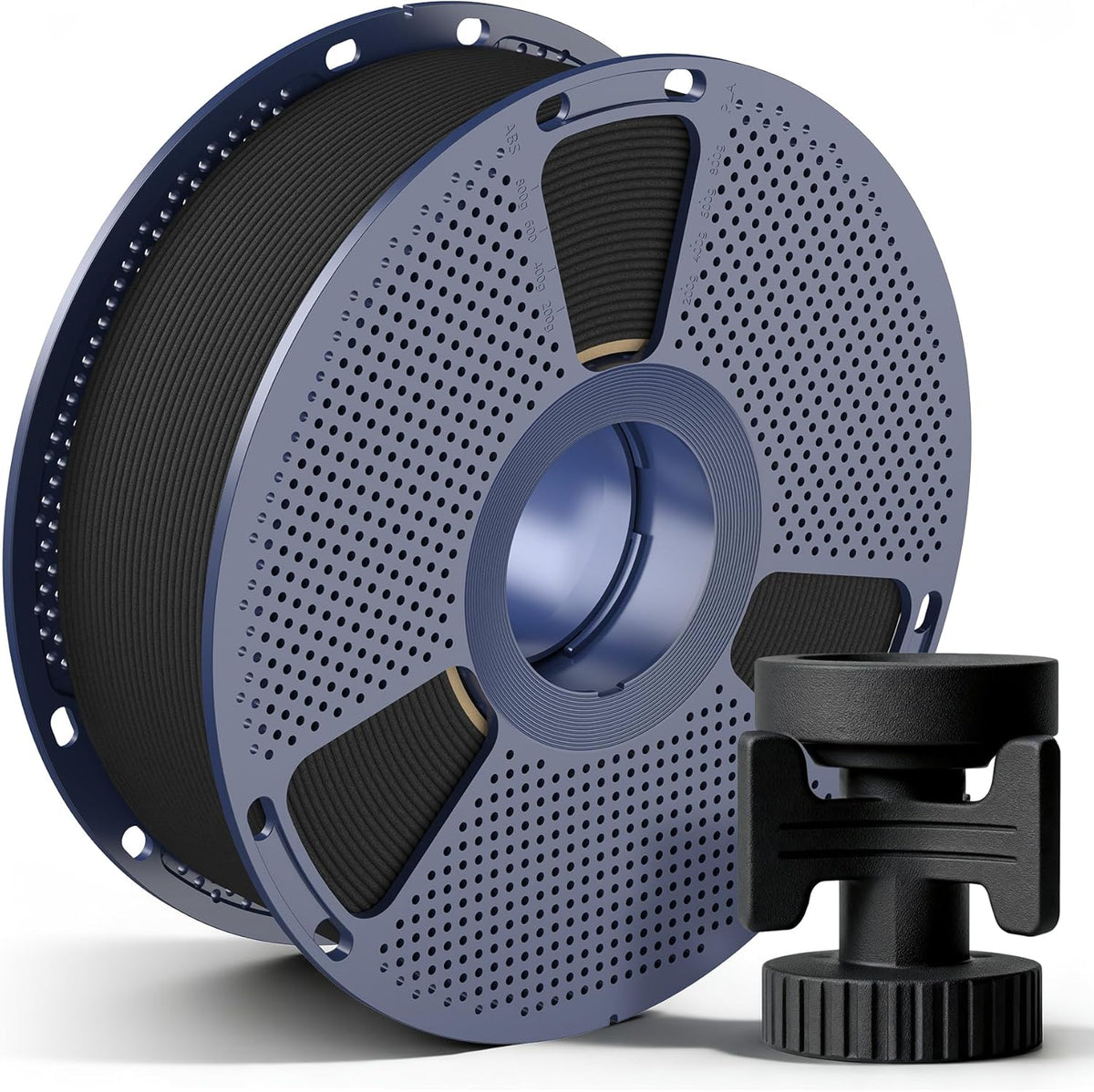

The official SUNLU PETG-CF page describes a 10% carbon-fiber-filled PETG intended for functional and high-strength models. Its current specification table lists:
- 1.75 mm filament and a 1 kg product lane;
- 240-250 °C nozzle temperature at no more than 150 mm/s;
- 50-70 °C bed temperature;
- 0.8-1.2 mm retraction at 30 mm/s;
- 32 ± 4 MPa tensile strength and 55.5 ± 5 MPa flexural strength;
- 14 ± 3% elongation at break and 7 ± 2 kJ/m² notched Izod impact strength;
- 71 ± 3 °C heat-deflection temperature and 1.23 g/cm³ density.
Those figures describe the maker's stated test results for this material. They are not universal finished-part guarantees. Layer direction, moisture, geometry, wall layout, nozzle condition, cooling, speed, and the test method can change the result.
What PETG-CF changes compared with plain PETG
The clearest reason to buy PETG-CF is a stiffness problem. A fixture, equipment mount, sensor bracket, or enclosure panel that feels too springy in standard PETG may benefit from a filled formulation. The matte carbon texture can also make layer lines look less prominent and give a functional prototype a more technical surface.
That does not make every property better. Filled materials can be less forgiving around thin flexing sections, sharp internal corners, snap arms, and impact-heavy parts. If the standard version already survives the real load and temperature, the carbon-filled spool adds nozzle wear, setup work, and cost without solving a problem.
Use the broader PETG-CF functional-parts decision guide when the material family is still the question. Use the standard SUNLU PETG review when ordinary utility PETG remains the better fit.
Printer compatibility: five checks before buying
1. Verify the nozzle material
A 10% carbon-fiber fill is abrasive. Verify the installed nozzle material and the printer maker's filled-filament guidance instead of assuming that reaching 250 °C is enough. A wear-resistant nozzle is the sensible repeat-use starting point. The PETG-CF hardened-nozzle guide separates a brief experiment from a repeatable workflow.
2. Check the complete feed path
The filament can contact tubes, guides, hubs, cutters, feeders, and automatic material systems before it reaches the nozzle. Confirm each part against the equipment maker's abrasive-filament rules. Diameter compatibility alone does not establish safe feeder or multi-material-system fit.
3. Confirm temperature and plate range
Your hotend must hold SUNLU's 240-250 °C range reliably, and the installed surface must suit the 50-70 °C bed guidance. Treat the product table as a baseline. Start with the printer or slicer profile intended for the exact material, then change one variable at a time.
4. Plan moisture control
The current SUNLU product table does not publish a drying time and temperature, so this page will not invent one. Follow the current spool instructions and the dryer maker's temperature limits. Store the material sealed with active desiccant after it is dry. The PETG-CF dryer-versus-storage guide explains why drying and prevention are different jobs.
5. Qualify one representative part
A calibration cube cannot prove a bracket, jig, or machine guard. Print the real wall thickness, hole sizes, ribs, fasteners, load direction, and orientation. Measure after cooling, apply the expected load, and inspect again after the intended heat or outdoor exposure.
Best uses for SUNLU PETG-CF
- Jigs and fixtures: when lower deflection helps repeatable positioning.
- Machine and printer brackets: when the part should feel rigid under moderate load.
- Electronics housings and guards: when a matte surface and PETG-family workflow suit the environment.
- Sensor and camera mounts: when geometry, fasteners, and service temperature have been qualified.
- Functional prototypes: when the team needs to evaluate a stiffer filled-PETG direction before committing to a more demanding material.
For machine-specific checks, use the exact Bambu Lab P2S PETG-CF guide or QIDI Plus4 PETG-CF guide. A printer's enclosure, nozzle, extruder, feeder, and profile all matter.
Where this material is the wrong fit
- Repeated-flex clips and living hinges: select around bending life, not stiffness alone.
- Safety-critical or regulated parts: require current documentation, traceability, test methods, and application approval.
- Very fine nozzles: filled material raises clog and flow-consistency concerns; follow the printer and nozzle makers' guidance.
- High-temperature service: SUNLU's 71 ± 3 °C heat-deflection figure is test context, not a universal safe operating temperature.
- Decorative and lightly loaded parts: PLA or plain PETG is often cheaper and easier.
SUNLU PETG-CF versus nearby choices
Versus standard PETG
Choose SUNLU PETG-CF when a representative plain-PETG part is too flexible or the matte filled surface has real value. Choose standard PETG when the part already passes, needs some give, or must run through simpler hardware.
Versus another PETG-CF brand
Brand changes can mean different carbon loading, base resin, temperatures, drying guidance, mechanical data, color, and profile behavior. The eSUN PETG-CF review is a separate product decision, not permission to reuse one profile.
Versus nylon-CF
Nylon-CF belongs to a different moisture, temperature, creep, enclosure, and qualification lane. It may make sense for harder engineering work, but it is not the automatic next step. Compare the real failure mode before accepting the extra process burden.
A controlled proof plan
- Confirm the exact spool, current manufacturer instructions, and printer compatibility.
- Start with a dry spool, wear-resistant nozzle, and clean feed path.
- Record nozzle type and size, plate, profile, room conditions, and spool condition.
- Print a representative part in the intended orientation.
- Inspect extrusion consistency, holes, inserts, surface, layer bonding, and fastener response.
- Measure the critical dimensions after cooling.
- Apply the actual load, flex, heat, and exposure expected in service.
- Repeat the print before calling the process stable.
Compare the accepted result with the plain-PETG version. If both pass, the simpler spool usually wins. If SUNLU PETG-CF materially reduces deflection or finishing work, the extra hardware and moisture-control burden has a defensible purpose.
Final recommendation
Buy SUNLU PETG-CF when ordinary PETG is measurably too flexible for a recurring functional job and your printer is ready for abrasive filament. Its best case is a qualified bracket, fixture, housing, guard, or machine-side helper where stiffness and a matte surface matter.
Skip it when plain PETG already passes, the part must flex repeatedly, or the application needs a documented high-temperature engineering material. The carbon-fiber label is not a substitute for a part requirement and a proof run.
Check the current SUNLU product page for manufacturer settings, then confirm the exact SUNLU PETG-CF offer if you decide the workflow fits.
Frequently asked questions
Is SUNLU PETG-CF worth it over plain PETG?
Yes when a recurring finished part is measurably too flexible in plain PETG and PETG-CF improves that requirement. If both versions pass, the simpler SUNLU PETG route usually wins.
Does SUNLU PETG-CF need a hardened nozzle?
Carbon-filled filament is abrasive, so a wear-resistant nozzle is the sensible repeat-use starting point. Verify nozzle material, diameter, hotend, feeder, tubes, hubs, and any automatic material system against their makers' guidance.
What print settings does SUNLU publish?
The current product page lists 240-250 C at no more than 150 mm/s, a 50-70 C bed, 0.8-1.2 mm retraction, and 30 mm/s retraction speed. Start there, then qualify the exact printer, nozzle, surface, color, geometry, and part.
How should SUNLU PETG-CF be dried?
The current product table does not publish a drying time and temperature. Do not borrow a schedule blindly from another blend. Follow the current spool instructions and dryer limits, then use the PETG-CF drying guide to separate drying from sealed storage.
Is SUNLU PETG-CF good for clips and snap fits?
Not by default. Its stiffness case can conflict with repeated bending. Test the exact clip geometry, orientation, warm condition, cycle count, creep, and failure consequence rather than treating the carbon-fiber label as a fatigue rating.
Can SUNLU PETG-CF replace nylon-CF?
No automatic substitution is safe. Compare heat, impact, elongation, moisture response, wear, chemical exposure, layer direction, and the finished-part requirement. PETG-CF is a middle lane, not a universal engineering-material upgrade.
