Direct answer: eSUN PETG-CF is worth it when a recurring bracket, fixture, guard, or housing is too flexible in plain PETG and a controlled comparison proves the filled material fixes that problem. Stay with plain PETG when the part already passes, must flex repeatedly, or does not justify abrasive hardware and a stricter moisture workflow.
| Decision gate | Current eSUN starting point | What to prove on the real part |
|---|---|---|
| Nozzle and speed | Hardened 0.4 or 0.6 mm; 240-260 C; under 150 mm/s | Stable extrusion, filled-feature detail, hole size, and acceptable cycle time. |
| Bed and environment | 75-90 C bed; enclosed-chamber printing listed | Adhesion, corner lift, shrink behavior, ventilation, and machine compatibility. |
| Moisture control | 65 C for more than eight hours | Use the exact current spool instruction and a dryer rated for the setpoint; sealed storage slows reabsorption but does not replace conditioning. |
| Material choice | PETG-CF versus plain PETG | Lower deflection, stable fit, surface, layer-direction result, heat exposure, and failure consequence. |
The carbon-filled label does not establish impact strength, fatigue life, load capacity, pressure safety, or a nylon-CF equivalent. Print the same representative geometry in plain PETG and PETG-CF, condition both consistently, and keep the simpler material when both pass.
If the exact reviewed eSUN offer is unavailable, this SUNLU PETG-CF alternative is a different product, not a profile-equivalent substitute. Recheck its current instructions and qualify it separately. Use the PETG-CF drying-versus-storage guide before treating a sealed box as a conditioning cycle.
Disclosure: This is manufacturer-sourced buyer analysis, not hands-on testing or certification for structural, pressure, electrical, food-contact, or other consequential use. GoodPrints may earn a commission from qualifying links.
eSUN PETG-CF makes sense when a functional part needs more rigidity and a matte, low-gloss surface than ordinary PETG, and your printer already has an abrasion-resistant nozzle plus a real drying workflow. Skip it when standard PETG is stiff enough, when the part must flex repeatedly, or when you are hoping carbon fiber will turn PETG into a high-temperature nylon replacement.
eSUN's current product page lists a 240-260 °C nozzle range, 75-90 °C bed, less than 150 mm/s print speed, 65 °C drying for more than eight hours, a 0.4 or 0.6 mm hardened nozzle, and enclosed-chamber printing. Those requirements matter more than the carbon-fiber label.
The decision in 30 seconds
Buy eSUN PETG-CF if: you make brackets, housings, fixtures, guards, electronics mounts, or machine-side parts that benefit from a stiffer PETG-family material and a matte surface.
Stay with plain PETG if: the current part already passes load, heat, impact, and dimensional checks. Plain PETG is cheaper, less abrasive, and usually more forgiving.
Move to a different material if: the job needs repeated flex, high-temperature service, maximum impact tolerance, or a qualified engineering-plastic specification that this product does not provide.
Disclosure: GoodPrints may earn a commission from qualifying links on this page. This review uses current manufacturer documentation and does not claim hands-on testing.
Availability note: The exact eSUN product is linked through eSUN below. If it is unavailable in your region, the SUNLU PETG-CF alternative on Amazon is a separate formulation, not a profile-equivalent substitute.

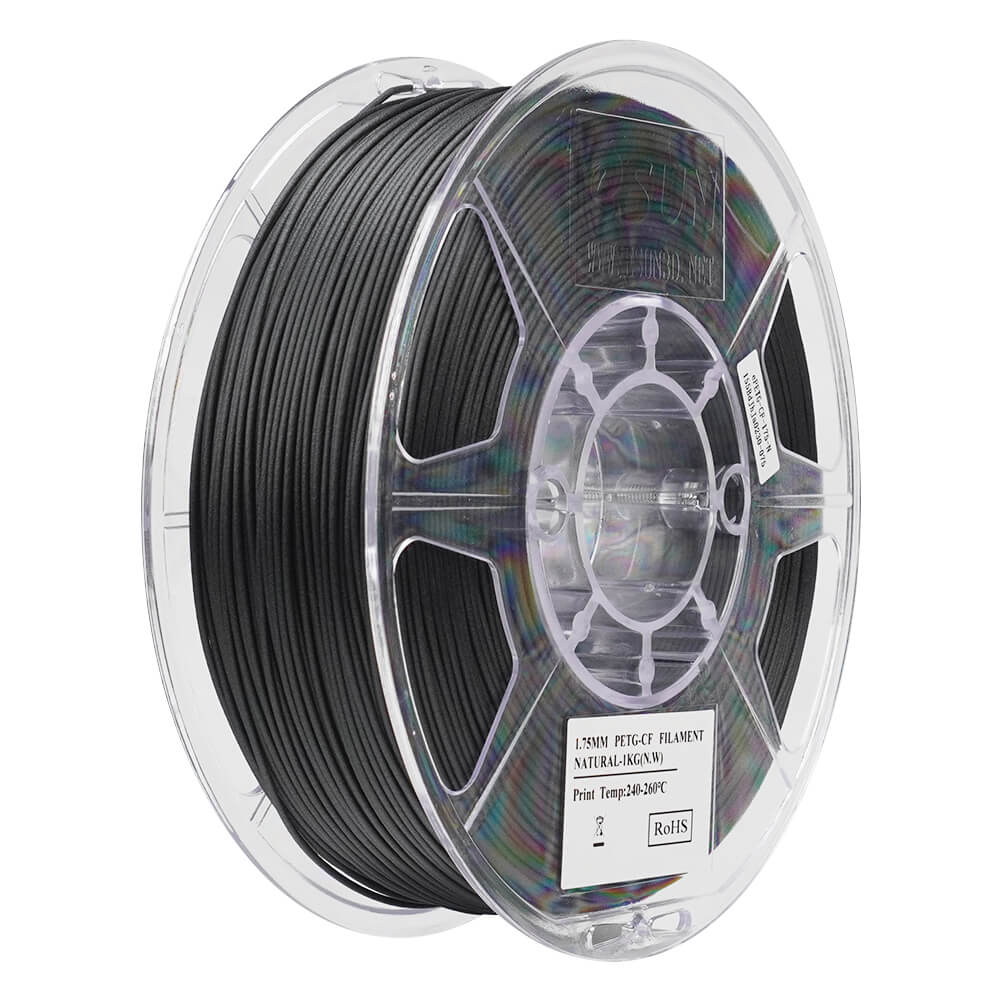

eSUN PETG-CF specifications that affect the buying decision
| Manufacturer-listed item | Current eSUN value | Why it matters |
|---|---|---|
| Diameter and spool | 1.75 mm; 1 kg | Confirm the exact color and spool your seller is shipping. |
| Nozzle temperature | 240-260 °C | Your hotend must hold this range reliably. |
| Bed temperature | 75-90 °C | The plate, surface, and release method need to suit hotter PETG-family work. |
| Print speed | Below 150 mm/s | This is a ceiling, not a promise that every geometry should run near it. |
| Drying | 65 °C for more than 8 hours | Drying is part of preparation, not a rescue step after a bad print. |
| Nozzle guidance | 0.4 or 0.6 mm hardened nozzle | Carbon fiber is abrasive; a soft stock nozzle is the wrong long-run assumption. |
| Heat-deflection figure | 70 °C at 0.45 MPa | Useful context, but not a universal safe service temperature for every part. |
| XY elongation at break | 4.2% | The material is a poor default for parts whose job is repeated bending. |
Official data gate: direction and source version matter
Use eSUN's current product table as directional test context, not as a safe-load rating. It lists XY versus Z tensile strength of 51.3 versus 32.91 MPa, flexural strength of 77.2 versus 49.9 MPa, flexural modulus of 3,618.54 versus 2,030.97 MPa, and Izod impact strength of 4.39 versus 1.91 kJ/m2. The lower published Z results are a direct warning that layer orientation and bonding remain part of the buyer decision even when the carbon-filled material feels stiff.
eSUN's December 2024 launch article separately reports a 2,500 MPa flexural modulus and different improvement percentages. Do not average or combine those numbers, and do not assume they describe the same specimen, direction, conditioning, or source revision. This guide uses the current eSUN PETG-CF product table for exact property values and treats the older launch article as historical positioning.
Buyer boundary: none of these manufacturer values approves a finished bracket, pressure part, sealed enclosure, safety guard, vehicle part, or fatigue-critical component. Print in the intended orientation, condition the spool and part consistently, test the real geometry under load and temperature, and use a qualified engineering process for consequential work.
What PETG-CF changes compared with ordinary PETG
eSUN describes PETG-CF as PETG modified with carbon-fiber reinforcement to increase rigidity and toughness. Its published XY flexural modulus is 3,618.54 MPa, and the product is positioned around high strength, matte texture, chemical resistance, and aging resistance.
The strongest buyer case is stiffness and surface character. A bracket can deflect less under the same geometry, a housing can feel more planted, and layer lines can look less glossy. That does not mean every mechanical property improves. Carbon-filled materials can give up elongation and can be less appropriate for living hinges, snap-fit arms, flexible clips, or impacts that demand substantial give.
Use the broader PETG-CF versus standard PETG decision guide when you are still deciding whether the filled material earns its cost and hardware burden.
Printer compatibility: five checks before you buy
1. Confirm an abrasion-resistant nozzle
eSUN specifically recommends a hardened 0.4 or 0.6 mm nozzle. Do not assume a printer marketed for high temperature is automatically abrasion-ready. Verify the installed nozzle material, diameter, replacement path, and any profile changes. The PETG-CF hardened-nozzle guide separates a one-off experiment from a repeatable setup.
2. Confirm the hotend and bed ranges
The printer needs stable control across eSUN's 240-260 °C nozzle and 75-90 °C bed guidance. A maximum-temperature headline is not enough; the installed nozzle, heatbreak, build surface, adhesive or release layer, enclosure state, and firmware profile all belong in the check.
3. Treat drying, dry storage, and the chamber instruction as separate controls
eSUN's current product page calls for 65 C drying for more than eight hours and separately says enclosed-chamber printing. That chamber instruction is not the same as sealed dry storage. Drying recovers a wet spool, sealed storage helps slow reabsorption, and the chamber instruction controls the print environment. Follow the lowest temperature and ventilation limits of the spool, dryer, printer, and room setup.
4. Check the complete filament path
Abrasive filament touches more than the nozzle. Inspect feed tubes, guides, hubs, cutters, drive components, and any automatic material system against the printer maker's filled-filament rules. If a path excludes fiber-reinforced material, do not force it through because the spool diameter fits.
5. Qualify a representative part
Print the actual wall thickness, hole sizes, ribs, inserts, fasteners, and load direction you expect to use. Measure after cooling and after the part sees its real environment. A calibration cube cannot prove a bracket, enclosure, or fixture.
Best uses for eSUN PETG-CF
- Brackets and mounts: when lower deflection matters more than repeated flex.
- Electronics housings and guards: when a matte surface and PETG-family chemical resistance fit the environment.
- Fixtures and machine-side helpers: when a part needs stiffness, dimensional consistency, and moderate heat margin.
- Printer accessories: when the part stays inside a qualified temperature and load envelope.
- Visual functional prototypes: when the carbon texture helps communicate an engineered surface without post-processing.
The PETG-CF functional-parts guide is the better next read if your decision starts with the job rather than the brand.
Where eSUN PETG-CF is the wrong material
- Living hinges, flexible clips, and repeated deflection: eSUN's 4.2% XY elongation figure argues against treating this as a flexible material.
- High-temperature service: the listed 70 °C heat-deflection result is test context, not permission to place any geometry beside an engine, heater, or hot enclosure.
- Maximum impact jobs: stiffness is not the same as impact tolerance. Test the real load direction and temperature.
- Food, medical, electrical, or regulated use: require the exact current documentation and application approval rather than inferring suitability from the PETG name.
- Easy first-filament work: plain PETG avoids abrasive hardware and is the more proportionate starting point.
eSUN PETG-CF versus nearby material choices
Versus plain PETG
Choose eSUN PETG-CF for higher stiffness, matte texture, and a qualified carbon-filled workflow. Choose plain PETG for lower cost, simpler hardware, more give, and general utility work that already passes.
Versus PLA-CF
PLA-CF can be attractive for rigid indoor display and prototype work, but material family, temperature behavior, outdoor exposure, layer adhesion, and impact requirements still control the decision. Read the eSUN PLA-CF review instead of assuming all carbon-filled filaments serve the same jobs.
Versus PET-CF
PET-CF is a separate material lane with its own temperatures, drying, mechanical data, and part fit. The Fiberon PET-CF17 review is a useful comparison point, not an interchangeable profile.
Versus nylon-CF
Nylon-CF may fit harder engineering work, but it brings a different moisture, temperature, enclosure, creep, and qualification burden. Do not buy it merely because it sounds more advanced. Use the nylon-CF moisture-control guide before making that jump.
A part-specific acceptance test
- Dry the spool to the current manufacturer instruction.
- Record printer, nozzle material and diameter, plate, profile, room conditions, and sealed-feed setup.
- Print one representative part in the intended orientation.
- Inspect surface, stringing, extrusion consistency, holes, inserts, and layer bonding.
- Measure critical dimensions after the part cools.
- Apply the real load, fastener torque, flex, heat, and exposure expected in service.
- Repeat the print to separate a lucky sample from a stable process.
- Compare accepted-part cost with plain PETG and the next serious material option.
If ordinary PETG passes the same test, PETG-CF is probably unnecessary. If PETG-CF passes and materially reduces deflection or finishing work, the extra drying and abrasive-hardware burden has a reason to exist.
If the acceptance test fails
If flow is merely thin or inconsistent, work through the under-extrusion checks before rewriting the whole profile. That branch separates feed resistance, temperature, speed, and calibration from a material-fit problem.
If the extruder clicks or extrusion stops, use the nozzle-clog and partial-clog recovery guide before replacing random toolhead parts. Carbon-filled filament can expose a marginal melt path without proving the spool is defective.
If this will be a recurring material lane, make the hardened-extruder-gear decision separately from the nozzle choice. Abrasion protection at the nozzle does not automatically protect the feeder.
Final recommendation and eSUN PETG-CF FAQ
Buy eSUN PETG-CF for a measured stiffness or surface requirement, not as a reflex upgrade. Qualify the printer, moisture process, orientation, geometry, and accepted part; return to plain PETG if the filled spool does not produce a useful margin.
Is eSUN PETG-CF worth it over plain PETG?
Yes when plain PETG is measurably too flexible and PETG-CF improves the real part without creating an unacceptable impact, fatigue, fit, or process tradeoff. If both pass, plain PETG is usually the lower-burden choice.
Does eSUN PETG-CF need a hardened nozzle?
eSUN currently lists a hardened 0.4 or 0.6 mm nozzle. Verify the nozzle, hotend, extruder gears, tubes, hubs, and automatic feed system rather than checking temperature alone.
Should you use a 0.4 or 0.6 mm nozzle?
Use 0.4 mm when smaller features and detail control matter; consider 0.6 mm when filled material is recurring and extra flow-path margin matters more. Re-slice and requalify holes, walls, fit, finish, and cycle time after changing diameter.
Does sealed storage replace drying?
No. Drying removes absorbed moisture under a controlled cycle; sealed storage slows reabsorption afterward. Follow the current spool instruction and the dry-versus-store workflow separately.
Can eSUN PETG-CF run on an open-frame printer?
The current eSUN parameter table lists enclosed-chamber printing. Treat that as the manufacturer starting condition and verify the exact printer, airflow, bed adhesion, geometry, and ambient environment rather than generalizing from nozzle temperature.
Is PETG-CF better for clips and snap fits?
Not automatically. Added stiffness can work against a feature designed to flex. Test the exact arm length, strain, orientation, temperature, creep, cycle count, and failure consequence.
Is eSUN PETG-CF stronger than regular PETG?
“Stronger” is too broad. Compare the property and direction that decides the job: deflection, tensile or bending load, impact, layer adhesion, fatigue, heat, creep, and dimensional stability can move differently.
