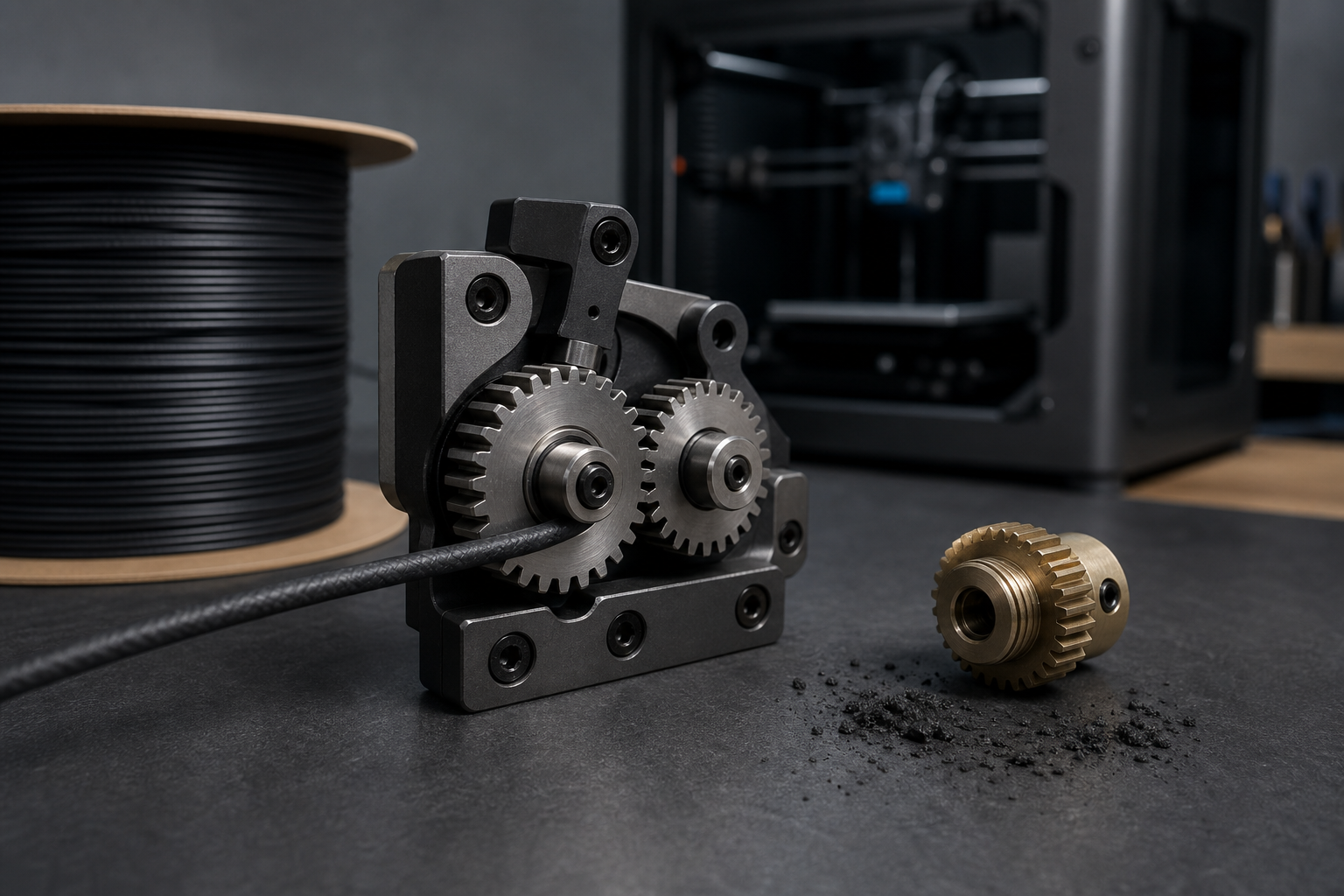

You should use hardened or otherwise abrasion-rated extruder gears for recurring carbon-fiber-filled filament printing. Short test prints may not immediately ruin ordinary drive gears, but PLA-CF, PETG-CF, and nylon-CF can wear the teeth and filament groove over time. Before buying anything, verify what your printer already has: many composite-ready machines ship with hardened steel drive gears, so the right answer may be to keep the stock extruder and upgrade only the nozzle.
The nozzle usually receives the most attention because wear there changes the opening directly, but it is not the only component that touches abrasive filament. The feeder gears repeatedly bite and slide against unmelted composite filament. A reliable carbon-fiber setup treats the nozzle, drive gears, guide tubes, sensor openings, and multi-material feeder as one wear path.
Quick verdict
Buy hardened gears when the manufacturer lists the stock feeder gears as brass, soft steel, plastic, or not approved for abrasive filament and carbon-fiber material will be part of the regular queue.
Keep the stock gears when the printer documentation confirms hardened steel, hardened dual-drive, or explicit abrasive-filament compatibility.
Delay the upgrade for one small experiment if replacement parts are available and you accept that the existing gears are consumables, but do not build a repeat-production plan around unverified soft gears.
Check more than the gears because a hardened feeder does not make a brass nozzle, narrow guide, delicate sensor, or unsupported automatic material system composite-safe.
Why carbon-fiber filament can wear extruder gears
Carbon-fiber filament is not a continuous strand of structural carbon fiber. Most desktop grades mix short chopped fibers into a thermoplastic such as PLA, PETG, ABS, ASA, or nylon. Those particles can improve stiffness, reduce the glossy look of a surface, and sometimes improve dimensional behavior, but they also make the filament more abrasive than the unfilled base polymer.
An extruder gear must press hard enough to transfer motor torque into the filament. Its teeth create concentrated contact points, and small amounts of sliding occur whenever the filament resists motion, retracts, or the feeder changes speed. Abrasive filler can slowly round the tooth edges or polish the groove. Wear may first appear as lower grip, more black dust, a need for extra tension, inconsistent loading, or skipping under the same flow demand.
This is a gradual ownership problem, not a promise that one meter of PLA-CF will destroy an extruder. Fiber loading, particle size, filament hardness, gear material, tooth geometry, spring pressure, flow rate, and total kilograms all affect the result. That uncertainty is exactly why recurring use should be based on confirmed wear-rated hardware rather than a spool label alone.
A hardened nozzle does not protect the feeder
A wear-resistant nozzle and hardened drive gears solve different contact points. The nozzle handles hot, pressurized composite material at the melt exit. The gears handle cool filament before it enters the hotend. Replacing one does not change the material touching the other.
| Component | What abrasion can change | Buyer checkpoint |
|---|---|---|
| Nozzle | Orifice size, line width, flow consistency | Hardened steel, tool steel, tungsten carbide, ruby, or another approved wear-resistant option |
| Drive gears | Tooth shape, bite depth, grip under load | Confirmed hardened or abrasive-rated gear set |
| Guide tubes and inlets | Grooves at bends and entry points | Replaceable path with gentle bends and visible wear points |
| Runout or motion sensor | Enlarged inlet, dust, roller wear | Manufacturer approval or a bypassable, serviceable path |
| Automatic material feeder | Internal tubes, funnels, rollers, gears | Exact filament and feeder compatibility, not printer compatibility alone |
If the immediate decision is nozzle hardware, use the exact guides for PLA-CF, PETG-CF, or nylon-CF. This page covers the separate feeder-side decision.
How to tell whether your stock gears are already suitable
Start with the printer manual, official material guide, and replacement-parts listing. Look for explicit wording such as hardened steel extruder gear, hardened dual-drive gears, or a statement that the complete stock filament path supports abrasive composites. A product name containing “carbon” is not proof that every feeder component is hardened, and an all-metal hotend says nothing about gear wear.
If the documentation only says “metal extruder,” keep checking. Aluminum usually describes the extruder body, not the small toothed drive components. Stainless steel is not automatically hardened steel. A shiny gear cannot be identified reliably from color, and a magnet test does not establish hardness.
- Find the exact printer revision. Manufacturers may change gears between model years or toolhead versions.
- Read the abrasive-material restrictions. Some printers approve composites only through an external spool path or after an upgrade kit.
- Check both driven and idler components. A dual-drive extruder may contain two toothed gears that need to be considered as a matched set.
- Confirm replacement-part availability. A supported factory gear set is safer than an unknown aftermarket part with the right photograph but uncertain dimensions.
- Ask what “hardened” applies to. A hardened nozzle bundle may leave the original feeder unchanged.
When hardened extruder gears are worth buying
Carbon-fiber filament will be used repeatedly
If composite spools will move through the printer every month, feeder wear is a normal maintenance consideration. A supported hardened set costs less than chasing intermittent grip loss after profiles and material lots have already been validated.
The printer has soft or unverified stock gears
Unverified hardware is a weak foundation for expensive nylon-CF or repeat PETG-CF work. Upgrade before building production assumptions around it, especially when the machine is expected to run unattended or complete long parts where a late feed slip wastes hours.
The gear set is part of a manufacturer-supported composite kit
A matched kit can preserve shaft fit, gear alignment, filament centerline, spring range, sensor behavior, and firmware expectations. It is usually the cleaner buy than mixing a generic hobbed gear with a proprietary extruder.
Downtime matters more than the lowest initial cost
For small-batch work, repeatability is the reason to harden the path. The goal is not to make every component immortal; it is to reduce an avoidable variable and make wear inspection predictable.
When you probably do not need another gear upgrade
Do not replace a confirmed hardened factory set simply because an aftermarket listing uses stronger language. “Hardened,” “nano-coated,” and “high wear resistance” are not useful upgrades without known material, dimensions, heat treatment, tooth geometry, and compatibility. Poorly matched gears can create eccentric feeding, excess filament deformation, alignment problems, or inaccurate rotation even when their surface is harder.
You also may not need to upgrade for ordinary unfilled PLA, PETG, ABS, ASA, or TPU. Those materials can wear and contaminate feeders in other ways, but carbon-fiber abrasion is not part of the decision. Buy for the actual material queue rather than preparing every printer for a composite spool that may never be opened.
One short prototype on an inexpensive, serviceable machine can be a reasonable controlled experiment with stock gears, provided the nozzle and temperature path are safe and the risk is accepted. That is different from calling the setup suitable for kilograms of recurring composite material.
Carbon-fiber base material still changes the buying decision
| Material | Gear recommendation | Other major requirement |
|---|---|---|
| PLA-CF | Hardened for recurring use | Wear-resistant nozzle; cooling and heat limits still resemble PLA |
| PETG-CF | Hardened for recurring use | Dry material, correct plate interface, and controlled temperature |
| Nylon-CF | Treat as required for a serious workflow | Active drying, compatible hotend temperature, and grade-specific chamber needs |
| ABS-CF or ASA-CF | Hardened for recurring use | Enclosure, ventilation, and material-specific thermal control |
Hardened gears do not make a printer suitable for every base polymer. A PLA-class open machine with upgraded gears can still be the wrong purchase for nylon-CF because temperature, moisture, warping, and chamber behavior dominate the rest of the workflow. If nylon-CF is the target, the nylon-CF dryer decision is at least as important as feeder hardness.
What about a 0.6 mm nozzle?
A 0.6 mm nozzle can reduce clog risk with some filled filaments and may improve throughput on larger functional parts, but it does not protect the drive gears. The same abrasive filament still passes through the feeder before reaching the larger opening. Follow the filament manufacturer's minimum diameter instead of assuming every carbon-fiber grade needs the same tip.
If the queue also includes ordinary detailed parts, compare whether a 0.6 mm nozzle is worth adding for functional work. The gear choice is based on abrasion and usage volume; the nozzle-diameter choice is based on particle clearance, line width, detail, flow, and the parts being made.
Inspect the whole feed path after installation
A good upgrade should feed smoothly at normal tension without crushing the filament. Mark the original tension setting, clean the gear cavity, and align the filament path before testing. Run the exact composite grade at a conservative flow rate, then inspect the gear teeth, outlet, guide tube, and sensor for dust or a new groove.
Black dust alone does not prove the hardened gear is failing. It may be polymer debris shaved by excessive pressure, a misaligned inlet, a tight bend, or repeated loading. If the feeder begins clicking or skipping, do not immediately tighten it. Use the extruder-clicking guide to separate weak grip from a partial clog, excess requested flow, low temperature, spool drag, and heat creep.
- Check unloaded rotation: gears should turn concentrically without binding.
- Check the bite: the teeth should mark the filament evenly without grinding a deep channel.
- Check actual extrusion: compare commanded feed, part weight, wall quality, and long straight lines.
- Check again after a real spool interval: composite suitability is demonstrated over use, not by one loading cycle.
Buyer checklist before ordering gears
- Does the exact printer revision already have hardened drive gears?
- Does the manufacturer approve the exact carbon-fiber filament family?
- Is the replacement a complete matched gear set or only one component?
- Will it preserve shaft diameter, gear ratio, tooth alignment, and filament centerline?
- Are the nozzle, guide path, sensor, and automatic feeder also approved?
- Can replacement gears and guide tubes be purchased later as wear parts?
- Does the intended part actually benefit from a carbon-fiber-filled grade?
The last question prevents an expensive hardware chain from starting without a material reason. For indoor stiffness and surface finish, compare whether PLA-CF is worth it for the part. For tougher moderate-heat work, use the PETG-CF functional-parts decision. Filled filament can be valuable, but it is not automatically stronger in every direction or better than a well-designed unfilled part.
Bottom line
Use hardened or explicitly abrasion-rated extruder gears when carbon-fiber-filled filament will be a recurring material. Do not automatically buy an upgrade: first confirm whether the printer already includes hardened gears, then validate the nozzle and the rest of the feed path. For one controlled experiment, ordinary gears may survive, but they should be treated as a wear risk rather than a dependable composite workflow.
