A clicking extruder usually means the filament drive is meeting more resistance than it can overcome. The motor loads up, the drive gear slips or jumps backward, and you hear a repeated click. The useful first question is not “How tight should the extruder be?” It is when does the clicking happen? Clicking only on the first layer points toward a nozzle-gap problem. Clicking only during fast infill points toward melt-rate limits. Clicking during a slow manual load points toward a clog, a blocked filament path, or a mechanical feeder problem.
Short answer
- First-layer-only clicking: the nozzle is often too close to the build plate, so plastic has nowhere to go.
- Clicking during fast sections: the requested flow may exceed what the nozzle and hotend can melt at that temperature.
- Clicking at every speed: suspect a partial clog, heat-creep restriction, spool drag, a pinched PTFE path, or filament that is not seated correctly.
- Clicking with ground filament: stop retrying. Repeated slipping removes material from the filament until the gear can no longer grip it.
What the clicking sound actually means

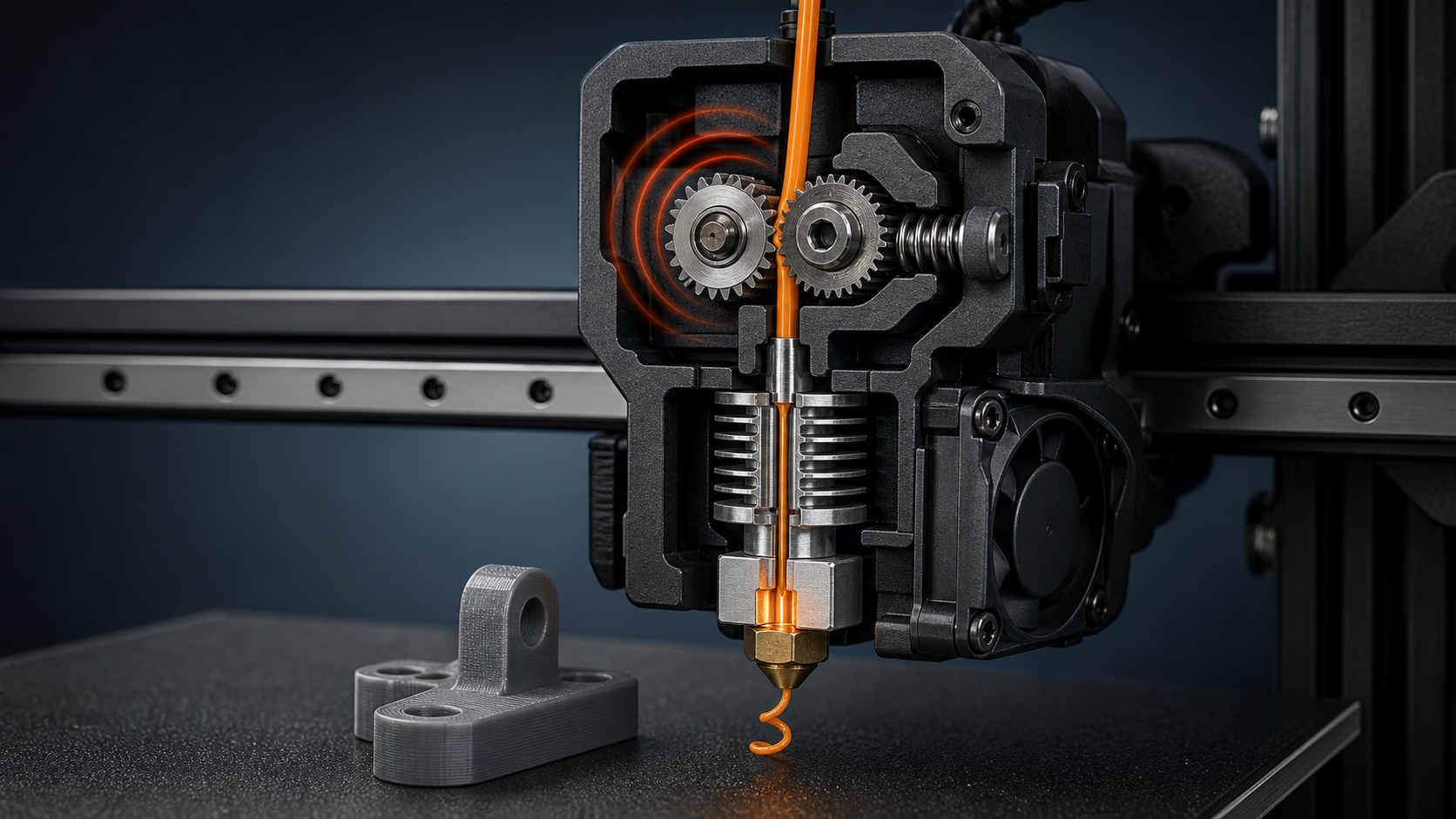

The extruder motor turns a drive gear that pinches filament and pushes it toward the hotend. When downstream resistance becomes higher than the feeder can overcome, one of three things happens: the motor skips a step, the gear slips across the filament, or the filament deforms and stops advancing cleanly. All three can sound like a sharp click or knock.
That sound is a symptom, not a diagnosis. Tightening the idler may temporarily make the gear bite harder, but it does not create more room under a nozzle that is pressed against the bed, raise the hotend's melt capacity, free a blocked tube, or remove a partial clog.
Use the timing of the click to narrow the cause
| When it clicks | Most likely cause | First check |
|---|---|---|
| Only on the first layer | Nozzle too close, excess first-layer flow, or a locally high bed area | Pause and inspect whether the line is extremely thin, translucent, ridged, or missing |
| Only during fast infill or thick lines | Requested volumetric flow exceeds the hotend's melt capacity | Compare the clicking sections with slower walls and reduce flow demand for one test |
| After long enclosed printing | Heat creep softening filament too high in the cold side | Check the hotend fan, intake path, chamber heat, and whether the failure appears only after time |
| During a slow manual load | Partial clog, blocked filament path, wrong loading route, or severe spool drag | Unload, cut a clean tip, verify the path, and test extrusion with the spool able to turn freely |
| After many retractions | Filament has been chewed, softened, or repeatedly moved through the same pinch point | Inspect the unloaded filament for a deep notch, flattened section, or heavy gear dust |
What to check first
- Stop the print before the gear grinds a deep notch. Repeated clicking can turn a recoverable restriction into a filament section the feeder cannot grip.
- Note exactly when the noise begins. First layer, high-speed infill, late in a hot job, or even during loading are four different diagnostic lanes.
- Inspect the last extruded line. A paper-thin first layer, intermittent under-extrusion, and a complete lack of flow do not point to the same fix.
- Check the easy upstream resistance. Confirm the spool turns freely, filament is not crossed under another winding, the tube is not sharply bent, and the inlet path is not rubbing.
- Test a slow extrusion above the bed. With the nozzle at printing temperature and clear of the plate, a clean steady strand should emerge without repeated clicking.
If it clicks only on the first layer
A nozzle can be close enough to block flow even when the bed mesh completed normally. Look for a line that is nearly transparent, heavily ridged along both sides, or absent in one area while the feeder clicks. Raise the nozzle gap slightly for a controlled test rather than adding more extruder tension.
If the first layer looks rippled or washboarded, use the rippled first-layer troubleshooting guide. It separates a too-low nozzle from excessive first-layer flow, retained heat, and local sheet variation.
If it clicks only at higher print speeds
The slicer may be asking for more molten plastic per second than the hotend can deliver. This often shows up in wide infill, thick internal lines, large nozzles, or fast material profiles while slower outer walls still print normally.
Reduce the requested volumetric flow for one test. That can mean lowering speed, line width, or layer height. If the click disappears immediately, investigate the material profile and hotend flow limit before dismantling the feeder. A modest temperature increase may help within the filament maker's supported range, but heat should not be used to hide a severe restriction.
If it clicks even during slow extrusion
Move partial clogs and path restrictions to the top of the list. A nozzle can still pass a thin strand and remain restricted enough to make normal printing fail. Old material, contamination, degraded residue, or heat-creep deformation can all narrow the path.
Use the nozzle-clog troubleshooting guide to separate contamination, heat creep, melt-rate mismatch, and wear. Do not force cold filament through the hotend or keep increasing feeder pressure against a path that is not accepting material.
Check spool drag before opening the extruder
A feeder can click because the resistance begins before the filament reaches it. Heavy spools, crossed windings, narrow dry-box outlets, tight tube bends, and side-table routing can all load the feed path. Temporarily give the printer a short, low-resistance filament route and see whether the clicking stops.
If the problem appears only when the spool feeds remotely, use the dry-box and side-table feed-drag guide. For a hardware handoff, the spool-holder guide explains when a bearing holder or better routing is actually relevant.
When to inspect the extruder itself
Inspect the feeder after you have ruled out the bed, flow demand, nozzle restriction, and spool path. Look for filament dust packed into the drive teeth, a loose gear or set screw, a damaged bearing, a cracked idler arm, or tension that is far outside the machine's normal range.
The goal is enough grip to advance filament without crushing it. Too little tension can slip early. Too much can flatten the filament, increase drag, and make flexible materials especially difficult to feed. Return adjustable tension to the printer maker's baseline before making small changes.
What not to do
- Do not keep restarting the same gcode without identifying when the click begins.
- Do not tighten the idler to its limit as a universal fix.
- Do not raise nozzle temperature far outside the material range to push through a suspected blockage.
- Do not assume every click means a clogged nozzle. A too-close bed or excessive flow demand can produce the same sound.
- Do not ignore gear dust. Clean the teeth and replace the damaged filament section before retesting.
A fast diagnostic order
- Stop the print and save the damaged filament from further grinding.
- Identify whether the click is first-layer-only, speed-dependent, time-dependent, or constant.
- Free the spool and straighten the upstream path.
- Heat the nozzle normally, move it clear of the bed, and command a slow extrusion.
- If slow extrusion still clicks, investigate the nozzle and hotend path.
- If slow extrusion is clean, test a lower-flow print and inspect the first-layer gap.
- Open the feeder only when the external causes no longer explain the symptom.
Common questions
Can a nozzle that is too close make the extruder click?
Yes. If the plate blocks the nozzle outlet, pressure rises immediately and the feeder can skip. First-layer-only clicking is one of the strongest clues.
Why does the extruder click on infill but not walls?
Infill is often printed faster and may request more plastic per second. If slower walls are clean, compare volumetric flow before assuming a mechanical failure.
Does clicking always mean the nozzle is clogged?
No. A clog is one cause, but bed clearance, heat creep, spool drag, excessive flow demand, and feeder damage can all create the same sound.
Why is there a notch ground into the filament?
The drive gear kept turning or slipping while the filament stopped advancing. Cut away the damaged section, clean the gear teeth, and solve the downstream resistance before reloading.
Should I replace the extruder motor?
Not first. Motors are rarely the best opening assumption. Check flow resistance, wiring only if motion is abnormal, gear condition, and the feeder mechanics before replacing a motor.
