Direct answer: the Bambu Lab X2D bed-planning area is 256 x 256 mm, but its printable envelope depends on the nozzle mode. Bambu lists 256 x 256 x 260 mm (10.08 x 10.08 x 10.24 inches) for main-nozzle printing and 235.5 x 256 x 256 mm (9.27 x 10.08 x 10.08 inches) for auxiliary- or dual-nozzle printing.
Recommendation: choose the nozzle mode before judging fit. A job that uses both nozzles loses 20.5 mm of X travel versus the main-nozzle headline, and a raw model at the published limit still may not fit after supports, brim or raft, purge structures, tool assignment, edge clearance and removal space. Slice the final production layout; do not buy from the plate number alone.
X2D bed size and build volume by nozzle mode
| X2D size question | Exact figure | Use it for | Fit check |
|---|---|---|---|
| Bed / plate-planning area | 256 x 256 mm (10.08 x 10.08 in) | Footprint planning and exact replacement-surface research | Confirm the sheet explicitly fits X2D; nominal width does not prove tab, coating or magnetic-system compatibility. |
| Main-nozzle build volume | 256 x 256 x 260 mm (10.08 x 10.08 x 10.24 in) | Jobs printed only with the main nozzle | Include orientation, supports, adhesion features, safe boundaries and removal clearance. |
| Auxiliary- or dual-nozzle volume | 235.5 x 256 x 256 mm (9.27 x 10.08 x 10.08 in) | Jobs using the auxiliary nozzle or both nozzles | Use this smaller envelope whenever the second tool participates; check purge and support-interface behavior too. |
| Near-limit model | Not approved by raw mesh size alone | Any model near an X, Y or Z ceiling | The current slicer must accept the complete final layout in the intended mode. |
| Size-up trigger | Recurring accepted layouts fail the correct envelope | H2D or outsourcing decision | Count real jobs where splitting creates a strength, seal, alignment, labor, finish or inspection penalty. |
Which X2D envelope should you test?
| Job plan | Envelope to use | Do not approve when |
|---|---|---|
| Main nozzle only | 256 x 256 x 260 mm | The complete slice crosses a boundary or needs unverified clearance. |
| Auxiliary nozzle only or both nozzles | 235.5 x 256 x 256 mm | The model fits only after incorrectly applying the main-nozzle figure. |
| Mode still undecided | Test both; use the smaller passing case for purchase planning | The buyer decision depends on transferring a one-nozzle fit to a two-nozzle workflow. |
Use the X2D dual-nozzle support-material guide when the second tool drives the purchase, and the X2D material map when temperature, wear hardware or chamber control is the constraint. Compare the H2D exact dimensions only after representative layouts fail, or read who should buy the X2D for the complete ownership decision.
Source and disclosure: the plate-planning area and mode-specific envelopes were rechecked October 14, 2026 against Bambu Lab's current X2D product page and X2D specifications. This is manufacturer-documented size analysis, not hands-on maximum-envelope testing. GoodPrints may earn a commission from qualifying links at no extra cost to you.

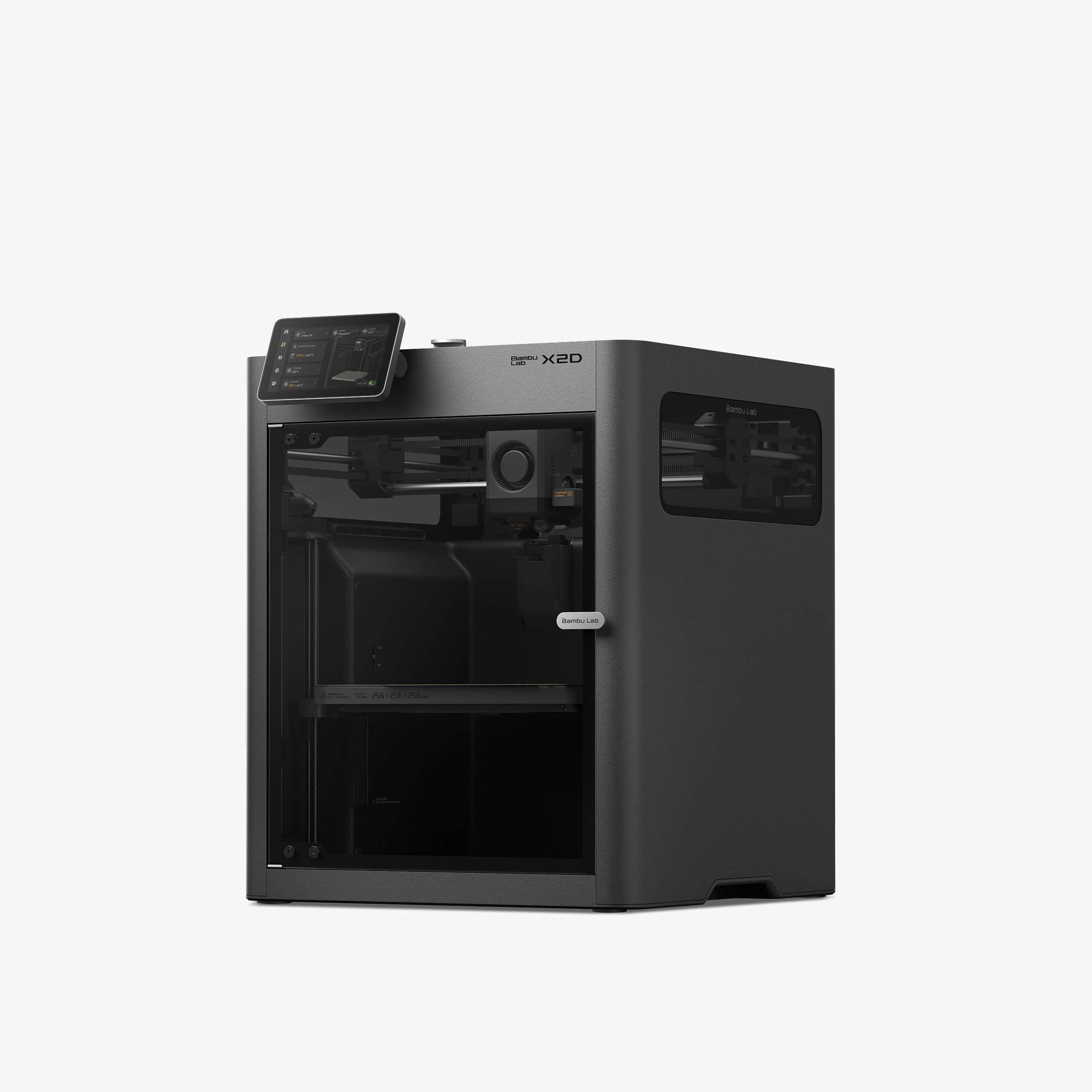

The short answer: the Bambu Lab X2D uses a 256 x 256 mm build plate and has a stated 256 x 256 x 260 mm build volume for main-nozzle printing.
That makes the X2D a normal mid-size desktop machine in footprint, not a large-format printer. If you came here hoping the X2D was secretly an H2D-sized machine with a lower price, it is not. If you mainly wanted to know whether it still has enough room for most everyday functional parts, fixtures, housings, and moderate-size assemblies, the answer is yes.
Fast facts
- Build plate size: 256 x 256 mm
- Stated build volume: 256 x 256 x 260 mm
- Source: Bambu Lab X2D technical specs and X2D FAQ language around current 256 x 256 mm build plates
- What that means in plain English: the X2D sits in Bambu's familiar mid-size desktop lane, not in the bigger H2D class
Measure the decision before you shop for a bigger machine
The X2D size question is most useful when it ends in a real fit check. Measure the mating part, confirm the oriented model in the slicer, and leave room for brims, supports, purge behavior, and edge clearance.
A replacement sheet listed near 257 mm does not automatically fit the X2D just because the number looks familiar. The current BIQU CryoGrip Pro Frostbite 257 x 257 mm build plate listing (affiliate link) explicitly names the X2D. Treat it as a cold-grip spare-surface option, not proof that every 257 mm plate fits: confirm the selected Frostbite variant, X2D model name, locating features, plate-detection or slicer workflow, surface, seller, and return terms again at checkout.
For occasional brackets, holes, and clearance checks
The Kynup 6-inch digital caliper is the lower-cost branch for checking hole spacing, wall thickness, flange width, and smaller mating features before a 256 mm build envelope becomes the excuse for a more expensive printer. The Kynup caliper review covers its practical bench fit and limits.
Its 150 mm range does not measure every near-limit X2D part; use a suitable larger measuring tool for dimensions beyond that range.
For frequent fit work and a premium long-term bench tool
The Mitutoyo Absolute digital caliper is the premium branch when repeatable measurements matter across prototypes, replacement parts, and ongoing functional-print work. Read the Mitutoyo caliper review before paying more for that ownership lane.
Choose it for repeated measurement work, not because a premium caliper changes the printer's build volume.
Keep the sequence honest: measure the real object, orient and slice the actual model, then decide whether the X2D envelope is enough. If size is already settled, move to X2D material capability or the X2D worth-it guide instead of turning this into an accessory shopping list.
Why this spec matters to buyers
Build volume decides whether a machine fits your parts in one piece, but it also influences how much you have to split models, how often you rotate parts diagonally to squeeze them in, and whether a printer feels like a flexible shop tool or a machine that keeps forcing layout compromises.
On the X2D, the size story is simple: you are buying for dual-nozzle workflow first, not for a giant work envelope. That is the cleanest way to keep the machine in its proper lane.
What the X2D size does tell you
- it gives you the same broad desktop class buyers already understand from other 256 mm Bambu machines
- it is big enough for many brackets, enclosures, jigs, shop helpers, organizers, and medium consumer-product parts
- it is roomy enough for a lot of serious functional printing without forcing you into a physically larger flagship
- it keeps the buying question focused on whether you need the second nozzle, not on whether you need a giant printer
What the build volume does not tell you
This is where buyers get tripped up. A printer's headline volume does not tell you how pleasant tall skinny parts will be, how much clearance your specific accessory or purge behavior may want in a real job, or whether your normal part shapes waste more room than the raw numbers suggest.
It also does not tell you whether the X2D is the right upgrade. Plenty of buyers search build size because it feels objective, when their real issue is actually support cleanup, material separation, multicolor waste, or whether they should step down to a simpler machine.
What the X2D size means in real workflows
For everyday functional parts
The X2D has enough room for a lot of real-world use: brackets, mounts, panels, bins, fixture parts, tool organizers, small housings, product prototypes, and many shop aids. For a buyer doing normal serious desktop work, the size is not a weakness.
For helmets, oversized panels, and long one-piece parts
This is not the machine to buy on size alone. If your shortlist is full of long parts, broad trays, large cosplay pieces, or single-piece panels that keep pushing past the 256 mm class, you should treat that as a sign to compare the X2D against the H2D or another larger-format branch instead of trying to force the X2D into a job it was not sized for.
For buyers comparing X2D to P2S or X1 Carbon
The X2D's size does not create the main separation here. The more important question is whether dual-nozzle workflow is worth paying for. If your parts already fit the common desktop lane, then the real decision becomes X2D vs P2S or X2D vs X1 Carbon, not size panic.
Why build plate size matters separately from build volume
Buyers often use these terms as if they mean the same thing. They do not.
- Build plate size tells you the usable XY footprint: how wide and deep the part can be on the bed.
- Build volume adds Z height: how tall the part can be.
On the X2D, the two are closely aligned because the headline size is basically 256 x 256 mm across the bed and 260 mm in height. That means the machine is balanced for broad general-purpose desktop work rather than oddly wide-but-short or tall-but-narrow use.
Where buyers misread this spec
Mistake 1: assuming bigger numbers automatically mean a better printer
They do not. If your parts already fit well inside the X2D envelope, moving to a larger machine just for the sake of larger numbers can add cost and space demands without improving your actual workflow.
Mistake 2: assuming the X2D is for big parts because it is a newer premium machine
The X2D is better understood as a workflow step-up than a size step-up. Its special argument is the second nozzle and what that changes for support-material and multi-material jobs, not a dramatic jump in capacity.
Mistake 3: using the size page to answer a different buying question
If what you really want to know is whether the X2D makes sense for your budget or job mix, open Who Should Buy the Bambu Lab X2D? or Is the Bambu Lab X2D Worth It in 2026?. Build volume alone will not settle that for you.
Who should care most about the X2D's build size?
- buyers who already know their current parts fit inside a 256 mm class machine and just need to confirm the X2D is not smaller than expected
- buyers deciding whether the X2D solves a workflow problem without requiring a physically larger printer
- buyers comparing the X2D to larger machines and trying to separate capacity questions from dual-nozzle questions
If your main reason for researching the X2D is that you need noticeably more room, this spec is the clue that you should widen the comparison set instead of forcing a yes.
Bottom line
The Bambu Lab X2D has a 256 x 256 mm build plate and a 256 x 256 x 260 mm stated build volume. That is enough for a lot of serious desktop printing, but it is not the reason to buy the machine.
The reason to buy the X2D is its dual-nozzle workflow upside. The size is simply adequate, familiar, and easy to live with for many buyers. If you need more room than this, compare upward. If your parts already fit, focus on whether the second nozzle actually changes your work.
Related reading
- Bambu Lab X2D review
- Who Should Buy the Bambu Lab X2D?
- Is the Bambu Lab X2D Worth It in 2026?
- Best Alternatives to the Bambu Lab X2D
- Bambu Lab X2D vs Bambu Lab P2S
- Bambu Lab X2D vs Bambu Lab X1 Carbon
- Bambu Lab X2D vs Bambu Lab H2D
- Bambu Lab X2D vs Prusa XL
If only a few parts are pushing beyond this build envelope, do not turn an occasional size problem into permanent hardware by default: compare buying with using a print service. For a production-minded check on splitting, orientation, material, or repeatability, talk with JC Print Farm; if the file, material, quantity, and timing are already known, request a quote.
Frequently asked questions
Bambu X2D bed-size and build-volume FAQs
What is the Bambu X2D bed size?
Use 256 x 256 mm, or about 10.08 x 10.08 inches, as the bed and plate-planning figure. Confirm that any replacement surface explicitly lists X2D compatibility.
What is the X2D build volume with the main nozzle?
Bambu lists 256 x 256 x 260 mm, or about 10.08 x 10.08 x 10.24 inches, when the main nozzle prints the job.
What is the X2D build volume in dual-nozzle mode?
Bambu lists 235.5 x 256 x 256 mm, or about 9.27 x 10.08 x 10.08 inches, for auxiliary- or dual-nozzle printing. Use this smaller envelope whenever the second tool participates.
Why does dual-nozzle mode lose 20.5 mm of X width?
The tool arrangement and motion clearances reduce the stated X envelope from 256 mm to 235.5 mm when the auxiliary nozzle or both nozzles print. The second nozzle adds workflow options, not build width.
Will a 250 mm-wide part fit on the X2D?
It may fit in main-nozzle mode after the complete final layout is sliced. It exceeds the published 235.5 mm X limit for auxiliary- or dual-nozzle mode unless a different orientation keeps the whole supported layout inside the boundary.
Can a 256 mm part use every millimeter of the X2D bed?
Do not assume so. Brims, rafts, supports, purge structures, excluded areas, edge clearance and removal requirements can make a nominal-limit model fail the usable sliced layout.
Does rotating a long part diagonally make it fit?
Sometimes, but rotation can increase support, height, weak-axis exposure and print time. Accept the orientation only after the full layout and finished-part requirements pass.
Is the X2D a large-format printer?
No. Its main-nozzle footprint is in the familiar 256 mm desktop class, while dual mode is narrower on X. Its value is the workflow and material platform, not a large-format bed.
When should you choose H2D instead for size?
Choose the larger branch only when recurring accepted jobs fail the correct X2D mode and splitting creates a measurable strength, sealing, alignment, labor, finish or inspection penalty. Outsource rare oversize exceptions before buying idle capacity.
Is the Bambu Lab X2D a large-format printer?
No. Its published 256 x 256 x 260 mm volume is a mid-size desktop envelope. Large helmets, long panels, and broad batch layouts may still need splitting or a larger printer.
Can an X2D part use every millimeter of the stated volume?
Do not assume that from the headline dimensions. Slice the actual orientation and allow for supports, brims, purge behavior, toolhead clearance, and any current manufacturer-listed exclusions.
Is every 256 mm replacement plate compatible with the X2D?
No. Nominal dimensions alone do not prove fit. Verify that the listing names the X2D and matches the locating, surface, and plate requirements for the printer.
Should you buy an X2D or a larger H2D for build volume?
Use the X2D when the parts fit and dual-nozzle workflow is the priority. Move to the H2D size class only when recurring parts or batch layouts genuinely need the larger envelope or the broader H2D workflow.
