A 3D print that fails at the same height every time is usually being triggered by something repeatable, not by random bad luck. The key is to determine what is actually repeating: the same layer in one model, the same physical Z height on the printer, or roughly the same elapsed time after the job starts. Those three patterns point to different causes.
If only one model fails at one layer, inspect the sliced toolpath, mesh, geometry transition, and sudden flow demand. If unrelated tall models fail at the same measured height, inspect Z-axis motion, wiring, filament routing, frame interference, and collisions. If failure follows elapsed time instead of height, investigate heat creep, enclosure temperature, motor or driver heat, and spool drag that develops during a long job.
Short answer: what should you check first?
- Measure the failure height. Record the distance from the build plate to the first damaged layer on at least two attempts.
- Compare a different model. Use a simple narrow tower that reaches beyond the suspect height without requiring much filament.
- Check the sliced preview at the failing layer. Look for a geometry change, bridge, dense top skin, support transition, speed jump, retraction burst, or abrupt rise in requested flow.
- Move the Z axis through that height with the printer idle. Listen and feel for binding, rubbing, cable tension, lead-screw trouble, or a gantry that stops moving smoothly.
- Watch the machine as it approaches the failure. Check spool rotation, filament angle, cable chains, Bowden tubes, toolhead wires, frame contact, and nozzle collisions.
- Compare height with elapsed time. A taller fast test and a shorter slow test help separate a physical Z-position fault from heat soak or time-dependent feed trouble.
The most useful distinction: model layer, machine height, or elapsed time?
“Same height” can describe three different repeat patterns. Treating them as one problem leads to random part replacement.
The same layer in the same model
The defect returns at the same model feature, even if the object is moved on the build plate. That points first to the file, sliced toolpath, geometry transition, local cooling, or a sudden extrusion demand. The printer may be healthy while the job repeatedly asks for something the current profile cannot deliver.
The same physical height on different models
Unrelated models begin failing at nearly the same measured distance above the plate. This pattern raises suspicion around the Z axis, gantry, cables, filament path, frame interference, or a component that reaches a bad position as the toolhead or bed rises.
Roughly the same number of minutes into a print
The height changes when speed, layer height, or model geometry changes, but the printer struggles after a similar runtime. That points toward heat soak, a hot extruder motor or driver, enclosure temperature, a fan that stops after warming, or a spool-feed problem that develops as material unwinds.
Read the failure pattern before changing anything
| What happens at the repeated point | Likely branch | Best next check |
|---|---|---|
| The whole upper section moves sideways | Layer shift caused by collision, belt or pulley slip, axis drag, or motor stress | Watch for nozzle contact and inspect motion hardware |

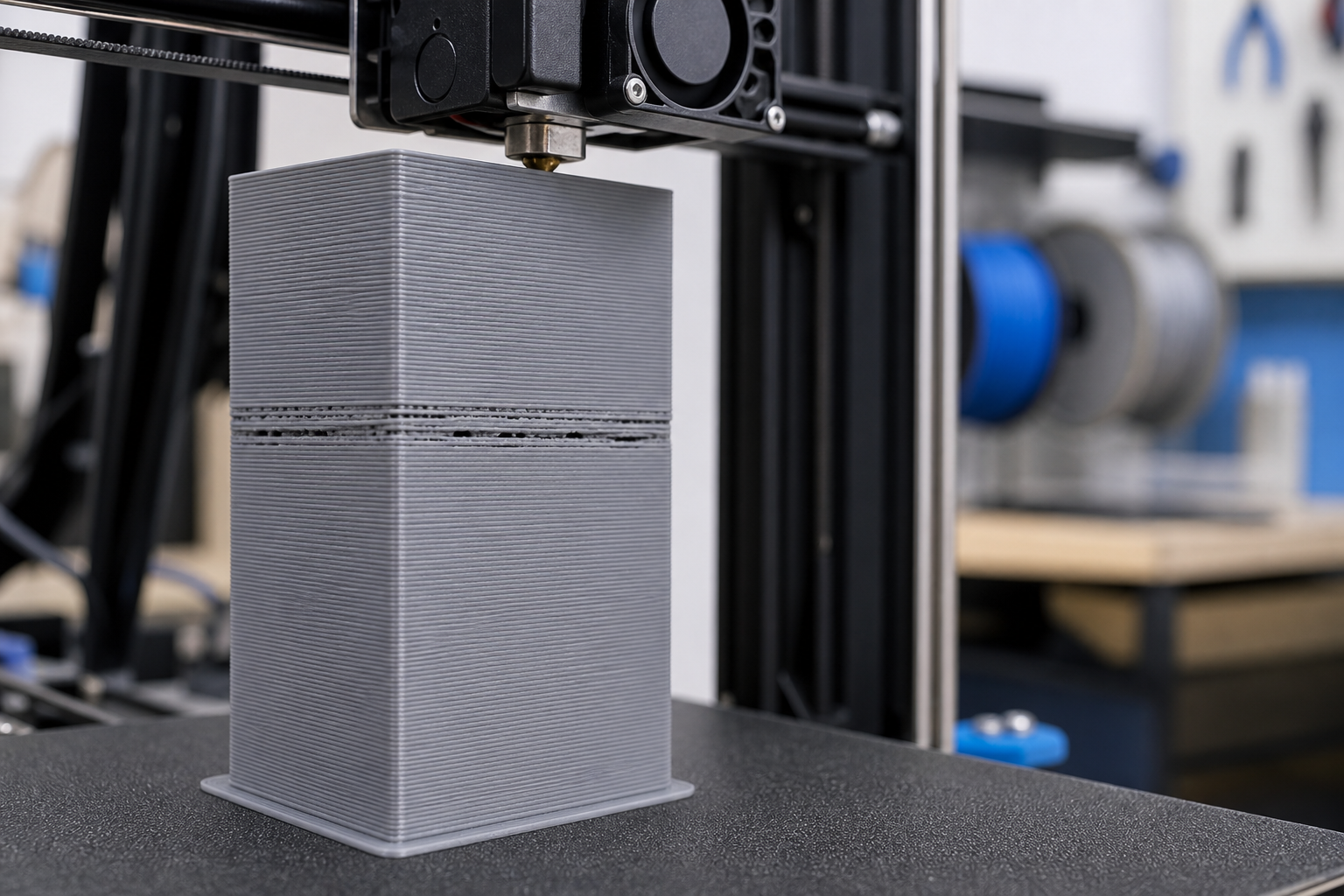

| One thin or missing horizontal band, then normal printing resumes | Brief feed restriction, spool snag, partial clog, damaged filament, or slicer command | Inspect filament path and preview the exact layer |
| Extrusion becomes thin and stays thin above the point | Heat creep, sustained flow limit, partial clog, motor heat, or increasing feed drag | Compare elapsed time and listen for clicking |
| The gantry or bed visibly hesitates at one Z position | Z binding, obstruction, damaged lead screw, misalignment, or cable interference | Move slowly through the range with power off only when the manufacturer allows it, or use controlled jog motion |
| The nozzle rasps across infill or a curled edge | Raised plastic creates a repeatable collision | Inspect infill crossings, curl, top skin, flow, and Z-hop need |
| The model stops or corrupts at one exact layer with no mechanical warning | File, storage media, transfer, slicer, or firmware interpretation problem | Re-slice from a known-good model and transfer by a different route |
Record enough evidence to tell repeated from coincidental
Keep both failed parts until the cause is known. Mark the front orientation, measure the first damaged layer from the plate, and photograph the defect from the same side. Save the project file, slicer version, profile, filament, nozzle size, printer logs if available, and estimated failure time. A difference of one or two layers may still indicate the same mechanical zone; a difference of 20 mm probably does not.
Note what the machine sounded like. Extruder clicking suggests feed pressure. A rasping sound suggests contact with the print. A Z motor buzz or repeated knock suggests binding or lost Z motion. A silent pause or restart points more toward file transfer, control, power, or firmware behavior.
Do not diagnose only from the finished part. Watch the five minutes before the expected failure on the next safe test. Many same-height problems reveal themselves upstream: a tube becomes taut, a cable touches the frame, the spool stops turning, the nozzle begins clipping infill, or the gantry rises unevenly.
1. If only one model fails, inspect the file and sliced layer
Open the sliced preview and move layer by layer through the failure zone. Color the toolpath by feature type, speed, flow, fan, or line width. Look for an abrupt transition from sparse infill to solid top skin, a bridge or overhang beginning, a dense support interface, many small islands, a retraction-heavy detail, or a wide line printed faster than the hotend can melt material.
A model repair issue can also create internal faces, zero-thickness regions, tiny disconnected shells, or a layer that slices unexpectedly. Re-export the model from the original design if possible. Re-slice with a current stable slicer version and a known profile rather than repeatedly sending the same old file.
Move or rotate the object on the plate and slice again. If the defect remains tied to the model feature, the file or feature demand becomes more likely. If it remains tied to the printer's absolute position or one motion direction, inspect the machine. Avoid changing the model, speed, temperature, and hardware together; the point of the test is to preserve one useful distinction.
2. If different models fail at the same Z height, inspect Z motion
Home the machine, then use its controls to jog the Z axis slowly through the suspect zone. Keep hands, hair, tools, and cables clear. Watch both sides of a dual-Z gantry. Listen for a pitch change and look for a lead screw, belt, guide rail, wheel, or bearing that hesitates at the same position.
Inspect lead screws for debris, dried lubricant, bent sections, loose couplers, or a nut that is mounted incorrectly. Check that guide wheels or linear bearings are neither loose nor preloaded so tightly that motion binds. On dual-Z machines, compare both sides for height mismatch and follow the manufacturer's alignment procedure. Do not force a stalled gantry by hand or loosen every fastener at once.
A recurring horizontal rib is not automatically a failure event. If the print completes but shows repeating wall bands, route that symptom into the Z-banding and ribbing guide. The present problem is narrower: a severe defect or stopped job that begins at one repeatable point.
3. Check cables, tubes, and filament routing at the suspect height
A cable can move freely near the bed but become taut when the toolhead reaches higher Z. The same is true of a Bowden tube, reverse-Bowden guide, filament sensor lead, toolhead harness, or cable chain. Jog through the full working range while watching for rubbing, sharp bends, connector strain, and contact with the frame or print.
Check the spool path from the spool to the drive gear. A side-mounted spool may feed at an increasingly poor angle as the toolhead rises. A nearly empty spool can cross its own winding, snag at a damaged rim, or pull a lightweight holder sideways. Verify that the spool turns smoothly under the same geometry used during the failure.
Do not remove cable strain relief or bypass a filament sensor as a permanent cure. Correct the routing with the printer maker's supported clips, guides, and clearances. A temporary observation test can identify tension, but the final setup must protect connectors and moving wires throughout the entire build volume.
4. Separate a repeatable collision from a random layer shift
If the upper portion suddenly moves sideways, use the layer-shift guide to inspect belts, pulleys, axis drag, acceleration, and motor stress. When the shift happens at the same model feature, however, a nozzle collision is especially likely. The same curled corner, raised infill crossing, overfilled top surface, or detached support can hit the nozzle on every attempt.
Watch the travel path at the expected layer. Look for scrape marks and listen for contact. Grid-style infill can build raised crossing points on some material and flow combinations. Warped corners also rise progressively until a travel move finally catches them. The nozzle-scraping guide separates those contact patterns from basic belt trouble.
Z-hop may help a known travel-clearance problem, but it should not hide severe over-extrusion, a loose hotend, a warped part, or lost Z motion. Fix the raised feature first, then use travel clearance only when the remaining risk is small and understood.
5. Look for a sudden flow-demand change
A tall object can print clean walls for hours and then reach a roof, thick top region, bridge, support interface, or dense detail that asks for much more extrusion. If requested volumetric flow jumps beyond the hotend's stable capacity, the extruder may click, grind filament, or create a thin horizontal band at the same model layer.
Check the preview's speed and flow coloring. Compare normal wall demand with the failing feature. A lower feature speed, suitable temperature adjustment within the filament maker's range, or a more realistic maximum volumetric-flow limit can solve a demand spike. Do not raise temperature automatically if the real cause is a partial clog, crushed filament, poor cooling at the heat break, or upstream drag.
If extrusion is weak in multiple regions rather than only at one model transition, follow the under-extrusion troubleshooting guide. If clicking is the first clear symptom, the extruder-clicking guide gives a faster cause-by-timing route.
6. Test whether the trigger is elapsed time and heat soak
Two jobs can fail at similar heights simply because they take a similar amount of time to reach them. Print a simple tower at a meaningfully different layer height or speed while staying inside safe limits. If the defect appears after a similar number of minutes but at a different height, investigate thermal and time-dependent causes.
For PLA in an enclosed printer, hot chamber air can soften filament too high in the hotend and cause mid-print restriction. Use the enclosed-printer PLA heat-creep guide when extrusion starts normally and degrades only after the machine warms. Confirm that the heatsink fan runs continuously as designed and that vents are used according to the printer maker's guidance.
Motors and drivers can also become less tolerant as temperature rises, especially when axis friction, current, enclosure heat, or acceleration is already near a limit. Do not change driver current casually. First confirm free motion, clean cooling paths, working fans, supported firmware settings, and the machine's documented operating range.
7. Rule out the file, storage media, and transfer path
If the printer pauses, reboots, or stops interpreting motion at one exact command, generate a fresh file. Start from a known-good simple model, use a stable slicer release and conservative profile, save under a new filename, and transfer it through a known-good route. Replace visibly damaged removable media with reputable media formatted as the printer maker specifies.
Review logs or console messages if the machine exposes them. A thermal fault, communication timeout, storage read error, crash-detection event, or power interruption should be handled according to its actual message. Do not disable safety checks to force a file past the failing point.
If the new simple file crosses the height cleanly, return to the original project and isolate the offending layer or feature. If both files fail at the same absolute height, the evidence moves back toward machine motion, routing, or interference.
A controlled test that separates the cause branches
- Measure and photograph the original failure height.
- Slice a narrow, stable tower that extends 20 to 30 mm above that point and uses little filament.
- Use a known baseline profile and preview the entire toolpath.
- Observe spool, cables, Z motion, sound, and nozzle clearance as the tower approaches the suspect zone.
- If it fails at the same absolute height, inspect Z motion and routing before changing the model.
- If it passes, print a cut section of the original model that begins below and ends above the problem feature.
- Change print speed or layer height enough to alter runtime. Compare whether failure follows height, model layer, or elapsed minutes.
- Make one correction and repeat the same diagnostic test before restarting the full job.
Keep the test narrow and stable. A very tall thin tower can introduce its own wobble, cooling, or bed-adhesion problem. The goal is to cross the suspect height safely, not to create a different failure.
Fixes that match the evidence
- Same model layer: repair or re-export the mesh, re-slice, reduce the confirmed flow spike, change the feature strategy, or correct the local support and cooling issue.
- Same absolute Z height: remove the documented obstruction, restore supported lubrication, align the Z system, correct cable or tube routing, and replace damaged motion parts.
- Same elapsed time: restore hotend cooling, manage enclosure temperature for the material, reduce verified motion or flow stress, and repair heat-related electronics or feed problems.
- Same collision feature: correct warp, raised infill, excess flow, loose hardware, or travel clearance before increasing Z-hop.
- Same file command: re-slice from a clean source, use known-good media and transfer, update only through supported firmware procedures, and preserve any error logs.
After the fix, run the diagnostic tower or cut section twice. One successful pass is encouraging; two observed passes are better evidence that a repeatable trigger has actually been removed.
What not to change first
- Do not replace the nozzle because the defect happens at one exact height. A nozzle problem usually follows extrusion demand or time, not one physical Z coordinate.
- Do not tighten every wheel, belt, and screw. Excess preload can create the binding you are trying to remove.
- Do not disable thermal, crash, or filament safety checks. Read the fault and correct its cause.
- Do not reprint the entire tall part after every guess. Use a tower or cut section to isolate the trigger with less time and material.
- Do not assume moisture causes a fixed-height failure. Damp filament can destabilize extrusion, but it rarely knows the machine's Z position.
- Do not lubricate belts, wheels, or random surfaces. Use only the maintenance points and products specified for the machine.
Frequently asked questions
Why does my 3D print stop at exactly the same layer?
If it is the same model and exact layer, inspect the sliced command sequence, mesh, geometry transition, storage media, and any fault message. Re-slice from a clean source and test a different simple model through the same height.
Can a bent lead screw cause failure at one height?
Yes. A damaged or misaligned lead screw can bind more strongly at one rotational position or Z zone, but so can guide-rail preload, debris, a coupler problem, or cable interference. Observe the full Z system instead of replacing the screw from one symptom.
Why does the print have one weak horizontal line at the same height?
A brief spool snag, filament defect, partial restriction, sudden flow increase, aggressive retraction sequence, or slicer anomaly can create one weak band. Check whether the band follows the model layer or the machine's physical height.
Why does the printer fail after two hours even on different models?
That pattern is time-dependent rather than height-dependent. Inspect hotend cooling, enclosure heat, motor and driver temperature, spool drag, fans, and any error log. Change runtime with a controlled test to confirm the relationship.
Can bad G-code make a printer fail at the same point?
Yes. A corrupt transfer, damaged media, slicer defect, or problematic model feature can repeat at one command. Generate a fresh file from a known-good model and transfer it through a known-good path before blaming motion hardware.
Should I add Z-hop when failure repeats at the same height?
Only when observation confirms a minor travel collision. Z-hop will not repair a binding Z axis, loose pulley, severe warp, over-extrusion, cable snag, heat creep, or corrupt file.
Next steps
Once the immediate cause is corrected, run the printer setup checklist and save a known-good tower file for future diagnosis. The print-quality problem guide can route any remaining wall, first-layer, bridging, or seam symptom without turning this page into a generic tuning list.
If repeated tall-part diagnosis is consuming more time than the part is worth, compare continued ownership work with using a print service. JC Print Farm is a sensible next step when the file, quantity, material, and deadline are already defined and the real need is reliable output rather than another repair cycle.
