PLA that starts clean and then turns thin, intermittent, or jammed later in an enclosed print is often getting soft too high in the hotend. As chamber temperature rises, the hotend heatsink has less cool air to work with. If the hotend fan is weak, obstructed, or recirculating hot chamber air, PLA can swell in the heat-break transition and become difficult for the extruder to push. This is commonly called heat creep. Confirm the time-dependent pattern before changing flow, retraction, or nozzle temperature, because a partial clog, spool drag, and excessive print speed can create similar symptoms.
Short answer: open the enclosure and check hotend cooling first
If PLA prints normally for the first 20 to 90 minutes and then the extrusion weakens as the enclosure warms, run one controlled test with the enclosure door or top vent open, provided the printer manufacturer allows that PLA workflow. Make sure the hotend heatsink fan is spinning steadily and its intake and exhaust path are clear. If the same file runs longer or finishes with the chamber vented, heat creep becomes much more likely.
Do not treat that single test as proof by itself. A spool can bind at a particular diameter, a Bowden or PTFE path can tighten at one toolhead position, and a nozzle can clog after debris reaches it. The useful clue is a failure that follows elapsed warm-up time more consistently than model height or toolhead location.
What the failure pattern can tell you
| What you observe | Most likely lane | First useful check |
|---|---|---|
| Clean start, weaker flow after the chamber warms | Heat creep or weak hotend heatsink cooling | Repeat with the approved PLA venting position and verify fan airflow |
| Failure always occurs at one spool position | Spool snag, crossed winding, or feed-path drag | Unload enough filament to inspect the spool and routing without pulling on a hot jam |
| Weak flow begins only in fast infill or thick lines | Volumetric-flow limit or nozzle restriction | Compare the requested flow with slower walls from the same job |
| Extruder clicking starts as flow gets thin | Downstream resistance, not necessarily an extruder-tension fault | Pause and inspect timing, chamber heat, fan operation, and the filament path |
| Extrusion is rough or bubbly from the first layer | Moisture, contamination, or an existing nozzle problem | Do not call it heat creep just because the printer is enclosed |
Why an enclosure can cause trouble with PLA

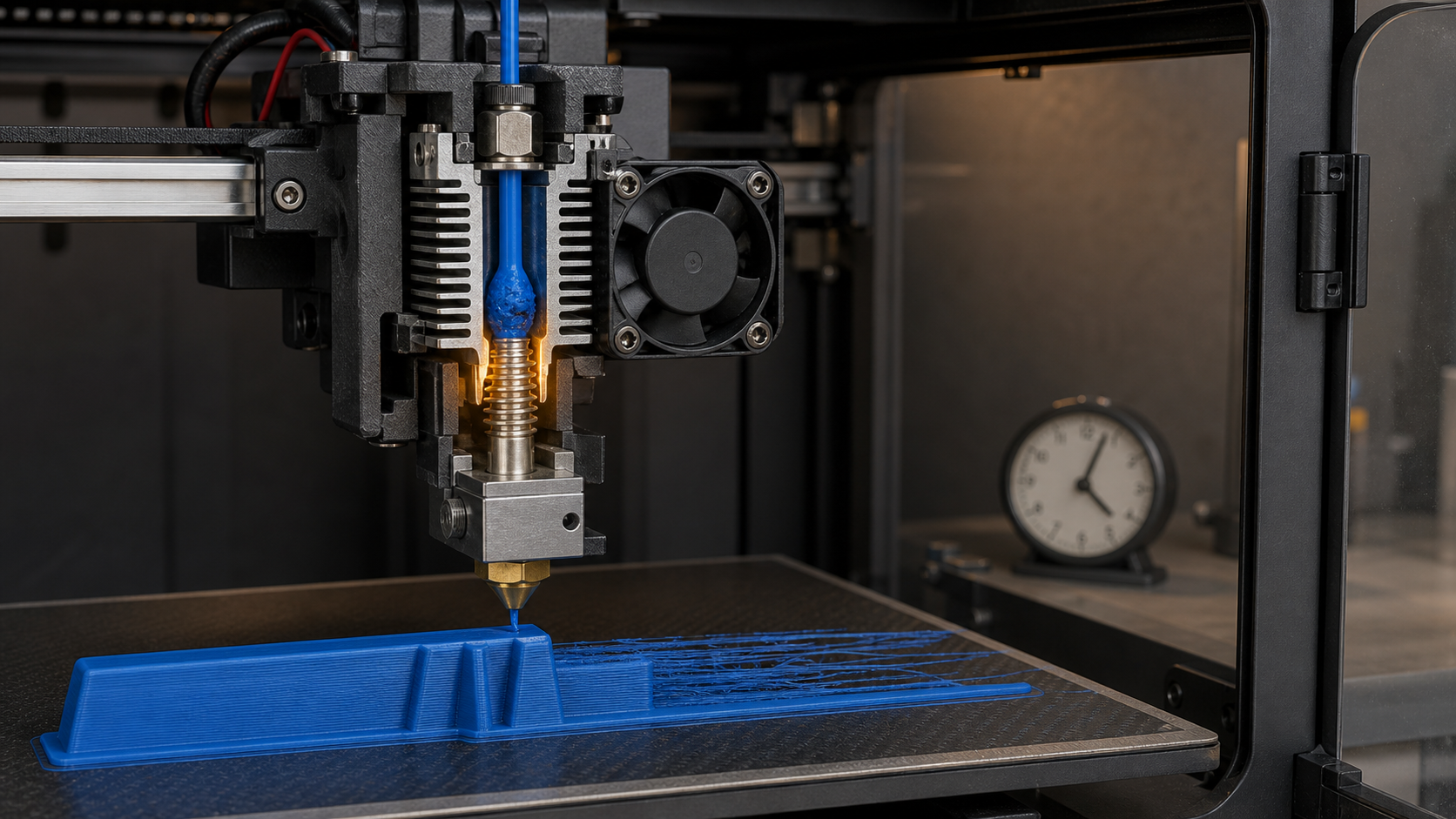

An enclosure is useful when a material needs a warmer, calmer environment, but PLA usually does not need a hot chamber. The hotend has two different thermal jobs: the heater block must melt filament below, while the heatsink and heat break must keep filament firm above. The heatsink fan moves heat away from that upper section.
As the air around the toolhead gets warmer, the fan removes less heat. PLA has a relatively low softening range, so the filament can become rubbery before it reaches the intended melt zone. The extruder then pushes a soft plug into a narrow transition, the filament bulges, drive gears begin to slip or click, and deposited lines become thin. Retractions can worsen the plug by repeatedly pulling softened material upward, but high retraction is usually an amplifier rather than the only cause.
What to check before changing slicer settings
- Record when the failure starts. Note elapsed print time, chamber temperature if the printer reports it, and whether the defect begins after the door has been closed for a consistent period.
- Confirm the hotend fan runs continuously when expected. A stalled fan, intermittent connector, damaged blade, dust-loaded intake, loose duct, or reversed replacement fan can remove too little heat.
- Check the approved PLA enclosure position. Some enclosed printers expect the top, door, or a vent to remain open for PLA. Follow the manufacturer guidance rather than improvising around safety switches or filters.
- Inspect the spool path. Look for a snag, sharp tube bend, overloaded dry-box seal, tangled winding, or toolhead-position-dependent resistance.
- Compare low-flow and high-flow sections. If only fast infill starves, the hotend may simply be exceeding its melt capacity.
- Stop after repeated clicking or grinding. Continuing can chew a deep notch into the filament and make unloading harder.
How to confirm heat creep without guessing
Run a controlled enclosure test
Use the same PLA, file, plate, and slicer profile. Change only the enclosure condition allowed by the printer maker: open the door, remove or open the top, or select the printer's PLA ventilation setting. Start from a cooled machine so the comparison is meaningful. If the original failure appeared after 45 minutes, a five-minute extrusion test does not reproduce the thermal state.
Watch the hotend fan, not just the part-cooling fan
The part-cooling blower cools deposited plastic. The hotend heatsink fan cools the upper hotend. A printer can have strong visible airflow at the print while the heatsink fan is stalled or obstructed. Verify the correct fan by location and by the manufacturer's service guidance.
Inspect unloaded filament after the machine is safe
After following the maker's unload and cooldown procedure, look for a pronounced swollen section, mushroomed plug, deep drive-gear notch, or kink near the heat-break transition. That shape supports a softening-and-resistance diagnosis. A cleanly chewed notch with no swollen plug can instead point to a jam, spool drag, or too much drive pressure.
Fixes to try in a controlled order
- Use the recommended PLA ventilation setup. This is usually the lowest-risk first change on an enclosed consumer printer.
- Restore hotend heatsink airflow. Clean accessible dust only when the printer is cool and powered down. Replace a faulty fan with the correct voltage, connector, airflow direction, and specification.
- Lower unnecessary chamber heat. Do not preheat the enclosure for PLA, and avoid an excessive bed temperature after the first layers if the profile and adhesion allow a lower value.
- Return retraction to a sane baseline. If a copied profile uses unusually long or frequent retractions for a direct-drive hotend, return to the printer or filament-maker baseline before fine tuning.
- Check nozzle temperature after airflow is fixed. Excess heat can increase the thermal load, but dropping temperature too far can also raise extrusion pressure. Make small changes and verify layer bonding.
- Reduce peak volumetric flow if starvation follows fast sections. A heat-creep repair will not make a standard hotend melt unlimited PLA.
- Clear a confirmed plug or clog using the maker's procedure. Do not push tools into a hotend blindly or disassemble hot components without the specified method.
How to separate heat creep from a partial nozzle clog
A partial clog often produces weak flow from the beginning, stays weak after a cooled restart, or follows a material change, contaminated spool, or abrasive wear. Heat creep is more strongly tied to time and heat soak: the printer begins normally, degrades as the enclosure warms, and may recover after a full cooldown before failing again on a similar schedule.
The two can coexist. A heat-creep plug can leave residue, while a restricted nozzle raises back pressure and makes the extruder more vulnerable as the upper hotend softens. If the problem does not follow chamber warm-up, use the nozzle-clog troubleshooting guide before replacing the extruder or increasing drive tension.
When temperature, speed, or retraction is actually the cause
Nozzle temperature is too low
If under-extrusion begins exactly when the file enters high-flow infill or wide solid lines, the nozzle may not be melting material fast enough. The defect follows requested flow, not elapsed enclosure time. Slow the relevant section for one test or use a realistic maximum volumetric-flow limit.
Retraction is too aggressive
Excessive retraction distance or many rapid retractions can move softened PLA into the transition area and accelerate a jam. The failure often appears on travel-heavy geometry before it appears on a simple continuous wall. Fix enclosure heat and hotend cooling first, then tune retraction from a manufacturer-supported baseline.
Spool or tube drag rises with toolhead position
If extrusion weakens only at the rear, top, or far side of the build area, move the axes through the permitted inspection range with the printer cool and check whether the filament path tightens. A time-based problem that always happens at the same model feature may actually be position-based drag.
What not to do
- Do not keep raising extruder tension. More bite cannot push a soft plug through a constricted heat break and may flatten or grind the filament.
- Do not lower flow to hide missing plastic. Under-extrusion is already too little delivered material.
- Do not assume drying fixes every PLA jam. Moisture can make extrusion rough, but it does not repair a stalled heatsink fan or an overheated enclosure.
- Do not disable enclosure safety features. Use only the ventilation and service positions supported by the printer maker.
- Do not hot-tighten or dismantle the hotend casually. Heater and thermistor wiring can be damaged, and hotend torque procedures vary.
A practical diagnostic order
- Confirm the print starts normally and record the time when extrusion weakens.
- Stop before repeated clicking grinds through the filament.
- Verify the hotend heatsink fan and its airflow path.
- Repeat from a cool start using the manufacturer-approved PLA ventilation position.
- Inspect spool routing and whether failure follows one toolhead position or one high-flow feature.
- After safe unloading, inspect the filament for a swollen plug or drive-gear notch.
- Return retraction and temperature to sensible baselines, then change one variable at a time.
- If weak flow remains after cooldown, follow the broader under-extrusion guide and check for a persistent clog.
Common questions
Why does PLA jam only when the printer door is closed?
The closed door can let chamber temperature rise until the hotend heatsink no longer keeps the filament firm above the melt zone. Confirm with the approved open-door or vented PLA setup and a fully cooled repeat test.
Can a hot build plate cause PLA heat creep?
Yes, indirectly. A large bed can warm the enclosure substantially during a long job. Bed heat alone is not proof, but an unnecessarily high bed temperature can reduce the cooling margin around the hotend.
Why does the extruder click only after an hour?
Clicking means the drive system is meeting more resistance than it can overcome. When it appears only after heat soak, heat creep is a strong suspect, but spool drag and a developing nozzle restriction still need to be ruled out. The extruder-clicking guide maps those branches in more detail.
Should I print PLA colder to stop heat creep?
Not as the first move. A small reduction can lower thermal load, but too little nozzle heat increases melt resistance and can worsen skipping. Restore heatsink airflow and proper enclosure ventilation first.
Does wet PLA cause the same mid-print failure?
Wet PLA more often shows popping, surface roughness, bubbles, or inconsistent extrusion from early in the job. Drying may help when those clues are present, but a repeatable warm-chamber delay points more directly to heat management.
