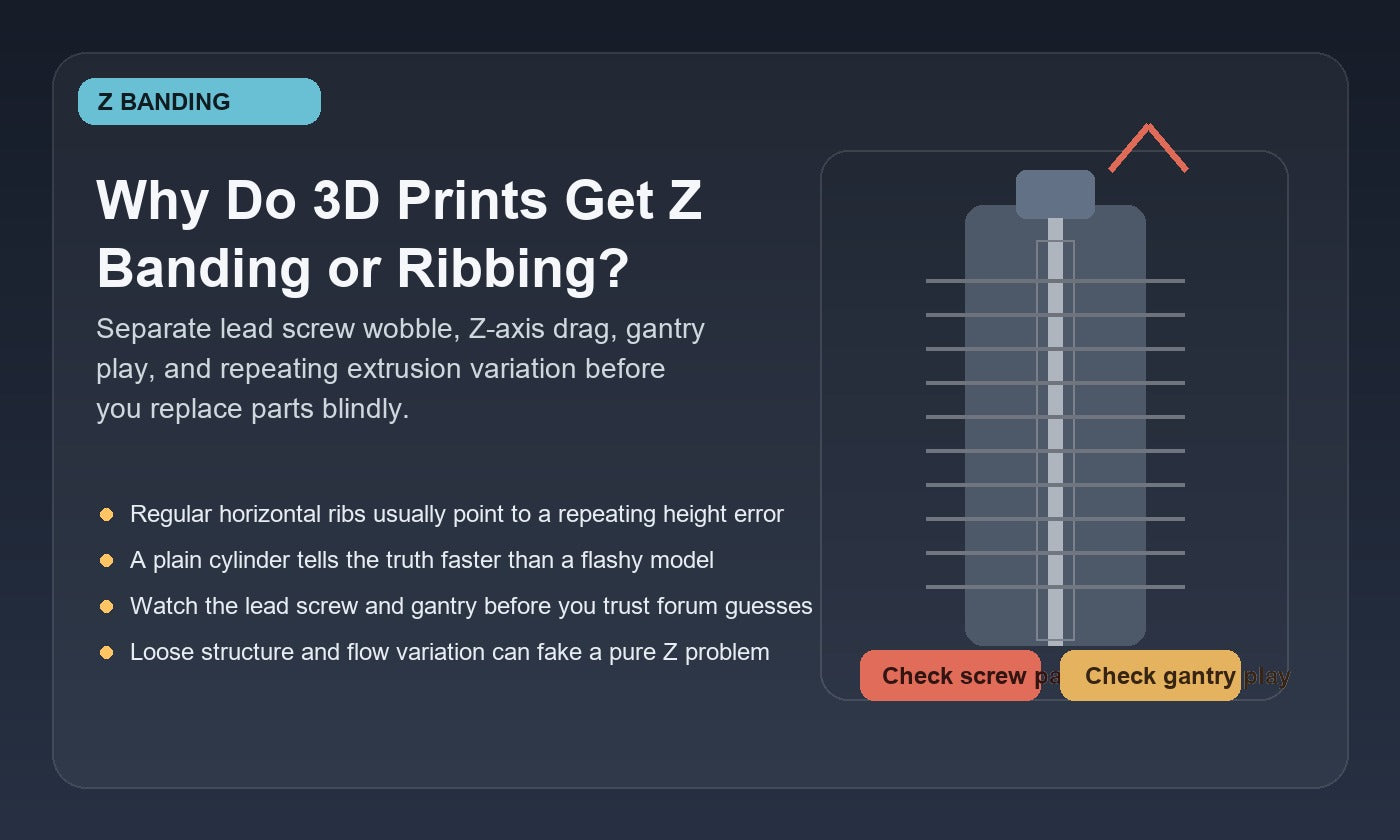

Z banding shows up as repeating horizontal lines or ribs running around the walls of a print. Sometimes it is subtle and only visible in reflections. Sometimes it is strong enough to make a cylinder look corrugated. Either way, the underlying question is the same: why is the printer repeating a height-related error instead of stacking layers smoothly?
The mistake people make is blaming every horizontal line on the same thing. Some prints really do have a Z-axis motion problem. Others are showing extrusion inconsistency, loose gantry behavior, or even normal geometry transitions that only look like banding from the wrong angle.
If you want the broader context first, use the main quality-problems hub. This page is the narrower operator question: why do 3D prints get Z banding or ribbing, what usually causes it, and what should you check first before you start replacing parts at random?
Short answer
Z banding or ribbing usually happens because something in the printer is repeating a vertical error as the part climbs. That can mean lead screw wobble, Z-axis binding or uneven lift, gantry or carriage play, or extrusion behavior that varies in a repeating pattern and gets mistaken for a pure Z problem.
The first checks are usually:
- whether the lines repeat at a regular vertical interval
- whether the Z axis moves smoothly without tight spots or wobble
- whether the lead screw, coupler, gantry, or bed has visible play or misalignment
- whether the defect is actually extrusion inconsistency wearing a Z-banding costume
If the pattern repeats with height on different models, think hardware and motion earlier. If it changes with filament, temperature, or flow behavior, keep extrusion on the suspect list too.
What true Z banding usually looks like
- repeating horizontal lines that wrap around the part
- a fairly regular vertical spacing between bands
- cylinders, tubes, and smooth walls showing the defect most clearly
- the same printer producing similar ribbing across different files
- stronger visibility in glossy materials or side lighting
That regular spacing matters. Random ugly walls are often something else. True Z banding usually repeats with height in a way that suggests a mechanical pattern, not a one-off blob or a travel scar.
The main cause split: why Z banding happens
| Failure area | What it usually looks like | What to check first |
|---|---|---|
| Lead screw wobble or coupler misalignment | Bands repeat at a regular interval that often follows one full screw rotation or a repeating bend pattern. | Lead screw straightness, coupler alignment, top-end constraint, and whether the screw visibly wobbles while moving. |
| Z-axis binding or uneven lift | Walls show periodic compression or expansion because the axis is not rising evenly or is fighting friction. | Smooth travel, rail or wheel preload, dry rods, bent guides, and whether certain height regions feel worse. |
| Gantry, carriage, or bed play | The printer reaches each new layer height, but the structure settles differently under motion and leaves repeating wall variation. | Loose wheels, bearings, frame fasteners, bed support play, and whether the gantry can rock by hand. |
| Extrusion inconsistency mistaken for Z banding | Lines look horizontal, but the real issue is repeating flow variation, pressure instability, or filament feed inconsistency. | Whether the part also shows weak areas, rough walls, blobs, or under-extrusion clues instead of a clean height-linked pattern. |
| Model geometry or normal layer behavior | Curves, diameter transitions, and glossy materials make ordinary layer stepping or feature changes look worse than they are. | Whether the banding lines line up with actual model features or change when you inspect a plain calibration cylinder. |
What to check first before you start changing everything
- Ask whether the pattern is truly repeating. Regularly spaced bands point toward a mechanical repeat. Random roughness points somewhere else.
- Print or inspect a simple cylinder. Complex geometry can hide the real signal. Cylinders make Z-linked patterns easier to see.
- Watch the Z axis move. If the lead screw, coupler, or gantry visibly wobbles or hesitates, that is more useful than five forum guesses.
- Check for play by hand. If the gantry, bed, or carriage rocks, the walls will usually tell on it.
If the printer baseline feels suspect more broadly, use the setup checklist next. If the walls are just generally inconsistent rather than regularly ribbed, pair this page with under-extrusion troubleshooting or ghosting or ringing instead of assuming every wall defect is Z banding.
Lead screw wobble is common, but it is not the only answer
People love a simple villain, and lead screws get blamed a lot. Sometimes that blame is fair. A bent screw, a coupler running out of alignment, or a screw that is constrained badly at the top can absolutely print its own repeating signature into the wall.
But not every horizontal rib means the screw itself is bad. If the gantry binds, the bed rocks, or the extrusion varies in a pattern, the print can still look like classic Z banding from the outside.
Binding and uneven lift often create uglier real-world banding than pure wobble
A Z axis that does not rise cleanly can compress one layer slightly, then release the next one, then repeat the fight. That leaves visible wall variation even if the screw is technically straight enough. Dry rods, too-tight wheels, dirty rails, or a gantry that is not moving square can all create this kind of vertical rhythm.
This is especially worth checking if:
- the defect gets worse in one section of height
- the gantry feels rough or sticky in some positions
- the printer recently got adjusted, rebuilt, or moved
- one side of a dual-Z system seems to lag or drag
Loose structure can imitate a pure Z problem
If the gantry or bed can settle differently under each layer change and motion cycle, smooth cylinders will often expose it. A wheel or bearing that feels only slightly loose by hand can still leave repeated wall ripple once the printer starts accelerating and stacking layers.
This is one reason Z banding sometimes gets worse after maintenance or upgrades. The new part is not always the problem. The reassembly tension, preload, or alignment might be.
Do not ignore extrusion clues
Some prints get labeled as Z banding when the real issue is inconsistent plastic delivery. If the wall also shows rough patches, thin sections, or pressure-related gloss changes, it may not be a pure vertical-motion defect at all.
That is why this page should connect with under-extrusion, blobs or zits, and the broader quality-problems hub instead of pretending every ribbed wall starts and ends with the Z screw.
What usually helps next
- verify the lead screw is straight enough and not being forced off-axis
- check coupler alignment and whether the screw is constrained in a way that adds wobble instead of isolating it
- clean and inspect Z rails, rods, wheels, and guides for binding or uneven preload
- tighten gantry, carriage, and bed hardware that shows real play
- rule out extrusion inconsistency before buying replacement Z parts on a hunch
If the printer has been printing fine and this defect showed up suddenly, think loose hardware, contamination, or a new binding point earlier than permanent screw damage.
When the model is fooling you
Glossy filaments, large smooth curves, and diameter changes can make ordinary layer stepping or wall transitions look harsher than they really are. That does not mean the issue is imaginary. It means you need a plain test piece before you diagnose the machine from one flashy model.
A simple cylinder or tower usually tells the truth faster than a decorative part with reflections, embossed text, and varying wall thickness.
Editorial take
Z banding is one of those defects that gets overdiagnosed because it sounds mechanical and serious. Sometimes it is. But the better operator move is to ask a calmer question first: is the wall defect truly repeating with height, and if so, is it coming from Z motion, loose structure, or repeating extrusion behavior? That split saves a lot of unnecessary screw-swapping.
If you want to buy the right bench help before you start replacing Z hardware on a hunch, match the tool to the clue you actually have
- The ribs look suspiciously regular and you need to prove whether the spacing really repeats: use the Kynup digital caliper alternative to measure the vertical interval instead of diagnosing from reflections and guesswork alone.
- You need to inspect screw wobble, coupler alignment, dry rails, or little bits of gantry play that are easy to miss under room lighting: the Coquimbo magnetic work-light two-pack is a buyable same-category alternative when visibility is the real bottleneck. As of July 29, 2026, it replaces the unavailable SiteLites listing; it is not the same light.
- The wall defect might actually be repeating flow inconsistency wearing a Z-banding costume: start with the OLYCRAFT 23PCS nozzle-cleaning kit before you start shopping for screws, because partial-clog behavior often gets blamed on the axis first.
If the pattern turns out to be more about broad fit drift than wall ribbing alone, branch into dimensional accuracy and hole fit. If it proves to be vibration echo instead of true height-repeat error, jump to ringing and ghosting. For the narrower buyer pages, the Kynup caliper review, magnetic work-light guide, and OLYCRAFT review are the cleanest next steps from this troubleshooting page.
Common questions
What is the difference between Z banding and normal layer lines?
Normal layer lines follow the expected surface texture of the print. Z banding usually looks more pronounced, more repetitive, and less uniform, with visible ribs or waves that should not be there.
Can a bent lead screw cause repeating bands?
Yes. A bent or misaligned lead screw can create a repeating vertical pattern. But it is not the only cause, so check for binding and structural play too.
Can under-extrusion look like Z banding?
Yes. Repeating flow inconsistency can create horizontal-looking wall variation that gets mistaken for a pure Z-axis problem.
Why do cylinders show Z banding more clearly?
Smooth round walls make repeating height defects much easier to see than textured or highly featured parts.
What should you read next?
Go next to the setup checklist, under-extrusion troubleshooting, ghosting or ringing, layer shifts, and the quality-problems hub depending on whether the next clue is vertical repeatability, general flow inconsistency, motion vibration, or bigger baseline machine issues.
Related reading
- 3D Printer Setup Checklist for Functional Parts: What to Dial In Before You Blame the Model
- Why Is Your 3D Printer Under-Extruding, and What Should You Check First?
- Why Do 3D Prints Show Ghosting or Ringing, and What Should You Change First?
- Why Do 3D Prints Shift Layers, and What Should You Change First?
- Common 3D Print Quality Problems and What Usually Causes Them
If repeated wall ribbing is already ruining visible parts and you need a cleaner production baseline instead of another week of machine diagnostics, JC Print Farm is a reasonable next checkpoint. If you already need the parts made, request a quote at quote.jcsfy.com.
Bottom line: Z banding or ribbing usually means the printer is repeating a vertical error, but the useful fix comes from separating true Z-motion trouble from loose structure and repeating extrusion inconsistency before you start replacing parts blindly.
