Layer shifts happen when the printer stops putting the nozzle exactly where the previous layer said it should be. Instead of a smooth wall, the part suddenly steps sideways, then keeps printing from the wrong position. Sometimes it is a small offset that ruins fit and cosmetics. Sometimes it is a major jump that turns the rest of the print into scrap.
This is not the same problem as ghosting, ringing, seam bumps, or rough walls. Those defects still follow the intended path. A layer shift means the machine lost position during motion. The useful troubleshooting move is separating belt or pulley slip, nozzle collisions, motion drag, and motor stress before you start changing random slicer settings.
If you want the wider context first, use the main quality-problems hub. This page is the narrower operator question: why did the print shift layers, what usually causes it, and what should you check first?
Short answer
3D prints shift layers because one axis fails to complete a move cleanly, then the printer keeps going from the wrong position.
The first checks are usually:
- loose belts or pulleys
- nozzle or part collisions
- bed, gantry, or carriage drag
- motor current, overheating, or motion settings that are too aggressive
If the shift happens once at a clear snag point, think collision or binding early. If it happens on different files and different heights, think motion hardware, pulley security, or motor stress before you blame the model.

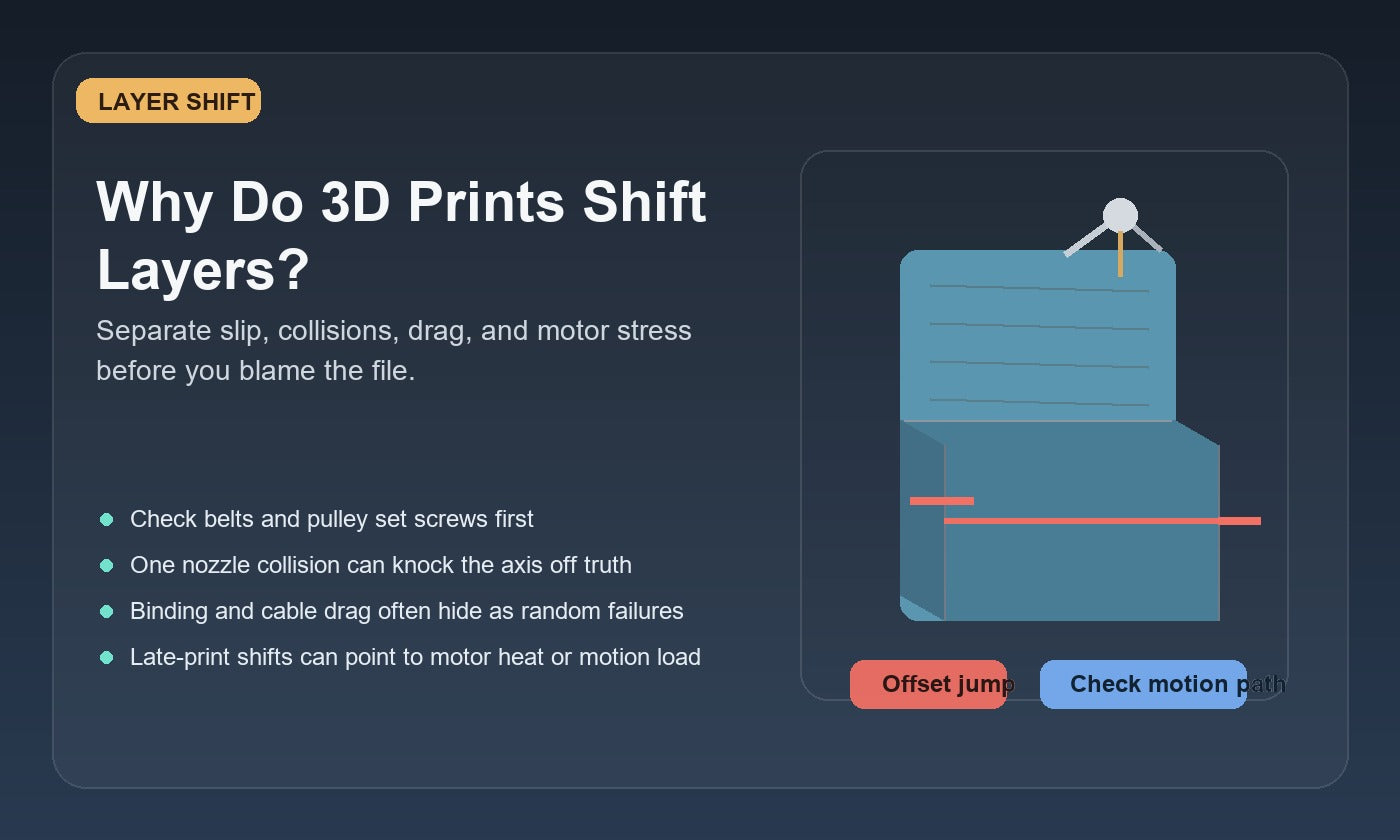

What a true layer shift usually looks like
- a sudden sideways step where the part keeps printing offset from the layers below
- one clean jump in X or Y rather than a gradual vibration pattern
- multiple shifted sections that line up with the same axis direction
- a print that was fine for hours, then suddenly starts printing in the wrong place
- nozzle scraping or a loud knock right before the offset appears
That pattern matters because a true layer shift is a motion-position failure, not a surface-finish failure. If the walls only look wavy near corners, that is closer to ghosting or ringing. If the wall has bumps at restart points, that is closer to seam bumps. Stay here when the printer actually lost its place.
The main cause split: why layer shifts happen
| Failure area | What it usually looks like | What to check first |
|---|---|---|
| Belt or pulley slip | The print jumps in one axis after a move because the motor turned but motion did not transfer cleanly to the carriage or bed. | Belt tension, pulley set screws, grub screws on motor shafts, and anything that feels loose by hand. |
| Nozzle collision or part impact | A sudden knock or scrape happens, then the next layers continue from a new offset. | Warped edges, curled overhangs, infill that is too proud, and whether the nozzle is hitting the part mid-print. |
| Axis drag or binding | The printer shifts near certain regions or motion directions because the bed, gantry, cable chain, or carriage does not move freely. | Smooth travel by hand, cable snags, debris on rails, bent rods, and whether one part of travel feels worse. |
| Motor overheating or weak drive conditions | Longer jobs fail after some time, especially when motors or drivers run hot or current is marginal for the load. | Whether the shift appears later in the job, enclosure heat, driver cooling, and any recent current or firmware changes. |
| Motion settings are too aggressive for the machine | The printer loses steps during hard direction changes, tall fast infill, or heavy bed movements even though the model itself is fine. | Acceleration, travel speed, infill speed, machine mass, and whether the profile came from a stiffer or faster printer. |
What to check first before you touch the file
- Look for a clean offset, not a cosmetic defect. If the whole upper section is shifted sideways, this is motion loss, not just ugly walls.
- Ask whether you heard a knock. One collision sound right before the defect is a huge clue.
- Move the axes by hand with power off if your printer design allows it safely. Binding, cable drag, or rough travel often reveals itself immediately.
- Check pulley set screws and belt tension before changing ten profile values. A loose pulley can waste hours of theory.
If the machine baseline feels suspect more broadly, use the setup checklist next. If the shift followed visible part lift or a scraping edge, pair this page with overhang curl or the relevant warping page instead of treating it like a pure electronics mystery.
Loose belts and pulleys cause more layer shifts than people want to admit
Layer shifting gets blamed on firmware, slicers, and corrupted files all the time, but the boring hardware answer is still common: something in the motion path is slipping. If a pulley is not locked properly to the motor shaft, or a belt has too little tension to hold position under load, the motor can do its job while the axis still ends up somewhere else.
This usually shows up as:
- repeated shifts on the same axis
- worse behavior on fast travel or infill moves
- a problem that appears across multiple models
- intermittent success that makes the printer seem "almost fine"
That is why pulley security is a first-hour check, not a last resort.
Nozzle collisions can create a one-time violent shift
If the nozzle hits a curled edge, a lifted corner, a proud infill line, or a support remnant, the machine can skip position in one instant. Then the print keeps going from the wrong location as if nothing happened. Operators sometimes chase motor current for hours when the real trigger was just one physical impact.
This is especially worth suspecting when:
- the shift happened right after a scraping or knocking sound
- the defect started near a tall thin feature or curling lip
- the print was otherwise fine until one problem area
- the nozzle has been clipping infill or overhangs during travel
If the print is already showing lifted edges, route next into ABS warping, ASA warping, or overhang curl depending on what the part is actually doing.
Binding and cable drag fake a more complicated problem
An axis that moves freely for most of its travel but snags in one region can create maddeningly inconsistent shifts. The same goes for cable bundles, PTFE tubes, or drag chains that tug harder at certain positions. The printer may pass easy tests and still fail on real geometry that pushes travel farther or faster.
In plain language: if the axis cannot move cleanly everywhere, eventually the printer will miss a step or lose position.
Motor heat and over-aggressive motion can team up
Some layer shifts only show up on longer jobs, inside warmer enclosures, or on profiles that push infill and travel harder than the machine can sustain. In those cases the printer may not be mechanically loose at all. Instead, the motors or drivers are working too close to the edge, then losing steps once heat, load, or acceleration crosses the line.
This is one reason "it prints small parts fine" is not proof the machine is healthy. Larger parts, longer jobs, and fast travel-heavy geometry ask more from the motion system.
Common mistakes that waste time
- blaming the STL first when the printer clearly lost physical position
- changing temperatures randomly even though the symptom is axis motion loss
- ignoring one audible collision because the rest of the print looked normal before it shifted
- tightening only the belt while missing a loose motor pulley set screw
- copying fast profiles from a different machine class and assuming your printer can absorb the same acceleration
What usually works next
- check pulley set screws and belt tension on the axis that shifted
- inspect for nozzle collisions, curled edges, or proud infill before rerunning the same job
- verify the bed, gantry, and carriage move freely through full travel
- reduce aggressive travel or acceleration if the machine is near its limit
- pay attention to motor and enclosure heat on longer prints
If the same print still fails after motion hardware checks, move next into the print-settings guide and the setup checklist so you can calm the machine systematically instead of guessing.
Editorial take
Layer shifts are one of the clearest symptoms in FDM printing because the machine is telling you, very directly, that it lost motion truth. The smart response is not panic-tuning. It is asking what made one axis stop obeying exactly? Usually the answer is simpler than it looks: slip, collision, drag, or a machine being pushed harder than its motion system can repeat cleanly.
Common questions
What causes layer shifts in 3D printing?
The most common causes are loose belts or pulleys, nozzle collisions with the part, axis binding or cable drag, and motors losing steps because heat or motion settings are too aggressive.
Are layer shifts the same as ghosting or ringing?
No. Ghosting and ringing are vibration ripples that still follow the intended path. A layer shift is a real position loss where the printer starts printing from the wrong place.
Can a warped print cause a layer shift?
Yes. If a lifted corner or curled edge gets hit by the nozzle hard enough, the axis can skip position and the rest of the print may continue offset.
Why do layer shifts happen later in long prints?
Longer jobs can expose motor heat, driver heat, enclosure heat, and sustained motion load that short test prints never reveal.
What should I read next?
Go next to the setup checklist, the print-settings guide, ghosting or ringing, and the quality-problems hub depending on whether the next job is machine-baseline work, motion-profile cleanup, surface-pattern diagnosis, or broader symptom sorting.
