Direct answer: when an ASA part starts flat but later lifts at the corners or curls along a long edge, the material's contraction is outrunning the grip and temperature stability around the part. Check the failed part in this order: first-layer quality, one-sided draft exposure, enclosure stability, part cooling, footprint geometry, then brim or adhesion aids. Treat moisture as the lead only when the same spool also pops, strings, or extrudes inconsistently.

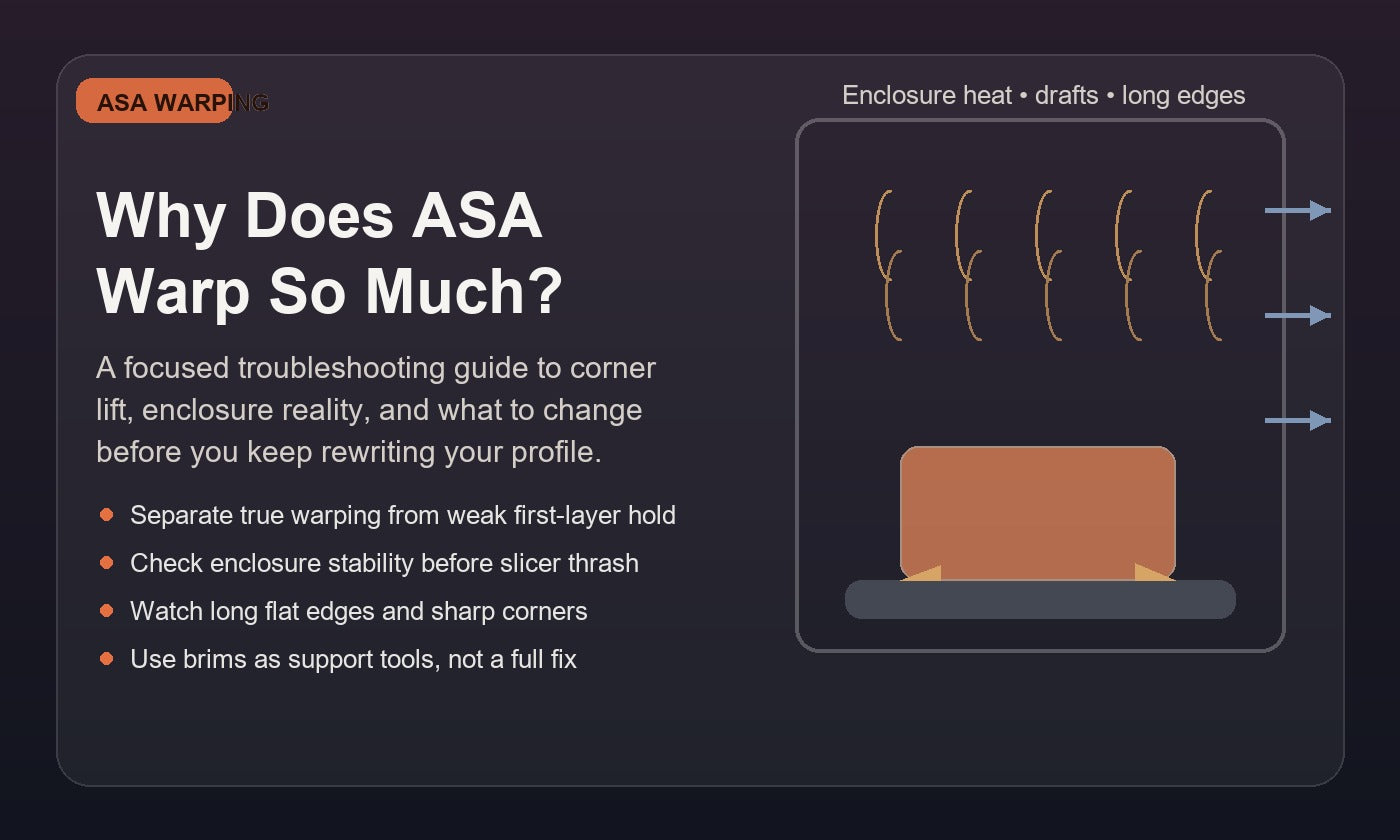

This page covers one exact failure: the base of an ASA print pulls upward during the job. It is not a guide to a top overhang curling upward, a part splitting between layers, or a first layer that never attached. Photograph the failed corner, note when it first moved, save the sliced file and profile, and change one cause at a time.
Disclosure: GoodPrints may earn from qualifying purchases through clearly labeled affiliate links on this page, at no added cost to you.
Read the failure timing before changing a setting
| What happened | Best first lead | What to inspect |
|---|---|---|
| Lines were separated, round, or loose from the first layer | Weak first-layer baseline | Plate selection, cleanliness, calibration, and supported profile |
| The base looked clean, then a corner lifted later | Thermal contraction | Enclosure stability, door opening, room airflow, and cooling |
| The same side or corner fails repeatedly | One-sided environment | Vent, fan, window, seam, or cold zone near that side |
| Compact parts pass but broad boxes or covers lift | Geometry leverage | Long edges, sharp corners, footprint area, and orientation |
| Warping arrived with popping, stringing, or rough flow | Spool-condition noise | Known-dry comparison before profile changes |
Check 1: restore a trustworthy first-layer baseline
Do not diagnose thermal warping from a base that was already weak. Confirm that the physical build surface matches the selected plate and that the filament, printer, and plate use a supported starting profile. Inspect the failed underside. Lines that never joined, gaps near the perimeter, or a corner that was loose immediately point to first-layer setup before they point to enclosure heat.
Follow the plate maker's cleaning and preparation instructions. Do not assume one solvent, adhesive, or abrasive routine is safe for every coating. If the first layer is visibly wrong, use the first-layer workflow and the bed-adhesion guide before adding enclosure or geometry variables.
Check 2: prove whether the enclosure is stable, not merely present
An enclosure can still have a cold seam, an open door, a strong exhaust path, or room air striking one panel. Note whether the failed side faces an air-conditioning vent, window, doorway, enclosure gap, or frequently opened door. If one corner fails repeatedly, rotate only the part or relocate the airflow source in a controlled test; do not change orientation, temperatures, fan, and brim together.
Prusa's current ASA material guidance describes significant warping as a consequence of temperature differences between the model and its surroundings. It also says ventilation is important because ASA releases fumes, while warning against creating a draft around the print. That means safe ventilation and a calm print environment must be designed together. Do not disable required ventilation or defeat printer, enclosure, or room-safety instructions to chase a warmer chamber.
Check 3: compare the failure time with the thermal event
Record the approximate layer or elapsed time when the corner moved. Then look for a matching event: an enclosure door opening, a room fan starting, a large change in part cross-section, or part cooling becoming active. A clean base that survives the first layers and lifts after one of those events is different from a base that never bonded.
Keep the next test at the printer and filament maker's supported baseline. Do not invent a universal chamber, nozzle, or bed number from another machine. Sensor location, sheet construction, hotend limits, and enclosure design are not interchangeable.
Check 4: verify part cooling against the supported ASA profile
More fan is not a general cure for ASA warping. Too much cooling can raise the temperature difference across the part and weaken layer bonding. Too little local cooling can still hurt a small steep feature. Start from the supported ASA profile, verify that the fan behaves as commanded, and change only the stage of cooling connected to the failure.
Prusa's current warping guide frames the goal as avoiding cooling that is either too fast or too slow. If a fan change reduces base lift but produces ASA layer cracking, that is not a clean pass. Return to the proven baseline and solve the environment or geometry instead.
Check 5: test the footprint and orientation
Long straight edges and sharp corners give contraction more leverage. Compare a compact coupon with the actual footprint using the same validated profile and environment. If the coupon passes but the wide box or cover lifts, the machine may have a geometry limit rather than a globally bad ASA profile.
Test one geometry control at a time: move the part toward the plate's more uniform central region, rotate it away from a proven cold side, shorten the longest bed-contact edge through orientation, or split the design when that does not damage function. Fillets, corner radii, tabs, and stress-relieving design changes can help, but validate fit and load requirements before changing a production part.
Check 6: use a brim, ears, or adhesive for the job they actually do
A brim or corner ear increases the base's resistance to peeling. A plate-compatible adhesive can support hold or serve another surface-specific purpose. Neither removes the contraction inside the part. If a larger brim is the only thing keeping every medium-size print down, the environment, first layer, or geometry still deserves attention.
Use only tools and surface treatments approved for the exact plate. Start with a small test and remove the cooled part according to the maker's instructions. Do not trade a warped part for a damaged build surface.
Check 7: treat moisture as a secondary lead unless the spool proves it
ASA is partially hygroscopic, but base curl by itself is not enough to diagnose a wet spool. Moisture becomes a stronger lead when the same roll also pops, strings more, changes sheen, or extrudes inconsistently. Compare with a known-dry spool or follow the filament maker's drying instructions before rewriting a profile around that suspicion.
Use the ASA drying-versus-storage decision when spool evidence is present. The compact dryer recommendation below is a recovery lane, not the first answer to an enclosure or first-layer failure.
Apply the fix that the evidence proved
| Evidence | Fix | Proof of success |
|---|---|---|
| First layer was loose or discontinuous | Restore plate match, preparation, calibration, and supported profile | Uniform base before the warping test begins |
| One side fails near a vent, seam, or door | Remove the direct draft while preserving required ventilation | The same corner stays flat in a repeat |
| Lift follows a door opening or fan event | Stabilize that event or return cooling to the supported baseline | No lift without harming layer bonding |
| Small coupon passes; broad footprint fails | Change orientation, edge length, part split, or corner geometry | Scale the footprint in stages |
| A sound setup needs modest extra peel resistance | Use an approved brim, ear, or surface treatment | Clean hold and safe cooled release |
| Warping arrived with moisture symptoms | Dry by maker guidance and improve sealed storage | Known-dry repeat with stable flow |
Run one controlled ASA warping test
- Save the failed sliced file, profile, orientation, and plate selection.
- Photograph the underside and the lifted corner; record when it moved.
- Restore the supported baseline and correct only the first proven cause.
- Print a small footprint test in the same plate region.
- If it passes, scale toward the failed footprint without adding another variable.
- Judge the result only after checking base flatness, layer bonding, dimensions, and safe cooled release together.
If the first layer never becomes trustworthy, stop at adhesion. If a known good small test passes but the production footprint keeps lifting, stop retuning the whole printer and work on environment or geometry. If ASA is not required for the part's UV, heat, or service needs, compare the outdoor-material decision before forcing a difficult material into the wrong workflow.
Know when warping is a workflow limit, not another setting problem
A successful small coupon does not prove that the same machine, enclosure, plate region, and ASA profile can hold a broad production footprint. Use the coupon as the first rung of a size test, then increase the bed-contact length in stages. Stop when the same lift returns at a repeatable size instead of changing several settings to force one lucky print.
| Controlled result | What it proves | Next move |
|---|---|---|
| The defect stays on the same machine side after the part is rotated | The environment or plate region remains the stronger lead. | Inspect the enclosure seam, door, vent, fan, and plate zone on that side. |
| The defect follows the same model corner after rotation | Geometry and contraction leverage are the stronger leads. | Change orientation, radius the corner, add a deliberate tab, or split the part without changing the thermal baseline. |
| A small coupon passes, but lift returns at a repeatable footprint | You found a scale limit for the current workflow. | Reduce the longest contact edge, split the job, change material when service requirements allow, or move the job to a more suitable controlled workflow. |
| A brim holds the base, but the part cracks, distorts, or misses fit | The print is not a functional pass. | Return to environment, geometry, or material choice; do not count attachment alone as success. |
Use limits: stay inside the printer, filament, plate, and enclosure maker's supported temperatures and operating instructions. Do not defeat thermal protection, block required ventilation, or create an unsafe fume path to chase a warmer chamber. Prusa's current ASA guidance specifically ties significant warping to temperature differences while also calling for ventilation without a draft around the print. Its warping guidance likewise frames the goal as controlled cooling, not maximum heat at any cost.
If the machine is a Bambu Lab P2S, Bambu Lab X2D, or QIDI Plus4, use the matching printer-and-material decision after the controlled size test. Those pages help decide whether the exact ASA workload fits the machine; they are not a reason to skip the first-layer and draft checks above.
Call the workflow proven only when the full-size repeat stays flat, retains sound layer bonding, meets dimensional and fit requirements, and releases safely after cooling. If the same size boundary fails twice under a recorded baseline, the next useful step is a geometry, material, printer, or production workflow decision rather than another pile of simultaneous slicer changes.
Common questions
Why does ASA warp after the first layers looked good?
The initial hold was strong enough to start, but contraction later exceeded the base's resistance. Look for an enclosure, airflow, cooling, cross-section, or geometry event near the layer where movement began.
Should I raise bed temperature first?
Not blindly. Confirm the exact plate, filament, and printer baseline first. A number copied from another system can create over-adhesion, surface damage, or a different quality failure without fixing the real draft or geometry.
Will a bigger brim stop ASA warping?
It can add useful peel resistance, especially at sharp corners, but it cannot remove internal contraction. A brim is evidence-matched support after the first layer and environment are sound.
Does ASA always need an enclosure?
Large or repeatable ASA work benefits strongly from a stable controlled environment. Small parts may succeed in narrower conditions, but use the ABS and ASA enclosure decision to judge the real workload instead of generalizing from one small print.
When should I stop tuning and change the part strategy?
When the first layer and environment are proven, compact tests pass, and only the long or broad production geometry fails. At that point orientation, splitting, radiused corners, tabs, or another material is a cleaner lever.
Next steps
- If the base was weak from the start, use the bed-adhesion workflow.
- If the part stays attached but splits higher up, use the ASA layer-cracking guide.
- If the problem is wisps between travel moves, use the ASA stringing guide.
- If warping is not material-specific, use the broader warping workflow.
If repeatable outdoor or heat-exposed parts matter more than another tuning loop, use the site's printer-versus-service decision before requesting production help.
