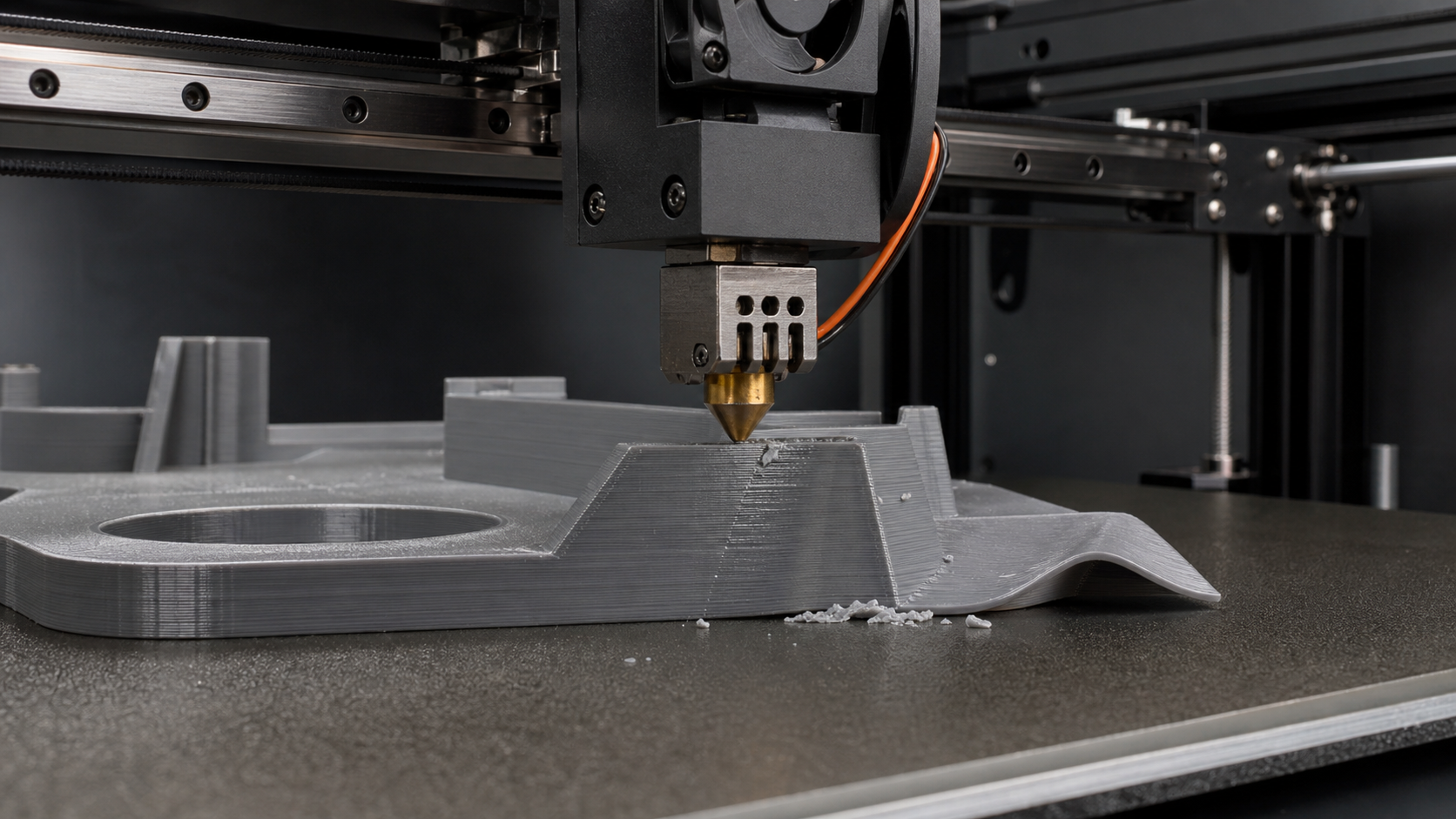

A nozzle scrapes a print when the plastic or the toolhead is no longer where the printer expects it to be. The most common causes are a curled edge, a raised infill or top-surface ridge, excess flow, a loose hotend or gantry, and a first layer that started too close to the bed. Do not start by adding a large Z-hop. First identify when the contact happens and what surface the nozzle is touching, because each pattern points to a different fix.
Short answer: check the scrape pattern first
- Scraping begins near a lifted corner: the part is warping into the nozzle path.
- Scraping happens across infill: raised infill crossings, excess flow, or an infill speed that leaves rough ridges is likely.
- Scraping happens only on solid top layers: look for over-extrusion, weak support under the top skin, retained heat, or plastic stuck to the nozzle.
- Scraping starts on the first layer: the nozzle gap may be too small or the bed mesh may not match the plate.
- Scraping is random and the print later shifts sideways: inspect belts, pulleys, axis drag, toolhead play, and collisions before running the file again.
What nozzle scraping sounds and marks can tell you
A light rhythmic rasp over one infill region is different from a hard knock against a curled wall. Pause at a safe point and inspect the contact area under good light. Look for a shiny groove, a rough raised line, white stress marks, plastic crumbs, a bent perimeter, or a corner that is no longer flat on the bed.
| What you observe | Likely cause | First useful check |
|---|---|---|
| One corner rises and gets hit | Warping or weak bed adhesion | Confirm the corner has physically lifted before changing motion settings |
| Rasping over a repeated infill path | Raised crossings, excess flow, or rough fast infill | Compare the damaged lines with places where infill paths cross |
| Drag on broad solid layers | Overfilled top skin, pillowing, heat, or nozzle buildup | Inspect whether ridges sit above the surrounding top surface |
| Hard impact during travel | Curled feature, loose part, blob, or lost position | Stop before the collision causes a layer shift or detaches the print |
| Contact everywhere after maintenance | Loose or incorrectly seated hotend, nozzle, bed, or gantry | Check for play only after the machine is cool and powered down |
What to check before changing slicer settings
- Stop on a hard collision. A nozzle that catches the part can skip a belt tooth, loosen the part, bend a thin feature, or pull a build plate out of position.
- Mark the exact contact location. Infill, a corner, a narrow overhang, and a broad top surface are separate diagnostic lanes.
- Check whether the part is still flat and firmly attached. Pressing a loose part back down does not restore its original height accurately enough for a long print.
- Inspect the nozzle and sock. A hanging bead of plastic can become the thing that drags. Clean the hotend using the printer maker's safe procedure.
- Let the machine cool before checking play. Verify the hotend, toolhead, build plate, bed carriage, and gantry do not rock or shift when lightly tested.
If the nozzle scrapes a curled edge or lifted corner
The collision is downstream of the adhesion problem. The printer continues to command the same layer height, but the lifted plastic has moved upward into that plane. Lower travel speed or Z-hop may make the impact gentler, but it will not flatten the part.
Fix the reason the corner rose: clean the plate, verify the first-layer gap, reduce drafts, match bed and material temperatures to the filament, and reconsider part orientation or brim use. If a print has already lifted substantially, restarting after correcting adhesion is usually safer than asking the nozzle to keep clearing it.
If the nozzle scrapes across infill
Some infill patterns create same-layer crossings. If flow is generous, the nozzle can deposit a small mound every time paths overlap and then rasp over those mounds on later moves. Fast infill can also curl slightly at sharp direction changes, especially when the material stays soft.
Try these changes in order
- Confirm flow is not high across the whole part. Bulging walls and an overfilled top surface support an over-extrusion diagnosis.
- Reduce infill speed for one controlled test and watch the crossing points.
- Use a pattern with fewer same-layer crossings when the part and slicer allow it, but keep the mechanical requirements of the part in mind.
- Check whether the slicer is using an unusually wide infill line or a high volumetric flow that the hotend cannot place cleanly.
If scraping starts on top surfaces
A rough roof can rise above the nominal layer plane when there is too much material, insufficient support below the skin, too much retained heat, or a damaged strand stuck to the nozzle. Do not assume every rough top needs less flow. If the surface is pillowed over sparse infill, it may need stronger support or more effective top thickness instead.
PETG makes this diagnosis especially obvious because hot, sticky ridges can follow the nozzle. Use the PETG rough-top troubleshooting guide to separate moisture, heat, support, and flow before changing several variables together.
If scraping begins on the first layer
A nozzle that starts too close can plow through fresh plastic, leave ridges on both sides of each line, and collect material until a blob drags behind the toolhead. Confirm the build plate is seated correctly, the selected plate profile matches the physical sheet, and the bed is clean before repeating calibration. When layer one looks usable and the contact begins immediately above it, switch to the narrower rough-second-layer and nozzle-drag diagnostic so a layer-transition problem does not get mixed into later-print collision advice.
If the first layer looks wavy or washboarded, follow the rippled first-layer diagnosis. That page separates a too-low nozzle from excessive first-layer flow, local plate variation, and excess lower-layer heat.
Check for mechanical play and lost clearance
With the machine cool and powered down, check only the components your printer maker allows you to service. A loose heater block, incompletely seated quick-swap hotend, rocking toolhead carriage, bed play, loose pulley, or Z-axis binding can change the real clearance even when the slicer is correct.
Do not tighten a hot nozzle casually. Hot-tightening procedures, torque limits, and hotend designs vary, and incorrect work can damage wiring or the heat break. Follow the manufacturer procedure. If the print also shows repeating horizontal ribs, the Z-banding guide helps separate Z-axis binding from extrusion variation.
Should you turn on Z-hop?
Z-hop can help a healthy printer clear small, unavoidable travel obstacles, but it is not a root-cause repair. Use the smallest practical value only after the part is staying flat, flow is reasonable, the hotend is secure, and the axes move cleanly. A large hop adds motion and time, can expose stringing, and may hide a worsening collision until it becomes severe.
If the nozzle is striking only while traveling across a sound print, also check whether the slicer can route travel within already-printed areas or avoid crossing perimeters. Treat those settings as refinements after the physical fault checks.
What not to do
- Do not keep running through hard knocks. A scrape can turn into a detached part or a full layer shift.
- Do not lower flow blindly. A warped corner or loose hotend will not be fixed by under-extruding the whole part.
- Do not add a large Z-hop before checking the mechanics. It can mask the evidence and create new motion artifacts.
- Do not press a hotend or nozzle with bare hands. Let the machine cool and follow the maker's service instructions.
- Do not continue if the build plate or part has moved. The remaining toolpath no longer matches the physical position.
A practical fix order
- Pause at the first repeatable scrape and identify the contact surface.
- Stop the job if the part, plate, or toolhead has moved.
- Remove nozzle buildup and verify the part has not curled or lifted.
- Check first-layer quality, flow symptoms, and rough infill or top ridges.
- With the machine cool, check for permitted hotend, carriage, bed, and gantry play.
- Run a small controlled test that changes only the most likely cause.
- Use modest Z-hop or travel-routing refinements only after the physical cause is under control.
Common questions
Is a little nozzle scraping normal?
A faint brush over occasional infill can occur, but repeated rasping, visible grooves, hard knocks, plastic crumbs, or any contact that moves the part is not something to ignore. Repeated contact usually means the deposited surface or the motion system is outside the expected clearance.
Why does the nozzle scrape only during travel moves?
Travel crosses existing plastic without extruding, so curled perimeters, raised infill intersections, blobs, or a loose feature become obvious. Inspect the exact obstacle before changing travel settings.
Can over-extrusion make the nozzle hit the print?
Yes. Excess material can accumulate into ridges that rise above the planned layer. Confirm the diagnosis with wall dimensions, top-surface fullness, and consistent bulging rather than reducing flow based on sound alone.
Can nozzle scraping cause a layer shift?
Yes. A hard collision can make a stepper lose position, slip a pulley, or move the part or plate. If the print suddenly offsets after a knock, use the layer-shift troubleshooting guide before rerunning it.
Why did scraping start after I changed the nozzle?
The hotend may not be fully seated, the nozzle length or assembly may differ, the heater block may be loose, or the machine may need the maker's calibration routine. Stop and verify the exact service procedure rather than compensating with a random Z offset.
