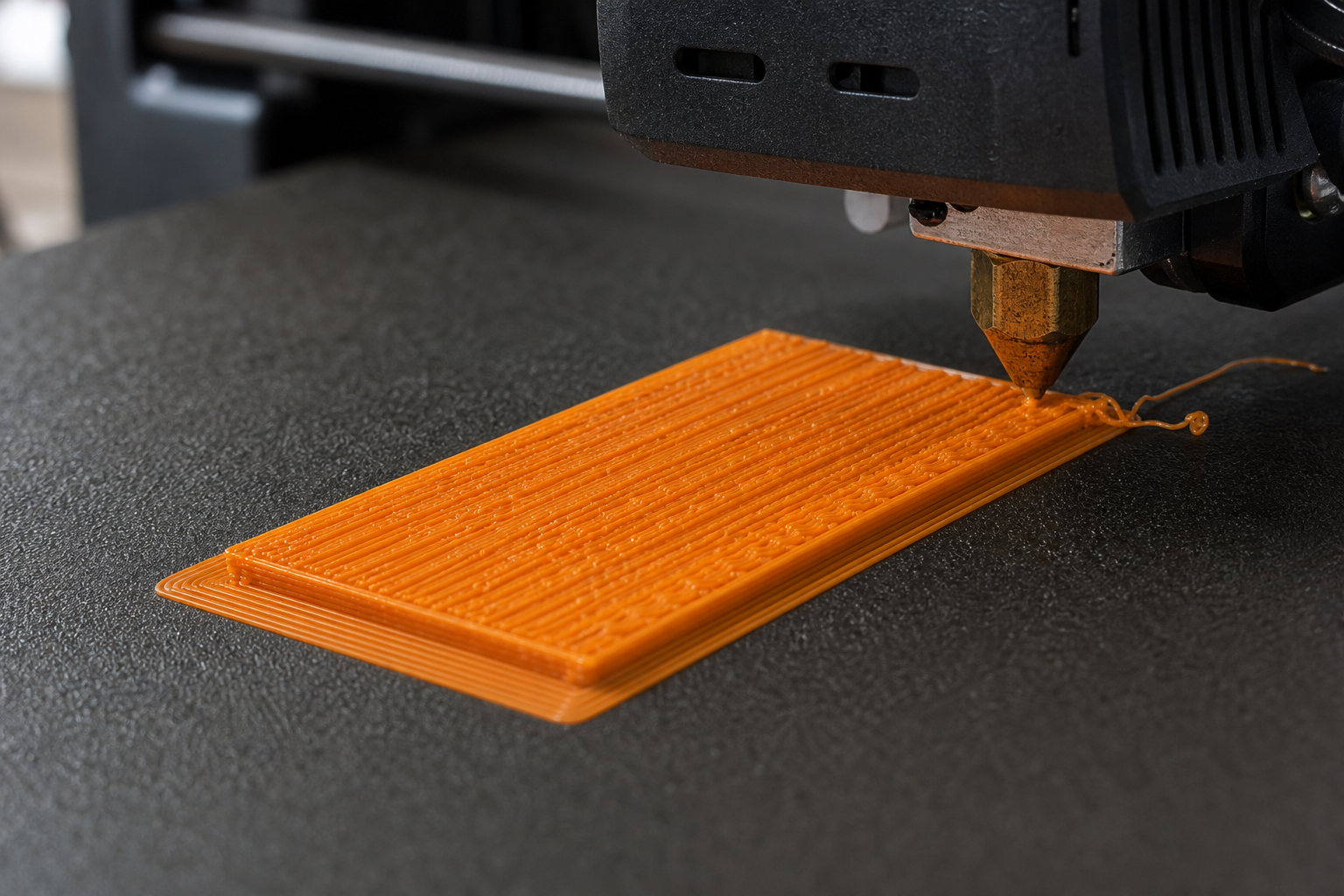

If the second layer looks rough, ridged, or scraped by the nozzle, inspect the completed first layer before changing retraction or adding Z-hop. The most common cause is a first layer that was compressed too hard and pushed plastic upward between lines. Excess flow, a dirty nozzle, a loose bed or toolhead, and a sharp speed, temperature, or fan transition at layer two can create the same symptom.
The useful clue is timing. A print that becomes rough on layer two is different from one that stays clean for hours and later develops raised infill, warping, or a collision. Pause after layer one, photograph the surface under low side lighting, and find out whether the roughness already exists before the second layer begins.
What a rough second layer tells you
The second layer is the first place the nozzle has to travel over a complete printed surface. If layer one contains ridges, curls, blobs, or material squeezed above its intended height, the nozzle immediately encounters them. The new line may then smear sideways, gather on the nozzle, or look torn even though adhesion is strong.
Use the pattern, not just the word rough, to choose a branch:
| What you see | Most likely branch | Best next check |
|---|---|---|
| First layer already has raised ridges between lines | Nozzle too close, excess first-layer flow, or local plate-height error | Stop after layer one and inspect the whole coupon under side lighting |
| Layer one looks smooth, but layer two is crowded everywhere | Normal-layer flow, line width, or layer-height mismatch | Compare first-layer and normal-layer extrusion settings in the slicer |
| Only one area becomes rough | Bed mesh, debris under the sheet, plate distortion, or mechanical play | Move the same coupon and map whether the defect follows the bed location |
| Roughness begins exactly when the fan starts | Layer-two cooling or temperature transition | Inspect fan and temperature preview values for layers one through three |
| Nozzle carries a blob and scratches random tracks | Nozzle contamination, startup ooze, or material pickup | Clean the nozzle safely and watch the purge-to-print transition |
| Layer two prints clean, but scraping starts later | Warping, raised infill, rough top skin, lost motion, or plate movement | Use the broader nozzle-scraping diagnostic instead |
Run a two-stage first-layer test
Use a simple one- or two-layer rectangle large enough to show several adjacent lines but small enough to repeat quickly. Keep the same material, build surface, nozzle, and slicer profile that produced the defect. Do not change flow, Z offset, temperature, and speed all at once.
- Print only the first layer, then stop the job before layer two starts.
- Let the sheet cool enough to inspect safely. Use a flashlight at a shallow angle.
- Look for valleys, gaps, sharp ridges, translucent scraped zones, or loose round strands.
- Run the same file as a two-layer coupon without changing anything.
- Compare the layer-one photograph with the rough areas on the completed coupon.
- Make one small correction to the branch supported by that comparison and repeat.
If every rough track on layer two sits over a ridge that was already visible on layer one, the problem starts at the first-layer interface. If layer one is flat and even but layer two becomes crowded everywhere, inspect the transition from first-layer settings to normal-layer settings.
Cause 1: the nozzle is too close on the first layer
A too-low nozzle does not merely make a line wider. It can displace plastic upward along both sides of the nozzle path. Adjacent lines push into those raised edges, producing a washboard surface that the nozzle hits on its next pass. Strong adhesion can hide the problem because the print does not lift.
What to check
- Raised ridges between lines rather than small flat seams.
- A first layer that looks glossy, translucent, or scraped in the worst zones.
- Extruder clicking or an unusually strained sound only during the first layer.
- Material accumulating on the sides of a clean nozzle.
- A defect that is worse in one bed region, suggesting a mesh or seating issue rather than one global offset.
What to try next
Increase the nozzle-to-bed gap in a small controlled step using the printer's documented Z-offset or first-layer calibration workflow. Values are machine-specific; a change of a few hundredths of a millimeter can be meaningful. Reprint the same coupon after each change. Stop when adjacent lines join without standing ridges or open gaps.
Do not jump from over-squish to visibly separated lines. If the correction produces gaps or weak adhesion, use the dedicated guide for first-layer gaps to separate excessive nozzle height from flow, surface, and feed issues.
Cause 2: first-layer flow or line width is too aggressive
A correctly positioned nozzle can still receive more plastic than the available line cross-section can hold. High first-layer flow, an oversized first-layer line width, wrong filament diameter, or an extrusion calibration error can crowd the surface. The result resembles a low Z offset, but the excess may continue into walls and upper solid layers.
How to separate flow from Z offset
Look beyond the first layer. If walls measure consistently thick, top skins stay overfilled, corners swell, and dimensions trend large, true over-feed becomes more likely. If only the bed-facing layer is crushed while later walls are normal, first-layer geometry or offset is the stronger lead.
Confirm the slicer has the correct nozzle diameter and filament diameter. Check that a saved profile did not inherit an extreme first-layer flow or line-width override. Then verify the extruder and per-material flow using the printer or slicer maker's documented process. The broader over-extrusion guide keeps machine feed calibration separate from filament-specific flow tuning.
What to try next
Return unexplained overrides to a known-good profile, confirm hardware values, and tune only after the mechanical baseline is sound. Do not reduce flow simply until the nozzle stops scraping; under-extrusion can conceal a clearance problem while weakening the part.
Cause 3: the first layer is rippling before layer two begins
Sometimes the surface forms waves rather than sharp line-edge ridges. The nozzle pushes a soft sheet of plastic ahead of itself, or adjacent lines buckle as they are laid down. Too much compression is common, but excess heat, a contaminated surface, slow printing, and a mismatch between line width and available space can contribute.
Low-angle light makes the distinction obvious. A ripple changes height over a broad area; a normal seam between lines stays small and regular. If the first layer itself looks washboarded, use the focused guide to rippled first layers before treating the second-layer scrape as an independent defect.
Cause 4: layer-two settings change too abruptly
Many profiles use special values for the first layer, then switch on layer two: faster speed, normal flow, a different line width, lower bed or nozzle temperature, and the start of part cooling. One aggressive transition can expose a setup that looked acceptable at slow first-layer speed.
What to check in the slicer preview
- First-layer versus normal-layer height and line width.
- Flow ratio or extrusion multiplier changes.
- Speed and acceleration at the first transition.
- Nozzle and bed temperature commands.
- Fan percentage and whether it jumps from off to high immediately.
- Wall, solid fill, and infill overlap beginning on layer two.
A fan cannot mechanically scrape the print, but a sudden cooling change can make fresh lines curl, lose bonding, or drag behind the nozzle. A large speed increase can also make marginal extrusion or mechanical play visible. Use a known-good material profile as a reference and soften only the suspicious transition. Avoid permanently disabling cooling without considering the material, geometry, and later overhangs.
Cause 5: a blob or dirty nozzle is dragging through the new layer
Plastic stuck to the nozzle can touch the print before the brass tip does. Startup ooze, a poor purge transition, residue from a previous material, or plastic picked up from an over-squished first layer can grow into a small blob. It then scores a path, drops onto the surface, and creates another collision point.
What to check
Watch from a safe distance as the printer purges, wipes, moves to the part, and completes the first two layers. Look for a tail already attached to the nozzle before printing begins. Confirm the silicone sock is seated correctly and not carrying loose plastic. If material appears to come from above the nozzle rather than its tip, stop and inspect for a heater-block leak using the manufacturer's hotend service procedure.
What to try next
Clean the outside of a safely heated nozzle only by the printer maker's approved method, protect wiring, and avoid shorting heater or thermistor connections with a conductive brush. Repair the purge or wipe path if startup ooze reaches the part. If the nozzle is scraping even when visibly clean and the contact continues beyond layer two, follow the full nozzle-scraping check order.
Cause 6: the bed mesh or build plate is locally wrong
A global Z offset can be correct while one area prints too close. Debris under a removable sheet, an unseated plate, a stale mesh, loose bed hardware, thermal expansion, or a probe problem can create a local high zone. The second layer then looks rough only over that part of the bed.
Map the location
- Mark the rough region relative to the printer, not just the model.
- Clean and reseat the removable sheet after it cools.
- Inspect both sides and the magnetic base for debris or a raised label edge.
- Run the documented leveling or mesh routine at the required operating temperature.
- Move the same coupon to another bed position without rotating its geometry.
If the defect stays in the same physical bed zone, investigate the surface, mesh, probe, and bed mechanics. If it follows the model, inspect sliced geometry and toolpath. If the offset changes between otherwise identical jobs, the guide to first-layer drift after setting Z offset covers plate seating, homing, probe, temperature, and mechanical-repeatability branches.
Cause 7: the toolhead, gantry, or bed has play
Mechanical play lets the nozzle ride differently as direction and load change. A loose nozzle, hotend, toolhead mount, wheel, bearing, bed carriage, or gantry connection can make the first layer inconsistent and allow the nozzle to contact the second. The pattern may change direction-to-direction rather than following a clean high spot.
What to check
With the printer cooled, powered down, and handled according to its service instructions, check for unexpected play at the bed, toolhead, and user-serviceable motion assemblies. Confirm that the nozzle and hotend were installed with the required hot-tightening or manufacturer-specific method; do not improvise while wiring is energized. Check whether the removable plate or clips can shift.
Correct a verified loose component before retuning flow or Z offset. Calibration performed on a moving reference cannot remain valid.
Why Z-hop is usually not the first fix
Z-hop raises the nozzle during selected travel moves. It does not create clearance while the nozzle is actively extruding a rough second-layer line, and it does not flatten ridges that already exceed the intended layer height. It may reduce travel scuffs after the root cause is corrected, but enabling it first can add time, stringing, or extra motion without solving the deposition problem.
Similarly, changing infill pattern is irrelevant when the defect begins on a full second-layer skin before sparse infill exists. Match the fix to the toolpath that is actually making contact.
A safe fix order
- Confirm the timing: verify that roughness begins on layer two, not later.
- Inspect layer one alone: look for ridges, ripples, gaps, or local high zones.
- Clean and reseat the build surface: remove debris underneath as well as contamination on top.
- Check the slicer transition: compare layer-one and layer-two height, width, flow, speed, temperature, and cooling.
- Correct one supported variable: small Z-offset adjustment for raised first-layer ridges; profile or flow correction for global crowding; mesh or hardware repair for a localized defect.
- Clean the nozzle and watch startup: prevent a carried blob from seeding new roughness.
- Repeat the same two-layer coupon: compare the surface under the same light.
- Continue to a taller test: make sure the correction did not introduce first-layer gaps, weak walls, or later scraping.
When the rough area is only at the edge
Edge-only roughness can come from a first-layer outline printed too close, excess perimeter overlap, a lifted corner, or a plate zone outside the well-measured area. Watch whether the edge rises before the nozzle contacts it. If the base remains flat but spreads outward, separate the issue from elephant foot, which is dimensional flare rather than a general second-layer surface defect.
When the surface looks rough but the nozzle never touches it
Not every rough-looking layer is a collision. Uneven extrusion, moisture, a partial clog, temperature instability, or poor line bonding can create texture while leaving clearance. Listen for contact, inspect the nozzle path, and compare the defect with extruder sound and line width. If only upper closing skins are rough, move to the guide for rough top surfaces; that branch centers top thickness, infill support, flow, heat, and pillowing rather than the bed-interface transition.
When to stop and inspect hardware
Stop the print if the nozzle visibly pushes the plate, the bed or toolhead rocks, the hotend moves in its mount, the removable sheet shifts, the printer loses steps, or filament leaks above the nozzle. Repeatedly forcing the nozzle across raised plastic can damage the surface, loosen the hotend, or turn a small setup error into a collision.
For a printer under warranty, save the two-stage coupon photos, bed location, slicer profile, layer heights, material, nozzle size, temperatures, and a short video of the transition. That evidence is more useful than a long list of unrelated settings already changed.
When expert help makes sense
If the same printer cannot produce a flat two-layer coupon after surface seating, documented calibration, and mechanical checks, escalate to the manufacturer or an experienced operator before loosening factory-aligned rails or probe mounts. For a time-sensitive part where the immediate need is reliable production rather than continuing the machine repair, JC Print Farm is the relevant expert-help path. Send the file, material, quantity, fit requirements, and whether the bad surface is cosmetic or function-critical.
Bottom line
A rough second layer usually starts one layer earlier. Pause after layer one and look for raised ridges or ripples, then separate global over-squish from local mesh error and from a true layer-two profile transition. Correct the supported cause in a small step, repeat the same two-layer coupon, and use Z-hop only if a remaining travel issue still exists after the printed surface is actually flat.
Frequently asked questions
Why is my first layer smooth but my second layer rough?
Check the slicer's change from first-layer to normal-layer height, line width, flow, speed, temperature, and fan. Also inspect layer one under low-angle light; ridges can look smooth from above. If the surface is truly flat, a crowded normal-layer extrusion setting or abrupt transition is more likely than Z offset alone.
Should I raise Z offset if only the second layer scrapes?
Only when the completed first layer shows evidence of excessive compression or a local high zone. Raising Z offset without that evidence can create gaps and weak adhesion while leaving a dirty nozzle, excessive normal-layer flow, or mechanical play unchanged.
Can too much first-layer flow cause second-layer scraping?
Yes. Excess material has to move somewhere, and it often forms raised seams between adjacent lines. Confirm nozzle and filament diameter, profile overrides, and broader extrusion behavior before reducing flow.
Can cooling fan settings make layer two rough?
They can contribute when the fan starts abruptly on layer two and curls or poorly bonds fresh lines, but a fan does not explain a first layer that already has standing ridges. Diagnose the printed surface first, then inspect the fan transition.
Why does the rough second layer happen in only one corner?
Suspect local plate seating, debris under the sheet, bed mesh or probe repeatability, a warped surface, or mechanical play. Move the same coupon to map whether the defect follows the physical bed location.
