Why Do 3D Prints Get Elephant Foot, and What Should You Change First?

May 19, 2026

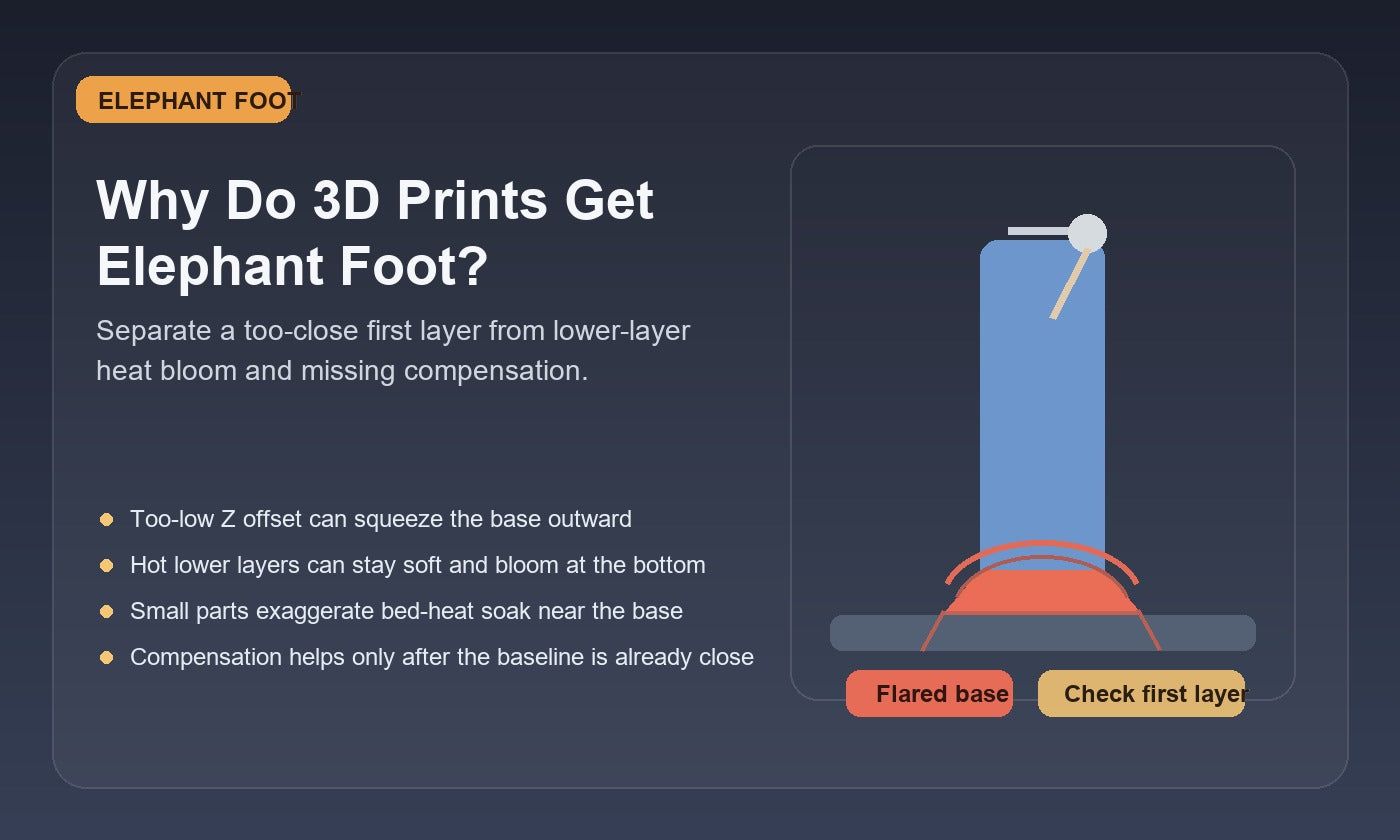

Illustration of a 3D printed part with a flared bottom edge, showing elephant foot caused by first-layer squeeze and lower-layer heat.

Elephant foot is one of those defects that makes an otherwise decent print feel instantly sloppy. The part may look fine higher up, but the bottom edge flares outward, corners look fat, and holes or slots near the base stop matching the CAD the way they should.

In most cases, elephant foot means the first layers are staying too compressed, too warm, or too soft against the bed before they have a chance to lock into their real shape. That is why the fix usually lives in first-layer pressure, lower-layer heat behavior, and how long the print stays stuck in that slightly squashed state—not in random dimensional-scaling guesses.

This page is for the exact troubleshooting question: why do 3D prints get elephant foot, what should you check first, and how do you separate a too-low first layer from bed-heat bloom, adhesion settings, or slicer compensation that is simply missing?

Short answer

Elephant foot happens when the first layers spread outward more than the layers above them.

The most common reasons are:

the nozzle starts a little too close to the bed
the first layers stay too hot or too soft for too long
bed adhesion is strong enough that the base cannot relax back toward its intended edge
the part needs elephant-foot compensation, but the profile is running with none or too little

If the bottom edge looks obviously over-squished and the first layer also shows drag marks or merged lines, think first-layer height first. If the first layer looks decent but the lower walls still bulge, think heat soak, lower-layer cooling, and compensation right after.

What elephant foot usually looks like

a visible lip or flange around the bottom of the part
bottom corners that look fatter than the walls above them
parts that fit poorly because the base is slightly oversized
holes, slots, or mating features near the bed coming out tighter than expected
a print that looks cleaner higher up, making the problem feel limited to the first few millimeters

That last clue matters. Elephant foot is not the same thing as a whole-part scale problem. It is a lower-layer distortion problem, which is why the right diagnosis starts at the build surface and the first few layers instead of the full print profile.

The main cause split: why elephant foot happens

Failure area	What it usually looks like	What to check first
First layer is too close	The base looks visibly over-squished, lines merge hard, and the nozzle may have sounded like it was dragging a little.	Z offset, plate selection, recent nozzle or surface changes, and whether the first layer already looks too compressed.
Lower layers stay too hot	The first layer sticks well and looks acceptable, but the lower walls still bulge before the print stabilizes higher up.	Bed temperature, early-layer cooling behavior, slow small-part printing, and whether the base is spending too long in a softened state.
Adhesion plus pressure is pinning the flare in place	Edges stay slightly pushed outward even when the rest of the print looks dimensionally normal.	Build-surface behavior, adhesive use, brim or bed-hold choices, and whether the part is gripping the plate more aggressively than it needs to.
No elephant-foot compensation	The flare is mild but repeatable across otherwise stable prints.	Whether the slicer profile has any compensation built in for lower-edge expansion.
The real defect is broader first-layer distortion	Bottom edges look uneven, messy, or tied to other first-layer problems rather than one clean lower-edge flare.	Whether the print should really be routed into first-layer distance or setup-baseline troubleshooting first.

What to check first

Look closely at the first layer itself. If it already looks too crushed, start with the first-layer-too-close page before changing compensation.
Check whether the flare is only on the very bottom or continues for several lower layers. A single crushed start and a longer heat-softened lower wall are not the same problem.
Compare a larger part to a smaller one. Small parts that linger over the same hot bed zone can exaggerate elephant foot because the lower layers stay soft longer.
Ask whether the fit problem is base-specific. If holes or slots near the bed are the main issue, keep holes coming out too small in the follow-up path.

If the whole machine baseline feels loose, route through the setup checklist before you keep nudging one lower-layer setting at a time.

A too-low first layer is still the first big suspect

When the nozzle starts a little too close, the plastic has nowhere clean to go except sideways. That spreads the first layer outward and can lock in the classic elephant-foot lip before the print even gets established.

This is especially likely when:

the first layer looks glossy, flattened, and over-merged
the nozzle seems to drag or rub slightly on the first pass
you recently changed plates, nozzles, or hardware and did not fully recheck offset
the part also shows other too-close symptoms near the base

If that sounds familiar, do not start with dimensional compensation. Fix the first-layer baseline first.

Heat can keep the lower walls soft after the first layer itself looked acceptable

Not every elephant foot problem starts with a visibly bad first layer. Sometimes the first layer goes down reasonably well, but the next few layers stay hot and soft long enough to slump outward under the part's own pressure and bed contact.

The lower the part and the longer it stays parked over a hot bed with limited cooling, the easier it is for the base to bloom outward.

This shows up more often on small footprints, slow lower layers, and profiles that are being conservative about early cooling or aggressive about bed heat.

Compensation matters when the process is mostly stable but still leaves a repeatable lip

If your machine is generally behaving well and the flare is mild but repeatable, the missing piece may simply be elephant-foot compensation. That is not a bandage for a broken first layer. It is a finishing control for a mostly stable baseline that still leaves a little extra material at the base.

The mistake is using compensation to hide a truly crushed first layer. Use it after the lower-layer behavior is already close, not instead of fixing the actual cause.

Do not confuse elephant foot with all dimensional problems near the bottom

Sometimes the part is not suffering from classic elephant foot at all. It may be a broader first-layer issue, an oversized extrusion baseline, or a feature-specific tolerance problem that only becomes obvious near the base.

If holes and slots are the real complaint, route next into the holes-too-small page. If the base adhesion itself is unstable or inconsistent, continue with bed-adhesion troubleshooting.

Common mistakes that waste time

adding compensation before checking whether the first layer is obviously too close
treating a base-only flare like a full-part scaling error
ignoring bed temperature and early-layer heat soak on small parts
using stronger adhesion as the answer when the lower layers are already too pinned and too soft
changing multiple lower-layer settings at once so the real cause never becomes clear

What usually works next

raise first-layer Z slightly if the base is clearly over-squished
reduce the lower-layer heat burden if the first few walls are staying soft too long
use elephant-foot compensation once the baseline is already close
recheck build-surface assumptions after nozzle, plate, or firmware changes
test the same part again after one controlled change so the result actually means something

Elephant foot usually looks like a mystery only when people skip the sequence. Start with first-layer pressure, then early-layer heat, then compensation.

Editorial take

Elephant foot is rarely a weird advanced failure. It is usually a very ordinary lower-layer control problem that people accidentally turn into a dimensional rabbit hole. When you separate too-close first layers from heat-softened lower walls and from mild compensation drift, the defect gets much less dramatic and much easier to fix.

Common questions

What causes elephant foot in 3D printing?

Usually the first layers are being pushed outward because they are too compressed, too warm, or staying soft against the bed for too long before they fully stabilize.

Does elephant foot always mean the nozzle is too close?

No. A too-low first layer is a common cause, but bed heat, lower-layer cooling behavior, and missing compensation can also create a bottom-edge flare.

Should I use elephant-foot compensation first?

Only after the first-layer baseline is already close. Compensation is useful for mild repeatable flare, not for hiding a clearly crushed start.

Why do holes near the bottom of the part come out tight?

Because elephant foot can push extra material outward at the base and distort nearby lower features. If that is the main symptom, read holes too small next.

What should I read next?

Go next to the first-layer-too-close page, bed-adhesion troubleshooting, holes too small, and the setup checklist depending on whether the next clue is first-layer pressure, base heat behavior, fit-critical features, or a looser overall baseline.
