If a 3D print looks swollen, measures too large, or has a rough top surface because the nozzle keeps plowing through excess plastic, first verify the printer, nozzle, and filament profile before lowering flow. True over-extrusion means the machine is depositing more material than the toolpath expects. A too-close first layer, wet filament, high-temperature smearing, or one raised seam can look similar but needs a different fix.
The safest troubleshooting order is: identify where the excess appears, restore a known-good profile, confirm filament diameter and nozzle settings, check the extruder calibration only if the machine baseline may have changed, and then tune filament flow in small steps. Do not change E-steps, flow, temperature, and line width together.
Short answer: what should you check first?

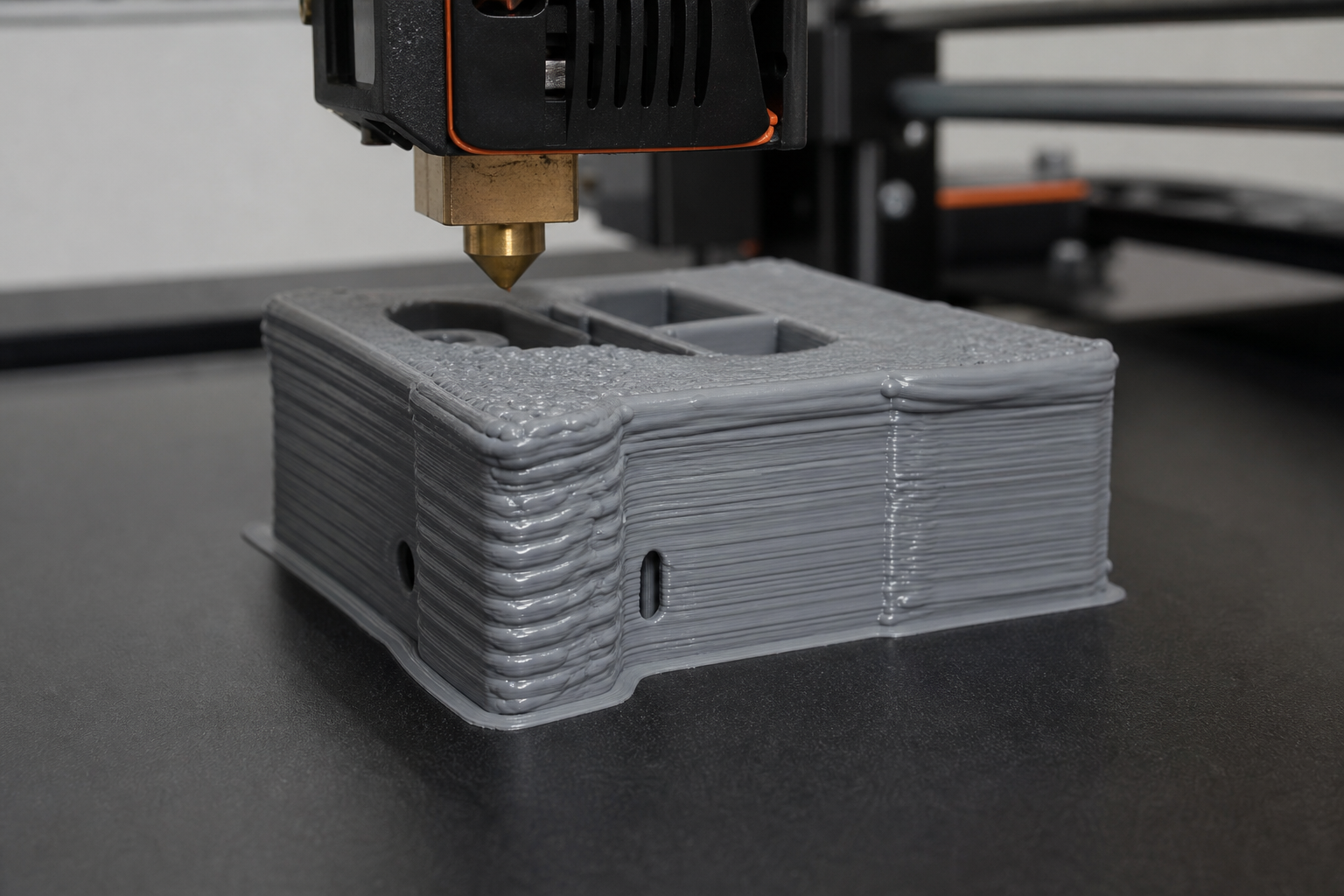

- Check whether the defect affects the whole print. True over-extrusion usually produces consistently fat lines, crowded top skin, thick walls, small holes, and dimensions that trend large.
- Separate the first layer. If only the bottom is too wide or ridged, the nozzle may be too close or the first layer may be over-squished.
- Verify the active profile. Confirm printer model, nozzle diameter, filament diameter, material preset, and any flow or extrusion-multiplier override.
- Return flow to a known baseline. Remove accidental object-level, filament-level, or modifier overrides before creating a new calibration.
- Calibrate one layer of the system at a time. Machine feed calibration is not the same setting as per-filament flow.
What over-extrusion actually looks like
| What you see | More likely cause | First check |
|---|---|---|
| Fat lines and swollen walls through most of the part | True flow or feed calibration error | Profile, filament diameter, then calibration history |
| Only the first layer is ridged, transparent, or pushed outward | Nozzle too close or excessive first-layer squish | Z offset, plate seating, and first-layer flow |
| One vertical ridge or scattered bumps | Seam, pressure control, retraction, or residue | Defect location and travel pattern |
| Popping, bubbles, fuzz, or irregular roughness | Moisture or contamination | Known-dry spool and clean nozzle |
| Soft corners and smearing mainly on hot, slow features | Too much heat or too little cooling | Temperature, minimum layer time, and airflow |
Do not confuse a too-close first layer with over-extrusion
A nozzle that starts too close to the build plate has less vertical space than the slicer expects. The same commanded plastic is forced sideways, creating wide ridges, rough neighboring lines, elephant foot, and a nozzle that drags through the surface. That is a geometry problem at the bed, not proof that the whole filament profile is over-flowing. If the first layer is acceptable and the roughness begins on the next pass, use the second-layer transition check before lowering flow across the whole profile.
Inspect a layer above the first-layer region. If normal walls and top surfaces recover after the bottom layers, use the guide to a first layer that is too close to the bed before touching global flow. Lowering flow to hide an incorrect nozzle gap can weaken the rest of the print.
1. Verify the printer, nozzle, and filament profile
Start with the active configuration, especially after importing a project file, changing nozzle size, copying a profile, or switching printer families. Confirm:
- the correct printer and build configuration
- the installed nozzle diameter
- the configured filament diameter
- the intended material preset
- global, object-level, and modifier flow overrides
- first-layer flow and line-width overrides
A wrong filament-diameter value can create a large volume error because the slicer calculates material from the filament cross-section. A forgotten 110% flow override is more common and easier to miss. Project files can carry settings that do not match the preset shown in your usual workflow, so inspect the final sliced settings rather than assuming the profile name proves the configuration is clean.
2. Check the filament diameter without calibrating around one bad spot
Most current FDM workflows use 1.75 mm filament, but the slicer still needs the correct nominal diameter. If a spool is visibly inconsistent or you suspect a manufacturing problem, measure several clean sections with a reliable caliper and compare them with the supplier's tolerance. One squeezed, oval, or chewed point is not a useful average.
Do not type every tiny measurement into the slicer as a new correction. Normal diameter variation is one reason filament flow is tuned as a profile, but a severely out-of-spec spool should be quarantined rather than used to redefine the printer. Moisture can also make extrusion look bubbly or irregular without creating a stable, repeatable over-extrusion error.
3. Separate machine feed calibration from filament flow
The extruder's steps per millimeter or rotation distance is a machine-level relationship between motor movement and filament feed. The filament flow ratio or extrusion multiplier is a material-profile correction. Treating them as the same knob creates profiles that only work by accident.
Check E-steps or rotation distance when the machine baseline may have changed
Recheck the machine feed calibration after an extruder replacement, gear change, firmware reset, controller change, or unexplained system-wide shift across every filament. Follow the printer maker's procedure because direct-drive and Bowden machines expose different measurement points, and some closed systems manage this calibration automatically.
Do not recalibrate machine steps for each spool. If PLA, PETG, and TPU all need different E-step values, the workflow is mixing machine calibration with material behavior.
Tune flow for the filament after the machine is trustworthy
Use the slicer or printer maker's supported flow-calibration method with a known-good spool and the correct nozzle. A top-surface calibration pattern is often easier to judge than a single-wall cube because modern slicers use wall ordering, line-width models, and overlap behavior that can make one thin shell misleading. If your slicer provides a documented flow test, use that process before inventing a custom formula.
4. Change flow in small, recorded steps
Once the profile and machine baseline are correct, reduce filament flow in small steps and compare controlled samples. A two- or three-percent change is large enough to see without turning the test into a different process. Look for top lines that meet cleanly without ridges, walls that stop bulging, and dimensions that move toward the intended result.
Keep the same file, orientation, speed, temperature, cooling, and spool during the comparison. Record the original value and each test result. Large jumps can trade an overfilled surface for gaps between lines, weak walls, or poor layer bonding.
5. Check temperature and cooling after commanded flow
A higher nozzle temperature does not automatically command more plastic, but it lowers viscosity and can make pressure, ooze, corner swelling, and surface smearing more visible. Small layers printed too quickly can remain soft while the nozzle returns, producing a lumpy part that resembles over-extrusion.
If dimensions and walls are mostly correct but small features look melted, lower temperature within the filament maker's range, increase minimum layer time, or improve appropriate part cooling. Keep the material in mind: PLA generally tolerates more cooling than ABS, ASA, or nylon. Do not cure a heat-management problem by globally starving the print of material.
6. Separate rough top surfaces from global excess flow
A rough top can come from too much flow, but it can also come from too few top layers, sparse support under the skin, pillowing, infill showing through, nozzle buildup, moisture, or a warped surface underneath. Read the walls and dimensions before using the top as the only diagnostic signal.
If the defect is mainly on the final skin while the perimeter width and dimensions look normal, use the broader rough top surface and pillowing guide. A clean flow calibration should improve the whole extrusion system, not merely flatten one cosmetic patch.
7. Treat blobs and seam ridges as a separate lane
Over-extrusion is normally continuous. A bump that repeats at one start-stop location points more strongly toward the seam, pressure advance or pressure control, retraction, coasting behavior, or filament residue. Random burnt dots can come from material collecting on the nozzle and dropping later.
Use the blobs, zits, and seam-bump diagnosis when the excess is localized. Reducing global flow enough to erase a single seam ridge can leave the rest of the part under-filled.
A controlled over-extrusion test sequence
- Save the current profile or take screenshots so the baseline is recoverable.
- Load the correct printer, nozzle, and material preset without old object modifiers.
- Confirm filament diameter and remove any unexplained flow override.
- Print a small known-good diagnostic part and inspect first layer, walls, top, holes, and seam separately.
- If every material over-feeds after hardware or firmware work, follow the maker's machine-feed calibration.
- If one filament over-feeds on a trustworthy machine, run the supported flow-calibration test.
- Change flow in small steps, then validate the result on a real part rather than only a calibration token.
What not to change first
- Do not lower flow because only the first layer is squished. Correct the nozzle-to-bed relationship.
- Do not recalibrate E-steps for every filament. Keep machine feed and filament flow separate.
- Do not change line width to hide an unknown profile error. Confirm the installed nozzle and intended extrusion width first.
- Do not tune with wet, contaminated, or damaged filament. The baseline will move again.
- Do not make five changes at once. You will not know which one fixed the defect or created the next one.
When over-extrusion is not the root problem
Switch diagnosis if the printer clicks, skips, or produces thin missing lines; those symptoms point toward under-extrusion, restriction, or feed drag. If the print is dimensionally wrong even after line quality is stable, move to the dimensional accuracy and hole-fit workflow. Calibration should follow the failure pattern instead of turning every defect into a flow problem.
Frequently asked questions
Should I lower flow or extrusion multiplier first?
Only after confirming the correct printer, nozzle, filament diameter, and material profile. If those are correct and one filament consistently over-fills on a trustworthy machine, reduce the filament flow ratio in small controlled steps.
Can a nozzle that is too close cause over-extrusion?
It can create an over-extruded appearance on the first layer, but the commanded volume may be correct. The plastic is being forced into too little vertical space. Correct the first-layer geometry rather than lowering global flow.
Does high nozzle temperature cause over-extrusion?
Temperature does not usually change the commanded volume by itself, but hotter material can ooze, smear, hold pressure, and soften small features enough to look over-extruded. Verify global line volume before tuning heat.
Can over-extrusion make holes too small?
Yes. Excess material can intrude into internal features, but holes can also print small because of curve geometry, horizontal-hole sag, seam placement, first-layer bulge, and missing clearance. Use the dedicated undersized-hole troubleshooting guide when bores are the main symptom.
Next steps
After restoring clean extrusion, validate the setting on the actual geometry and material that matter. The common 3D print quality problems guide helps route any remaining symptom. If repeated calibration, material control, and inspection are consuming more time than the parts justify, compare the workload with using a print service instead of owning the process; that is the point where JC Print Farm can review a production-ready file and requirements rather than selling another round of guessing.
