Why Do First Layers Have Gaps in 3D Printing, and What Should You Change First?

June 17, 2026

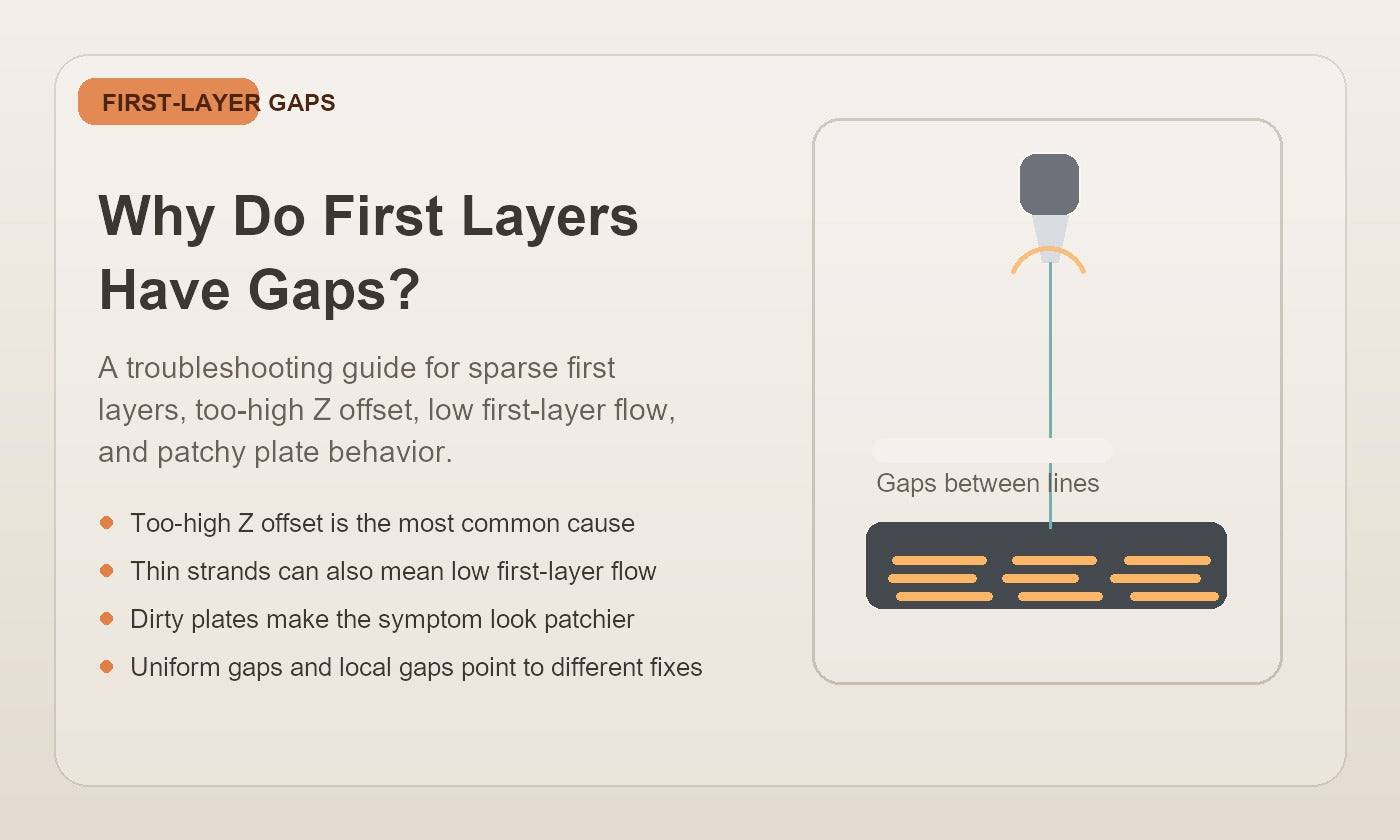

Illustration of a 3D printer laying down a first layer with visible gaps between extrusion lines on the build plate near the nozzle.

First layers usually have visible gaps because the filament is not being pressed together enough at the bed, and the useful first move is separating a too-high Z offset from low first-layer flow, weak surface grip, and local plate issues instead of calling every sparse line pattern a generic bed-leveling failure. The symptom often shows up as little spaces between adjacent lines, a first layer that looks more like parallel strands than a joined sheet, or a part outline that never really knits together on the plate.

This page is for the exact case where the first layer is laying down with gaps between lines. If the first layer looks wavy or washboarded because the nozzle is too close, go to rippled first layers. If the problem is a flared base after the first layers got too squished and heat-soaked, compare with elephant foot. If the print starts fine but later shows gaps between walls and infill, use walls and infill gaps.

Short answer

Most first-layer gaps happen because the nozzle is a little too high above the bed. The lines touch down, but they do not flatten enough to fuse side to side.
Low first-layer flow can produce the same look. Even with decent height, not enough material leaves visible spaces between lines.
Dirty or uneven build surfaces make the symptom patchy. One zone may bond and spread while another zone stays sparse.
Weak first-layer hold can trick you. If lines are not gripping the surface cleanly, they may drag slightly and leave gaps that look like a flow issue.
Start with Z height, surface condition, and first-layer extrusion before you chase advanced mesh theories.

What this defect usually looks like

parallel first-layer lines with little daylight between them
top-down bed views where the bottom skin never turns into a solid sheet
gaps that are worse in one part of the plate than another
perimeters that stick but infill-style first-layer lines stay sparse
corners or small islands that fail because the first layer never fully knits together

If the lines are broad, shiny, and wrinkled rather than sparse, the nozzle may be too close and you are in the rippled-first-layer lane instead. If the first layer is okay but later walls look under-filled, compare with nozzle clogs or broader extrusion problems.

Why first layers have gaps

What is happening	What it usually looks like	What to check first
Z offset is a little too high	Lines lay down as separate strands instead of flattening enough to meet each other cleanly.	Whether the whole first layer looks sparse in a fairly consistent way across the printed area.
First-layer flow is too low	The spacing resembles a high nozzle, but the lines also look thin and under-fed.	Whether the strand width itself looks skimpy instead of simply not spread enough.
Build surface contamination is weakening spread and grip	Some zones look acceptable while others bead up, drag, or leave patchy spacing.	Finger oils, residue, glue buildup, or an overdue plate cleaning.
Local bed or sheet variation is changing the gap across the plate	One side of the part looks knit together while another side stays visibly sparse.	Whether the defect changes with print position instead of with the model itself.
Mild extrusion restriction is showing up first at low, slow startup flow	The first layer looks thin and weak, and later layers may also drift into broader under-extrusion.	Whether the issue is only the first layer or the print stays under-fed after that too.

A too-high nozzle is still the most common answer

It is not the only answer, but it is the one worth ruling out first. When the nozzle sits a little too far above the bed, the line can still stick enough to fool you into thinking the printer is close. The giveaway is that the strand looks rounder and more isolated than it should. It touches the plate, but it does not spread into its neighbors enough to form a proper sheet.

That is why first-layer gaps often show up right beside a machine that is otherwise printing decently. The printer is not wildly out of tune. It is just not compressing the first layer enough.

Do not confuse sparse first layers with rippled first layers

These two get mixed up all the time because both live near the same Z-height workflow. But the visual clue is different. A sparse first layer shows separate lines with space between them. A rippled first layer shows over-squished lines with washboard texture and nozzle drag. One is usually too high. The other is usually too low.

If your first instinct is "maybe I should lower the nozzle more," look closely first. That fix helps gappy first layers and worsens rippled ones.

Patchy first-layer gaps usually point to the surface or the plate, not just one global setting

If the center looks fine but the front right corner stays sparse, or one side of a large part looks clean while the other side does not, resist the urge to only change global flow. That kind of uneven pattern often means the surface is dirty, worn, or locally sitting at a different effective height.

Patchiness is a clue. Uniform gaps suggest a global height or flow issue. Local gaps suggest a plate, sheet, or mesh behavior issue.

If first-layer gaps keep sending you in circles, buy for the clue you already see

This symptom usually gets worse when readers buy one random upgrade and hope it covers every cause. The smarter move is matching one small tool to the exact clue the page is already teaching you to trust.

Gaps look consistent across the plate

Use a repeatable manual gap check before changing five slicer settings
The OEMTOOLS offset feeler gauge fits this lane when you need a physical reference for Z-height and bed-gap sanity checks instead of another paper-test guess.

You keep second-guessing line width and first-layer thickness

Measure the result instead of arguing with the print by eye
The Neiko digital caliper is the cleaner fit when you want cheap measurement truth before calling a setup problem solved.

The nozzle keeps dragging or dropping residue into the first pass

Clean the hot tip before you blame leveling alone
The silicone nozzle-cleaning brushes make more sense when first-layer gaps are being mixed together with burnt ooze, tip residue, or little drag marks from yesterday's mess.

That keeps the page honest: confirm the gap when the pattern is uniform, measure when your eye keeps lying to you, and clean the nozzle when residue is part of the symptom instead of pretending every first-layer gap needs a bigger hardware upgrade.

What to check first

Watch whether the first-layer lines are flattening enough to meet. If they look round and separate, the nozzle is probably too high.
Check the actual strand width. If the lines look thin as well as separate, first-layer flow may also be low.
Clean the build surface before your next comparison print. Oil and residue can make a decent setup look worse than it is.
See whether the problem changes across the plate. A position-dependent defect points away from one simple global flow tweak.
Ask whether the under-extrusion continues after the first layer. If it does, branch into nozzle clogs or broader extrusion restriction instead of treating it as a bed-only issue.

What usually helps next

Bring the nozzle slightly closer to the bed if the lines are landing as separate strands instead of a joined sheet.
Correct first-layer flow if the strand itself looks skimpy rather than only insufficiently squished.
Clean or refresh the build surface before trusting the next test result.
Re-test in another part of the plate if the problem looks local rather than global.
Step back through the setup baseline with the setup checklist if multiple first-layer symptoms are stacking together.
