Fast verdict: the NEIKO 01407A is worth buying for a hobby or small-shop 3D-printing bench when you need a low-cost way to check outside dimensions, holes, depths, steps, filament, and hardware. Its 0-6 inch / 0-150 mm range covers most small-part checks, and the current listing states 0.01 mm resolution and ±0.02 mm accuracy. Buy it as a practical diagnostic tool, not as certified metrology equipment.
Check the current NEIKO 01407A offer
Affiliate disclosure: GoodPrints may earn a commission from qualifying purchases made through Amazon links on this page, at no extra cost to you.
| Decision point | NEIKO 01407A | What it means at a print bench |
|---|---|---|
| Range | 0-6 in / 0-150 mm | Good for small and medium features; not for measuring the full span of a large print |
| Listed resolution | 0.0005 in / 1/128 in / 0.01 mm | Fine enough display steps for ordinary fit debugging; displayed digits do not guarantee process capability |
| Listed accuracy | ±0.001 in / ±0.02 mm | A listing claim, not a calibration certificate or a promise about your measurement technique |
| Measurement modes | Outside, inside, depth, and step | Covers the common printed-part and hardware checks that make a caliper useful |
| Best fit | Budget diagnostic work | A strong first caliper; a weaker fit for traceable inspection, harsh shop use, or buy-once premium expectations |
What the NEIKO 01407A actually gives you

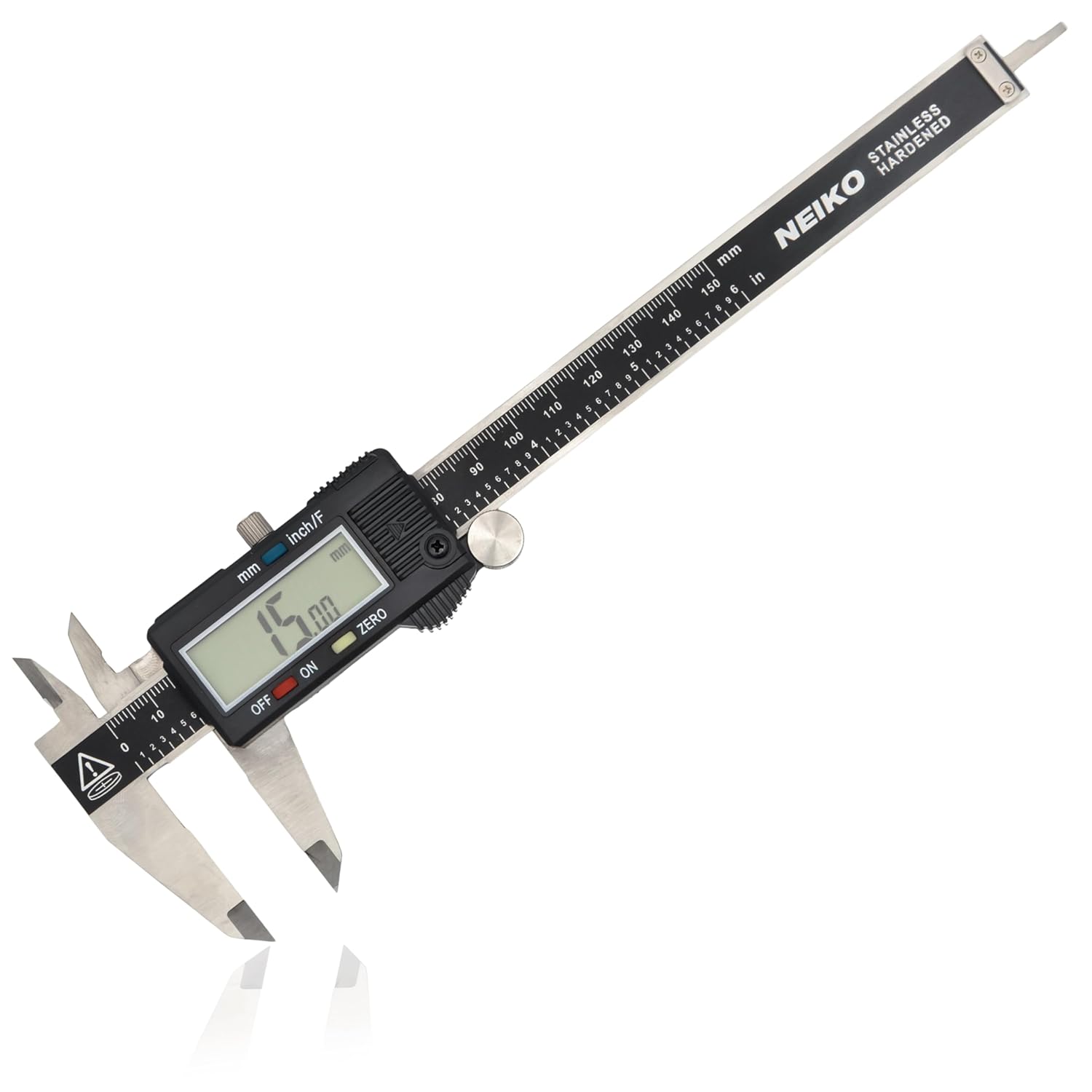

The current Amazon offer identifies this as model 01407A with a stainless-steel body, large LCD, thumb roller, locking screw, protective case, and quick switching among inch, fraction, and millimeter display modes. The jaws and depth probe support outside, inside, depth, and step measurements. Those are the right basic functions for a 3D-printing bench because most fit failures are not solved by staring harder at the part.
Offer and specification check (August 6, 2026): the current NEIKO 01407A Amazon listing passed five fresh identity, in-stock, active-purchase-control, and specification checks before this review was updated. Price, coupon, seller, and delivery terms can change, so this review does not freeze a price or rating.
The listing also describes the tool as splash- and dust-resistant. That is useful buyer context, but it is not a published IP rating on the offer we verified. Do not treat this budget caliper as coolant-proof, washdown-ready, or equivalent to a sealed inspection tool.
Where this caliper helps in 3D printing
Checking whether a part missed CAD or the process missed the part
Measure the printed outside dimension, compare it with the nominal CAD value, and repeat at more than one location. A consistent miss suggests a model, shrinkage, calibration, extrusion, or process question. A result that changes every time you close the jaws suggests technique, surface texture, part flex, or tool repeatability needs attention first. The caliper does not diagnose the cause by itself; it replaces vague guessing with evidence.
Testing holes, tabs, slots, and mating features
The 01407A is useful for brackets, lids, snap fits, magnet pockets, insert bosses, bearing seats, and hardware clearances. Use the outside jaws for tabs and shafts, inside jaws for larger bores and openings, the depth probe for recesses, and the step faces where the geometry allows it. Small printed holes and soft walls are easy to distort, so use light pressure and treat a gauge pin or known hardware sample as the stronger proof when a critical bore is near the tool's practical limit.
Filament and hardware spot checks
You can spot-check filament diameter, screw shanks, washers, magnets, bearings, and inserts before modeling around them. For filament, measure several clean, room-temperature points around and along the strand. One reading is not a spool certificate, and a budget caliper is not a laboratory diameter system. It is still far more useful than assuming every piece of hardware matches its nominal name.
A seven-step measurement workflow that avoids false confidence
- Clean the jaws and the part. A filament string, burr, or dust on a jaw can matter when the feature is small.
- Close gently and zero the display. Do not force the jaws closed or use the zero button to hide obvious mechanical disagreement.
- Use the correct measuring faces. Outside jaws, inside jaws, depth probe, and step faces answer different questions.
- Keep the tool square. A tilted caliper can find a convenient number instead of the true feature size.
- Use repeatable light pressure. Printed plastic, thin walls, TPU, and foamed materials can deflect under the jaws.
- Repeat the reading three times. If the value will not repeat, resolve technique, contamination, part flex, or tool condition before changing the printer.
- Record nominal and actual values. A short table across a test coupon or first article is more actionable than remembering that a part was “a little off.”
If your parts repeatedly almost fit, use the focused almost-fitting-parts troubleshooting guide. It keeps dimensional measurement separate from clearance design, elephant foot, material shrinkage, hole compensation, and over-extrusion.
Where the NEIKO budget lane stops making sense
- Traceable quality records: a displayed 0.01 mm resolution is not traceability. Use a calibrated, documented inspection system when a customer, drawing, or quality plan requires one.
- Features longer than 150 mm: do not piece together several caliper measurements to claim the overall size of a larger part. Use a suitable longer tool or a purpose-built fixture.
- Very small critical bores: inside jaws can be awkward on small diameters. Gauge pins, known mating hardware, or more suitable metrology may give a more honest answer.
- Abrasive, wet, or dirty environments: the current offer does not establish a formal IP rating. Keep the beam and jaws clean and dry.
- Production inspection volume: frequent checks can justify better repeatability, ergonomics, support, calibration options, and documented control than a budget first tool provides.
NEIKO vs Kynup, iGaging, and Mitutoyo
Choose NEIKO when the goal is a known budget first caliper for functional prints and ordinary bench troubleshooting. It covers the essential measurement types without asking a casual user to buy a premium inspection story.
Compare Kynup when two budget tools are on the shortlist and current offer details matter more than brand familiarity. The Kynup vs NEIKO comparison owns that two-product decision; this page stays focused on whether the 01407A itself is enough.
Move to iGaging when repeated maker-bench measurement and a more deliberate middle lane matter. Read the iGaging review rather than assuming every extra dollar automatically changes your print quality.
Consider Mitutoyo when the tool will be used constantly and premium ownership is justified by the work, not by anxiety over one hobby part. The Mitutoyo buyer guide explains that branch. For a wider ladder, use the best digital caliper guide or the caliper toolkit.
Who should buy it?
- new printer owners who do not yet have a trustworthy way to measure a test part
- functional-print makers checking brackets, housings, inserts, magnets, bearings, and mating hardware
- small shops that need an inexpensive secondary caliper for rough bench checks, not final certified acceptance
- buyers who value inch, fractional-inch, and millimeter switching for mixed hardware
Who should skip it?
- anyone who already owns a caliper that closes cleanly, repeats well, and covers the needed range
- buyers who need traceable calibration, formal quality documentation, or a controlled inspection program
- large-part users whose recurring dimensions exceed 150 mm
- people trying to solve slicer, material, or design problems by buying a more precise-looking display
What a caliper cannot prove about a 3D print
A single dimension cannot prove that the whole part is accurate. FDM parts can be wider near the first layer, narrower near a seam, bowed across a long wall, or different along X and Y. Resin parts can distort during washing, support removal, or curing. Measure the features that control function, at the locations that matter, and sample more than one part when repeat production is the real question.
Temperature and time also matter. A part measured warm from the build plate can move as it cools, and some materials continue changing after printing or post-curing. Compare parts in a consistent condition. If a customer drawing sets a conditioning method, inspection temperature, datum, or sampling rule, follow that requirement instead of inventing a bench shortcut.
The tool also cannot tell you whether the model was dimensioned correctly. A caliper may confirm that a hole printed at 5.00 mm, while the real hardware still needs 5.25 mm of clearance. That is a design-fit result, not a printer failure. Separate three questions: did the machine reproduce the intended geometry, did the material and process stay consistent, and did the intended geometry provide enough clearance for the real assembly?
For small-shop acceptance work, record the drawing or CAD nominal, the measurement location, the actual reading, the tool used, and whether the part was accepted. Even a simple log prevents repeated jobs from turning into memory-based arguments. It does not make a budget caliper traceable, but it makes the workflow more disciplined and shows when a stronger inspection plan is justified.
Bottom line
The NEIKO 01407A is a good first digital caliper for 3D printing. Its useful story is not laboratory precision. It is that a modest, correctly used measurement tool can tell you whether a feature is actually off, whether two readings repeat, and whether the next adjustment belongs in CAD, slicing, process control, or hardware fit.
Buy it for routine 0-150 mm diagnostics and light bench work. Skip it when the job needs longer range, formal calibration, sealed construction, or production-grade inspection confidence. If the real decision is which measurement-tool tier belongs on the bench, use the broader digital-caliper buying guide.
Frequently asked questions
Is the NEIKO 01407A accurate enough for 3D printing?
For ordinary hobby fit checks and troubleshooting, the current listing's stated ±0.02 mm accuracy is more than adequate on paper. Real confidence still depends on clean jaws, square alignment, light force, repeated readings, part stiffness, and the tool's actual condition. Do not convert a listing specification into a calibration claim.
Can it measure filament diameter?
Yes, for spot checks. Measure several points and orientations with light pressure. A few caliper readings can flag an obvious problem, but they do not certify an entire spool or replace controlled incoming inspection.
Can it measure holes in printed parts?
It can measure many larger internal features with the inside jaws, but small bores are easy to misread. Use gauge pins or the actual mating hardware when a critical small hole needs stronger proof.
Is 0.01 mm resolution the same as 0.01 mm accuracy?
No. Resolution is the display step. The current listing separately states ±0.02 mm accuracy. Technique, repeatability, temperature, contamination, and part flex can add more uncertainty.
Does a better caliper fix dimensional accuracy?
No. A caliper measures the result. The fix may live in CAD clearance, material shrinkage, extrusion control, first-layer geometry, motion calibration, or process consistency.
