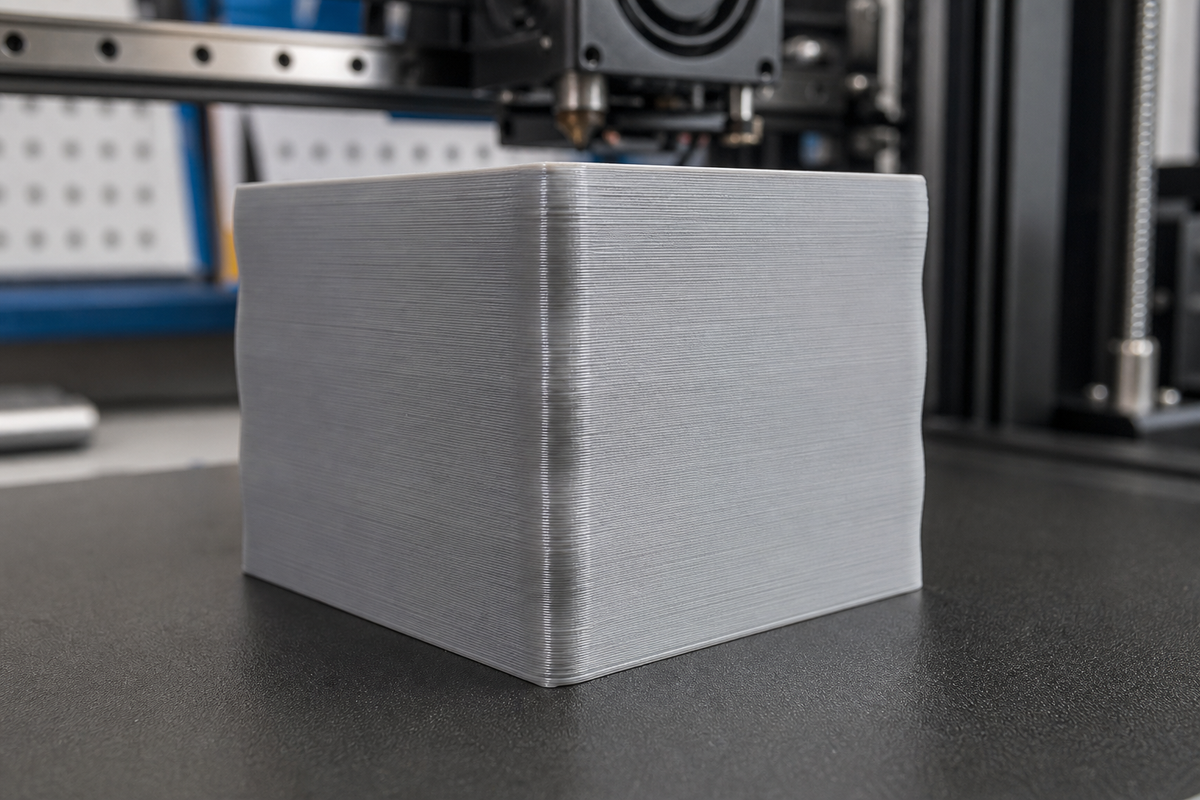

Wavy or bowed 3D print walls usually mean the shell is changing position as it is printed. The most common causes are a wall staying too soft from excess heat or weak cooling, a thin shell being pushed by infill, changing perimeter toolpaths, unstable extrusion pressure, or motion that is not placing each line consistently. The shape of the wave matters: a broad inward or outward bow is not the same defect as fine ringing after a corner or regular Z banding around the whole part.
Start with two comparisons. First, inspect the slicer preview at every height where the wall changes shape. Second, print a short hollow-wall coupon with the same material, orientation, wall speed, and temperature. If the hollow coupon becomes straight, internal toolpaths are loading the shell. If it stays wavy, focus on heat, cooling, flow, model geometry, and X/Y motion before changing infill settings.
Short answer: what should you check first?
- Identify the pattern. Is the wall one broad curve, a few slow waves, repeating fine bands, corner echoes, or a first-layer-only flare?
- Check the slicer preview. Look for wall-count changes, solid infill, internal bridges, ribs, gap fill, speed changes, and seams at the same heights.
- Compare all faces. A defect on one machine side suggests directional cooling, a draft, cable drag, or one-axis behavior. A matching shape on every face suggests heat, flow, or Z-related variation.
- Print a hollow coupon. Remove infill and top layers only for the diagnostic coupon; do not treat that as the production fix.
- Verify the thermal baseline. Use a supported nozzle temperature, confirm the part-cooling fan and duct work, and allow enough layer time for the shell to set.
- Inspect mechanics cold and powered down. Check toolhead play, belts, pulleys, rails or wheels, cable routing, and bed movement using the printer maker's procedure.
Read the wall pattern before changing settings
| What the wall looks like | More likely cause | Best next test |
|---|---|---|
| One broad inward or outward bow | Heat-softened thin wall, model geometry, or external draft | Hollow coupon plus a 180-degree rotation test |
| Bulges align with solid infill or internal ribs | Internal pressure, excess overlap, or too few walls | Add one perimeter, then compare the same cut section |
| Shape changes where wall count changes | Variable-width or thin-wall toolpath transition | Scrub layer preview and test a local geometry or wall-setting change |
| Fine echoes after corners, holes, or text | Ringing or ghosting | Inspect motion, acceleration, printer support, and input shaping |
| Regular bands wrap around the part | Z-axis or periodic extrusion variation | Measure band spacing and inspect the matching mechanical cycle |
| Only the bottom edge spreads outward | Elephant foot or excess first-layer squish | Fix first-layer gap and thermal compression |
| Wall changes randomly between identical prints | Intermittent cooling, feed drag, heat, or looseness | Observe a supervised repeat and log when the shape changes |
1. Excess heat can let a straight wall bow while it is still soft
A wall can leave the nozzle in the right position and move afterward. This happens when a thin shell receives the next hot line before the previous line has set. Tall single-wall boxes, vase-mode parts, narrow ducts, and large flat shells are especially sensitive because the surface has little internal support. A small test cube may look fine while a long enclosure wall develops a shallow inward or outward curve.
Check nozzle temperature, wall speed, minimum layer time, fan operation, and the temperature around the print. Use the filament and printer makers' supported ranges. A temperature that produces strong bonding at high flow may be unnecessarily hot for a slow outer wall. Likewise, an enclosed printer that is ideal for ABS or ASA can retain too much heat for a small PLA shell.
Test one thermal variable at a time. A modest temperature reduction, restored duct airflow, or slightly longer layer time is more informative than combining a colder nozzle, maximum fan, and half speed. More cooling is not universally safe: ABS, ASA, nylon, and some functional PETG parts can lose layer strength or warp if cooling is raised indiscriminately.
Use orientation to separate cooling from geometry
Print the same coupon in the same bed location, then rotate the model 180 degrees. If the bowed face stays on the same physical side of the printer, inspect fan-duct balance, enclosure flow, room drafts, cables, and that axis. If the bow follows the same face of the model, geometry and toolpath demand are stronger suspects. The one-sided rough-wall guide uses the same rotation logic for directional surface defects.
2. Thin walls and changing perimeter counts can change the outline
A nominal wall thickness does not guarantee the same toolpath at every height. Draft angles, fillets, embossed details, ribs, variable-width lines, and imported mesh facets can change how many perimeters fit. The slicer may use three ordinary lines in one region, two wider lines in another, and gap fill or a thin-wall substitution above it. Those transitions change heat, pressure, sequence, and the position of the visible wall.
Scrub the preview one layer at a time and color by feature type. Record the actual line count, line width, wall order, gap fill, speed, and flow at the start and end of each wave. If the surface changes exactly where the toolpath changes, do not begin with belt tension or filament drying.
A useful test is adding one perimeter to a short cut of the model. If the wall straightens, the shell needed more separation or support. If the slicer still changes line strategy, adjust the modeled thickness or use a deliberate local modifier. Verify dimensions afterward; a cosmetic improvement is not useful if a mating part no longer fits.
3. Infill, solid fill, and internal ribs can push on the shell
Internal lines intentionally overlap or contact the perimeter so the part behaves as one structure. On a thin, hot shell, too much contact pressure can telegraph through as slow waves or local bulges. Solid infill is often more revealing than sparse infill because many adjacent lines accumulate heat and pressure near the wall. Internal ribs can produce a repeating outline even when ordinary infill looks harmless.
The hollow-wall coupon is the fastest branch test. Keep outer-wall count, temperature, speed, cooling, layer height, and orientation unchanged, but remove infill and top skin from a short diagnostic version. If the bow disappears, add one perimeter to the production section before reducing overlap. More shell separation often fixes the surface while preserving a reliable internal bond.
If physical ridges align with the infill contacts, use the infill-through-walls guide for the controlled wall-count, overlap, and wall-order sequence. Do not set overlap to zero. A visually straight shell with poor wall-to-infill bonding is a hidden structural failure.
4. Unstable flow or pressure can change wall position
Extrusion volume changes line width. A line that becomes wider pushes the visible boundary outward; a line that becomes narrow can leave the wall inward or poorly supported. Incorrect filament flow, a changed extruder calibration, inconsistent filament diameter, spool drag, a partial restriction, or poorly tuned pressure advance can all contribute.
Look beyond the sidewall. True over-extrusion usually also produces crowded top skin, swollen dimensions, heavy seams, or nozzle drag. Use the over-extrusion troubleshooting guide if the entire part is depositing too much material. Do not reduce global flow from one wavy-wall photo.
Pressure advance problems usually show around speed changes
Pressure or linear advance compensates for the delay between extruder force and nozzle flow. If it is badly mismatched, line width can swell before a slowdown and thin after an acceleration. The defect tends to track corners, short features, or commanded speed changes in the preview. A broad curve across a constant-speed wall is weaker evidence for pressure advance.
Use the printer or firmware maker's calibration method with the correct material, nozzle, and flow range. Save separate values when the workflow requires them. Do not copy a value from another machine or filament and treat it as universal.
5. Motion problems can distort a wall without causing a full layer shift
A loose pulley, changing belt tension, toolhead play, wheel flat spot, rail contamination, bed movement, or cable load can change the actual X/Y position by a small amount. The part may stay continuous, so there is no dramatic shifted layer, yet a straight face slowly wanders. The clue is usually directional: faces drawn mainly by one axis look worse, or the defect changes near one side of the build area.
With the machine powered down and cool, follow the manufacturer's inspection procedure. Check for play, pulley security, belt alignment, smooth travel, cable or tube tug, and a stable printer base. Do not over-tighten belts or wheels; excessive preload can create drag, wear, and its own periodic error.
Ringing is a different motion signature
Ringing creates fading, regularly spaced echoes after a corner, hole, letter, or abrupt direction change. It does not normally make the entire middle of a long constant-speed wall form one slow bow. If the pattern begins at features and fades away, use the ghosting and ringing guide instead of tuning wall thickness.
6. Z banding can look like a wavy wall from the wrong angle
When a wall alternates inward and outward at regular heights around most or all of the part, the defect may be Z banding or periodic extrusion variation. Lead-screw alignment, a constrained Z assembly, pulley cycles, wheel defects, or repeating feed variation can create a measurable pitch. Side lighting makes these bands look like a wavy outline even though the core problem repeats vertically.
Measure the distance between peaks instead of judging by eye. A consistent pitch that wraps around multiple faces belongs in the Z-banding and ribbing guide. A single broad bow on one face that changes with orientation belongs in the wall-shape branch.
7. The model itself may not contain a straight wall
STL tessellation, a low-resolution cylinder, an accidental draft, smoothing during export, nonuniform scaling, or a damaged mesh can produce a wall that only appears straight in the design viewport. A slicer cannot recover geometry that is not in the file. Compare the source CAD measurement, mesh silhouette, and sliced perimeter coordinates.
Use a section view at the affected height and inspect both inside and outside faces. If the outline is already bowed in the preview, repair or re-export the model before tuning the printer. If the preview is straight and the physical coupon is not, the printer, profile, material, or environment created the change.
8. Separate full-height wall bowing from elephant foot
Elephant foot is concentrated at the first few layers. It comes from excess first-layer compression, a hot soft base, or insufficient compensation around the bottom edge. A wall that is normal at the base and bows through the middle or upper section is not elephant foot. Treating it with Z-offset or first-layer compensation will not fix the real cause.
Also separate a scraped ridge from a displaced wall. If a raised edge, curled feature, or crowded top skin contacts the nozzle, use the nozzle-scraping guide and correct what rose into the travel path.
A controlled test sequence for wavy or bowed walls
- Keep the failed part and mark printer front, left, right, and rear on the underside.
- Save the exact project and record slicer version, material, nozzle, wall count, wall order, temperatures, fan, speed, acceleration, and bed location.
- Photograph the wall under fixed side lighting and measure the maximum bow against a straightedge after the part cools.
- Cut the model to a short section that contains the defect.
- Inspect every affected layer in preview for geometry, wall-count, gap-fill, solid-fill, speed, seam, and flow changes.
- Print the short baseline unchanged.
- Print a hollow-wall version with the same outer-wall conditions.
- If the hollow wall is straight, restore internals and add one perimeter before changing overlap.
- If it stays bowed, rotate the model 180 degrees and repeat in the same bed location.
- Use that result to change one thermal, cooling, geometry, flow, or mechanical variable.
- Repeat the winning coupon twice, then verify the full part for fit, strength, and surface quality.
Fixes that match the evidence
- Wall straightens when printed hollow: add shell separation, review solid-fill contact, then test a small overlap or wall-order change if needed.
- Wall bows even with no internals: verify heat, cooling, layer time, geometry, and machine-direction motion.
- Defect stays on one printer side after rotation: inspect duct balance, drafts, cables, tubes, and the matching axis.
- Defect follows the model face: inspect local geometry, perimeter count, thin-wall behavior, speed, and internal features.
- Bulges align with slowdowns: verify flow and pressure-advance calibration using the supported procedure.
- Fine echoes follow corners: diagnose ringing rather than broad wall bowing.
- Regular bands wrap around every face: measure the pitch and diagnose Z or periodic feed behavior.
- Preview is already curved: repair or re-export the model instead of tuning the machine.
What not to change first
- Do not change flow, temperature, fan, speed, overlap, and belts together. The result will not identify the cause.
- Do not lower infill percentage blindly. Solid fill, ribs, wall count, and contact pressure can matter more than sparse density.
- Do not set infill overlap to zero. Preserve the internal bond.
- Do not max out cooling for every material. Surface shape, warping, and layer strength must be balanced.
- Do not tighten belts until they feel rigid. Follow the printer maker's target and adjustment method.
- Do not blame moisture from wall shape alone. Look for popping, foaming, stringing drift, or irregular extrusion evidence.
- Do not compare warm and fully cooled dimensions. Thin shells can move as temperature equalizes.
Frequently asked questions
Why do the walls of my 3D printed box curve inward?
A thin wall may contract inward while it is still soft, especially with excess heat, low layer time, uneven cooling, or too little shell support. Check whether the curve appears in the slicer, then compare a hollow coupon and a rotated coupon before changing the entire profile.
Can infill make the outside wall wavy?
Yes. Infill, solid fill, and internal ribs can press into a hot thin shell. If a hollow version is straight and the bulges align with internal contacts, add one perimeter first. Then test overlap or wall order in small steps while preserving the bond.
Is a wavy wall caused by loose belts?
It can be, but belt or pulley problems usually have a directional or repeating signature. A wall that changes exactly with internal toolpaths is stronger evidence for shell and slicer behavior. Inspect mechanics only after recording where the pattern appears.
Is this the same as ghosting?
No. Ghosting is a sequence of fading echoes after a sharp feature. Wavy or bowed walls can form broad curves across otherwise featureless regions. The two defects may coexist, but they require different tests.
Should I lower flow to straighten the wall?
Only after confirming that the whole part is over-extruded or that line-width changes track the bulges. Lowering flow from one wall photo can create gaps, weak bonding, and undersized features without fixing heat or toolpath causes.
How straight should an FDM wall be?
The acceptable amount depends on wall length, thickness, material, temperature, orientation, printer condition, and the part's fit requirements. Define a measurable tolerance and inspection method. A cosmetic storage bin and a mating enclosure panel do not need the same acceptance criterion.
Next steps
Keep the failed part, the baseline coupon, and the winning coupon. Record the maximum bow, measurement temperature, orientation, slicer version, and the one change that corrected it. Use the dimensional-accuracy and fit guide before approving mating parts, and use the print-quality guide when the wall also has seams, roughness, weak layers, or extrusion gaps.
If repeated wall-shape testing is consuming more time than the job justifies, the printer-versus-service guide provides a practical decision path. JC Print Farm is the relevant handoff when the file revision, material, critical wall dimensions, quantity, surface expectations, and acceptance method are already defined.
