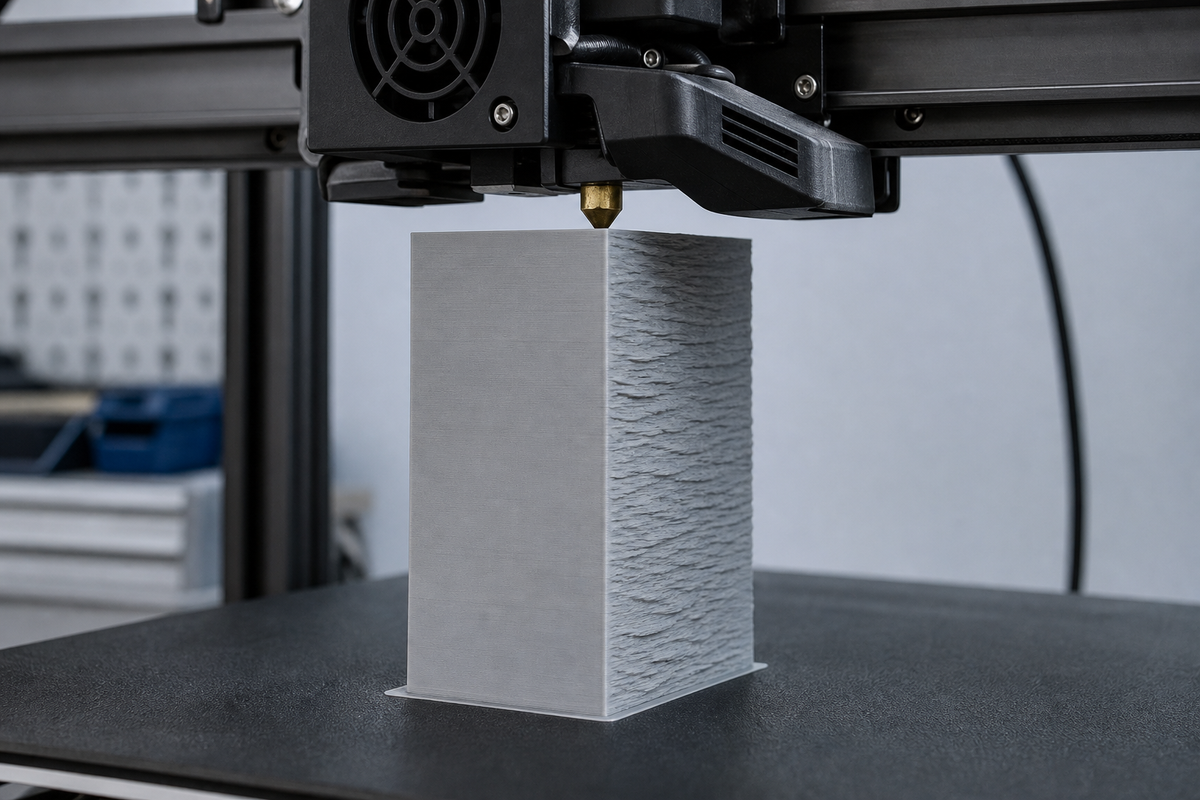

Why Is My 3D Print Rough on One Side but Smooth on the Other?

A 3D print that is rough on one side but smooth on the other usually has a directional problem, not a global flow problem. Uneven part cooling is the first suspect, especially when the rough face points away from a one-sided fan duct. Model orientation, overhang direction, seam placement, a draft, and X- or Y-axis motion can create the same one-face symptom.

The highest-value test is simple: print a small copy, then rotate the model 180 degrees on the build plate without changing the profile. If the roughness stays on the same physical side of the printer, inspect airflow, mechanics, and room conditions. If it follows the same face of the model, inspect geometry, wall order, seams, and how that face is supported. That one result prevents a lot of random retraction, flow, and temperature changes.

Short answer: what should you check first?

1. Define “one side” precisely. Record whether the bad face is left, right, front, or rear in machine coordinates.
2. Check the slicer preview. Look for overhang colors, seam marks, speed changes, bridge paths, support contact, and thin-wall substitutions on that face.
3. Inspect the part-cooling duct. Confirm that the fan runs, the duct is not cracked or blocked, and airflow reaches both sides of the nozzle.
4. Rotate the model 180 degrees. Keep the filament, temperature, speed, layer height, and fan settings unchanged.
5. Compare a center-bed test with the original location. A defect that changes near an edge may be caused by a draft, fan intake restriction, or bed-position mechanics.
6. Match the texture to the right defect family. Soft sagging, repeating ripples, seam bumps, scraped ridges, and sudden layer offsets are different failures.

The rotate-and-repeat test tells you where the problem lives

1. Uneven part cooling is the most common one-sided cause

Many FDM toolheads blow part-cooling air from one side or through a duct that is not perfectly balanced. The face nearest the strongest outlet freezes sooner. The opposite face remains soft for longer, so a sloped wall can sag, an outer perimeter can smear, and corners can curl upward before the next layer arrives. A symmetrical-looking duct can still deliver asymmetrical flow if one outlet is partly blocked or misaligned.

Do not judge fan health by sound alone. A fan can spin while a strand of filament, dust mat, warped duct, loose screw, or damaged grille restricts useful airflow. With the printer off and cool, inspect the inlet and every outlet. Confirm that the duct sits at the intended height and has not softened near the heater block. Use the manufacturer's inspection method; do not place fingers, paper, or loose objects near a moving hot toolhead.

One-sided cooling problems are most visible on small towers, steep overhangs, curled text, and faces with many short layers. A large vertical wall may hide the issue because each line has time to set. That is why the same printer can produce a clean cube and an ugly figurine face without the filament suddenly becoming “bad.”

How to test cooling without guessing

Use a small two-face or four-face tower and print it in the original orientation. Mark the machine front on the skirt with a pen after the part cools. Rotate the model 180 degrees in the slicer and print again at the same bed location. If the weak surface stays opposite the strongest duct outlet, you have much better evidence for cooling asymmetry than a generic fan-speed tower provides.

Increasing fan speed is useful only when the material and layer-bond requirements allow it. PLA often tolerates substantial part cooling; PETG may need a more moderate balance; ABS, ASA, and nylon usually need deliberate cooling control to avoid warping or weak layer bonds. The right fix may be restoring even airflow at the existing setting, slowing the local overhang, or changing orientation—not forcing maximum fan on every material.

2. The model may expose one face as an overhang

A face can look nearly vertical in the viewport while still stepping outward by a small amount on every layer. One side of a rounded housing may be built as a supported inward slope, while the opposite side is an outward overhang. The two faces have different thermal and geometric demands even though they appear paired.

Turn on the slicer's overhang visualization and inspect each bad region layer by layer. Look for perimeter lines that extend beyond the layer below, abrupt speed changes, bridge classification, and thin ledges. A curved mesh can also contain coarse facets that change the toolpath direction from one segment to the next. If the roughness follows that face when the model rotates, the printer is probably reproducing a geometry-side problem consistently.

Try a smaller layer height, a more favorable orientation, slower overhang perimeters, or support only where the surface requirement justifies it. Avoid lowering speed globally until you know the rough face is actually an overhang. A purely vertical wall that remains rough in one machine direction needs a different branch.

3. Seam placement can make one wall look much worse than the others

When the slicer aligns layer starts, all restart marks can stack on one face. That wall may show a zipper, raised dots, small voids, or a shiny vertical stripe while the other faces remain clean. The defect is localized by design, so flow changes applied to the entire part can damage the three good faces without fixing the restart.

Compare the rough region with the seam markers in preview. If the marks form a vertical or slanted line rather than covering the entire face, use the seam-bumps troubleshooting guide. Check filament condition, nozzle heat, actual flow, pressure or advance calibration, wipe behavior, and seam placement in that order. Randomizing the seam can hide a stack by distributing dots, but it does not make each restart cleaner.

A seam can also land beside text, a sharp corner, or a thin wall where the restart has little room to stabilize. Moving it to a less visible, structurally forgiving edge can be a valid production choice after the extrusion baseline is sound.

4. Axis-specific ringing can look like roughness on only one face

Ringing produces regularly spaced waves after corners, holes, embossed text, or sudden direction changes. Because a front-facing wall is mostly drawn with X motion and a side-facing wall is mostly drawn with Y motion, looseness or resonance in one axis can make one orientation look worse. The texture is usually orderly rather than fuzzy or melted.

Inspect belt tension and alignment, pulley security, wheel or rail play, toolhead looseness, bed movement, and the surface supporting the printer. Follow the maker's adjustment method; tighter is not automatically better. Then compare the printer's intended acceleration and input-shaping state with the current profile. The ghosting and ringing guide covers that branch in detail.

Do not confuse a repeating echo with a layer shift. Ringing leaves the wall in the right overall position. A true shift moves all later layers sideways and belongs in the layer-shift diagnosis.

5. A room draft or enclosure flow can target one side

An open window, HVAC vent, desk fan, air purifier, or frequently opened door can cool one face more than the others. Inside an enclosure, a chamber exhaust, auxiliary fan, leaky panel, or open top can create a directional stream. PLA may improve on the cool side while the far side stays soft; ABS, ASA, and nylon may warp or split on the face receiving the draft.

Map the rough face in machine coordinates and note when the room system runs. Print the same coupon once under the normal condition and once after removing the external airflow source safely. Do not cover electronics or block required printer ventilation. The goal is to remove an unintended cross-draft, not to trap unlimited heat.

If a defect appears only near one build-plate edge, move the coupon to the center without changing orientation. A center-bed improvement supports an environmental or position-related cause. If the same face remains bad at the center, keep following the printer-direction branch.

6. A cable, Bowden tube, or filament path can disturb one travel direction

Toolhead cables, reverse-Bowden tubes, spool drag, and filament guides change shape as the carriage moves. A bundle may pull harder near one side of the bed, rub the frame, touch the print, obstruct the cooling inlet, or load the toolhead just enough to show on one face. This is especially relevant when a center test is clean but a large part near the machine edge is not.

With the printer off and cool, move the axes only as the manufacturer permits and observe the full path. Look for tight bends, snag points, changing connector strain, tubes that press against the fan inlet, and spools that stop turning freely. During a supervised test, watch rather than touch. Route components using the maker's clips and bend-radius guidance.

A path that intermittently tugs the carriage can produce waves or position errors. A path that starves the extruder can produce thin, rough lines. The surface appearance and timing decide which mechanism is plausible.

7. Nozzle drag can damage the face the toolhead exits toward

A curled edge or overfilled local feature may rise into the nozzle. The nozzle can scrape, pull softened material, and leave a rough patch that appears directional because of travel order. Look for shiny flattened ridges, displaced curls, clicking contact, or debris collecting on the nozzle.

Check the slicer path immediately before the damage. If the nozzle crosses a raised edge, use the nozzle-scraping guide to separate warped corners, high infill crossings, excess first-layer squish, rough top skin, and mechanical play. Z-hop can avoid some travel contact, but it should not be used to conceal severe over-extrusion or a loose motion system.

8. Global flow or temperature problems are less likely when three faces are clean

True over-extrusion normally affects dimensions, top skin, seams, and walls across the part. Excessive temperature normally changes gloss, corner definition, stringing, or small-feature behavior in more than one direction. Wet filament often produces inconsistent extrusion, popping, hairs, and roughness that does not respect a single machine face.

Those causes can amplify a directional weakness, but the one-side pattern should be explained first. Measure walls and overall dimensions before lowering flow. If the whole part is swollen or crowded, follow the over-extrusion guide. If only the horizontal roof is rough, use the rough-top-surface guide instead.

A controlled troubleshooting sequence

1. Keep the failed part and mark printer front, left, right, and rear on its underside.
2. Save the exact project and record filament, layer height, temperatures, fan settings, speed, acceleration, and bed location.
3. Inspect the slicer preview for overhang, seam, speed, bridge, support, and wall-order changes on the bad face.
4. Power down and cool the printer, then inspect the fan inlet, duct outlets, toolhead play, belts, rails or wheels, cables, and filament path.
5. Print a small representative coupon in the original orientation at the center of the bed.
6. Rotate only the model 180 degrees and print it again with the same profile and location.
7. If the defect stays in machine coordinates, correct one airflow, draft, or mechanical variable and repeat.
8. If it follows the model, correct one geometry, seam, overhang, support, or local-speed variable and repeat.
9. Return to the full part only after the coupon passes twice.

Two matching passes matter because intermittent fan starts, loose connectors, spool drag, and room airflow can create a false win. The target is repeatability, not one lucky surface.

Fixes that match the evidence

• Weak face always opposite the duct: clean and align the duct, verify fan operation, restore the intended outlet clearance, and use material-appropriate cooling.
• Roughness follows an outward slope: change orientation, layer height, overhang speed, or support strategy.
• Marks match the seam: stabilize extrusion and restart behavior, then place the seam deliberately.
• Regular waves track one axis: inspect motion hardware and support, then validate acceleration and input shaping.
• Defect appears near one bed edge: inspect cables, tubes, fan intake, spool drag, and environmental airflow in that position.
• Face is scraped or smeared: fix the raised geometry, excess material, warping, or toolhead play that caused contact.
• Every face is actually swollen or inconsistent: leave the one-sided branch and diagnose flow, heat, moisture, or feed stability globally.

What not to change first

• Do not change temperature, flow, retraction, fan, speed, and acceleration together. You will not know which branch was real.
• Do not assume the spool is wet because one face is rough. Moisture rarely respects the printer's left or right side.
• Do not max out cooling for ABS, ASA, or nylon. More air can trade surface texture for warping or weak bonding.
• Do not over-tighten belts or wheels. Excess preload can create drag and wear.
• Do not randomize the seam just to spread defects around. Diagnose the restart quality first.
• Do not use Z-hop as the first answer to a visibly high edge. Correct the reason the part or extrusion rose into the nozzle.
• Do not compare two tests with different bed locations and orientations. Change one variable at a time.

Frequently asked questions

Why is the side facing away from the fan rough?

That face receives less or later cooling, so overhanging perimeter lines remain soft and move before the next layer. Confirm it with the rotation test. The fix may be duct alignment or a local geometry change rather than simply raising the fan percentage.

Why is only the back of my 3D print rough?

The back may contain the aligned seam, face away from the cooling duct, sit in an enclosure exhaust path, or be drawn mainly by the weaker motion axis. Mark machine directions, inspect the slicer preview, and rotate the model to separate those causes.

Can wet filament make only one side rough?

Wet filament can make a directional cooling or overhang problem more visible, but moisture-driven extrusion usually appears across multiple faces or at irregular times. Drying should follow evidence such as popping, steam, stringing drift, or inconsistent free-air extrusion—not the one-face pattern alone.

Will rotating the model fix the print?

It can place the cosmetic face in a stronger cooling direction, which may be a valid production orientation. But rotation is first a diagnostic. If a damaged duct or loose axis is responsible, relying on one favorable angle leaves the printer unstable.

Is one rough side always a cooling problem?

No. Cooling is common, but the seam, outward overhangs, ringing, drafts, cable drag, and nozzle contact can all localize roughness. The texture and the rotate-and-repeat result identify the correct branch.

Should I print a temperature tower?

Only after the directional tests show that temperature is still plausible. A temperature tower can compare heat behavior, but it does not by itself separate a blocked duct from a seam or axis-specific resonance.

Next steps

Once the coupon is even on every face, rebuild the normal baseline with the functional-part setup checklist. Use the print-quality troubleshooting hub if the texture turns out to be a different defect family.

For a visible production face, record the successful model orientation, bed location, filament profile, fan state, and acceptance sample. If repeated proof prints and machine repair are costing more than the part, the printer-versus-service guide gives a practical next decision. JC Print Farm is a reasonable handoff when the file, material, quantity, critical face, and acceptable finish are already defined.
