Why Is Infill Showing Through My 3D Print Walls, and How Do I Fix It?

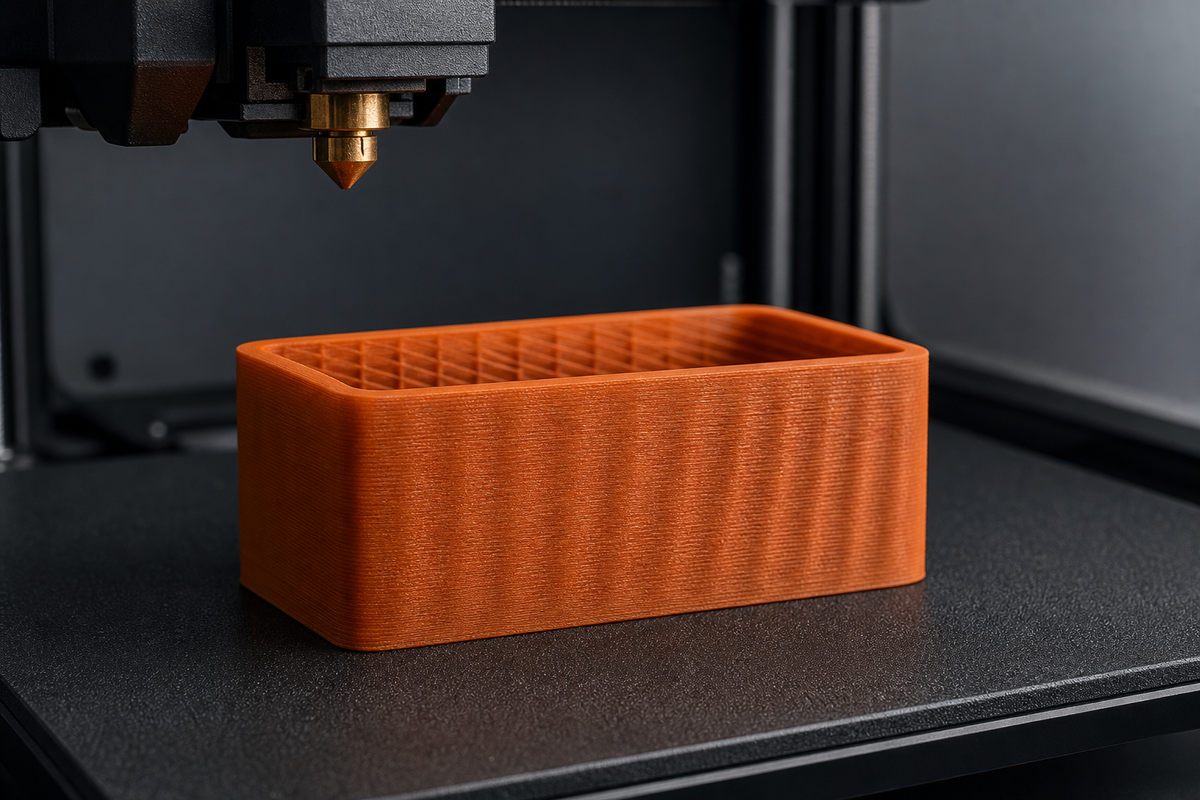

If infill is showing through your 3D print walls, first determine whether the wall is physically ridged or only visually transparent. Raised bands that line up with infill contact points usually mean the shell is too thin, infill overlap is too aggressive, the wall-printing order is exposing pressure from the inside, or material flow is too high. A wall that feels smooth but reveals the infill only under bright light may simply be thin, pale, glossy, or translucent.

Do not start by lowering infill percentage. Infill percentage changes how much internal structure exists, but it does not directly control how strongly each infill line presses into the perimeter. Preserve the original slice, inspect the wall under side lighting, and change one variable at a time. The fastest diagnosis is to separate a surface-shape problem from an optical show-through problem.

Short answer: what should you check first?

1. Run a fingertip or straightedge across the wall. Feel for repeating bumps, diagonal ribs, or vertical bands that match the infill pattern.
2. Change the light, not the settings. View the part under backlight and then under low side light. Backlight reveals transparency; side light reveals physical waviness.
3. Count the actual perimeter lines in the slicer preview. Do not rely only on a wall-thickness field or model dimension.
4. Inspect infill-to-wall overlap. Look for an unusually deep intrusion into the innermost perimeter, especially at every repeating contact point.
5. Check wall order. Note whether the outer wall prints before or after the inner wall and infill on the affected layers.
6. Rule out global over-extrusion. Measure a simple wall test and look for swollen dimensions or crowded top skin elsewhere on the part.
7. Print a short comparison coupon. Add one perimeter first; change overlap or wall order only if the evidence points there.

Read the pattern before changing the profile

1. Separate optical show-through from physical wall ridges

A print can reveal its infill without having a dimensional defect. Natural, white, yellow, clear, silk, and lightly pigmented filaments transmit or scatter more light than an opaque black or dark matte material. A two-wall shell that looks solid on the printer may show a dark grid when held near a window. Glossy surfaces can also exaggerate tiny changes in cooling and line direction.

Use two inspections. First, backlight the part. If the pattern becomes much stronger while the surface still feels smooth, transparency is dominant. Second, aim a low light across the wall. Physical ridges cast narrow shadows and highlights even without backlighting. A straightedge or caliper jaw held gently against the wall can reveal gaps, but do not squeeze a thin shell into a false reading.

If appearance is the only failure, adding one perimeter is usually a cleaner first test than changing flow, temperature, or infill. An extra wall adds an optical barrier and moves infill contact farther from the visible surface. A darker or more opaque filament can also solve the cosmetic requirement, but do not use color to hide a wall that is actually being pushed out of shape.

2. Too few perimeters let infill pressure reach the outer surface

Every infill line needs to overlap or anchor into the shell. With only one or two narrow perimeters, that contact force sits close to the outside face. Warm plastic can deflect slightly at each junction, creating a repeating pattern that copies the internal grid, gyroid, cubic, or line infill onto the wall.

Count perimeter toolpaths in the slicer preview at the exact affected height. Variable line width, thin-wall detection, local model thickness, modifiers, and a changed nozzle profile can produce a different line count than the nominal wall-thickness box suggests. A 1.2 mm modeled wall is not a guarantee of three identical 0.4 mm lines after slicing.

Add one perimeter and repeat only the affected section. For functional parts, use the wall-thickness and perimeter guide to balance appearance, strength, time, and material. The goal is not the highest possible wall count. It is enough separation that the innermost wall can accept infill contact without imprinting the visible outer wall.

3. Excessive infill overlap can push the shell outward

Infill overlap tells the slicer how far infill should intrude into or connect with the inner perimeter. Too little overlap produces a weak bond or a visible gap. Too much overlap tries to place more molten plastic into an already occupied boundary, raising local pressure and creating bumps at every contact.

Names and units differ by slicer. The control may be expressed as a percentage, an absolute distance, or a combination of line width and overlap. Read the slicer's definition before copying a number from another profile. Ten percent in one workflow may not represent the same physical distance as ten percent in another.

Do not reduce overlap first unless the ridges line up with actual contact points and adding a perimeter did not resolve them. Make a small change, then inspect both the outside wall and the cut or top view of the bond. If a gap opens between the wall and infill, you went too far. The walls-and-infill gap guide covers that opposite failure so the cure does not become a new structural problem.

4. Wall order changes which line records the pressure

Outer-first, inner-first, and inner-outer-inner strategies distribute error differently. Printing the visible outer wall before the inside is complete can protect its geometry in some models, but later inner lines may still press against it while it is warm. Printing the outer wall last can let it smooth over the inner structure, or it can copy accumulated pressure and heat beneath it. There is no universal order that wins for every geometry and material.

Use a controlled comparison. Slice a short section twice with only wall order changed. Keep wall count, overlap, flow, temperature, speed, cooling, and infill pattern identical. Then label the parts before judging them. If the pattern moves or disappears, sequence matters. If it remains identical, wall thickness, overlap, geometry, or flow is more likely.

Also inspect whether the slicer prints infill before walls on the affected layer and whether sparse infill and solid internal regions use different sequences. A defect that appears only beside solid internal ribs may be caused by solid fill pressure, not the ordinary sparse infill setting.

5. Over-extrusion and excess heat amplify infill telegraphing

A profile that deposits too much material makes every shared boundary harder to fit. Excess flow may show as oversized dimensions, packed top surfaces, ridged wall seams, and a nozzle that drags through previously printed lines. Infill contact is then where the extra volume becomes visible, but overlap is not necessarily the root cause.

Separate machine feed calibration from per-filament flow. A changed extruder gear, wrong rotation distance, or incorrect E-step value affects every material. Filament diameter, formulation, temperature, and extrusion multiplier affect one spool or profile. The over-extrusion troubleshooting guide provides a controlled sequence without mixing those two calibrations.

Temperature and speed matter because they change how long the shell remains soft. A very hot, slow outer wall may be more easily displaced by nearby inner lines. A very fast wall may have poor placement or pressure control. Test within the material and printer maker's supported range. Lowering temperature blindly can trade telegraphing for weak layers, dull extrusion, or under-extrusion.

6. Thin model geometry can override a good global wall setting

Local geometry often explains why one face shows infill while the rest of the part looks clean. Drafted walls, embossed text, internal channels, ribs, fillets, and imported mesh errors can narrow the available shell. At one height the slicer fits three wall lines; a few layers later it may fit two, one, or a variable-width line beside internal fill.

Scrub through the slicer preview one layer at a time. Color by feature or line type, not only by speed. Look for changes in perimeter count, gap fill, thin-wall generation, solid infill, and internal bridges. If the defect starts exactly where the toolpath changes, the model-to-toolpath transition is stronger evidence than a generic material adjustment.

Possible fixes include thickening the modeled wall, changing local feature dimensions, using a supported variable-line-width engine, applying a local wall-count modifier, or choosing a nozzle and line width that resolve the feature more cleanly. Check fit after any geometry change. The dimensional-accuracy guide helps keep a cosmetic correction from breaking mating surfaces.

7. Do not confuse infill marks with ringing, seams, or cooling bands

Infill telegraphing repeats with the internal pattern. Ringing repeats after a sharp corner, letter, hole, or sudden motion change, usually fading with distance from that feature. A seam creates one aligned vertical region. Cooling or layer-time bands may wrap around the entire part at one height. Each pattern has a different cause.

Compare the surface to the slicer preview. If a diagonal wall ridge appears wherever a diagonal infill line meets the shell, the relationship is direct. If ripples begin after a corner even where no infill contacts the wall, use the ringing and ghosting guide. If only one narrow vertical line is raised, inspect seam placement, pressure, wipe, and restart behavior instead.

Moisture can create roughness, bubbles, and inconsistent extrusion, but a perfectly repeating infill-shaped pattern is weak evidence for wet filament by itself. Drying is useful when the spool also pops, strings, foams, or changes texture. It should not be the automatic first answer to every visible wall pattern.

A controlled test that isolates the cause

1. Save the original project, material profile, orientation, and slicer version.
2. Cut the model to a short section that includes the visible defect.
3. Photograph the wall under the same side light and backlight before each change.
4. Preview and record actual perimeter count, wall order, overlap, line width, and infill pattern.
5. Print the baseline coupon without changing anything.
6. Add exactly one perimeter and repeat.
7. If ridges remain, restore the original wall count and make one modest overlap change.
8. If the pattern remains, restore overlap and compare wall order.
9. Only then verify flow and temperature with a separate calibration piece.
10. Check the winning coupon for wall-to-infill bonding, dimensions, layer strength, time, and appearance.
11. Repeat the winning configuration twice before applying it to a long job.

This sequence works because wall count, overlap, wall order, and flow can all alter the same visible symptom. Changing them together may produce a clean wall without revealing which adjustment fixed it or whether wall strength was lost.

Fixes that match the evidence

• Smooth wall with optical show-through: add one perimeter, use a more opaque material, or redesign the wall for the required appearance.
• Physical bumps at infill contacts: add shell separation first; then test a modest overlap reduction if necessary.
• Whole part is swollen: correct machine or filament flow before tuning the wall-to-infill boundary.
• Only thin model regions are affected: adjust local geometry, variable-width behavior, or a local wall modifier.
• Defect changes with wall order: keep the sequence that produces the cleanest surface while preserving dimensions and bonding.
• Pattern follows corners rather than infill: diagnose ringing, pressure behavior, or seam placement instead.
• A gap appears after reducing overlap: restore enough overlap for a reliable bond and solve visibility with wall count or geometry.
• Marks appear only on very slow, hot regions: verify temperature, cooling, minimum layer time, and wall speed within supported limits.

What not to change first

• Do not lower infill percentage blindly. The remaining infill lines can still press into the wall with the same overlap.
• Do not set overlap to zero. A pretty shell is not a win if the internal structure no longer bonds to it.
• Do not reduce global flow from one wall photo. Verify dimensions and extrusion behavior on a controlled test.
• Do not add many perimeters without checking model fit. Toolpath allocation, print time, stiffness, heat, and internal space can change.
• Do not dry filament only because a pattern is visible. Look for moisture-specific symptoms first.
• Do not judge two coupons under different lighting. Gloss and translucency can make the same surface look dramatically different.

Frequently asked questions

How many walls stop infill from showing through?

There is no universal count because line width, nozzle size, model thickness, filament opacity, overlap, and wall order all matter. Adding one perimeter to the actual affected layers is the most useful first comparison. Confirm the line count in the preview rather than assuming a nominal wall-thickness value produced it.

Should I reduce infill overlap?

Reduce it only when physical ridges align with infill contacts and the bond is visibly too aggressive. Make a small controlled change. Too little overlap causes gaps and weaker load transfer between the shell and internal structure.

Does infill percentage cause wall lines?

It can change the spacing and frequency of the visible pattern, but contact pressure, wall thickness, overlap, order, and flow usually control whether each line telegraphs through. Lower density alone is not a reliable fix.

Why can I see infill through white or clear filament?

Light colors and translucent formulations transmit or scatter enough light to reveal darker internal paths. If the surface is smooth, this is mainly optical. More perimeters, a thicker wall, a more opaque color, or a suitable finish can improve appearance.

Can wall order fix infill showing through?

Sometimes. Wall order changes when the visible surface is laid down relative to hot inner walls and infill. Test two identical short coupons because the best sequence depends on geometry, material, cooling, and slicer behavior.

Is this the same as ghosting?

No. Infill telegraphing follows the internal pattern and contact points. Ghosting usually appears as fading echoes after an external corner, hole, letter, or other abrupt motion feature.

Next steps

Keep the baseline and label each test. If one added perimeter removes both the shadow and the physical ridges without breaking dimensions or print time, stop there. If it does not, use the evidence to test overlap, wall order, flow, or local geometry one at a time. Save the proven slicer version and profile with the part revision so the defect does not return unnoticed in a later batch.

Use the functional-part setup checklist to stabilize the machine baseline, then use the print-quality hub if the same job also shows rough tops, weak layers, or inconsistent extrusion. If repeated wall tests are consuming more time than the part is worth, the printer-versus-service guide gives a practical next decision. JC Print Farm is the appropriate handoff when the file, material, quantity, cosmetic surfaces, and acceptance criteria are already defined.
