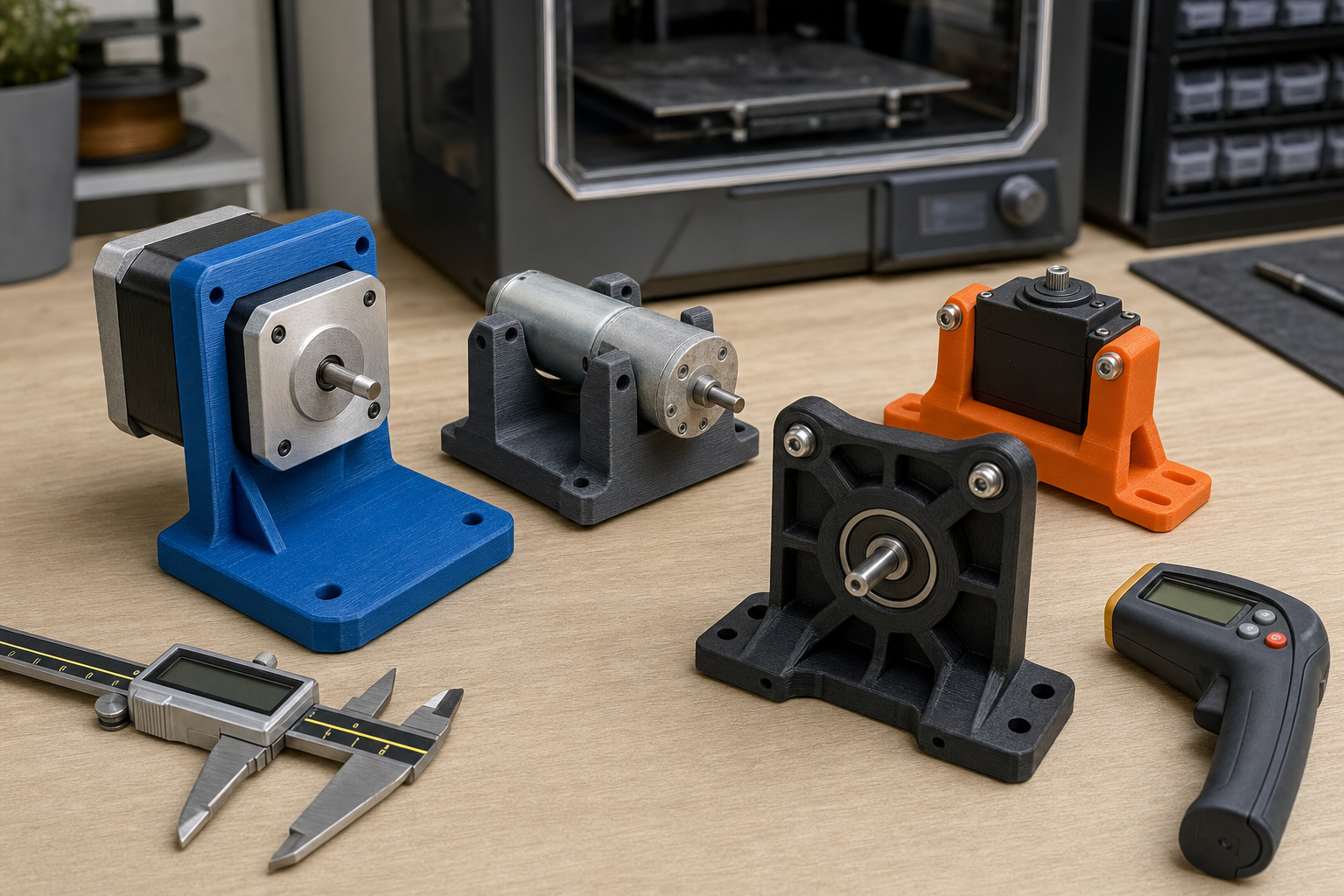

PETG is the best practical default for most low-power, cool-running 3D printed motor mounts because it is tough, accessible, and easier to print accurately than nylon or polycarbonate. Choose ASA when the mount lives in a warm enclosure, outdoor machine, or sun-heated housing. Use nylon when impact, repeated vibration, or resilient clamping matters enough to justify drying and careful dimensional control. Move to a qualified polycarbonate grade when sustained motor heat and stiffness exceed PETG or ASA margin and your printer can produce repeatable, well-bonded parts. PLA Pro is useful for fit checks and cool, lightly loaded prototypes, but it should not be the automatic production choice around a motor.
A motor mount is not just another bracket. It controls shaft alignment, belt or gear mesh, bearing load, wire clearance, and vibration while sitting beside a heat source. A part can look rigid on the bench and still creep until a belt runs out of line, loosen around its inserts, amplify resonance, or soften after the motor reaches steady-state temperature.
This guide covers compact steppers, servos, DC gear motors, fans, pumps, light automation, benchtop fixtures, and prototype mechanisms. It does not certify a printed mount for high-speed spindles, vehicle propulsion, lifting equipment, collaborative robots, hazardous machinery, safety guarding, or any system where a shifted motor could injure someone.
Quick recommendation by motor-mount use
Cool NEMA-style stepper on a light bench mechanism: start with a thick, ribbed PETG mount and verify hot alignment.
Motor inside a warm enclosure or outdoor machine: use ASA when UV, enclosure temperature, and weather are the dominant risks.
Impact-prone mobile mechanism or resilient clamp: evaluate dry nylon with metal hardware owning the precision interfaces.
Hotter motor and alignment-sensitive load: consider a qualified polycarbonate grade only after proving the print process and assembled temperature.
High-speed, high-torque, safety-critical, or tightly aligned drive: use machined metal or a rated commercial mount unless an engineer has qualified the printed assembly.
PETG vs ASA vs nylon vs polycarbonate at a glance
| Decision factor | PETG | ASA | Nylon | Polycarbonate |
|---|---|---|---|---|
| Best lane | Cool, low-load utility mounts | Warm enclosed or outdoor equipment | Impact, vibration, resilient clamps | Qualified hotter, stiffer assemblies |
| Printing burden | Moderate | Enclosure and ventilation | Drying and dry feed | High heat, enclosure, grade control |
| Alignment behavior | Good when cool; creep is the limit | Useful heat margin if printed flat | Resilient but moisture and flex matter | Stiff and heat capable when qualified |
| Main warning | Bolt-zone creep and hot drift | Warped faces or weak layers | Dimensional change and excess compliance | False confidence from a poor print |
Why PETG is the default for ordinary motor brackets
PETG works well for a compact stepper, servo, or DC gear motor driving a light belt, lead screw, valve, camera slider, feeder, or test fixture. It gives a useful balance of toughness and printability, and it is less likely than basic PLA to crack from a bump or soften in a mildly warm shop. The broader PETG-versus-PLA bracket guide explains why the answer changes once heat and sustained load enter the job.
PETG's failure mode is usually slow movement rather than an immediate dramatic break. A thin mounting face can dish under four screws. A belt-tension slot can elongate. A cantilevered motor can pull the bracket out of square. Use broad contact faces, ribs that carry load into the base, washers under bolt heads, metal inserts where service is frequent, and enough wall thickness around slots. Then remeasure alignment after the motor has run hot for the longest normal cycle.
When ASA is the better motor-mount material
ASA earns the more demanding workflow when the motor lives inside a warm printer enclosure, outdoor controller, greenhouse mechanism, sun-exposed tracker, or equipment cabinet. Its environmental and heat margin can be more valuable than PETG's easier printing. It is especially sensible when the mounting frame, cover, and surrounding machine parts are already designed around an enclosed ASA workflow.
The mount still has to leave the printer flat and dimensionally true. Warped motor faces create misalignment before the mechanism ever runs. Weak layer bonds around a slotted adjustment arm can crack when belt tension is applied. Print with controlled chamber conditions and ventilation, use generous fillets, and reject lifted corners or root cracks. The heat-resistant filament comparison helps define when ordinary PETG margin is no longer enough.
When nylon earns the drying and fit-control burden
Nylon is useful for a motor mount that gets knocked, travels on a mobile mechanism, clamps around an irregular motor body, or needs resilience instead of maximum stiffness. It can survive abuse that would start a crack in a more rigid part. A nylon saddle around a small gear motor or a replaceable vibration-tolerant carriage can be a good lane.
Do not choose nylon merely because it sounds stronger. A flexible mount can let gears, couplings, or pulleys move out of line. Moisture affects print quality and can change the finished part's stiffness or dimensions. Dry the material, feed it dry, condition the final part for its service environment, and let metal sleeves, washers, inserts, or a rigid frame own the precision. The nylon worth-it guide covers when that process cost is justified.
When polycarbonate makes sense—and when it is overkill
Polycarbonate belongs in the conversation when the motor or surrounding enclosure runs hotter than PETG or ASA can comfortably tolerate and the mount must retain stiffness. It can suit a compact heated mechanism, a warm equipment bay, or an alignment-sensitive prototype where a metal mount is not yet practical. But “PC” is not one universal property set: blends, fillers, print temperatures, moisture sensitivity, annealing guidance, and heat performance vary by grade.
A poorly bonded polycarbonate print is not safer than a well-made ASA part. Use an enclosed printer that can meet the exact filament maker's requirements, document the grade and dry state, and inspect every load path. If you are comparing supplier options, the Polymaker material catalog is one useful place to review exact grade data rather than treating a polymer-family label as the specification. For a one-off cool stepper bracket, PC is usually unnecessary complexity; for a genuinely hot, stiff fixture, it may be the correct starting point before validation.
PLA Pro is best used as a motor-mount prototype
PLA Pro prints accurately and makes an excellent first article for checking bolt pattern, shaft clearance, cable exit, belt line, sensor position, and tool access. It may also be enough for a tiny cool servo or lightly loaded demonstration that never sees a warm enclosure. Its stiffness can make early alignment work easy.
The limitation is temperature margin and long-term reliability around concentrated fastener load. A motor case can become much hotter than the room while the machine runs. A perfect cold fit does not prove that the mounting face will remain flat. Use PLA Pro to close geometry risk quickly, then release it only when measured temperature and load are genuinely low; otherwise move the final part to the better-qualified material.
Measure the motor after it reaches steady-state temperature
Motor datasheets may list winding limits, but the printed bracket sees the case, faceplate, fasteners, nearby driver, and trapped enclosure air. Measure the mounting face and the hottest polymer-adjacent point after the longest normal duty cycle, highest normal load, warmest ambient condition, and any credible stalled or repeated-start scenario allowed by the system.
Use the measured assembled temperature—not a generic nozzle or glass-transition chart—to establish margin. A dark enclosure in sunlight can raise the baseline before the motor starts. A fan that normally cools the motor may be blocked or slowed. If the temperature boundary is uncertain or the failure consequence is serious, a metal mount is the cleaner decision.
Alignment, not headline strength, often controls the design
A motor bracket can remain unbroken while becoming unusable. Belt tracking may shift, a coupling may run off-center, a gear mesh may tighten on one side, or a lead screw may bind. Define the allowed angular and positional error at the shaft, not just whether the bracket can carry the motor's weight.
Use dowel features, shoulders, broad reference faces, or captured metal plates when the alignment requirement is tighter than ordinary FDM can repeatedly hold. Print a short calibration coupon for hole spacing and insert fit. The FDM tolerance guide explains why one universal hole offset cannot cover every printer, material, orientation, and motor pattern.
Belt tension and reaction torque create different loads
A belt pulls continuously in one direction and can bend a thin motor face like a plate. A lead screw or geartrain adds reaction torque that tries to twist the entire mount. Starts, reversals, stalls, and crashes create short peak loads that may be far higher than the motor's static weight suggests. A long adjustment slot concentrates those loads at its ends.
Trace each load into the machine frame. Put ribs in the direction of belt pull, use large radii at slot ends, avoid unsupported ears, and keep the motor close to the base plane when possible. Do not increase belt tension to hide a flexible bracket; excess tension transfers load into bearings, shafts, and the printed mount.
Fasteners, inserts, and compression zones need their own design
Small screw heads can crush polymer or relax after thermal cycling. Use washers, flanged hardware, metal sleeves, or compression limiters where clamp load must remain stable. Heat-set inserts help when the motor is serviced repeatedly, but the boss needs enough material and installation access. The heat-set insert material guide covers installation window, boss geometry, pullout, and torque-out tradeoffs.
Do not place an insert so close to the motor face that installation heat distorts the alignment reference. Avoid driving screws into undersized printed holes and calling the interference “extra strength.” Set a torque, mark critical fasteners, and inspect for whitening, oval holes, loose inserts, or a face that no longer sits flat.
Layer orientation and ribs beat infill percentage alone
Orient the mount so the main load stays within continuous roads where practical. A flat L-bracket may put the upright face's root across layer lines; a different orientation or a split design with metal fasteners may be stronger and more accurate. A saddle clamp can fail at the layer seam exactly where its screw closes the gap.
Use multiple walls, broad gussets, gradual section changes, and a direct load path from motor face to machine frame. More infill does not repair a sharp inside corner or thin bolt ear. If a test mount peels between layers, correct temperature, cooling, moisture, speed, and orientation using the weak-layer troubleshooting guide before simply making the model heavier.
Vibration damping is not the same as motor alignment
A soft interface can reduce transmitted noise, but it can also let the motor move under torque. TPU pads may help isolate a fan or low-load pump when movement is acceptable. They are usually a poor substitute for a rigid, aligned motor face in a belt, gear, or lead-screw drive. If isolation is required, separate the functions: use a rigid motor plate, controlled elastomer mounts, and geometry that limits travel.
The anti-vibration feet and machine-pad guide covers damping and compression set. Apply that logic at the machine boundary instead of turning an alignment-critical bracket into an uncontrolled spring.
Ventilation and motor cooling must stay open
A printed cradle can accidentally cover case vents, block airflow, trap heat around a driver, or place a wall too close to a fan intake. Preserve the motor maker's cooling path and service clearances. Keep cable exits away from shafts and belts, add strain relief, and make sure a wire cannot be pulled into rotating hardware if a clip breaks.
Compare temperature with and without the final cover installed. A mount that passes on an open bench may overheat after the enclosure door closes. Do not add cosmetic shrouds until the motor, driver, and polymer temperatures have been measured in the complete assembly.
Qualification plan for a printed motor mount
| Gate | Evidence to capture | Stop condition |
|---|---|---|
| Duty boundary | Motor, load, speed, torque, duty cycle, failure consequence | Unknown peak load or safety-critical motion without authority |
| Cold geometry | Bolt pattern, face flatness, shaft location, belt or coupling line | Forced assembly, rocking face, binding, visible warp |
| Thermal run | Motor, polymer, enclosure temperature at full normal duty | Softening, hot drift, blocked cooling, insufficient margin |
| Load test | Belt tension, reversal, stall boundary, peak displacement | Face movement, slot growth, insert rotation, crack |
| Cycle test | Starts, reversals, vibration, fastener checks, alignment trend | Loosening, resonance, growing misalignment, layer whitening |
| Release control | Material lot, dry state, orientation, settings, inspection interval | Unidentified material or uncontrolled process change |
When a printed motor mount is the wrong choice
Choose metal when alignment is tight, motor temperature is high, belt or gear load is large, the mount carries a spindle, the system lifts or transports people, or a shifted motor can expose rotating machinery. Metal is also the sensible default when a rated commercial mount is inexpensive and available. The printed part should solve a real geometry, prototype, low-volume, or packaging problem—not replace known stiffness and fire-performance requirements with convenience.
Hybrid construction often gives the best result: a machined or laser-cut motor face controls alignment while a printed body handles cable routing, sensors, guards, or low-load structure. Replaceable printed shims can tune position without making the whole torque path polymer.
What to send a print farm
Send the STEP file, motor drawing, bolt pattern, shaft centerline, mounting-face flatness requirement, belt or gear load, torque and reversal profile, duty cycle, maximum measured case and enclosure temperature, vibration exposure, fastener and insert plan, cooling clearances, material restrictions, quantity, and inspection method. State whether the part is a fit prototype, a test fixture, or a released production component.
A serious supplier should not infer load, heat, alignment, or safety approval from “make it strong.” JC Print Farm can help produce controlled prototypes and small batches when the material, revision, orientation, inspection, and test ownership are explicit. The small-batch service guide shows how to package the job for a useful production conversation.
Bottom line
Use PETG for most cool, low-load motor mounts; ASA for warm enclosed or outdoor equipment; nylon for impact and vibration when controlled compliance is acceptable; and a qualified polycarbonate grade when sustained heat and stiffness genuinely justify the harder workflow. Then design around alignment, belt pull, reaction torque, fastener compression, layer direction, ventilation, and hot-state testing. If the drive is fast, hot, heavily loaded, safety-critical, or commercially available in metal, use the rated metal mount or a qualified hybrid instead.
