Choose TPU for a true anti-vibration foot when compliance and grip can reduce vibration transfer without letting the machine rock. Choose PETG for a firm riser, leveling foot, or rigid core that must hold height. Use nylon only for a narrower wear-first pad; it is not a rubber substitute.
The installed system decides the answer: machine mass, load per foot, footprint, height, infill, wall thickness, filament hardness, bench stiffness, temperature, and motion all change deflection. Reject any design that bottoms out, walks, changes level, loosens a fastener, or makes the machine less stable even if it sounds quieter.
| Actual job | Best starting construction | Reject it when |
|---|---|---|
| Reduce vibration transfer to a resonant desk | TPU foot sized for controlled installed compression | It bottoms out, rocks, walks, or permanently loses height |
| Hold clearance or machine level | PETG body, optionally with a thin TPU contact layer | The fastener crushes the body, the pad slips, or heat changes the level |
| Protect a sliding or wearing contact | Nylon or PETG only after wear and friction fit the job | The real requirement is damping, grip, or moisture-stable dimensions |
| Support heavy or safety-relevant equipment | Rated commercial isolator or engineered mount | A desktop print test is the only load evidence or failure is not contained |
Use the existing Bambu anti-vibration-feet review when buying a finished solution is more sensible than tuning geometry. Use the soft-jaw material guide when grip is the main job. If a TPU proof piece splits, diagnose TPU layer cracking before making the foot thicker.
Evidence boundary: material labels and Shore hardness do not create a universal load rating. This is a selection and installed-test framework, not hands-on certification of one filament, geometry, machine, bench, noise level, or safety use. Follow the exact filament data and use rated hardware where failure could injure someone or damage valuable equipment.
Affiliate disclosure: GoodPrints may earn a commission from qualifying purchases made through links on this page, at no extra cost to you.
Before choosing TPU, prove the vibration problem
Use compliant feet only when vibration is being transmitted into the desk, shelf, floor, or enclosure beneath the machine. If the machine frame is loose, the gantry is ringing, a belt or motor mount is faulty, or the support surface is unstable, a softer foot can hide the symptom while adding motion. Start with the ghosting and ringing diagnosis when the defect is visible in the print rather than only felt in the furniture.
An isolator is not just a soft material; the machine mass, foot stiffness, damping, geometry, and forcing frequency form one system. A compliant foot can reduce transmission in one range and amplify motion near the system's resonance. That is why Shore hardness, infill, or a quieter phone recording cannot certify a design by themselves. NIST's Vibration Isolation: Use and Characterization (NBS Handbook 128) is the engineering reference behind this system-level boundary; it does not certify desktop-printed TPU feet.
| Proof step | Record under the same workload | Reject the foot when |
|---|---|---|
| Rigid baseline | Machine level, corner lift, desk buzz, visible rocking, noise at one fixed location, and an accepted representative part. | There is no stable baseline or loose hardware and an unstable bench have not been corrected first. |
| Installed compression | Unloaded and installed height at every foot with the normal spool, feeder, doors, tools, and accessories in place. | One corner compresses much more, a foot reaches its hard stop, or the machine no longer sits level. |
| Operating comparison | The same motion file, location, measurement method, cable routing, machine state, and accepted-part inspection before and after. | Desk buzz falls but machine rocking, walking, print artifacts, cable pull, or fastener movement rises. |
| Dwell and recovery | Height after installation, after at least one representative dwell and operating cycle, and again after unloading and recovery. | Permanent set changes level or clearance, cracks grow, layers separate, or recovery becomes progressively worse. |
| Hot-state check | Foot temperature and behavior after the longest normal hot cycle, not only on a cool idle machine. | Heat changes height, stiffness, grip, fastener preload, or stability beyond the accepted limit. |
Buyer rule: choose TPU when it lowers transmitted vibration without destabilizing the machine; choose PETG or a PETG body with a retained TPU contact layer when installed height controls the job; choose nylon only when wear or harder contact is genuinely primary. Use a rated commercial isolator or engineered mount when the load is heavy, the forcing frequencies matter, or failure can injure someone or damage valuable equipment.
Source and scope: the NIST publication record and DOI were rechecked September 8, 2026. The test sequence above is a conservative buyer-fit screen, not a vibration certification, calibrated measurement procedure, universal dwell time, or load rating. Follow the exact filament data and equipment maker's mounting instructions.
Static squish does not prove dynamic isolation
Use installed compression to reject a bad foot, not to certify a good isolator. Unloaded-versus-loaded height reveals bottoming, uneven load, tilt, and early permanent set. It does not by itself show how the same foot behaves while a bed, toolhead, motor, fan, or spindle repeatedly changes force and frequency.
Current Hutchinson vibration-isolator design guidance explains the missing boundary: for many organic isolator materials, dynamic modulus can be higher than static modulus, so the system's natural frequency can be higher than a static-deflection estimate suggests. That is a general isolator principle, not a published dynamic-stiffness value for a particular TPU filament, infill, or printed geometry.
| Check | What it can decide | What it cannot prove |
|---|---|---|
| Static installed height | Whether every foot carries the normal equipment load without bottoming, excessive tilt, or losing required clearance. | Isolation efficiency, resonance location, or behavior across the machine's operating speeds. |
| Representative low- and high-motion runs | Whether transmitted bench vibration falls without more rocking, walking, cable pull, print artifacts, or fastener movement in the actual setup. | A universal rating for another machine, bench, payload, filament grade, or geometry. |
| Dwell, recovery, and hot-state repeat | Whether height, level, grip, and stability stay inside the buyer's accepted limits after time and temperature. | Long-life, fatigue, seismic, transport, lifting, overhead, or life-safety qualification. |
Decision rule: a TPU foot must pass both the static support check and the same-workload operating comparison. If it compresses cleanly but amplifies movement at any normal operating state, change geometry, load distribution, or material; do not call the static measurement a successful isolation test. When forcing frequencies or failure consequences matter, use measured engineering data and a rated isolator instead of extrapolating from filament hardness or infill.
Evidence boundary: Hutchinson's page was rechecked September 22, 2026. It describes conventional vibration-isolator design and does not certify desktop FFF TPU, PETG, nylon, any printed infill, or any GoodPrints test method.

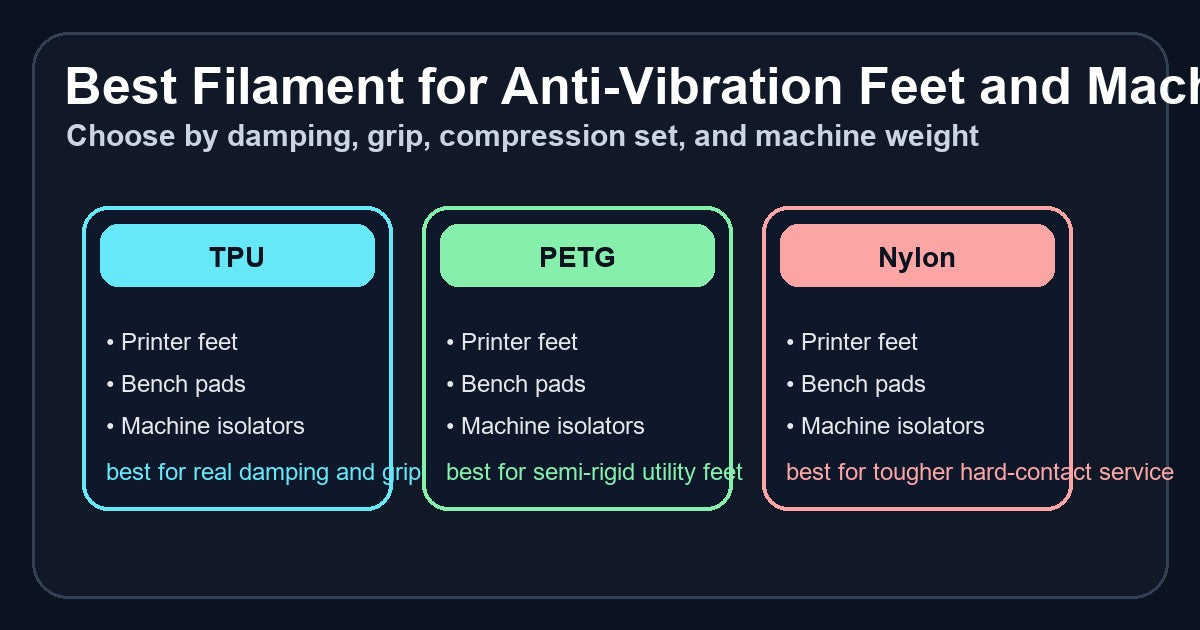

TPU vs PETG vs nylon at a glance
| Part job | Best starting material | Why | Failure to test |
|---|---|---|---|
| Printer or speaker feet on a resonant desk | TPU | Compliance and grip address transmitted vibration and movement. | Bottoming out, excessive rocking, or permanent height loss. |
| Screw-mounted leveling foot or riser | PETG, or a rigid body with a TPU contact pad | More predictable height with a separate grip layer when needed. | Fastener crushing, slip, and heat-softening in the actual location. |
| Protective bumper or wear pad | PETG or nylon, depending on wear and impact | The job is surface protection, not necessarily vibration isolation. | Cracking, abrasion, moisture drift, or the wrong friction level. |
| Heavy or safety-relevant machine support | Engineered mount or rated commercial isolator | Stability, load rating, and failure containment matter more than easy printing. | Do not qualify this use with a small desktop test alone. |
First separate vibration isolation from structural support
An anti-vibration foot is a spring as well as a support. That can be useful because a compliant layer interrupts some vibration transfer between the machine and the surface. It can also be harmful when the foot is so soft or tall that the machine rocks, shifts, or repeatedly compresses to its hard stop.
A structural foot solves a different problem. It holds height, spreads load, protects a surface, or creates clearance. PETG and nylon can be good structural-foot materials, but calling a stiff printed block “anti-vibration” does not make it an isolator. If the main problem is a loose motor mount or a frame that moves under load, use the motor-mount material guide and fix the source instead of asking the feet to hide it.
When TPU is the right answer
Start with TPU when grip and compliance are the point: 3D printer feet, speaker pads, soft electronics feet, bench-tool contact pads, and low-risk equipment that transmits an annoying buzz into furniture. TPU also makes sense when the contact surface needs to avoid scratches or conform slightly to a less-than-perfect bench.
The trap is treating every TPU as interchangeable. A nominal hardness label does not tell you how your printed geometry will behave. A wide thin puck, a tall narrow cone, a nearly solid block, and a thin-walled lattice can all use the same spool and carry the machine very differently. The useful target is controlled installed deflection without rocking or bottoming out.
TPU also adds print-process friction. Keep the feed path controlled, confirm the printer's flexible-filament guidance, and prove spool condition before tuning around a moisture problem. The TPU enclosure guide separates material need from printer enclosure preference, while the TPU stringing guide covers a different symptom that should not be mistaken for a bad foot design.
When PETG is the better machine-foot material
PETG fits feet that should be tough and slightly forgiving but still behave mostly like rigid supports. Good examples include screw-mounted feet, equipment risers, protective bench spacers, enclosure standoffs, and height-critical supports where a soft TPU part would feel vague.
PETG does not provide rubber-like isolation. If you need both stable height and grip, a two-part design is often cleaner: a PETG body carries the load and a thin replaceable TPU shoe contacts the bench. That keeps the rigid and compliant jobs separate. The broader PETG-versus-PLA Pro guide helps when the decision is ordinary functional-part durability rather than vibration control.
Check heat and fastener compression in the real installation. A foot beside a warm enclosure, motor, or power supply sees a different environment from the same shape under a cool desktop printer. Do not transfer one successful bench test to a hotter machine without repeating it.
When nylon earns a place
Nylon is the narrow branch here. Use it when the part behaves more like a wear pad, impact-tolerant bumper, sliding interface, or harder machine foot than a soft isolator. The specific nylon grade matters: unfilled, filled, and easy-print blends do not share one universal moisture, stiffness, wear, or temperature profile.
Nylon is not a shortcut around design validation. It can absorb moisture, dimensions can drift with conditioning, and a tough material can still creep or transmit vibration. Review the nylon functional-parts decision before choosing it merely because “tougher” sounds safer. For true sliding or rubbing contact, the bushings and wear-pads guide owns that adjacent intent.
Size the foot around the real load
Begin with a simple estimate: total supported mass divided by the number of feet. Treat that only as a starting point because real machines rarely distribute weight perfectly. A spool, toolhead position, door, external feeder, or uneven frame can load one corner more heavily.
- Measure unloaded height. Record each finished foot before installation.
- Install the complete machine. Include the normal spool, accessories, and anything mounted on top.
- Measure installed height. Look for one foot compressing more than the others and confirm the machine remains stable.
- Recheck over time. Measure after the initial settling period, after a full day, and again after repeated operating cycles.
- Inspect the hard stop. A TPU foot that is fully crushed cannot keep providing the same isolation behavior.
If height changes too much, increase contact area, shorten the compliant section, change the internal structure, split the rigid and soft jobs, or move to a better-suited material. Changing filament should be one controlled variable, not the first random move.
Run a representative vibration and stability test
Use the actual machine on the actual bench. Compare one baseline condition with one candidate foot design at a time. Observe desk vibration, audible buzz, machine movement, rocking during fast direction changes, and whether cables or feed paths tug differently after the machine is raised. A phone recording can help compare the same setup, but it is not a calibrated vibration instrument.
Then inspect the feet. Look for edge bulging, layer separation, fastener pull-through, permanent compression, sliding, and uneven contact. If a TPU foot splits along a layer line, use the TPU layer-cracking diagnosis before changing materials or trusting another reprint. A quieter desk does not make the design acceptable if the machine is less stable. Likewise, a strong-looking foot is not an anti-vibration success if it simply transfers the same energy into the furniture.
For a printer-specific ready-made option, the Bambu anti-vibration feet review covers a distinct buy-versus-print decision. For pads that intentionally grip workpieces rather than support equipment, use the soft jaws and clamp pads material guide.
Optional product paths for the three real bottlenecks
- Soft-material trial: TPU 90A alternative. This is a third-party TPU marketed for Bambu printers, not official Bambu Lab filament.
- Moisture recovery: EIBOS Cyclopes filament dryer when a flexible or nylon spool is demonstrably wet rather than merely stored between jobs.
- Installed-height checks: Neiko digital caliper for repeatable unloaded-versus-loaded measurements.
And if the pad is going under equipment that needs predictable installed height, hardware fit, and repeated production confidence, stop guessing through multiple reprints. Start with the site's material-first quote prep guide, then use the FDM tolerance and acceptance guide to define installed-height and fit checks before production; use JC Print Farm while load, material, compression, or repeatability still needs review, or request a quote once the geometry, quantity, acceptance criteria, and timing are defined.
Final verdict
Use TPU for real isolation and grip, PETG for firm utility feet and risers, and nylon only for the narrower wear-focused hard-contact branch. The material name is only the first decision. Load per foot, geometry, installed deflection, stability, temperature, and time under compression determine whether the part actually works.
For most desktop anti-vibration feet, start with a short, broad TPU design and test it under the complete machine. If height control matters more than softness, use PETG or a rigid PETG body with a replaceable TPU contact layer. If the support is heavy, safety-relevant, or difficult to contain after failure, use an engineered mount or rated isolator instead of qualifying a printed foot by guesswork.
Does softer TPU always isolate vibration better?
No. A softer compound or more compliant geometry can add deflection, but too much deflection can cause bottoming, rocking, walking, or permanent height loss. Choose the complete foot around the installed load and reject it when stability gets worse.
Can PETG work as an anti-vibration foot?
PETG is better treated as a structural riser or rigid core than as a rubber-like isolator. A PETG body with a thin TPU contact layer can separate height control from grip and compliance, but the assembly still needs a same-workload stability and vibration check.
How should you tell whether printed feet actually helped?
Run the same representative machine motion before and after the change. Compare transmitted vibration or noise at the same location, then recheck machine level, rocking, walking, fasteners, foot height, and accepted output after time under load. A quieter desk is not a win if machine stability or part quality declines.
FAQ
How thick should a TPU anti-vibration foot be?
There is no universal thickness. Thickness works together with pad area, wall structure, infill, Shore hardness, temperature, and load per foot. Prototype enough height to create useful deflection, then reject any design that bottoms out, rocks, or loses height over time.
How do you test creep in a printed machine foot?
Record unloaded height, installed height, machine level, and foot temperature, then repeat the measurements after a representative dwell and operating cycle. Permanent height loss, tilt, cracking, or growing vibration means the material or geometry needs revision.
Is a rigid PETG body with a TPU pad better than an all-TPU foot?
It often is when bolts, precise height, or broad load support need a rigid structure while the bench contact still needs grip and compliance. Keep the TPU layer mechanically retained and test the interface against shear, peel, heat, and repeated motion.
Is TPU always best for anti-vibration feet?
No. TPU is the best starting point when the goal is compliance, grip, and reduced vibration transfer. PETG is better when the part must hold a more stable height, and a rated commercial isolator is safer when the load or consequence of failure exceeds a low-risk desktop application.
What Shore hardness should a printer foot use?
There is no universal hardness because geometry and load change the result. Use the hardness as one input, then test installed deflection, rocking, bottoming out, and permanent height loss with the complete printer and normal accessories.
Can PETG reduce vibration?
PETG can change the contact path and may reduce sliding or some high-frequency buzz in a specific geometry, but it is still a mostly rigid support compared with TPU. Choose it for height control and structural support, not because the word “foot” automatically makes the part an isolator.
Is nylon better than PETG for heavy machine feet?
Not automatically. Nylon may offer useful toughness or wear behavior, but the exact grade, moisture condition, temperature, geometry, and long-term load still need validation. For heavy or safety-relevant equipment, use a rated support system rather than assuming a stronger filament name solves the engineering problem.
Will anti-vibration feet improve print quality?
They may reduce desk shake or transmitted noise, but they do not repair loose hardware, poor belt condition, frame movement, or a bad motion profile. Judge feet first as a bench-coupling and stability change, not as a guaranteed print-quality upgrade.
