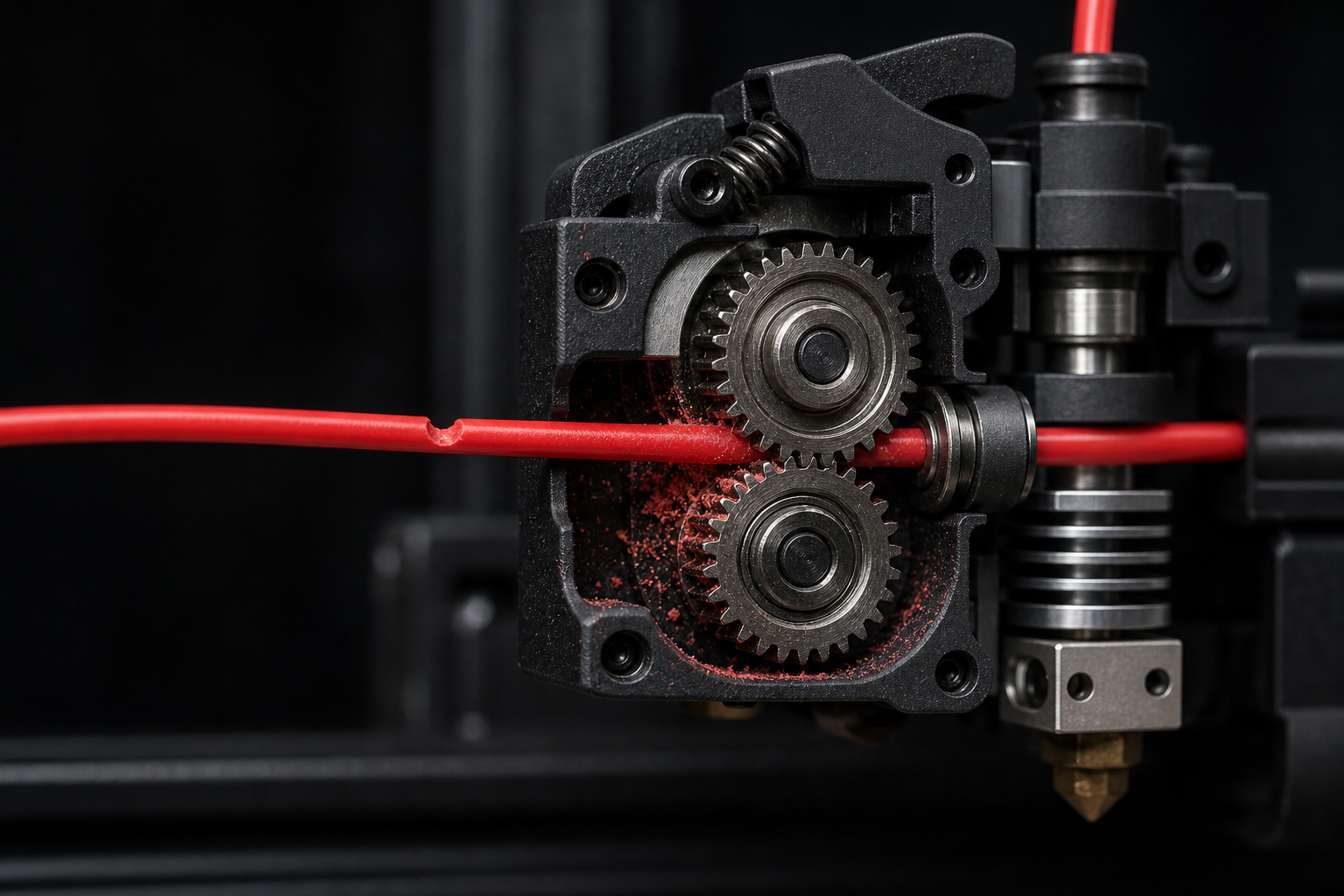

If your 3D printer extruder is grinding or chewing filament, the drive gear is usually trying to push against more resistance than the filament can withstand. Stop the print, note exactly when the grinding began, and inspect the filament at the gear. A deep crescent-shaped notch or plastic dust confirms grinding; the most common causes are a too-close first layer, excessive flow demand, a partial nozzle blockage, heat creep, spool-path drag, or incorrect feeder pressure.
Do not start by tightening the idler. More pressure can help only when the gear was barely touching the filament. When the real problem is downstream resistance, extra tension gives the teeth more force to excavate the same spot and can make unloading harder. The useful diagnosis is not just “the gear slipped,” but why the filament stopped moving while the motor kept trying.
What filament grinding looks and sounds like
A drive gear normally leaves a light, consistent tooth pattern on rigid filament. Grinding is more severe: one section becomes flattened, deeply scalloped, or nearly cut through, and colored plastic dust may collect in the gear teeth or feeder housing. The motor may click, knock, or continue turning with little or no extrusion.
| What you observe | Most likely branch | Best next check |
|---|---|---|
| Grinding starts only while printing the first layer | Nozzle is too close to the bed or the first-layer flow path is blocked | Pause and check whether the deposited line is transparent, ridged, or missing |
| It starts on fast infill or thick, wide lines | Requested volumetric flow exceeds the hotend's melt capacity | Compare the failing line width, layer height, and speed with a known-good profile |
| Manual extrusion is weak even with the nozzle above the bed | Partial clog, low melt temperature, damaged nozzle, or hotend restriction | Run the manufacturer's controlled extrusion or clog-check procedure |
| PLA feeds normally when cold, then grinds after the enclosure warms | Heat creep or poor heatsink airflow | Check timing, chamber heat, hotend fan operation, and the softened filament tip |
| The spool jerks, binds, or becomes tight before grinding | Upstream drag or a crossed feed path | Test free spool rotation and every guide, tube bend, hub, and dry-box outlet |
| The same feeder damages filament even during a slow, easy purge | Dirty, misaligned, worn, or over-tightened feeder | Inspect the gear groove, bearings, alignment, and supported tension setting |
Stop the print and preserve the evidence
Cancel or pause the job using the printer's normal controls. Do not pull cold filament through a hotend, force the feeder by hand while it is powered, or open a moving gear train. Follow the printer maker's unload procedure and keep fingers, tools, and loose clothing away from hot and moving parts.
Before cutting off the damaged section, photograph it in place and mark where the drive gear contacted it. Note the layer, feature, speed change, retraction-heavy region, enclosure temperature, and whether the spool tugged. That timing often identifies the branch faster than disassembling the extruder.
Confirm that it is really grinding
Release the feeder only as documented and inspect the filament. A shallow, even tooth texture can be normal. A polished flat, deep U-shaped notch, shredded surface, or pile of filament-colored powder is not. If there is loud clicking but no severe notch, start with the dedicated extruder-clicking diagnosis; clicking and grinding overlap, but the physical damage changes the cleanup and reload steps.
Cause 1: the nozzle is too close during the first layer
If grinding begins only when the nozzle reaches the bed, the machine may be trying to extrude into a gap that is too small. The drive system builds pressure, the filament stops advancing, and the gear chews one spot. This can happen even when a purge in midair looks normal.
What to check
- The first-layer line is extremely thin, translucent, rough-edged, or absent.
- Adjacent lines form raised ridges that the nozzle drags through.
- The feeder becomes quiet as soon as the toolhead leaves the bed or the print is paused.
- The symptom appeared after a plate change, nozzle service, bed-leveling change, or incorrect plate selection.
What to try next
Remove the chewed filament section, clean the gear if needed, and correct the first-layer setup using the manufacturer's process. The guide to a first layer that is too close to the bed separates plate contamination, incorrect Z reference, excess lower-layer heat, and flow-related ridging. Do not compensate by raising feeder tension.
Cause 2: the print is asking for more flow than the hotend can melt
Volumetric flow rises with layer height, line width, and print speed. A profile can work on walls, then grind during fast infill because the hotend cannot melt material at the new demand. A larger nozzle does not automatically solve this; it can increase the requested volume even further when the rest of the profile scales up.
What to check
Look at the slicer preview where the failure began. If it coincides with a fast internal line, wide extrusion, thick layer, or high-flow mode, compare that combination with the filament and hotend profile's validated limits. Also confirm that the slicer has the correct nozzle diameter and material profile.
What to try next
Return to a known-good profile, then reduce the actual flow demand rather than changing several settings at once. Lowering speed is often the cleanest diagnostic. Temperature changes should remain inside the filament and printer makers' supported ranges. If the print is already showing thin lines and gaps, use the under-extrusion check order before recalibrating flow ratio around a mechanical limit.
Cause 3: a partial clog or low-temperature restriction is pushing back
A nozzle can pass some plastic and still create enough resistance to grind filament. Burned residue, pigment, filler, debris, a damaged opening, or material left too cool can reduce flow. The clue is weak, pulsing, thin, or sideways extrusion during a controlled purge above the bed.
What to check
- The filament grinds during a slow manual extrusion, not just a fast print move.
- The purge strand is thinner than expected, pulses, or curls sharply from the nozzle opening.
- The problem began after a material swap, long hot dwell, nozzle collision, or abrasive filament.
- The printer reports implausible temperature swings or heater errors.
What to try next
Use only the hotend maker's documented purge, cold-pull, cleaning, or nozzle-replacement method. The broader nozzle-clog guide explains how to separate a restriction from feed drag and heat creep. If the purge bends consistently to one side, the focused guide to filament curling out of the nozzle covers exterior residue, asymmetric blockage, and outlet damage.
Stop and escalate if temperatures are unstable, wiring is contaminated, or plastic is leaking above the nozzle. A feeder adjustment is not an appropriate response to a heater or hotend-seal fault.
Cause 4: heat creep softens the filament before the melt zone
Heat creep moves the softened region upward into a place that should remain cool. The filament swells, drags inside the heat break, and eventually stops while the drive gear keeps turning. PLA in a warm enclosed printer is a common pattern, but blocked heatsink airflow, a failing hotend fan, excessive hot dwell, or an unsuitable retraction setup can create it elsewhere.
Evidence that supports heat creep
The print starts normally and degrades only after time at temperature. The unloaded tip may be swollen above the normal melt shape, and the symptom may improve when the enclosure is vented or the hotend is allowed to cool. Verify that the hotend cooling fan runs as intended and that its intake and exhaust are not blocked.
For the specific warm-chamber pattern, follow PLA mid-print under-extrusion in an enclosed printer. Do not lower or raise fan behavior outside the printer maker's service guidance; hotend cooling and part cooling are different systems.
Cause 5: the spool or feed path is adding too much drag
The hotend can be healthy while the feeder is starved from the other direction. A spool rubbing its holder, a tight dry-box seal, a sharp PTFE bend, a crossed multicolor hub, or a filament guide at a bad angle can hold the strand back until the gear grinds it.
Trace the path one section at a time
With the machine in a safe unloaded state, verify that the spool rotates freely and does not wedge against a lid or neighboring spool. Check guides, tube ends, connectors, hubs, and bends for scrape marks or a step that catches the filament tip. Avoid the mistake of manually unspooling a large loose loop and declaring the problem fixed; that can temporarily bypass the resistance without locating it.
If grinding appears at the same toolhead position, watch whether a tube or cable path becomes tighter there. If it follows one bay or one inlet in a multicolor system, swap only the permitted path variable and retest. The evidence should follow the bad path, not merely disappear once.
Cause 6: the drive gear is dirty, misaligned, worn, or set to the wrong pressure
Once a gear grinds one section, its teeth can pack with plastic dust and lose grip on the next load. A bearing that does not turn freely, a gear groove that misses the filament centerline, a loose set screw, or an idler outside its supported range can also cause repeated damage.
Clean before changing tension
Power down and access the feeder only as the manufacturer instructs. Use the approved brush or cleaning method, protect wiring, and remove debris rather than pushing it deeper. Inspect both drive surfaces, the filament channel, bearings, and any visible alignment marks. Replace worn parts with exact compatible components.
Why more tension can make grinding worse
Too little pressure lets the gear slip with shallow marks. Too much pressure deforms filament, increases channel friction, and gives the gear enough bite to cut a deeper notch when flow stops. Return to the documented baseline; do not use maximum spring compression as a universal setting.
Cause 7: repeated retractions keep attacking the same filament section
A retraction-heavy model can move the same short segment across the gear many times. Excessive distance, speed, or count can gradually flatten or score it, especially when combined with hotend resistance. This often appears around dense seams, tiny towers, or travel-heavy sections rather than during steady infill.
Use a known-good material profile and compare the failure point with the slicer's retraction events. Reduce only the suspect variable within supported limits. If a standard profile still chews filament during steady forward extrusion, retraction is not the primary cause.
Cause 8: the material does not fit the feeder condition
Diameter that is consistently outside the printer's supported range, an oval or locally swollen section, abrasive debris, a brittle aged strand, or very soft flexible filament can change how the gears grip. Moisture may make some filaments brittle or bubbly, but wet filament is rarely the sole explanation for one clean ground notch; downstream resistance still deserves a check.
Compare with a known-good spool
Test a familiar, unfilled filament that the printer supports, keeping nozzle, temperature, and feed rate controlled. If both spools grind at the same moment, suspect the machine or profile. If only the questionable spool fails, inspect its diameter, roundness, surface, brittleness, and storage history. The guide to wet-filament symptoms helps distinguish popping, bubbles, pits, and stringing from a feeder-resistance problem.
Flexible filament needs its own logic because it can buckle before the hotend rather than simply grind at the gear. Use the focused TPU jam and buckling guide when the strand loops, folds, or escapes the supported feed path.
Bowden and direct-drive extruders fail differently
In a Bowden system, resistance can hide anywhere from the feeder through a long tube to the hotend. Tube damage, poor end cuts, connector movement, and tight routing deserve attention. In a direct-drive system, the path is shorter, but heat soak, compact feeder alignment, and debris inside the toolhead can become more prominent.
Do not apply a teardown video from a vaguely similar printer. Feeder release methods, gear preload, hotend construction, and safe service temperatures vary. Use the exact model's manual or manufacturer support procedure.
A safe fix order that avoids random parts swaps
- Record the timing: first layer, fast flow, after heat soak, after repeated retractions, or during every purge.
- Confirm physical grinding: look for a deep notch, flattening, or filament-colored dust.
- Unload safely: follow the printer's procedure and remove the damaged section before reloading.
- Check the easy resistance points: spool rotation, guides, tube bends, hubs, and first-layer clearance.
- Clean the feeder: clear packed debris and return pressure to the documented baseline.
- Test controlled extrusion: use a known-good filament, correct temperature, safe nozzle height, and moderate feed rate.
- Follow the branch: clog procedure for weak purges, cooling checks for time-based heat creep, or profile correction for flow-only failures.
- Verify under load: print a known simple model before returning to the job that failed.
How to verify the fix
A successful purge is necessary but not sufficient. Mark a fresh section of filament above the feeder and confirm that it advances smoothly without dust, deep tooth marks, or pulsing. Then print a small known-good test that includes a normal first layer and a moderate-speed wall or infill section.
After the test, inspect the filament only if the printer's unload process permits it. Light, even tooth impressions are acceptable; a new flat or notch means the resistance or feeder condition remains. If printed lines are still thin or incomplete, return to the under-extrusion diagnosis instead of increasing flow to hide the problem.
What not to do
- Do not tighten the feeder to maximum before checking why flow stopped.
- Do not keep restarting on the same chewed filament section.
- Do not compensate for a clog by raising flow ratio.
- Do not exceed supported temperature ranges to force material through.
- Do not pull cold filament through a hotend or use unapproved needles around a hot, energized toolhead.
- Do not replace the motor because the gear stopped advancing filament; the motor may be doing exactly what it was commanded to do.
When expert help makes sense
Contact the printer or hotend manufacturer if the feeder is proprietary, gears are visibly misaligned, a bearing is seized, heater readings are unstable, a hotend fan does not run as specified, plastic leaks around the heater block, or the supported clog procedure does not restore stable flow. Send a photo of the notch, a short video of the controlled feed test, material and nozzle details, temperatures, the layer where it began, and any recent service history.
If the immediate requirement is a dependable finished part rather than more bench downtime, first use the internal decision guide on whether to keep production in-house or use a print farm. When outside production is the practical answer, JC Print Farm can evaluate the file, material intent, quantity, critical dimensions, finish, and deadline without turning this troubleshooting page into a sales pitch.
Bottom line
A grinding extruder is usually evidence of resistance, not proof that the feeder needs more force. Find when the filament stopped advancing, remove the damaged section, check first-layer clearance and spool drag, clean the gear, then test a known-good filament at controlled flow. If the purge remains weak, diagnose the hotend; if the purge is healthy but high-flow moves fail, correct the profile demand.
Frequently asked questions
Why does my extruder grind filament only on the first layer?
The nozzle is often too close to the bed, so plastic cannot leave at the commanded rate. Confirm the deposited line shape and correct the first-layer baseline before changing feeder pressure.
Should I tighten the extruder if it is chewing filament?
Not automatically. Extra tension can deepen the notch when a clog, heat creep, high flow, or spool drag is blocking movement. Clean the gear and return to the maker's baseline after removing the resistance.
Can a clogged nozzle make the extruder grind filament?
Yes. A full or partial restriction raises back pressure until the gear slips and excavates one spot. Weak manual extrusion above the bed is stronger evidence than grinding that occurs only during a fast line.
Why does filament grind after printing normally for an hour?
Time-based failures often point to heat creep, a warming enclosure, a hotend-cooling problem, spool drag that increases with position, or repeated retraction damage. The exact timing is the best first clue.
Do plastic shavings mean the extruder gear is worn out?
Not by themselves. Shavings prove that the filament was being abraded. Clean the gear, inspect its teeth and alignment, correct the resistance, and retest before deciding that the gear needs replacement.
