If filament repeatedly curls to the same side as it leaves the nozzle, first clean the outside of the tip and run a controlled free-extrusion test at the material's normal printing temperature. A persistent one-direction curl usually means the strand is being pulled by residue on the nozzle face, deflected by a partial internal blockage, or leaving through a damaged or worn opening. A short strand that wanders once and then falls normally is not enough to diagnose a clog.
The direction and repeatability matter more than the shape of one purge. Molten plastic naturally bends as gravity, surface tension, airflow, and movement act on it. The useful symptom is a strand that exits sideways immediately, favors the same direction on several purges, sticks back to the nozzle, or changes diameter while the extruder works harder than normal.

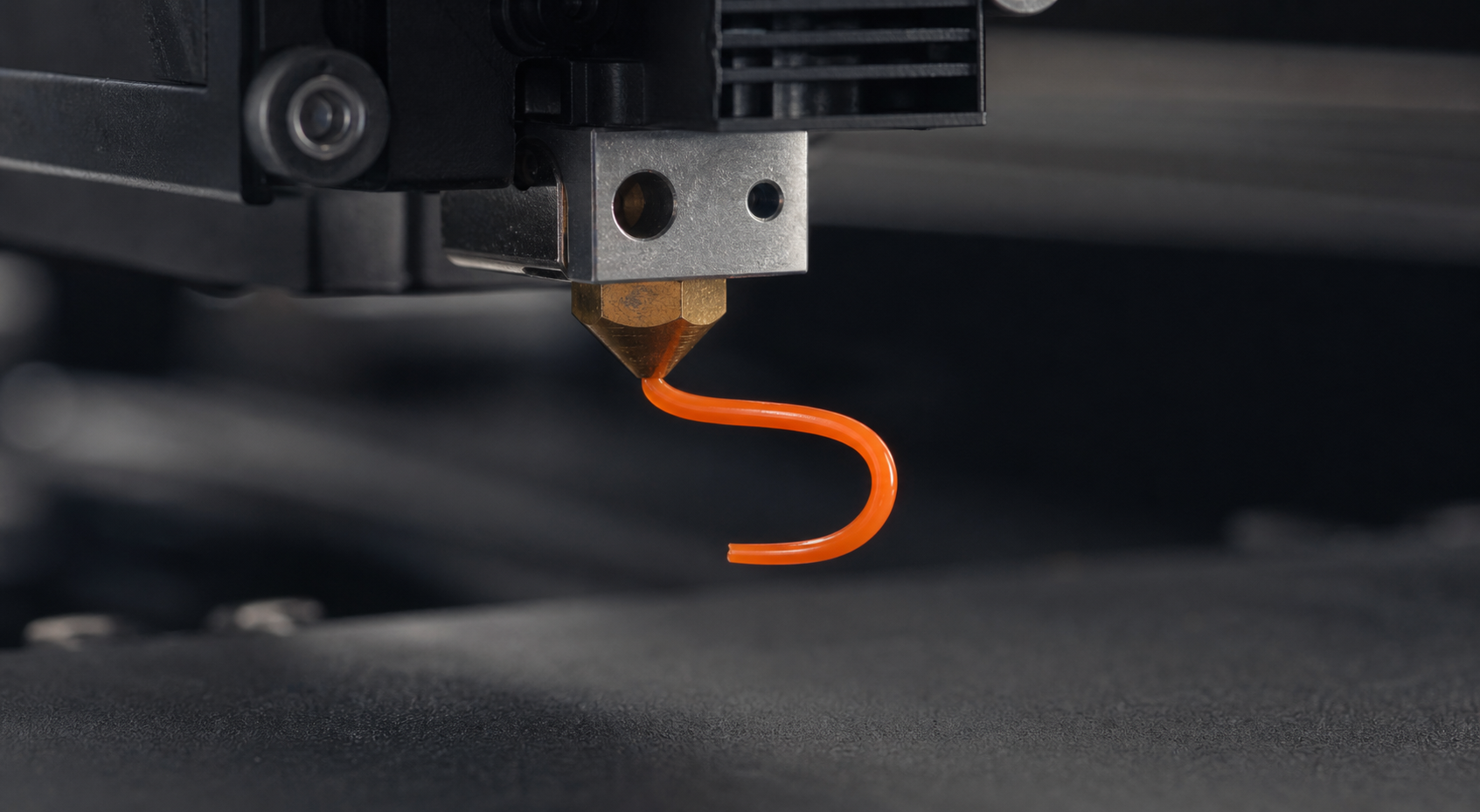

What sideways-curling filament actually tells you
A healthy nozzle does not have to produce a perfectly vertical ruler-straight strand. Free extrusion is not constrained by a build surface, so even good filament can loop after it grows a few centimeters. The diagnostic question is whether the deflection begins at the nozzle opening and repeats.
| What you observe | Most likely branch | Best next check |
|---|---|---|
| The strand bends at the nozzle and curls the same way on every purge | Tip residue, asymmetric partial blockage, or damaged outlet | Clean the exterior, purge again, then compare with a known-good nozzle if needed |
| The first few millimeters leave straight, then the hanging strand loops | Often normal free-strand behavior | Check whether print lines, flow, and extruder sound are otherwise normal |
| The strand sticks to plastic on the nozzle face and folds upward | External contamination or startup ooze | Inspect the clean, hot tip from a safe distance during the next purge |
| The strand is thin, pulsing, or stops while the feeder clicks | Restriction, heat creep, low temperature, or upstream feed drag | Note when the clicking begins and test feed resistance separately |
| The extrusion snaps, bubbles, or changes direction randomly | Moisture, trapped contamination, or unstable feeding | Listen for popping and inspect the strand for foam or bubbles |
| Plastic appears above the nozzle or around the heater block | Hotend leak, not a simple curling-strand problem | Stop and inspect the hotend using the manufacturer's service procedure |
Run a repeatable free-extrusion test
Test only on a printer whose manufacturer permits manual extrusion with the toolhead safely above the bed. Keep hands, tools, loose clothing, and wiring away from the hotend and moving axes. Do not touch or catch the strand while it is hot.
- Load a familiar, unfilled filament that has printed normally before. PLA is a useful baseline when the machine supports it.
- Raise the nozzle to a safe observation height and heat it to the normal printing temperature for that exact material.
- Remove any visible hanging ooze using only the printer maker's approved hot-nozzle cleaning method.
- Extrude a modest, repeatable amount at a steady manual-feed rate. Watch where the strand bends during its first few millimeters.
- Let the purge finish, clear it safely, and repeat two more times without changing temperature or feed rate.
- Record whether the curl begins at the opening, whether it points the same way, whether the strand diameter pulses, and whether the feeder clicks.
Three similar purges are useful evidence. One loose loop is not. If the printer uses an automatic purge or wipe routine, observe the free part of the strand after the wipe rather than assuming the wiper itself caused the direction.
Cause 1: plastic residue is pulling the strand sideways
A thin smear on one side of the nozzle face can grab fresh extrusion. Instead of detaching cleanly from the center of the opening, the molten strand wets that residue and follows it around the tip. PETG is especially willing to cling to metal, but the same mechanism can happen with PLA, ABS, ASA, TPU, nylon, and filled materials.
What to check
- A dark or glossy patch on one side of the nozzle face.
- A small tail already attached before the manual purge begins.
- A curl that disappears immediately after the exterior is cleaned.
- Plastic collecting on the silicone sock or lower heater-block edge.
What to try next
Use the printer manufacturer's approved cleaning procedure at the specified temperature. Protect heater and thermistor wiring, and do not improvise with a conductive brush around energized connections. If the nozzle face becomes visibly clean and the next three purges fall normally, the opening may be fine; the cause was external adhesion rather than an internal clog.
Then find out why residue was present. Startup ooze, an over-squished first layer, a failed wipe, or plastic dragged up from a print can contaminate the tip again. Cleaning without correcting the source may make the result last for only one job.
Cause 2: a partial blockage deflects flow inside the nozzle
A partial clog does not always stop extrusion. Burned polymer, pigment, filler, dust, or a fragment from an earlier material can block one side of the melt path. Flow still exits, but pressure and velocity are uneven across the opening, so the strand bends as soon as it emerges. The same restriction may cause thin lines, intermittent gaps, slow response after retraction, or feeder clicking.
Evidence that supports this branch
- The outside is clean but the curl begins directly at the orifice.
- The curl favors the same direction on repeated purges.
- The strand is thinner than expected or its diameter pulses.
- Manual extrusion requires more force or the drive gear skips.
- The symptom started after a material change, long hot dwell, abrasive filament, or a previous jam.
What to try next
Follow the hotend maker's documented purge, cold-pull, cleaning, or nozzle-replacement procedure. Different hotends have different safe methods; a needle that is appropriate for one replaceable brass nozzle may damage another nozzle, contact wiring, or merely push debris deeper. The broader guide to nozzle clogs and partial clogs lays out the restriction checks without turning every symptom into a parts swap.
After recovery, repeat the same free-extrusion test before retuning the slicer. If the strand is now steady and centered, print a simple wall or line test with the known-good profile. Do not compensate for a physical restriction by raising flow until dimensions look acceptable.
Cause 3: the nozzle opening is damaged, burred, or worn
A nozzle can remain open yet produce an asymmetric strand because its outlet is no longer round and clean. A cleaning tool pushed at an angle can burr soft brass. A collision with the build surface can deform the face. Abrasive carbon-fiber, glass-fiber, glow, metal-filled, and some mineral-filled filaments can enlarge or reshape a nozzle that is not rated for them.
What to check
With the printer cold and handled according to its service instructions, inspect the nozzle under magnification if practical. Look for a visibly flattened face, off-center or oval opening, deep scrape, or material compatibility mismatch. Do not judge a 0.4 mm opening by eye alone if lighting is poor; comparison with a correct spare is more reliable.
What to try next
If cleaning restores normal pressure but the strand still leaves in the same direction, replace the nozzle with the exact supported type and size, following the hotend's torque and sealing procedure. A comparison test with a known-good nozzle is often faster and safer than repeatedly probing a questionable outlet. Reconfirm nozzle diameter in the slicer after replacement.
If wear has also pushed line width and part dimensions high, use the over-extrusion diagnostic to separate a worn opening from flow-ratio or feeder-calibration errors.
Cause 4: the material is too cold or the requested purge is too fast
Viscous material needs more pressure to pass through the opening. If temperature is below the filament maker's usable range, the temperature reading is inaccurate, or manual extrusion is commanded too quickly, the strand may leave irregularly and the feeder may skip. This is usually a pressure-and-consistency problem, not a perfectly repeatable one-side curl by itself.
What to check
- The actual material and its recommended range, not the label on a reused profile.
- Whether the hotend had time to stabilize before the test.
- Whether the symptom appears only at fast manual feed but disappears at a slower steady rate.
- Whether a hardened-steel or larger thermal-mass nozzle requires a profile adjustment supported by its maker.
- Any implausible temperature fluctuation or heater error that requires service rather than tuning.
What to try next
Return to a known-good material profile and repeat the purge at a controlled moderate rate. Change temperature only within the material and printer makers' supported ranges. If normal printing still produces thin walls or gaps, follow the under-extrusion check order rather than continuing to raise heat.
Cause 5: upstream feed resistance is making extrusion pulse
A nozzle symptom can begin before the hotend. A crossed spool winding, tight dry-box outlet, sharp PTFE bend, dragging spool holder, contaminated drive gear, or crushed filament can vary the pressure reaching the melt zone. The hanging strand then thickens, thins, and whips around, sometimes looking like a nozzle-direction problem.
Separate the feed path from the hotend
Watch the spool and feeder during the purge. Note whether the curl changes exactly when the spool tugs or the drive gear clicks. Use only the manufacturer's approved unload or feed-isolation procedure; do not pull against a powered extruder. If the feeder click is the dominant symptom, the dedicated extruder-clicking guide separates a too-close first layer, flow demand, heat creep, restriction, spool drag, and feeder faults by timing.
Correct a verified feed-path restriction and repeat the same purge. A curl that becomes random or disappears when pressure steadies was not strong evidence of a damaged opening.
Cause 6: wet filament is making the strand spit or wander
Moisture can flash into vapor in the hotend, producing popping sounds, bubbles, rough texture, or momentary changes in strand direction. That behavior is usually irregular. Wet filament does not normally create a clean, identical bend to the same side on three quiet purges.
What to check
Listen for sharp pops and inspect the cooled purge for foam, bubbles, or an unusually rough surface. Compare the questionable spool with a known-dry spool of a familiar unfilled material. Keep temperature, nozzle, and feed rate unchanged so the comparison means something.
If pits and short missing sections appear in printed walls, the guide to random wall pits and pinholes distinguishes moisture from seam restarts, partial restrictions, flow limits, and feeder drag. Drying is justified when the evidence points there; it is not the first answer to every sideways strand.
Cause 7: flexible filament is buckling or sticking near the tip
TPU and other flexible materials can coil more readily after they leave the nozzle because the hanging strand has little stiffness. They also expose feed-path compression and speed problems earlier than rigid filament. A flexible purge that loops below the opening may be normal, while a strand that folds around the face immediately can still indicate residue or restriction.
Use a rigid-filament baseline
If the printer supports it, repeat the test with a known-good rigid, unfilled material before taking the hotend apart. A centered PLA purge and a looping TPU purge point toward material behavior or flexible-feed settings. If both bend identically from the opening, inspect the tip and nozzle first. When TPU is also jamming or buckling before it reaches the melt zone, use the focused guide for TPU extruder jams and buckling.
Do not confuse a curling strand with a hotend leak
Normal extrusion comes through the center opening at the bottom of the nozzle. Plastic appearing around the nozzle threads, above the heater block, under the silicone sock, or along the heat break is a different and more urgent fault. Stop printing if leaking material can reach heater or thermistor wiring.
Use the hotend manufacturer's shutdown and service instructions, then follow the heater-block leak diagnostic. Do not keep purging to see whether a leaking hotend seals itself.
A safe fix order
- Confirm repeatability: observe three controlled purges and record where the bend begins.
- Clean the exterior: remove tip residue by the approved hotend procedure and retest.
- Return to a known-good baseline: use a familiar unfilled filament, correct temperature, and moderate feed rate.
- Watch pressure clues: note pulsing diameter, thin flow, spool tugging, or feeder clicks.
- Use the documented restriction procedure: purge, cold-pull, clean, or replace only as supported by the hotend maker.
- Inspect for damage or wear: compare the opening with a correct known-good spare if the same-direction curl remains.
- Install and seal correctly: follow the exact nozzle or hotend replacement instructions rather than generic torque advice.
- Verify in a print: run a simple line or wall test and confirm stable extrusion, dimensions, and feeder sound.
Why retraction and flow tuning are not the first fixes
Retraction changes pressure during travel moves. It does not repair residue on the nozzle face, restore a round outlet, or remove a blockage that deflects a steady manual purge. Flow ratio changes commanded volume during printing; increasing it can hide a restriction while overfilling every feature that still receives material.
Start with a free-extrusion test because it removes travel, seam placement, layer geometry, and most slicer variables. Retune only after the strand is stable and the hardware baseline is credible.
How to verify the fix
A good result is not merely a straighter hanging strand. Confirm that the first few millimeters leave cleanly, three purges behave similarly, diameter does not pulse, the feeder stays quiet, and plastic does not collect on the nozzle face. Then print a known simple test using the correct nozzle size and material profile.
Inspect first-layer lines, walls after retraction, seams, and top surfaces. If the free strand is normal but printed lines still contain gaps, the problem may sit in pressure control, retraction, speed, or first-layer setup. For gaps concentrated at the bed, use the focused guide to first-layer gaps rather than reopening the hotend immediately.
When to replace the nozzle instead of cleaning again
Replacement makes sense when the correct cleaning process does not change a persistent same-direction curl, the opening is visibly damaged or enlarged, the nozzle contacted the bed hard, an unrated soft nozzle printed substantial abrasive material, or a known-good replacement immediately restores centered steady flow. Use an exact compatible nozzle, not merely one with similar-looking threads.
Repeated invasive cleaning has diminishing value. If a low-cost wear part is suspect and the comparison can be performed safely, a controlled replacement test gives better evidence than another round of random poking.
When expert help makes sense
Escalate to the printer or hotend manufacturer if the machine reports heater faults, the temperature reading is unstable, wiring is contaminated, the hotend leaks above the nozzle, a proprietary nozzle cannot be serviced as documented, or normal flow does not return after the supported recovery steps. Save a short video of the three-purge test, material, nozzle type and size, temperature, recent material changes, and the exact point where the strand bends.
If the immediate need is a reliable part rather than more machine downtime, JC Print Farm is the practical production off-ramp. Send the file, material intent, quantity, critical dimensions, finish requirements, and deadline so the job can be evaluated without turning a troubleshooting page into a sales detour.
Bottom line
Filament curling below a nozzle is not automatically a clog. The meaningful signal is a strand that bends at the opening and repeats the same direction after the tip is clean. Test three controlled purges, separate exterior residue and feed pulsing from a true internal restriction, then compare with a supported known-good nozzle when cleaning does not change the result.
Frequently asked questions
Should filament come straight down from a 3D printer nozzle?
The first few millimeters should usually leave cleanly, but a longer unsupported strand can loop naturally. Diagnose repeatable deflection at the opening, not the final shape of a hanging purge.
Does filament curling to one side mean the nozzle is clogged?
It can indicate an asymmetric partial blockage, but residue on the outside or a damaged opening can look the same. Clean the face, repeat the purge, and use pressure, strand diameter, and a known-good nozzle comparison to separate them.
Can wet filament curl out of the nozzle?
Wet filament can spit, bubble, and wander, usually with popping and irregular strand texture. A quiet, identical bend to the same side is stronger evidence of tip residue, blockage, or outlet damage.
Can I keep printing if the purge curls but the print looks fine?
A loose loop that begins below the opening may be harmless. A persistent curl from the opening deserves inspection because a developing restriction or damaged nozzle can later affect walls, retractions, dimensions, and feeder load.
Will raising nozzle temperature fix sideways extrusion?
Only if the material was genuinely too cold or the requested flow was too high. Extra heat does not repair an off-center opening or remove every blockage, and excessive temperature can degrade filament or increase ooze.
