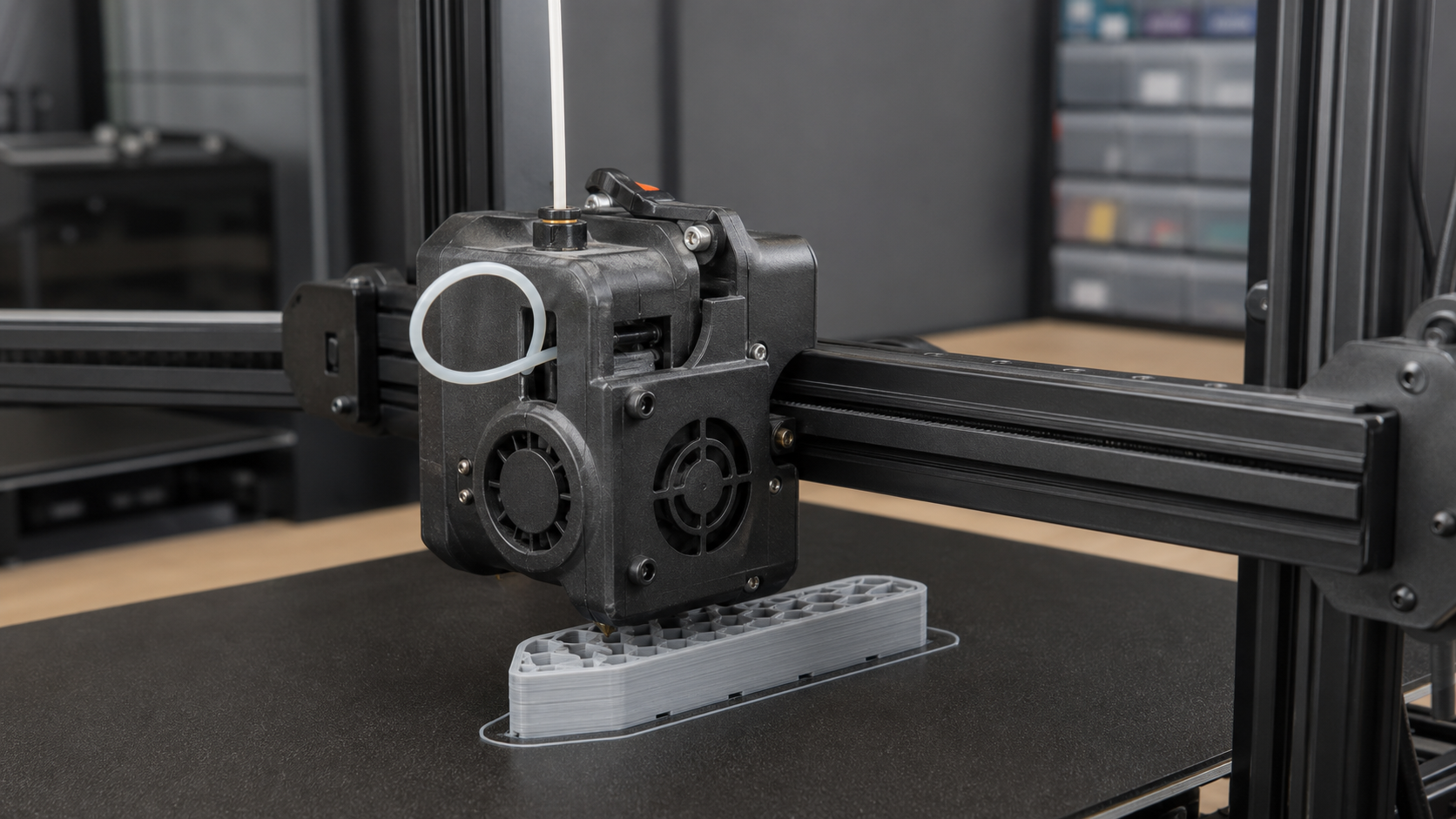

TPU usually jams or buckles in the extruder because the drive gears are pushing soft filament faster than the hotend and feed path can accept it. The filament then takes the easiest escape route: it bends beside the gears, forms a loop above the intake, folds inside a gap between the gears and guide tube, or gets chewed until the feeder can no longer move it. Stop the print, unload the damaged section, and identify where the bend started before changing several slicer settings at once.
The first split is physical. If TPU is already bent before it reaches the feeder, inspect spool drag, tube friction, and the entry angle. If it stays straight until the drive gears and then folds immediately below them, look for an unsupported gap, too much feed pressure, excessive speed, low nozzle temperature, or a downstream restriction. If it prints for a while before jamming, heat soak, repeated retraction, rising spool drag, or a flow demand that only appears later in the model moves higher on the list.
Short answer: find the buckle before tuning TPU
- Pause or cancel the print. Do not let the drive gears keep grinding one spot.
- Let the toolhead cool enough to service safely, then remove the deformed filament. Photograph where the loop or fold formed first.
- Push or load a fresh section slowly. Confirm that the spool turns freely and TPU reaches the nozzle without a sharp entry angle or crushed tube.
- Reduce the requested flow. Lower print speed and use a conservative volumetric-flow limit for that exact TPU.
- Reduce retraction. Flexible filament often needs much less retraction than rigid PLA or PETG, especially in a direct-drive path.
- Check nozzle temperature and restrictions. TPU that cannot melt and exit fast enough becomes a compression spring above the hotend.
- Retest with a short, simple part. Change one variable at a time and watch the feeder through the first retractions and faster sections.
What the jam location tells you
| What you see | Likely lane | Check first |
|---|---|---|
| TPU loops above the extruder entrance | Bad entry angle, spool overrun, tube resistance, or an unsupported approach | Spool rotation and the full upstream path |
| Filament folds directly below the drive gears | Gap in the constrained path, too much gear pressure, or downstream back pressure | Guide alignment, tension, nozzle flow, and speed |
| Deep gear teeth or a ground-flat section | The feeder kept pushing after flow stopped | Why the nozzle or feed path stopped accepting material |
| Jam begins after many travel moves | Retraction cycling, softening, or a damaged filament section | Retraction distance, count, and speed |
| Jam begins only on fast infill or thick lines | Requested volumetric flow exceeds the TPU and hotend limit | Peak flow by feature, not average print speed |
| Jam begins after the toolhead heats for a long time | Heat creep, weak heatsink airflow, or hot enclosure conditions | Elapsed time, fan operation, and toolhead temperature |
Why flexible filament buckles instead of feeding
TPU behaves like a compressed spring
Rigid filament can transmit a surprising amount of pushing force through a feeder and guide tube. TPU compresses, stretches, and bends. When resistance rises below the drive gears, the feeder does not immediately stop. It shortens and compresses the soft filament. If any section of the path is open or poorly constrained, the TPU bows into that space and the bow quickly becomes a fold.
Softer grades are more sensitive, but hardness labels do not tell the whole story. Two 95A filaments can differ in stiffness, surface friction, diameter control, and how they behave at the same temperature. Start from the filament maker's recommended range and validate the exact spool instead of assuming one TPU profile covers every brand and hardness.
A direct-drive extruder helps, but it is not jam-proof
A short, constrained path between the drive gears and hotend reduces the distance TPU can buckle. That is why direct drive is usually easier for flexible filament. It does not remove the need for aligned guides, suitable tension, modest retraction, and a flow rate the hotend can sustain. Even a short gap beside the gear can become a place for softened TPU to escape.
Bowden systems can print many TPU grades too, but they add tube friction, compression, and a longer elastic path. A stiffer TPU, lower speed, low-friction tube, gentle curves, and restrained retraction matter more as the path gets longer.
Check the upstream feed path first
Unload the TPU and turn the spool by hand. It should rotate without a snag, crossed winding, rubbing flange, or holder that needs the extruder to drag the full spool sideways. Inspect every guide, tube, coupler, and entry funnel. Tight bends and poorly cut tube ends can add enough friction to turn a marginal profile into a buckle.
If the spool is in a dryer or dry box, test once with the lid open or with a short low-friction route while preserving the same spool condition. This is a diagnostic A/B test, not a recommendation to abandon dry feeding. If the problem disappears, improve the outlet, tube radius, roller motion, or spool alignment rather than permanently retuning around drag.
Lower flow demand before changing hardware
Print speed alone can hide the real load. A 40 mm/s outer wall at 0.2 mm layers may be easy, while a faster thick infill line or high-flow internal feature asks the hotend to melt much more TPU each second. When requested volumetric flow rises above what the material and hotend can accept, pressure builds upstream and the soft filament buckles.
Set a conservative maximum volumetric speed for TPU, then test a simple part that includes the same line widths and layer height as the failing job. Slow infill, solid fill, and support separately if those features trigger the jam. If the feeder noise and deformation stop as peak flow drops, do not replace the extruder to solve a throughput limit.
Use nozzle temperature as a flow check, not a cure-all
A nozzle that is too cool for the requested flow creates back pressure because the TPU cannot soften and exit quickly enough. Increase temperature only within the filament and hotend guidance, using small steps and the same test. Watch for easier flow, stable surface finish, and fewer feeder marks.
Too much heat has its own costs: more stringing, softer material higher in the melt path, and worse heat-soak behavior. The goal is not the highest temperature. It is the lowest stable temperature that supports the needed flow without forcing the feeder to compress the filament. If the print becomes webby while the jam improves, continue with the TPU stringing guide instead of trying to solve both symptoms with one extreme setting.
Reduce retraction distance, speed, and repetition
Retraction repeatedly pulls soft filament backward and then drives it forward again. Long or fast moves can stretch the strand, deform it under the gears, and work the same short section until it loses shape. On travel-heavy models, a profile that survives a vase or calibration block may jam after hundreds of retractions.
Start with the printer or filament maker's TPU guidance. For direct drive, that commonly means a short retraction rather than a rigid-filament value copied from PLA. Reduce unnecessary travel crossings and avoid aggressive retract-on-every-move behavior. If the jam always appears after many restarts, retraction count can matter as much as distance.
Inspect gear tension and the constrained path
The drive gears need enough grip to feed without slipping. More tension is not always better. Excess force can flatten TPU, press deep tooth marks into it, and make the deformed strand harder to push through the guide below. Too little tension slips and grinds without reliable motion.
Use the printer maker's tension procedure where adjustment is provided. Check that the guide below the gears is seated, centered, and close enough to prevent the filament from escaping sideways. Replace cracked, damaged, or mismatched guide parts rather than forcing TPU through an opening that no longer constrains it.
Rule out a nozzle clog or hotend restriction
A partial clog, contaminated nozzle, mismatched nozzle diameter in the slicer, damaged liner, or poorly seated hotend can all raise back pressure. Test extrusion with a known-good rigid filament if the printer's service procedure supports that comparison. If PLA also extrudes weakly, the problem is no longer TPU-only.
The broader under-extrusion guide helps when walls are thin or flow is inconsistent across materials. If the main clue is a clicking or skipping feeder rather than a visible TPU fold, use the extruder-clicking diagnosis to separate nozzle resistance, first-layer blockage, feed drag, and feeder hardware.
Why TPU jams after printing successfully for a while
A delayed jam is useful evidence. Compare elapsed print time with model position. If different models fail after a similar warm-up period, inspect heatsink-fan operation, hotend assembly, enclosure temperature, and whether the toolhead is heat-soaking. TPU can soften above the intended melt zone and become easier to wrap or flatten under the gears.
If failure follows the same feature rather than the same elapsed time, inspect that feature's speed, line width, retraction, and flow demand. If it follows spool position, look for crossed winding, a rough cardboard edge, holder resistance, or a tube bend that changes as the toolhead moves.
Do not blame moisture for a clean mechanical buckle
Wet TPU can string, pop, foam, and leave rough or inconsistent surfaces. Those symptoms can make extrusion less stable, but moisture does not usually explain a clean loop forming at an unsupported feeder gap by itself. Dry the spool when the evidence supports it; do not use drying as a substitute for checking feed drag, flow, retraction, and path geometry.
The TPU symptom-separation guide is the better next stop when wet-spool clues, feed-path resistance, and over-tuning are mixed together.
A controlled TPU restart test
- Remove the damaged section and inspect where the first bend or gear damage occurred.
- Confirm the nozzle is clear and the hotend can extrude at a slow, steady rate.
- Shorten and straighten the spool-to-extruder path for one diagnostic run.
- Load fresh TPU without forcing it and verify the drive gears grip without crushing.
- Use a low peak volumetric-flow limit and a short TPU-specific retraction.
- Print a small part that includes several travel moves and a short faster-fill section.
- Watch the entry, gears, and first signs of deformation; stop before the strand folds.
- Raise only the limit supported by the result, one change at a time.
When the printer or TPU grade is the limiting factor
If a very soft grade repeatedly escapes a long or open feed path even after speed, temperature, retraction, and drag are controlled, the hardware may be a poor match for that material. A better-constrained direct-drive path can widen the workable range. That does not mean every TPU job requires a new printer. The Bambu Lab P1S TPU guide shows how printer choice, external feeding, and flexible-material workflow fit together on one common enclosed platform.
Also ask whether TPU is the right material for the part. The TPU functional-parts guide covers where flexibility, grip, damping, and impact behavior earn the added process discipline.
Frequently asked questions
Why does TPU wrap around the extruder gear?
The gear is pushing against more resistance than the soft filament can transmit straight down the path. TPU then escapes through a gap beside or below the gear. Check the nozzle flow, guide alignment, speed, temperature, tension, and spool drag.
Should I tighten the extruder for TPU?
Only to the printer maker's suitable range. Too little grip can slip, but too much tension flattens and damages TPU. A correctly constrained path and lower back pressure matter more than maximum gear force.
Does TPU need direct drive?
No, but direct drive usually makes softer TPU easier because the constrained path is shorter. Bowden systems can work with suitable filament stiffness, low friction, modest speed, gentle tube routing, and low retraction.
Why does TPU jam on infill but print walls correctly?
Infill may use higher speed, wider lines, or a larger flow rate than the walls. Compare requested volumetric flow by feature and lower the peak rather than judging the job by outer-wall speed.
Can wet TPU cause extruder jams?
Wet TPU can make extrusion unstable and add stringing or roughness, but a visible buckle still points first to compression, resistance, and an escape gap. Drying helps when the spool also shows moisture symptoms.
