A 3D print that gradually leans or skews to one side is usually caused by the printer's Z motion not being perpendicular to the bed, cumulative X/Y position loss, a loose moving assembly, heat pulling a tall thin part, or an angled model in the file. First decide whether the wall is straight but tilted, curved, or made of small horizontal steps. Those three shapes point to different fixes.
Do not immediately rotate the model, edit it with an opposite angle, or apply slicer skew compensation. A compensating edit can hide one test while leaving the printer mechanically wrong for every other part. Use a simple tower, the machine's frame as a reference, and one controlled rotation test to learn whether the error belongs to the file, the part, or the printer.
What does a leaning 3D print actually look like?

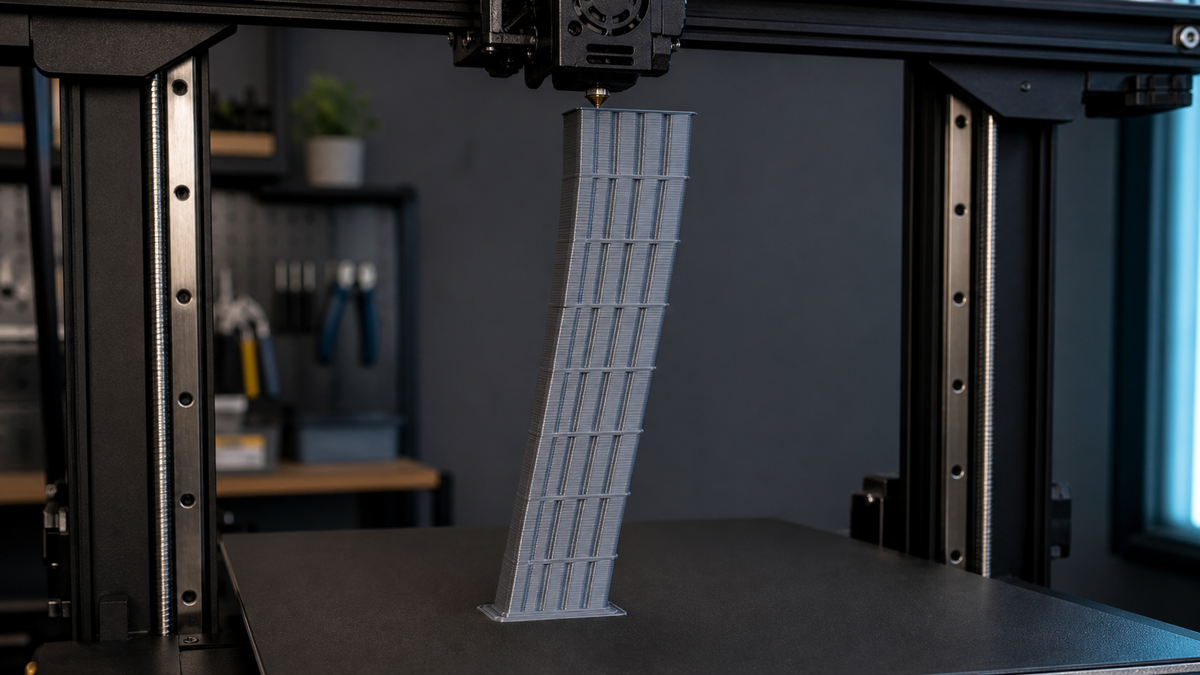

A true lean means the top of a nominally vertical feature is displaced sideways from its base. The sides may still be quite straight. This differs from a layer shift, where one height contains a sudden horizontal step, and from a bowed wall, where the surface curves inward or outward before returning or changing direction.
Place a straightedge beside the cooled part without forcing it. Look at the silhouette under side lighting and inspect the layer edges with magnification if needed. The shape of the error is more useful than the word leaning:
| Observed shape | Most likely branch | First useful test |
|---|---|---|
| Straight sides, but the whole tower tilts consistently | Z axis or gantry is not square to the bed's motion plane | Print a centered tower, then compare it with a rigid machine reference |
| Many tiny steps accumulate in one X or Y direction | Repeated position loss, loose pulley, belt problem, drag, or aggressive motion | Inspect the layer contour and test that axis at lower acceleration |
| One or two obvious horizontal offsets | Conventional layer shift or collision | Use the dedicated layer-shift check order |
| Wall curves like a banana or changes direction | Heat deformation, uneven cooling, internal pressure, or Z-path error | Rotate the model 180 degrees and reduce the test's thermal load |
| Part is angled in the slicer preview exactly as printed | Source geometry, imported coordinate system, or placement | Check the model against the build plate in front and side views |
| Only the first few millimeters flare or slide | First-layer compression, elephant foot, bed movement, or early warping | Inspect the base separately from the upper wall |
Run one controlled tower test before changing hardware
Use a plain rectangular tower with known vertical walls, a broad enough base to stay attached, and no draft angle, supports, text, or decorative overhangs. A tower roughly 20 to 30 mm wide and 80 to 120 mm tall is usually enough to reveal a meaningful lean without committing to a long print. Keep the same material and a conservative profile.
- Preview the file from the front and side. Confirm that the tower is exactly upright and begins flat on the bed.
- Place it near the center of the usable build area. Centering reduces the number of position-specific variables.
- Mark the printer's X and Y directions on a removable note, not on a moving surface.
- Print the tower and let it cool before measuring. A hot thin wall can move while handled.
- Measure the sideways displacement between the bottom and top in both X and Y.
- Rotate the same tower 180 degrees in the slicer and print it in the same bed location.
If the lean stays toward the same physical side of the printer, suspect machine geometry, cumulative motion error, or directional cooling. If it turns with the model, inspect the mesh, orientation, and sliced path. If one tower is straight and the other curves differently, heat, cooling, or an unstable assembly deserves more attention than a fixed geometric correction.
Cause 1: the Z structure is not square to the bed's motion plane
A printer can produce consistent layers while building them progressively sideways if the vertical guide path is tilted relative to the plane in which X and Y move. On an open-frame machine this can come from an out-of-square frame, a gantry installed with uneven seating, a loose brace, or a base resting on a twisted surface. On an enclosed or factory-aligned machine, the same symptom may indicate shipping damage, a loose structural joint, or a service issue.
What to check
- Put the printer on a rigid, flat support and confirm that no foot is hanging or rocking.
- With the printer safely idle, inspect frame joints, gantry mounts, braces, and fasteners for visible gaps or movement.
- Compare the printed tower with a known straight frame member only if that member is actually part of the Z reference.
- Follow the manufacturer's squaring procedure. A carpenter's square against decorative panels or a removable bed is not automatically a valid alignment measurement.
- On dual-Z machines, check the documented gantry-leveling or synchronization procedure before loosening couplers or lead-screw hardware.
What to try next
Reseat and square only the assemblies the manufacturer describes as user-adjustable. Tighten hardware to the specified method and sequence; overtightening extrusion joints or rail mounts can distort them. Do not bend linear rails, force lead screws into alignment, or use the print itself as a lever. If the printer has a closed welded or pinned frame, collect the tower measurements and contact its support channel instead of improvising a structural correction.
Cause 2: the printer is losing a tiny amount of X or Y position repeatedly
A classic layer shift is sudden, but repeated small skips can resemble a steady lean when each error is only a fraction of a millimeter. Close inspection often reveals shallow steps on one face rather than a perfectly straight tilted wall. The direction usually matches one machine axis, and the surface on the opposite side may show corresponding ledges.
What to check
- Look for a loose motor pulley, drive gear, belt clamp, or other axis connection specified in the printer's service instructions.
- Check for cable-chain, PTFE-tube, spool, enclosure, or toolhead-wire drag that increases with height.
- Inspect the belt for damage, contamination, uneven tracking, or an obviously wrong routing. Do not assume maximum tension is correct.
- Check whether the build plate, carriage, or toolhead has play that changes direction under light hand pressure when the machine is safely off.
- Compare a slower conservative profile with the failing profile. Acceleration and abrupt direction changes matter more than headline print speed alone.
If the wall contains a clear discrete step, move to the layer-shift troubleshooting guide. That page covers obstruction, pulley, belt, motor, driver, collision, and motion-profile branches in the correct order. A smooth geometric lean should not be diagnosed as a skipped belt without step evidence.
Cause 3: a tall thin part is bending while it prints or cools
Thermal deformation can make a part look tilted even when the toolpath is correctly positioned. One side may cool and shrink faster, a hot thin wall may be pushed by the nozzle, or a tall feature may flex under rapid direction changes. ABS, ASA, nylon, and thin PETG features can be sensitive, but even PLA can soften when chamber heat, insufficient part cooling, or short layer times keep the tower hot.
What to check
- Determine whether the wall is truly straight or gradually curved.
- Look for a direction change near openings, solid layers, wall-count transitions, or a reduction in layer time.
- Print two shorter towers at opposite sides of the plate to see whether airflow direction changes the result.
- Check whether the base corners lifted. A tower can remain attached while one side rises enough to tilt the upper section.
- Compare the defect height with fan-speed, temperature, speed, and layer-time changes in the slicer preview.
What to try next
Use material-appropriate cooling and enclosure conditions, slow the outer wall and abrupt motion, and provide enough minimum layer time for a narrow tower. Add a second small object only when the extra travel safely increases cooling time. Reorient a tall flexible feature so the printer's strongest motion direction and airflow make sense. If the wall bows rather than stays straight, use the separate guide to wavy or bowed 3D print walls.
Cause 4: Z motion is binding, wandering, or loading the structure sideways
A bent, constrained, dirty, or misaligned Z component usually causes repeating ribs, inconsistent layer thickness, or periodic side movement rather than one clean lean. Still, a tall test can reveal the carriage being guided sideways as it rises. The important distinction is whether the error repeats at a pitch or changes smoothly over height.
What to check
Follow the printer maker's maintenance procedure for lead screws, belts, rails, wheels, or bushings. Inspect for debris, dry or contaminated guides, damaged wheels, visibly wobbling screws, a coupler installed outside specification, or harness tension that changes with Z height. Never lubricate a belt, wheel surface, or component that the manufacturer specifies as dry.
Measure the spacing between ribs if the wall has a repeating pattern. A regular pattern points toward rotating or periodic Z hardware; a broad curve points elsewhere. The guide to Z banding and ribbing covers the periodic-error branch without conflating it with a simple tilt.
What to try next
Clean, align, tension, or lubricate only according to the printer's documented design. Remove external drag and confirm that the Z assembly moves through the full test height without a tight spot. If the machine is under warranty or uses factory-aligned rails, stop before loosening alignment hardware that can make the geometry harder to recover.
Cause 5: the bed, plate, or printer base moves during the job
A removable plate that creeps, a loose bed carriage, or a printer that rocks can shift the relationship between the part and nozzle. This usually creates steps or inconsistent direction rather than a perfect lean, but flexible magnetic sheets, clips contacting the toolhead, or loose bed hardware can accumulate enough movement to resemble one.
What to check
- Confirm the removable plate is the correct size, fully seated against its stops, and free of debris underneath.
- Check whether clips, tabs, or handles can enter the nozzle or toolhead path.
- Inspect bed wheels, rails, bearings, mounts, and fasteners using the printer's maintenance instructions.
- Verify that the bench is stable and that the printer's feet all support the base.
- Look for a witness mark showing that the plate shifted relative to the bed.
Correct the loose physical interface before adding brim, adhesive, or lower speed. Better part-to-plate adhesion cannot compensate for the entire plate moving under the nozzle.
Cause 6: the model or sliced orientation is already angled
An imported CAD body can carry an unexpected coordinate system, a scan can have a tilted reference plane, and an STL may contain a small draft angle that is hard to see in perspective view. Automatic orientation tools can also rotate a model slightly before placing it. If the print follows the file perfectly, machine adjustment will create a second error.
What to check
Use orthographic front and side views in the slicer. Zoom in at the first layer and confirm the entire intended base contacts the build plate. Check numerical rotation values, then inspect several upper layers to ensure the wall remains over the base as expected. If available, compare the source CAD dimension or construction plane rather than judging by a shaded preview alone.
What to try next
Reset rotation, choose the correct reference face, or repair the source model. Re-export with the intended coordinate system and verify the new slice before printing. Do not use an opposite-angle compensation until a known-upright calibration tower proves that the printer itself is responsible.
Why ordinary XY skew compensation may not fix a vertical lean
XY skew describes axes that are not perpendicular when viewed from above: a commanded square becomes a parallelogram on the build plate. A vertical lean is an XZ or YZ relationship: the part moves sideways as Z increases. Some advanced firmware supports broader calibration, but many slicer "skew" controls address only the XY plane.
Print or measure a flat square separately. If its diagonals differ while the vertical tower is otherwise straight, you may have an XY orthogonality issue. If the flat square is square but the tower leans, changing XY skew can distort good base geometry without correcting the Z relationship. Mechanical squareness comes first unless the printer manufacturer explicitly documents a calibration workflow for that axis pair.
How to measure the lean without guessing
Measure tower height and the horizontal displacement between corresponding bottom and top edges. Record X and Y separately. For example, a top that is 1.0 mm displaced over 100 mm of height has a 1% slope, or roughly 0.57 degrees. You do not need the angle to diagnose the cause, but a repeatable number makes before-and-after testing useful.
Take measurements at the same cooled temperature and avoid soft walls. Use several points or a fitted straight reference instead of one rough corner. If the surface has ringing, seam bumps, or bulging corners, measure from broader wall regions. The guides to ringing and rounded or bulging corners cover those local artifacts.
A safe fix order
- Verify the file: confirm zero unintended rotation and a vertical sliced path.
- Classify the shape: straight tilt, tiny steps, one large shift, periodic ribbing, or thermal curve.
- Stabilize the setup: rigid bench, seated plate, no rocking feet, no moving cable or spool interference.
- Repeat a centered tower: record top displacement in X and Y.
- Rotate the model 180 degrees: determine whether the error follows the file or stays with the machine.
- Inspect the implicated axis: frame squareness for a smooth fixed lean; belts, pulleys, and drag for steps; cooling for a curve.
- Make one documented adjustment: do not loosen unrelated frame, rail, and Z hardware together.
- Reprint the same tower: compare the measured displacement, not just a photograph.
When the failure repeats at one height
If the tower stays straight until the same height and then bends, shifts, binds, or becomes rough, the key variable may be that Z position rather than overall squareness. Check cable tension, rail contamination, screw damage, frame obstruction, chamber temperature, and sliced toolpath changes at that height. Use the same-height failure diagnostic when a clean lower section consistently gives way at one repeatable plane.
When to contact the printer manufacturer or an experienced operator
Stop and request support if a rigid factory-aligned frame is visibly twisted, a linear rail is loose, a lead screw or coupler is damaged, the bed or toolhead has unexplained play, or the machine cannot move smoothly through its normal range. Send front and side photos of the tower beside a reliable reference, the X/Y displacement over a stated height, the orientation test result, and close photographs of any steps or periodic ribs.
If a part must be dimensionally reliable now and repeated production matters more than continuing the machine repair, JC Print Farm is the relevant expert-help path. The useful handoff is the file, material, required verticality or fit tolerance, quantity, and the measurement method—not just a photo labeled "leaning."
Bottom line
A straight continuous lean points first to the relationship between Z travel and the bed's X/Y plane. Tiny accumulating steps point to motion loss, while a curved wall points to heat, cooling, or changing structural pressure. Verify the file, print and rotate one controlled tower, record the direction and amount of displacement, then correct the single branch supported by that evidence.
Frequently asked questions
Can a loose belt make a 3D print lean?
Yes, but it usually leaves many small positional steps or occasional larger shifts rather than a perfectly straight tilted wall. Inspect the layer contour and pulley or belt evidence before tensioning. Excessive belt tension can create its own wear and motion problems.
Will bed leveling fix a leaning print?
Bed leveling or mesh compensation controls nozzle distance over the first-layer plane. It does not normally make a tilted Z guide perpendicular to that plane. A badly seated or moving bed can contribute, but rerunning a mesh alone is not a structural squaring fix.
Should I compensate by tilting the model in the slicer?
Not as the first fix. That can make one tower appear vertical while changing its base contact and leaving every other model dependent on the same hidden correction. Use it only in a documented specialized workflow after the machine and source geometry are understood.
Why does only one tall part lean?
A thin tall part can stay hot, flex under nozzle motion, or cool unevenly even when shorter parts look normal. Test a plain tower with conservative motion and material-appropriate cooling. If it stays straight, the original geometry or thermal load is the stronger lead.
Is a leaning print the same as Z wobble?
No. Z wobble or banding usually creates repeating horizontal surface variation tied to a rotating or periodic Z component. A lean describes cumulative sideways displacement from base to top. A part can show both, so classify the broad centerline separately from the rib pattern.
