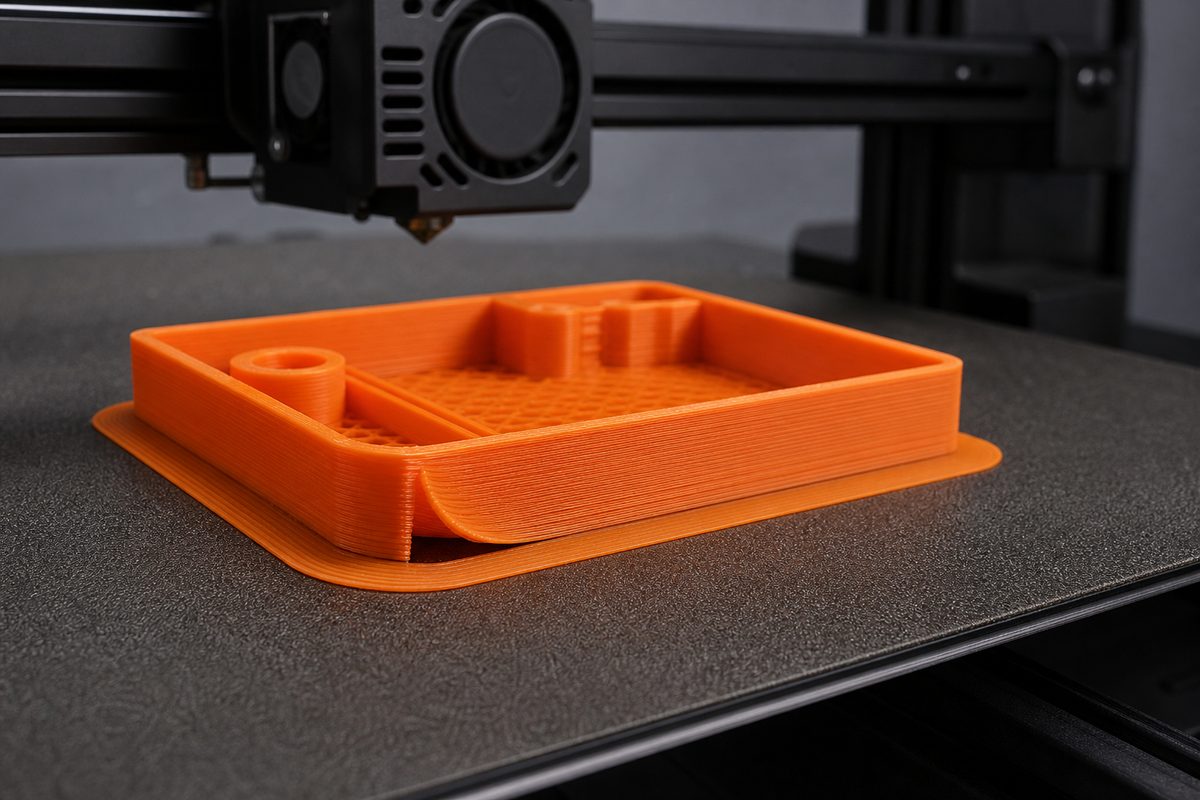

If your 3D print lifts off the brim while the brim stays stuck to the build plate, do not treat it as ordinary first-layer adhesion failure. The plate is holding the brim. The failure is usually at the narrow connection between brim and part, inside the part's lower layers, or from thermal shrinkage strong enough to peel the part away from an otherwise well-adhered outline. Before changing temperatures or adding more glue, inspect exactly where the separation begins.
A clean hairline gap between the part and brim points toward an excessive brim-object gap, weak contact geometry, or inconsistent first-layer placement. A corner that curls upward while the brim remains attached points more strongly toward warping stress. If part and brim lift together from the plate, this is a broader bed-adhesion problem and should follow a different troubleshooting branch.
What this brim failure actually tells you
A brim is a thin first-layer extension intended to increase the footprint around a model. It works by giving the plate more area to hold and by adding lateral support near vulnerable edges. It does not clamp the entire object down. The brim can look perfect while the model separates at a weak connection or bends upward above it.
| What you see | Most likely branch | Best next check |
|---|---|---|
| Brim is flat, with a clean gap all around the model | Brim-object gap is too large or the brim never actually touched the model | Inspect the sliced first layer at maximum zoom |
| Only one model corner pulls away from a flat brim | Local first-layer inconsistency or concentrated thermal stress | Compare first-layer line shape at that corner with the opposite corner |
| The model curls upward but a thin brim connection remains attached | Lower-layer shrinkage is overpowering the connection | Check drafts, chamber state, bed temperature, cooling, and part geometry |
| The brim and model lift from the plate together | Plate adhesion or first-layer setup | Clean the correct surface and verify first-layer placement |
| The brim tears or wrinkles after a nozzle strike | Collision, over-extrusion, curled material, or lost nozzle clearance | Review the last good layer and listen for scraping |
| A crack appears above the first layer while the footprint remains down | Layer adhesion or thermal delamination, not a brim-interface failure | Mark the crack height and inspect layer bonding |
Inspect the separation before removing the print
Pause safely if the printer allows it, photograph the lifted corner from the side, and note whether the brim is still connected to the part. Do not press a hot, moving print back onto the plate. The boundary is your best evidence and is usually destroyed when the part is removed.
Look at three separate interfaces
- Plate to brim: Are the brim lines flat, continuous, and still attached to the build surface?
- Brim to model: Is there a deliberate-looking gap, a few fragile threads, or a solid fused connection?
- Lower layers of the model: Did the whole footprint peel upward, or did the part split above a first layer that stayed down?
Those observations separate three very different fixes. More plate adhesive cannot repair a slicer gap. A zero-gap brim cannot cancel severe ASA shrinkage in a cold draft. More bed heat cannot fix a nozzle collision.
Cause 1: the brim-object gap is too large
Many slicers include a brim separation or brim-object gap so the brim removes cleanly. If the gap is too large for the chosen first-layer line width and material behavior, the brim becomes a decorative outline rather than a mechanical extension. It can stay perfectly attached while the model has almost no lateral support.
Check the sliced toolpath, not only the setting name
Open the first layer in preview and zoom in where the brim meets the model. The toolpaths should either touch or leave only the intentionally chosen removal gap. Setting names and units vary by slicer, and a value that works with one nozzle diameter, first-layer width, and material may leave another profile disconnected.
What to try next
Reduce the separation in one controlled step and reslice. For a maximum-hold diagnostic test, a zero or near-zero gap may be appropriate, but expect more cleanup and protect delicate edges. Do not blindly copy one internet number. Confirm the actual preview and use the smallest change that creates a reliable connection without welding the brim permanently to the part.
Cause 2: the model's first layer is weaker than the brim
A brim can look acceptable because its narrow lines happen to cross a favorable part of the mesh while the actual model footprint sits over a low spot, fingerprint, worn patch, or locally incorrect nozzle gap. The result is a flat brim around a model whose own first-layer lines are rounded, separated, or barely anchored.
Compare line shape at the failed and healthy corners
Rounded strands with visible gaps usually indicate too much nozzle-to-bed distance or too little delivered material. Extremely wide ridged lines can indicate excessive compression and may also create a rough edge the nozzle later catches. The focused guide to first-layer gaps covers the placement, flow, and local-surface branches without treating every gap as the same fault.
What to try next
Use the printer maker's plate-cleaning and calibration procedure, confirm the correct plate type is selected, and run a first-layer test that covers the failed region. If the problem follows one bed location after cleaning and calibration, inspect the plate seating, debris beneath a removable sheet, mesh repeatability, and local surface wear. Do not compensate for one low corner by crushing the entire first layer.
Cause 3: the brim is connected but too narrow for the load
A few brim lines may be enough for a small PLA part and completely inadequate for a long ABS enclosure corner. Brim width matters because shrinkage applies a peeling moment at the model edge. A narrow brim offers little leverage and can stretch or tear at the connection even though every line remains stuck to the plate.
Match width to geometry and material
Long flat walls, sharp corners, tall narrow parts, and high-shrink materials generally need more hold than compact rounded PLA geometry. Increase brim width or line count gradually and inspect whether the failure moves later, becomes smaller, or disappears. A wider brim that changes nothing is evidence that heat flow, geometry, or the interface itself matters more.
Do not confuse a skirt with a brim. A skirt is intentionally separated from the model and mainly primes flow or shows placement. It does not provide meaningful edge restraint.
Cause 4: thermal shrinkage is peeling the part away
As deposited plastic cools, it contracts. If upper layers cool faster than the base, the part stores stress and pulls upward at corners. The brim may stay down because it is only one thin layer with excellent plate contact, while the thicker model behaves like a bending beam. This is why the symptom can occur even with a clean plate and a fused brim.
Check the thermal timeline
- Does lifting begin when the part-cooling fan ramps up?
- Does it happen near a door, vent, open enclosure panel, or cold side of the printer?
- Does a larger model fail while a small calibration part succeeds?
- Does the corner begin moving after several millimeters rather than on layer one?
- Is the bed temperature dropping, unstable, or incorrect for the selected plate and material?
What to try next
Follow the filament and printer maker's recommended bed, nozzle, fan, enclosure, and chamber guidance. Stabilize the environment before the print, keep doors or panels in the supported position, and avoid direct drafts. Change one thermal variable at a time. The broader 3D print warping guide explains how to separate plate release from temperature gradients and part stress.
Material-specific behavior matters. ASA warping and nylon warping require more disciplined thermal and material control than an ordinary PLA brim test. PETG can also lift on broad flat geometry; the guide to PETG corner lift covers that narrower case.
Cause 5: the model concentrates stress at sharp corners
Brims work less effectively when the part sends most of its shrinkage load into one sharp corner. A long rectangular box, dense slab, or wall with a heavy solid base can curl at the ends even when a round part of similar area prints cleanly. More brim may delay the symptom without addressing the stress concentration.
Use geometry changes only when the part allows them
Rounded external corners, lower-stress orientation, local mouse ears, sacrificial tabs, a less massive base, or a staged infill transition can reduce peel force. These are design decisions, not universal slicer fixes. Do not alter a controlled mating surface, safety-critical part, or customer file without approval. If the geometry cannot change, thermal control and a better-supported process become more important.
Cause 6: first-layer flow, speed, or cooling weakens the connection
The brim-to-part bridge is made from first-layer toolpaths. If those paths are printed too fast, too cool, under-extruded, or with fan behavior that chills the edge early, neighboring lines may touch visually without bonding well. Conversely, severe over-extrusion can build ridges that the nozzle catches later.
Run a small first-layer connection test
Slice a simple square with the same material, plate, nozzle, layer height, first-layer settings, and brim gap. Let it cool, then compare how the brim removes on all four sides. A connection that falls away with no resistance is too weak for a diagnostic hold test. A brim that tears the model edge may be excessively fused. Adjust only the interface-related variable first, then repeat.
Cause 7: the nozzle or toolhead hit the part
A collision can lever the model away from its brim even when thermal conditions are reasonable. Common precursors include a rough overfilled first layer, curled overhang, lifted corner, loose nozzle residue, infill ridges, or a previous small layer shift. The brim is then blamed because it is what remained on the plate.
Look for collision evidence
Listen for scraping, inspect the topmost completed layer for a gouge, and review camera footage if available. Check whether the part moved sideways as well as upward. If the nozzle was already dragging, follow the dedicated nozzle-scraping troubleshooting path instead of making the brim progressively harder to remove.
Cause 8: the model split above the brim
Sometimes the first layer and brim remain on the plate while the rest of the model separates one or more layers higher. That is not the part lifting off the brim. It is lower-layer delamination caused by inadequate layer bonding, a cold transition, draft, intermittent extrusion, contamination, or excessive stress.
Mark the exact failure height
If a thin skin stays attached inside the brim outline, measure the height of the split and compare it with slicer events such as fan changes, speed changes, solid-layer transitions, or geometry steps. The weak layer adhesion guide is the correct next branch when the fracture is above the first-layer interface.
A controlled fix order when the brim stays down
- Preserve the evidence: photograph the side profile before removing the failed print.
- Identify the boundary: plate-to-brim, brim-to-model, or a split inside the lower layers.
- Check the slicer preview: verify that the brim actually connects to the model at the intended gap.
- Inspect first-layer line shape: compare the failed corner with a healthy corner and another bed location.
- Repeat with one interface change: reduce brim separation or increase width, but not both at once.
- Stabilize the environment: follow supported bed, fan, enclosure, and chamber guidance for the exact material.
- Check for collision evidence: scraping, gouges, curled edges, or sideways movement.
- Escalate to geometry: use local tabs, mouse ears, orientation, or corner changes only if the part permits them.
How to verify the fix
Do not jump directly back to the full long print. Use a cropped lower section of the model when licensing and geometry permit, or a representative rectangle with the same corner radius, base thickness, wall structure, material, and first-layer profile. Print it in the same bed region and record when lifting previously began.
A successful fix has four signs: the brim remains flat, the part-to-brim connection stays continuous through the stress window, the model corner does not rise, and removal after cooling is controlled rather than either effortless separation or destructive welding. Repeat once if the original job is costly or long. One lucky first layer is not process validation.
When a brim is the wrong tool
A brim cannot compensate indefinitely for an unsuitable open-air material process, a severely warped plate, a failing heater, a nozzle collision, a badly designed stress concentrator, or a first layer that never reaches the plate correctly. A raft may isolate some surface and geometry problems, but it adds material, time, bottom-surface change, and dimensional tradeoffs. Adhesive may help at the plate interface, yet it does not strengthen a deliberate brim-object gap.
If every wider brim fails at the same height and direction, stop adding lines. That repeated pattern is evidence of a thermal, mechanical, or geometry problem.
What not to do
- Do not press a lifting part down by hand while the printer is moving or hot.
- Do not cover a disconnected brim with more glue and expect the model interface to improve.
- Do not raise bed or nozzle temperature beyond the printer, plate, and filament maker's limits.
- Do not disable cooling completely without checking the material and geometry requirements.
- Do not crush the entire first layer to compensate for one local low spot.
- Do not change gap, width, temperatures, fan, speed, and adhesive in the same test.
- Do not modify a controlled customer or safety-related part without approval.
When to stop debugging and ask for help
Contact the printer maker when the bed temperature is unstable, the plate or bed is visibly deformed, calibration is not repeatable, a toolhead collision continues on known-good files, or the supported enclosure workflow cannot hold the required conditions. Send the sliced project, first-layer photo, side view of the failure, material identity, plate type, temperatures, fan timeline, brim settings, and the layer where movement begins.
If the real requirement is a dependable batch rather than more process development, the guide to whether you should keep printing in-house or use a print farm provides the ownership checkpoint. When an outside production handoff is the practical next step, JC Print Farm can evaluate the file, material intent, quantity, dimensions, finish, and deadline.
Bottom line
When the brim stays stuck but the model lifts, the build plate has already shown that it can hold at least the brim. Inspect whether the failure is a disconnected brim-object gap, a locally weak model first layer, thermal corner lift, a nozzle collision, or a split above the interface. Fix that boundary first, then verify it with one controlled test instead of stacking wider brims, hotter settings, and more adhesive together.
Frequently asked questions
Should a brim touch the 3D print?
For strong mechanical hold, the brim toolpaths normally need to touch or nearly touch the model. Some slicers add a removal gap. Confirm the actual first-layer preview because too much separation can leave the brim attached to the plate but useless to the part.
Why does the brim stay down while only one corner lifts?
That corner may have weaker first-layer placement, a dirty or worn local plate area, a sharp stress concentration, directional cooling, or stronger exposure to a draft. Compare it with the opposite corner and rotate or relocate a small controlled test.
Will a wider brim always stop warping?
No. More width increases leverage at the plate, but it cannot eliminate a large temperature gradient, unsuitable material environment, collision, or layer split. If width changes do not change the failure, follow the stronger evidence.
Should I set the brim gap to zero?
Zero gap is useful as a maximum-hold diagnostic test and for some production profiles, but it can make cleanup difficult or damage delicate edges. Use slicer preview and a small test to choose the smallest reliable connection for the job.
Does a perfect-looking brim prove the first layer is good?
No. The brim covers a different area than the model footprint. The model can sit over a local low spot or contamination patch while nearby brim lines look acceptable.
