Direct answer: If the corners of a large flat PETG print rise from the build plate during printing, check the first-layer contact and plate condition first. Then restore the supported PETG profile, remove uncontrolled drafts, review part cooling, and test a brim or corner tabs. Do not raise bed temperature, add glue, dry the spool, and change fan settings at the same time; that hides which condition actually caused the lift.
This page covers one exact failure: the base corners or long edges of a large, flat PETG part curl upward while the print is still on the bed. It does not cover PETG gripping a smooth PEI sheet too hard after cooling, cracking between upper layers, or a whole print being knocked loose by the nozzle.
Editorial scope: This diagnosis uses current manufacturer guidance and does not claim hands-on testing. Plate coatings, PETG formulas, printers, and supported temperatures differ, so keep the current printer, plate, and filament instructions as the operating boundary.
Disclosure: GoodPrints may earn from qualifying purchases through clearly labeled affiliate links on this page, at no added cost to you.
Confirm that the base is lifting, not being pushed loose

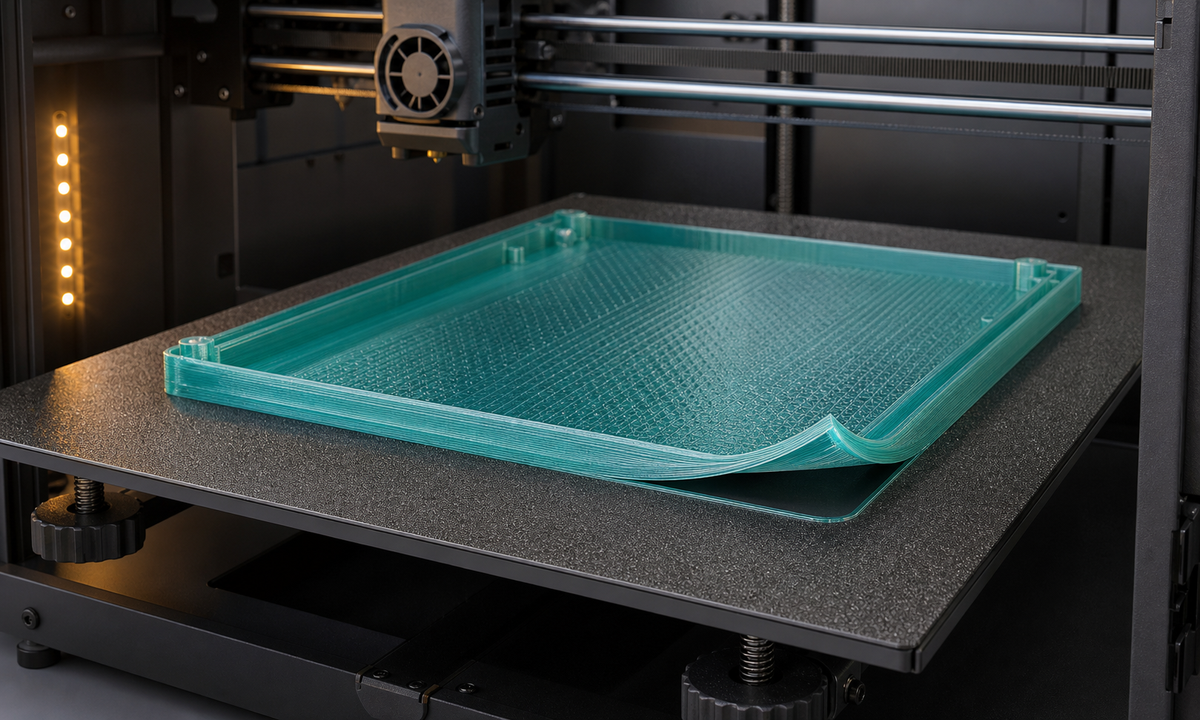

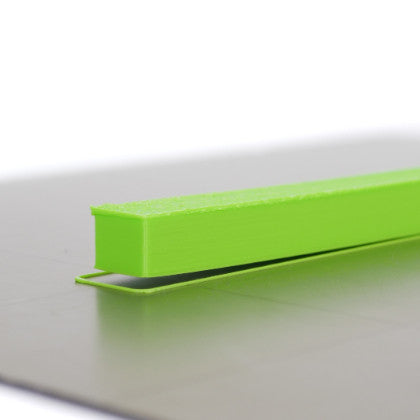

Pause safely before the nozzle reaches the damaged area and view the base from bed level. True corner lift leaves a growing wedge-shaped gap under a corner or long edge. The affected corner may stay attached at its tip while the surrounding edge bows, or the corner itself may detach and curl upward. Mark the first corner that moves; its location is useful evidence.
If the part was flat until the nozzle struck a curled overhang or deposited blob, the primary failure happened above the bed. If the whole print slides without a progressive curl, diagnose general first-layer adhesion. This workflow is for thermal and adhesion stress that begins at the base perimeter of a broad PETG footprint.
Match the visible evidence to the first check
| What you see | Best first lead | First proof |
|---|---|---|
| One corner has visibly thinner or rounder first-layer lines | Uneven first layer | Print a one-layer patch over that area |
| Lift repeats where fingers, residue, or an old part touched the plate | Contaminated plate | Clean by the plate maker's method and repeat unchanged |
| The door, vent, room fan, or cool side lifts first | Airflow asymmetry | Remove the uncontrolled draft without blocking printer ventilation |
| Small PETG parts pass but long flat parts curl | Geometry-driven shrink stress | Add a slicer brim or corner tabs to the same file |
| Lift began after a profile, fan, plate, or temperature change | Baseline drift | Restore the supported PETG preset and plate selection |
| Popping and rough extrusion accompany poor contact | Spool inconsistency | Prove the spool separately before retuning adhesion |
Check 1: inspect the complete first-layer footprint
Use a one-layer version of the footprint or several patches placed under the corners and center. Look for continuous lines with similar width and contact. A corner with separated strands, a rounded cross-section, or a visibly lighter contact patch has less area holding it down. A corner that is excessively crushed can also collect material, distort dimensions, or create a nozzle-contact problem.
Run the printer's supported bed-leveling, mesh, or calibration procedure, then confirm the correct plate is selected in the slicer. Do not compensate for an uneven first layer by forcing every corner closer. The goal is uniform contact across the actual footprint, not maximum squash at one convenient test point.
Check 2: clean and identify the exact build surface
Handle the plate by its edges and clean it using the plate manufacturer's current method. Soap, solvent, abrasive cleaning, glue, and release-layer advice are not interchangeable across smooth PEI, textured PEI, satin coatings, engineering plates, and third-party surfaces. Residue that is invisible from above can still create a local weak zone.
Also confirm that the chosen plate is approved for PETG. Prusa's current PETG material guide distinguishes among its print-sheet types and warns that PETG adhesion can be too strong on some smooth surfaces. If the current problem is over-adhesion after the part cools, use the separate PETG-on-smooth-PEI release guide; do not increase grip further.
Check 3: restore the supported PETG profile
Verify the active filament preset, plate selection, nozzle size, first-layer height, first-layer speed, bed temperature, nozzle temperature, and fan overrides. Use the current supported baseline for that exact filament and machine before fine tuning. A copied PLA profile, a generic fast-PETG preset, or a stale plate override can change several of these at once.
Do not treat a universal temperature number as the fix. Displayed bed temperature does not prove that every part of a large plate has the same surface condition, and raising it beyond supported limits can create release, dimensional, coating, or safety problems. Restore the documented baseline, then compare the same first-layer test before changing one variable.
Check 4: locate uncontrolled airflow and early cooling
Note which corner lifted first and what faced it: an open door, HVAC vent, room fan, open printer panel, or the part-cooling duct. Airflow that cools one side more quickly can create asymmetric contraction. Remove the room draft for the comparison without covering electronics, blocking required machine ventilation, or operating an enclosure contrary to the printer or material guidance.
Next review the sliced fan behavior rather than setting fan to zero globally. Strong cooling very early can increase the temperature difference across a broad base, but small features and bridges may still need cooling. Restore the supported PETG fan baseline first. If a controlled reduction is allowed, test only that change and check overhang quality before keeping it.
Check 5: decide whether the geometry needs more hold-down area
Long straight edges, sharp corners, uniform solid bases, and abrupt thickness changes can concentrate shrink stress even when the first layer is respectable. This is why a small calibration square may pass while a tray, panel, or enclosure floor lifts. The larger part stores more contraction force and gives that force a long lever at the corners.
Use the slicer's brim or small corner tabs as a diagnostic. Prusa's current warping guide lists a brim as one way to increase contact area. If the same file stays flat with a modest brim, geometry-driven edge stress is the stronger lead. Keep the smallest aid that works, and verify removal does not damage the part or plate.
Check 6: separate moisture clues from corner-lift clues
Wet PETG can pop, string, create a rough surface, or extrude inconsistently. Those defects can weaken first-layer contact, but spool moisture is not the default cause of a clean, repeatable corner curl. If extrusion sounds clean and the first-layer lines are uniform until a predictable corner rises, plate contact, airflow, profile, and geometry deserve priority.
If the lift arrives with popping, bubbles, fuzz, or changing line width, use the PETG stringing diagnosis and the PETG drying-versus-storage guide. Follow the filament maker's drying limits, then repeat the same file. Drying should be a tested recovery step, not a substitute for plate and first-layer evidence.
Apply only the fix that your check proved
- Uneven first layer: run the supported calibration and correct the plate or profile selection, then repeat the one-layer footprint.
- Local plate contamination: clean by the plate maker's instructions and keep hands off the print area.
- Unsupported profile drift: return to the exact PETG baseline before changing heat, fan, or speed.
- Draft or cooling asymmetry: remove the uncontrolled room airflow and restore supported early-layer cooling.
- Geometry-driven stress: test a brim, corner tabs, rounded corners, or a less stress-heavy base design.
- Moisture-backed extrusion inconsistency: recover the spool within maker limits, then rerun without additional tuning.
Run one controlled large-footprint test
Use the same PETG spool, printer, plate, nozzle, profile, and model. Save a baseline photo from bed level and record which corner moved first and at what layer or time. Apply only the highest-confidence fix, then repeat after the bed and room return to similar starting conditions. A single tiny cube is not enough; the test must retain the long edge or broad footprint that created the stress.
Accept the fix only if the base remains within the fit and flatness needed for the job, the first layer is uniform, removal is safe after cooling, and the rest of the part has not traded flatness for weak layers or damaged overhangs. Two repeats are better evidence than one lucky print.
Do not stack these common failed fixes
- More bed heat plus more nozzle heat plus less fan: you cannot tell which change mattered, and the combination may create new defects.
- Glue on an unidentified plate: an adhesive may be a grip aid or a separation layer depending on the surface and material.
- A huge brim before checking the first layer: extra area cannot correct a badly calibrated or contaminated corner.
- An enclosure as a reflex: some open printers handle PETG normally; enclosure use must follow the printer and material guidance.
- Drying every spool first: moisture treatment does not repair airflow asymmetry, wrong plate selection, or stress-heavy geometry.
Know when this is a different PETG failure
If the base stays flat but the wall splits horizontally, use the PETG layer-cracking workflow. If the completed part will not release from smooth PEI, use the over-adhesion guide. If the same enclosure shape warps in ASA, use the ASA warping guide because the material and thermal-control boundaries differ.
Use limits: when a flatter PETG base still is not a passing part
A print that merely stays attached until completion has passed an adhesion check, not the whole job. Let it cool and release it by the plate maker's method before judging flatness. Then apply the limit that matches the part:
- Cover, tray, or noncritical cosmetic part: a small edge lift may be acceptable only when the part sits as intended, does not rock, has no loose or cracked first-layer material, and the distortion does not interfere with assembly.
- Mating base, fixture, enclosure, gasket land, sliding interface, or aligned hole pattern: reject a corner that changes contact, clearance, sealing, hole position, or fastener preload. Check the cooled part against the actual mate or an appropriate reference, not against the warm build plate.
- Loaded, impact, fatigue, hot, outdoor, or chemical-exposed part: flatness at room temperature does not qualify layer bonding, creep, weather life, chemical compatibility, or retained strength. Run the representative load, temperature, exposure, and cycle proof required by the job.
- Plate coating damage, a deeply distorted first layer, recurring nozzle contact, a growing hotend blob, smoke, or material leaking above the heater block: stop tuning adhesion and follow the printer or hotend maker's safe inspection procedure. A brim or hotter bed cannot correct a damaged surface or mechanical/hotend fault.
- Food-contact, medical, lifting, pressure, electrical-safety, or other consequence-heavy use: a flat-looking PETG coupon is not a qualification for sanitation, load capacity, pressure integrity, dielectric safety, or code compliance.
Release sequence: cool the part, remove it without prying against the plate coating, wipe-check the base for loose material, check for rocking and diagonal corner lift, verify the real mate and critical clearances, then run the representative load or cycle test. Repeat the same large-footprint job at least once before treating the fix as stable; one flat print can hide a room-draft or plate-location problem.
Next steps if the corners still lift
- Repeat the one-layer footprint and save a bed-level photo.
- Confirm the exact plate, PETG preset, and manufacturer limits.
- Move the part or rotate it on the plate only as a diagnostic for local plate or airflow asymmetry.
- Test a modest brim or corner tabs on the unchanged model.
- If only the full-size design fails, revise sharp corners, base thickness transitions, or long uninterrupted edges.
- Stop using the part for a critical fit or load until flatness and strength pass the actual job requirements.
Common questions
Should I raise the PETG bed temperature?
Restore the current supported profile first. A temperature change is useful only after first-layer uniformity, plate cleanliness, plate compatibility, and airflow have been checked, and it must stay within the equipment and material limits.
Does PETG need an enclosure to prevent corner lift?
Not universally. Remove uncontrolled drafts and follow the printer and filament guidance. Do not add or seal an enclosure if the machine requires another thermal or ventilation arrangement.
Should I use a brim or mouse ears?
They are strong diagnostic tools when large sharp-cornered parts fail but the first layer is otherwise uniform. Use the smallest added area that produces the required flatness and safe removal.
Can wet PETG make corners lift?
Inconsistent wet-filament extrusion can reduce contact, but moisture is a better lead when lift appears with popping, bubbles, fuzz, roughness, or changing line width. Clean repeatable curling points first to plate, airflow, profile, or geometry.
Why does only one corner lift?
One-corner failures often reveal local first-layer height, contamination, plate temperature, airflow, or geometry asymmetry. Mark that corner and rotate or move a controlled test only after documenting the original orientation.
When should I redesign the part?
Redesign when calibration, plate condition, the supported PETG baseline, and reasonable hold-down aids pass smaller tests but the real footprint still stores too much edge stress. Rounded corners and smoother base-thickness transitions can reduce stress without relying on extreme settings.
