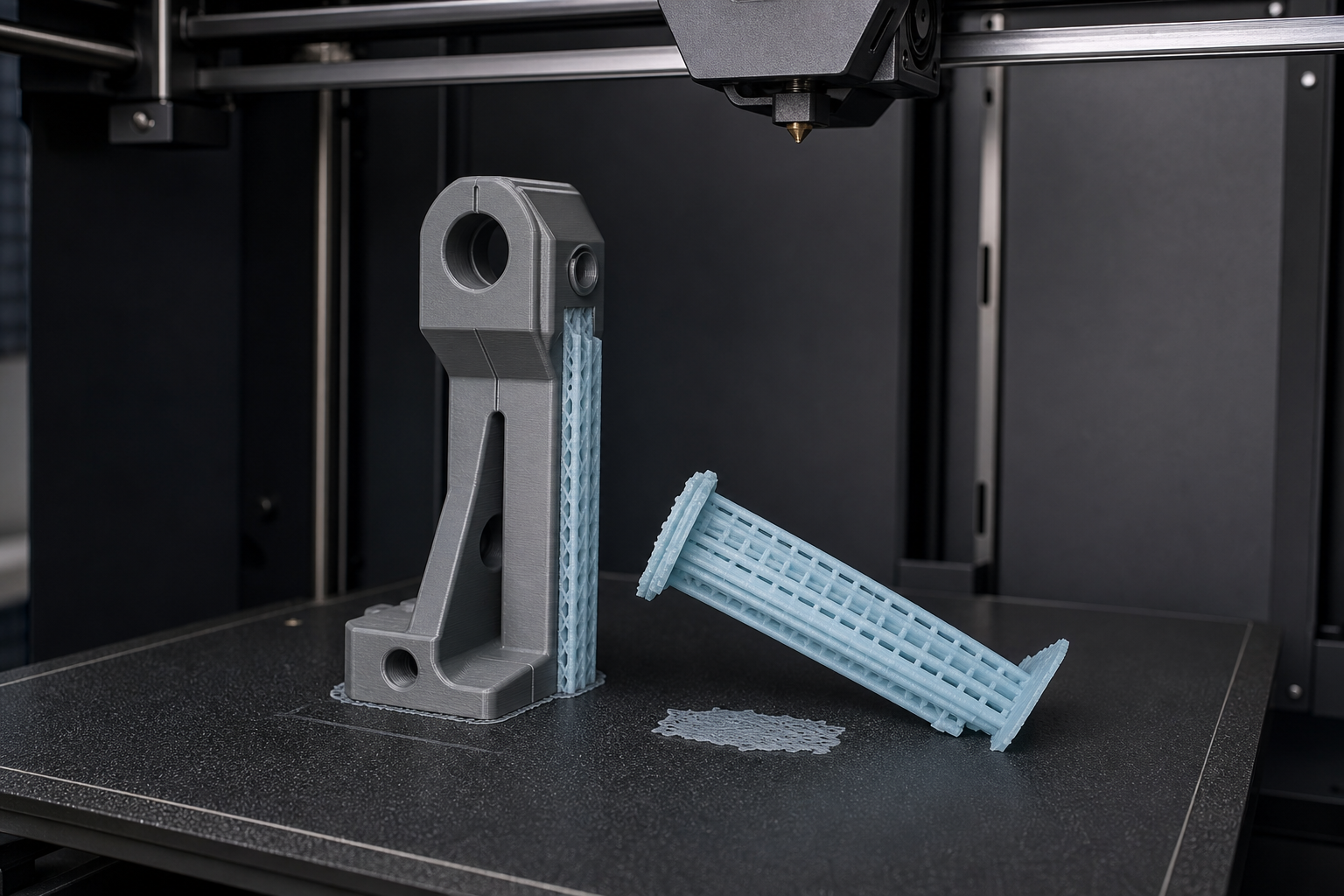

If your 3D print supports fall over mid-print, first inspect where the failed support separated. A support that peeled cleanly off the build plate has a foundation or adhesion problem. A support that snapped several millimeters above the plate is usually too slender, too weak, or being shaken by aggressive motion. A support with a gouged top, bent branch, or repeated impact marks was probably struck by the nozzle, a curled overhang, or another raised feature.
Do not start by increasing every support setting. Preserve the failed part, look at the bottom and break point, and preview the exact support path in the slicer. The useful question is not simply “are supports enabled?” It is whether the support had enough footprint, stiffness, clearance, and layer bonding to survive the forces applied at the moment it failed.
Short answer: what should you check first?
- Pause or stop safely. A loose support can be dragged into the part, fan duct, purge area, or motion system.
- Find the support's original footprint. Decide whether its first layer released, the tower broke above the plate, or the top was knocked sideways.
- Check the matching height on the model. Look for a curled edge, warped corner, dense interface, bridge start, seam, or sudden cross-section change.
- Inspect the support's proportions. A tall narrow tower or long tree branch has much more leverage than a short wide support.
- Preview support toolpaths layer by layer. Confirm that the tower remains connected and does not narrow to a fragile neck.
- Watch a small repeat test. Note whether the nozzle hits, travel moves tug strings, the base lifts, or the tower oscillates during acceleration.
- Change one cause-matched setting. Add a support brim for a weak base, strengthen the support for a snapped tower, or fix the collision source when clearance is lost.
Read the failure before changing the profile
| What you find | Most likely branch | Best next test |
|---|---|---|
| Clean support-shaped patch remains on the support, but little or nothing remains on the plate | Poor first-layer adhesion or too little support footprint | Print a one-layer patch at the same coordinates and add a support brim only after adhesion is sound |
| Base is still attached; support snapped higher up | Weak, sparse, slender, or poorly bonded support | Preview the neck and increase stability locally |
| Top is crushed, shiny, gouged, or bent in one direction | Nozzle collision or curled model feature | Watch the matching layer and inspect the model for raised edges |
| Tower stays attached but rocks visibly during fast moves | High slenderness plus aggressive acceleration or travel | Run the same section slower or add a wider/connected support structure |
| Fine strings connect the nozzle, part, and support before the failure | Travel tug, ooze, wet filament, or poor retraction behavior | Observe whether a string catches the support before changing support density |
| Failure repeats at the same layer or machine height | Repeatable toolpath, collision, Z-axis, cable, or geometry event | Separate same model layer from same absolute Z position |
| Tree support loses one branch while the trunk stays upright | Branch is too thin, too horizontal, or poorly routed | Inspect branch diameter, angle, wall count, and contact routing |
1. If the support detached from the bed, fix the foundation
Support towers often begin with much less bed contact than the part itself. A model can remain firmly attached while one narrow support base releases from oil, a low mesh area, a cold plate edge, excessive first-layer speed, or a footprint that is simply too small for the tower above it. The higher the support grows, the more leverage acts on that small patch.
Check the failed footprint under angled light. Round, separate first-layer lines suggest too much nozzle distance. Extremely thin ridged lines suggest too little distance. Lines with good shape that release from one patch suggest contamination, surface wear, or local temperature. If the support was near one physical corner, use the one-corner first-layer guide before changing global flow or Z offset.
Clean and seat the build plate using the surface maker's method, confirm the correct plate profile, and run the printer's supported leveling procedure. Then print a small first-layer patch where the support stood. The broader bed-adhesion troubleshooting guide is the right route when the whole plate is unreliable.
Once the first layer is healthy, add a support brim or widen the support base. A brim gives a tall tower more resistance to peeling and rocking; it cannot repair a dirty plate or incorrect nozzle height. Increase brim width only as much as the geometry needs, because an oversized brim adds cleanup without strengthening the tower above the base.
2. If the support snapped above the base, inspect its weakest section
A base that remains attached is valuable evidence: bed adhesion did its job. Examine the fracture height and preview those layers in the slicer. Support generators can create a narrow waist between two wider sections, isolate a small tower for many layers, or merge branches through a weak junction. That transition may be adequate in a short test but unstable when the support becomes tall.
For conventional supports, modestly increase support wall count, line width, or density according to the slicer's documented controls. A wall or perimeter often adds more bending stiffness than filling the entire tower with dense zigzags. Where several narrow towers stand close together, a support pattern that connects them can be more stable than isolated lines.
For tree or organic supports, inspect trunk diameter, branch diameter, branch angle, wall count, and where branches merge. A thin branch reaching sideways carries both bending load and nozzle-contact risk. Route or thicken the branch, move its base, or allow a second trunk when the slicer supports those controls. Do not make every branch massive; adjust the branch that actually failed.
3. If the nozzle hit the support, find what removed the clearance
A correctly generated support should remain below the active nozzle plane except where the nozzle is intentionally printing it. Contact means something became raised, moved, or accumulated. Common sources include a warped model corner, curled overhang, over-extruded support intersection, rough infill, nozzle buildup, a loose hotend, or missed motion steps.
Look for scrape direction and matching damage. A gouge across the support top points toward direct travel contact. A support bent away from the model may have been hit by a curled model edge. Plastic smeared onto the nozzle can grow into a hard deposit that strikes both the part and support later. The nozzle-scraping guide covers the clearance branch in detail.
Z-hop may avoid light contact in some verified travel-only cases, but it is not the first fix for warped geometry, excess extrusion, mechanical play, or lost Z motion. Extra lift adds time and repeated Z movement. Identify whether contact occurs during travel, extrusion, or a crossing of a raised feature before enabling it.
4. Reduce support motion without hiding the real problem
A tall support behaves like a flexible column. Fast acceleration, abrupt direction changes, and rapid travel can make the top oscillate even when the base remains attached. Each new line is then placed on a moving target, and a small sway can become a collision several layers later.
Watch the tower from a safe distance. If it visibly wobbles during travel, lower support-print speed, outer support-wall speed, travel acceleration, or the printer's global acceleration within documented limits. Which control matters depends on when the tower moves. Slowing extrusion will not fix a jolt caused only by high travel acceleration.
Geometry usually gives a more durable fix than extreme slowdown. A wider base, added wall, connected support pattern, shorter unsupported branch, or reoriented model reduces leverage. Use speed reduction as a measured stability tool, not as permission to keep an obviously fragile tower.
5. Check layer bonding inside the support
Support material still needs reliable extrusion and layer bonding. A partial clog, excessive speed, low temperature for the actual flow rate, damp filament, spool drag, or weak cooling-temperature balance can make support lines break even while thicker model walls look acceptable. Supports expose marginal flow because their paths may be thin, intermittent, and repeatedly restarted.
Inspect the broken surface. Clean layer-by-layer separation suggests weak bonding. Missing or thin lines suggest under-extrusion. Brittle powdery fracture can indicate degraded material or an unsuitable temperature, while glossy soft deformation can indicate too much retained heat. Confirm the same spool can print a simple thin-wall or tower test before rebuilding the support profile.
If the extruder clicks or skips while the support prints, use the extruder-clicking diagnosis. Support density cannot compensate for an inconsistent feed path.
6. Separate support strength from support interface quality
Support body settings keep the structure upright. Interface settings control the roof or contact layers beneath the model. Increasing interface density may improve the supported surface, but it can also add heat, drag, and nozzle passes near the top of a marginal tower. It does little for a trunk that broke halfway up.
Similarly, reducing top contact distance to improve the underside can make the model and support interact more aggressively. If a warped supported edge pushes down or sideways on the interface, the tower may be displaced. Tune stability first, then tune contact quality with the functional support-settings guide.
If the supports survive but leave rough marks, that is a different problem. Material-specific support-scar pages for PLA and PETG focus on contact spacing, interface behavior, temperature, and removal without confusing scars with structural collapse.
7. Reorient the model when the support is inherently unstable
Some orientations demand a tall isolated tower for a tiny feature. The support may be printable, but it has little margin for bed variation, motion, or a small nozzle deposit. Rotate the model to shorten the tower, give it a wider landing zone, or let the supported region grow from a stronger part of the geometry.
Use the slicer preview to compare total support height, base area, branch reach, trapped cleanup zones, and supported surface direction. The orientation with the least support material is not always the most reliable. A slightly larger but shorter connected support can outperform one elegant needle-like tree.
Also ask whether the feature can be redesigned. A chamfer, teardrop hole, split assembly, sacrificial bridge, or removable locating feature may eliminate the unstable support. For a functional part, controlled post-processing or a two-piece design can be more repeatable than protecting one tall tower through a long production run.
A controlled repeat test
- Save the failed project, profile, and orientation before making changes.
- Photograph the support base, break point, and matching model height.
- Preview ten layers below and above the failure in the slicer.
- Confirm the plate is clean, seated, leveled, and using the correct surface profile.
- Cut the model above the failure or create a representative support test so the iteration is short.
- Print once with the original settings while watching the critical layers.
- Classify the event: base release, structural snap, nozzle strike, string tug, or motion wobble.
- Make one matching change: brim, wider support, stronger branch, corrected collision source, or lower relevant acceleration.
- Repeat the same short test at least twice before returning to the full job.
- Save the proven profile and orientation with the part revision.
If the failure repeats at the same apparent height even after the support changes, determine whether it follows the same model layer, the same absolute machine Z, or the same elapsed time. The same-height failure guide separates slicer events from Z-axis obstruction, cable interference, collisions, and heat-soak faults.
Fixes that match the evidence
- Base peeled cleanly from the plate: correct surface, leveling, temperature, and first-layer issues; then add a support brim or wider base.
- Base stayed down but tower snapped: strengthen the narrow section with a wall, wider line, denser connected pattern, or thicker branch.
- Tower rocks during moves: reduce the acceleration responsible for the motion and shorten, widen, or connect the support.
- Top is gouged or bent: diagnose nozzle contact, curled geometry, excess material, or mechanical looseness.
- Strings tug the tower: correct the stringing or feed condition and keep travel paths from catching fragile branches.
- Support lines are thin or missing: solve under-extrusion, spool drag, clogging, temperature, or flow-limit problems.
- Only one tree branch fails: adjust that branch's diameter, angle, wall, route, or landing point.
- The design requires a very tall isolated support: reorient or redesign before forcing the whole profile around a fragile structure.
What not to change first
- Do not raise support density everywhere. It adds time and material but may not strengthen a narrow outer wall or weak base.
- Do not add Z-hop blindly. It cannot flatten a curled edge, restore missed Z motion, or tighten a loose hotend.
- Do not crush the global first layer. Fix a local plate or support-footprint problem without damaging the rest of the print.
- Do not reduce support contact distance to hold the tower up. That changes removability and scarring at the model, not the foundation.
- Do not glue a detached support back during active printing. Reaching into a moving hot machine creates injury and collision risk.
- Do not let a loose support continue unattended. It can be dragged into the nozzle, part, or motion system.
Frequently asked questions
Will a support brim stop supports from falling over?
A support brim helps when the base releases or rocks on too little bed contact. It does not fix a support that snaps above the base, a nozzle collision, weak extrusion, or a badly routed tree branch.
Should I increase support density?
Only when the failed section is structurally weak and density is the relevant control. A support wall, connected pattern, wider line, thicker branch, or better orientation may add more useful stiffness with less material.
Why do tree supports break more often near the top?
Upper branches are thinner, extend farther sideways, and have more leverage. They also sit close to curled model features and dense interface passes. Inspect branch diameter, angle, wall count, and contact routing.
Can print speed make a support fall over?
Yes. High support speed can reduce line placement and bonding, while high acceleration can make a tall tower sway. Observe whether failure begins during extrusion or a travel move before deciding which speed control to reduce.
Why does the part stay attached while the support comes loose?
The part usually has a larger footprint and more stable geometry. A narrow support base has less contact area and carries increasing leverage as it grows, so it can expose a marginal first layer before the model does.
Can I continue a print after one support falls?
Usually the safer, more repeatable choice is to stop and correct the cause. The unsupported feature may print in air, loose material may be dragged into the machine, and later collisions can damage the part or hardware. Follow the printer maker's safety guidance.
Next steps
Keep the failed support and record whether it released, snapped, or was struck. That single classification is more reusable than a list of random setting changes. Once the support survives two short repeat tests, return to the full model and monitor the formerly critical height.
Use the functional-part setup checklist to stabilize the machine baseline, then use the print-quality hub if the same job also shows warping, weak layers, or inconsistent extrusion. If a deadline or repeat order makes another full troubleshooting cycle uneconomical, the printer-versus-service guide gives a grounded ownership checkpoint. JC Print Farm can take over when the file, material, quantity, and delivery requirement are already defined.
