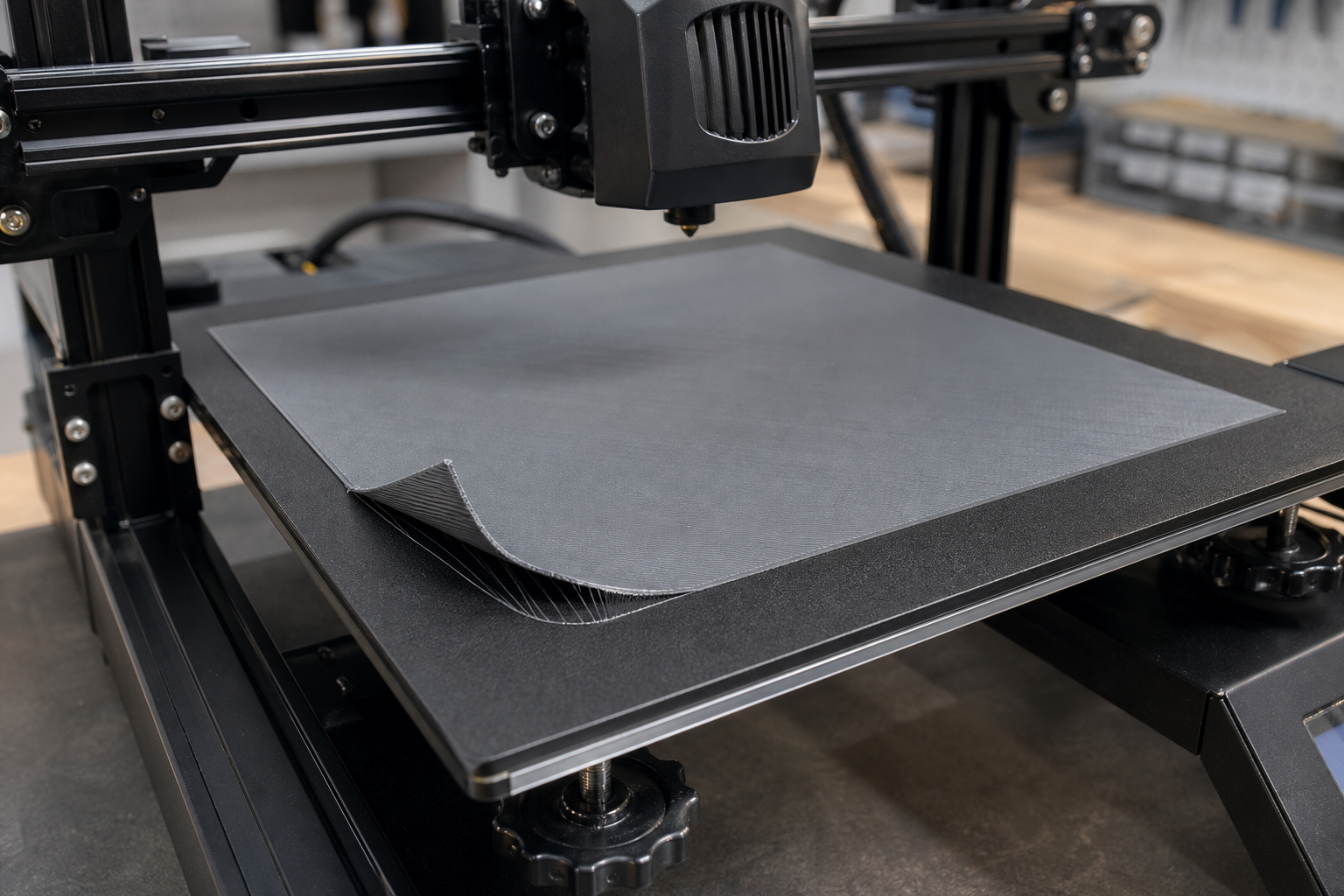

If your 3D print first layer sticks everywhere except one corner, treat it as a local bed problem before changing global slicer settings. The most common causes are skin oil or residue in that area, a build plate that is not seated flat, an inaccurate bed-mesh point, a probe or nozzle contaminated during leveling, local plate wear, gantry tilt, or a cooler corner exposed to airflow.
The fastest diagnostic is to print the same small first-layer patch in the weak corner and then move that patch to the center. If the failure stays at the same physical corner of the printer, inspect the plate, mesh, probe, bed support, and local temperature. If the failure follows the model or one feature, inspect the model footprint, first-layer toolpath, and local geometry instead.
Short answer: what should you check first?
- Mark the physical corner. Note whether it is front-left, front-right, rear-left, or rear-right from the operator's view.
- Clean the whole plate correctly. Use the build-surface maker's supported cleaning method, handle only the edges, and avoid transferring oil back onto the test zone.
- Remove and reseat the plate. Check for a filament chip, purge strand, adhesive ridge, damaged magnetic sheet, or lifted edge underneath it.
- Run the printer's leveling or mesh routine from a clean nozzle. A plastic droplet on the nozzle can corrupt contact-based probing.
- Print a one-layer patch in the problem corner and another in the center. Do not change Z offset, flow, and temperature between the two tests.
- Watch the actual lines. Decide whether they are round and loose, crushed and ridged, patchy from contamination, or initially good and then pulled upward.
- Check for a draft or cold zone. A vent, open door, fan, or poorly heated bed edge can make one corner behave differently.
First determine whether the fault follows the bed or the model
A localized failure has coordinates. Preserve those coordinates during testing. Reprinting the same large model after rotating it 90 degrees can tell you whether the weak area belongs to the machine or to the part.
The failure stays in the same printer corner
This is the strongest sign of a plate, leveling, mesh, probe, bed-support, gantry, or temperature problem. The model can change, but the bad zone remains fixed relative to the printer. Focus on what is physically different at that location.
The failure follows one corner of the model
The part may have a sharp corner that concentrates shrink stress, a tiny footprint, a fast short segment, a travel move that tugs an unsecured line, or a toolpath that begins poorly. Rotate the model and see whether the same modeled corner still lifts in a new bed location.
The weak corner changes from print to print
Variable failures suggest inconsistent plate handling, nozzle residue during probing, a plate that is not registered the same way each time, loose bed hardware, unstable Z offset, or filament and flow behavior rather than one fixed low spot. The first-layer drift after Z-offset guide is the better route when the bad zone will not stay put.
Read the line shape in the weak corner
| What the corner looks like | Most likely branch | Best next check |
|---|---|---|
| Lines stay round, separate, and easy to wipe away | Nozzle is locally too far from the surface or the mesh is under-correcting | Compare corner and center patch line width; inspect mesh and plate seating |
| Lines are extremely thin, translucent, ridged, or scraped | Nozzle is locally too close, plate is high, or mesh is over-correcting | Stop before surface damage; inspect the high point and probe data |
| Extrusion height looks right but plastic beads away from one patch | Oil, cleaner residue, adhesive buildup, or worn/coated surface | Clean using the surface maker's method and avoid touching the test area |
| Lines start well, then the corner curls upward minutes later | Thermal shrink stress, draft, cold bed edge, or geometry load | Check airflow, bed heat, material, brim need, and corner geometry |
| The first layer is good until a travel move drags it loose | Nozzle ooze, poor line anchoring, travel contact, or a curled start | Watch the start sequence and inspect nozzle cleanliness |
| The bad area appears only after removing and reinstalling the plate | Plate registration, debris underneath, bent plate, or magnetic-seat problem | Cool, remove, inspect, clean underneath, and reseat squarely |
1. Clean the surface without creating a new variable
A fingerprint can cause a sharply localized adhesion failure even when the rest of the plate looks perfect. Oils are especially easy to deposit in the corner used to flex, lift, or align a removable plate. Cleaner residue can create a similar patch if it is sprayed unevenly or wiped with a contaminated cloth.
Follow the build-surface manufacturer's instructions. Many PEI sheets respond well to a thorough wash with plain dish soap and warm water, followed by a clean rinse and complete drying, but coated, specialty, resin, and adhesive-managed surfaces may require a different process. Do not assume every plate tolerates acetone, abrasive pads, or a hot wipe.
After cleaning, hold the plate by its edges. Clean the whole usable surface rather than polishing only the failed spot, then print the same diagnostic patch. If the weak corner immediately recovers, contamination was more likely than a calibration fault.
2. Remove, inspect, and reseat the build plate
A flexible sheet can sit on top of a tiny purge strand or plastic chip. That debris raises one area, while a corner that misses its locating stops can sit differently from the mesh that was measured earlier. Adhesive ridges, labels, damage to the magnetic layer, or a plate bent from aggressive part removal can also create local height error.
Let the plate reach a safe handling temperature. Remove it, inspect both sides under angled light, and check the bed or magnetic base for debris. Wipe the underside dry; do not leave solvent or water trapped against the magnet. Reinstall the sheet against its locating features without overlapping an edge or rear stop.
If the machine uses a rigid glass or tool plate, inspect clips and support points. A clip in a different position can bow thin glass, and an overtightened screw can distort a bed. Follow the printer maker's mounting procedure rather than improvising extra clamp force.
3. Rebuild the bed mesh with a clean probe and nozzle
Automatic leveling does not make the bed physically flat. It measures a surface and asks the Z axis to compensate while the first layer is printed. A stale mesh, wrong plate profile, missed probe point, nozzle droplet, or disabled mesh can leave one corner under-corrected.
Start with the correct build plate installed and selected in the printer or slicer where that setting exists. Remove hanging filament from the nozzle using the manufacturer's safe procedure. Heat-soak the bed for the amount of time the printer maker recommends, especially on larger beds, then run the supported leveling routine.
Look at the mesh visualization if the machine exposes one. One implausible spike beside otherwise smooth values can indicate a bad measurement, debris, or mechanical movement. A broad slope may indicate tramming or gantry tilt. Do not edit individual mesh numbers merely to make the graph look flat; repeat the measurement and find the physical reason.
4. Check gantry tilt, bed support, and local motion
On machines with manual bed screws, one corner can simply be too low or too high for the available mesh range. On dual-Z machines, the X gantry can be tilted. A loose bed wheel, worn bushing, damaged spring or spacer, or play in the toolhead can also make the measured height differ from the printing height.
With the machine cool and safe, check for obvious bed rock or loose hardware using the maker's maintenance instructions. Do not tighten wheels until they bind. On printers with automatic gantry tramming, run that routine before building a new mesh. On manually trammed printers, make small measured changes and recheck all points because adjusting one corner affects the others.
If the entire layer is too far or too close, use the dedicated guides for a first layer that is too far from the bed or a first layer that is too close. A global Z-offset change is justified only when the error is global.
5. Check for a cold corner or one-sided airflow
Bed edges can run cooler than the center, and one corner may be closest to an open door, HVAC vent, window, electronics fan, or room fan. The first line can appear attached but lose hold as the layer cools and contracts. This is more common on larger footprints and higher-shrink materials.
Move unintended airflow away from the machine and keep the printer within its documented environment. Do not block electronics cooling or enclose a printer with materials and hardware not designed for it. If the printer exposes a thermal image or multiple bed sensors, use those data; otherwise compare a center patch and corner patch after a consistent bed preheat.
For PETG that bonds initially and then lifts at the corner of a larger flat part, the large PETG corner-lifting guide covers shrink stress, geometry, airflow, and brim decisions. That is different from a corner where the first lines never wet the surface correctly.
6. Decide whether first-layer settings are actually global
First-layer speed, temperature, line width, and flow affect the whole plate. They can make a marginal corner fail first, but they rarely explain why one small area behaves radically differently. Confirm the local mechanical and surface checks before retuning the entire profile.
If lines have visible gaps everywhere, use the first-layer gaps guide. If the layer forms waves or ridges, use the rippled first-layer guide. Those shapes carry more useful information than a generic command to add flow.
Once the corner behaves like the center, tune the global first layer with one change at a time. Use conservative first-layer speed, temperatures inside the filament and surface makers' ranges, and a line width the nozzle can produce reliably. Avoid compensating for a low corner by crushing the other 95 percent of the plate.
7. Check model geometry when the problem follows the part
A sharp corner concentrates contraction stress. A tiny contact patch, chamfer that starts above the plate, local overhang, embossed underside, or misplaced support can leave less material holding that corner. Preview the first layer in the slicer and verify that the intended footprint actually exists.
Rotate the model and move it to a known-good bed area. If the same modeled corner fails, add an appropriate brim or mouse ear, soften the corner where design allows, increase the real contact area, or correct the underside geometry. A raft is not the first answer for a dirty plate or bad mesh.
Watch where the first extrusion begins. A start point placed on a short isolated corner can be less reliable than a longer anchored path. Slicer path planning, skirt priming, and clean nozzle startup can matter when the defect follows the start sequence rather than the bed coordinates.
A controlled ten-minute test
- Save the current profile and photograph the failed corner.
- Clean and reseat the correct plate.
- Clean the nozzle for accurate probing and run supported tramming or leveling.
- Slice a 40 to 60 mm one-layer square using a known baseline profile.
- Print it in the suspect corner and stop after the first layer.
- Without changing settings, print the same square in the center.
- Compare line width, gaps, ridges, adhesion, and removal force after cooling.
- Rotate the plate 180 degrees only if the plate and printer design safely allow it, then repeat to see whether the defect follows the removable surface.
- Make one evidence-based correction.
- Repeat the same corner patch before returning to the full model.
Plate rotation is especially informative: if the weak patch moves with the removable sheet, surface wear or contamination becomes likely. If it stays in the machine corner, investigate mesh, bed support, gantry, and temperature. Skip this test on keyed, asymmetrical, coated, or scanner-marked plates that are not approved for reverse installation.
Fixes that match the evidence
- Failure follows a dirty patch: clean using the approved method and change handling habits.
- Failure follows the removable plate after rotation: inspect for wear, coating damage, distortion, or a localized adhesive problem; replace the plate if the surface is spent.
- Failure stays in the machine corner: rebuild the mesh, verify plate seating, inspect tramming and gantry tilt, and check local bed support.
- Lines are too round only there: correct the local height or mesh error instead of lowering global Z offset.
- Lines are crushed only there: stop before damage and correct the high area or overcompensation.
- Lines attach and later lift: address airflow, bed-edge temperature, material shrink, contact area, and brim strategy.
- Failure follows the model corner: correct footprint geometry, start path, local stress, or support rather than rebuilding the printer.
What not to change first
- Do not lower Z offset until the good areas are over-squished. That hides a local height error and risks plate damage.
- Do not raise first-layer flow globally. Extra plastic cannot repair a fingerprint, bent plate, or invalid mesh point.
- Do not sand or scrape a coated plate without explicit manufacturer approval. Many surfaces are easy to damage permanently.
- Do not spray adhesive inside the printer. Apply products only as directed, away from fans, rails, sensors, and electronics.
- Do not tighten every bed and gantry fastener. Excess preload can create distortion or binding.
- Do not disable mesh compensation because one mesh looks odd. Repeat the measurement and diagnose why.
Frequently asked questions
Can a dirty build plate affect only one corner?
Yes. A fingerprint, hand lotion, adhesive ridge, or contaminated wipe can create one sharply localized low-energy area while the rest of the plate holds normally.
Why does the corner fail even after automatic bed leveling?
Leveling can be based on a stale or inaccurate mesh, the wrong plate profile, nozzle residue, a missed probe point, poor plate seating, or movement after probing. It compensates for measured height; it cannot clean the surface or remove a chip underneath the plate.
Should I add a brim if only one corner will not stick?
Add a brim when the first layer is correctly placed and the corner lifts later from shrink stress. A brim is not a sound fix for round loose lines, contamination, or a local bed-height error.
Can a warped build plate cause one-corner failure?
Yes. A distorted flexible sheet, bowed glass plate, damaged magnet, debris, or uneven mounting can place one corner outside reliable compensation. Compare plate rotation only when the hardware is designed for it.
Why is the rear corner worse than the front?
The rear may have different heater coverage, airflow, cable loading, plate registration, or bed support. Diagnose line shape and repeatability rather than assuming every rear-corner failure has the same cause.
