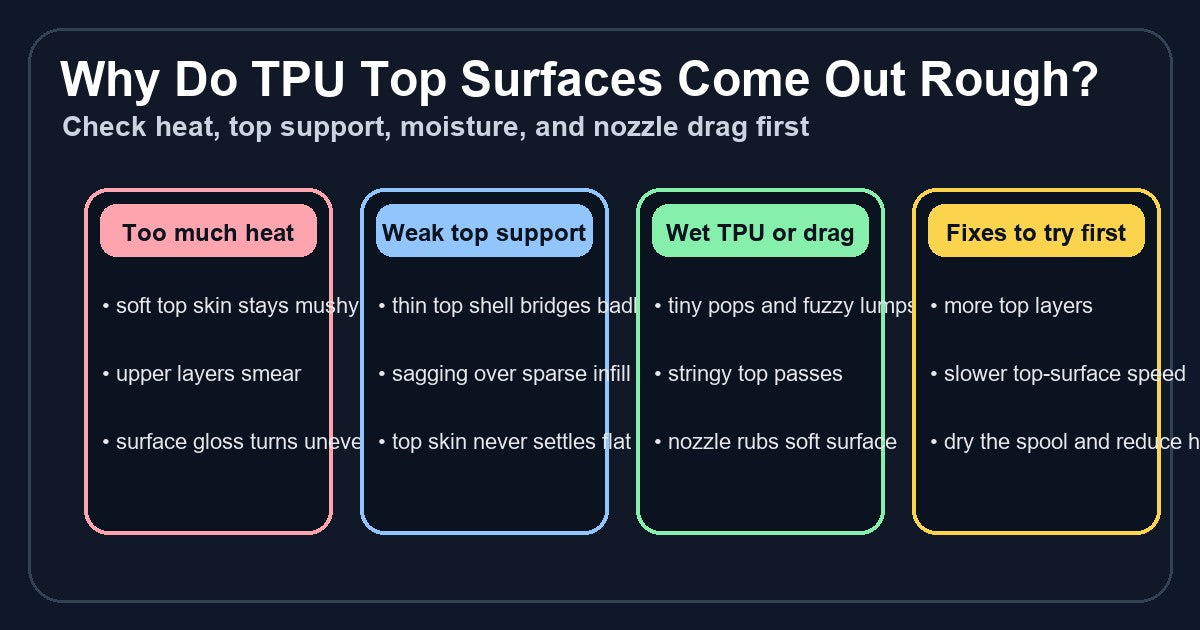

Direct answer: A rough TPU top surface is usually caused by too little support below the roof, upper layers that are still too soft when the finish passes arrive, moisture-driven extrusion noise, or the nozzle dragging through a raised surface. First classify the top as sagging, smeared, fuzzy, or scraped. Then test the matching cause without changing the whole profile.
This page covers one exact symptom: the visible upward-facing top skin of a TPU part closes unevenly, looks torn or pebbled, smears, or shows nozzle tracks. It does not cover a support-facing underside, ordinary strings between features, a single zipper-like seam, first-layer gaps, or an entire print that is under-extruded.
Editorial scope: This workflow uses current manufacturer guidance and does not claim hands-on testing. TPU formulas, hardness, printers, extruders, and slicer labels differ. Keep changes inside the material and machine maker's supported limits.
Disclosure: GoodPrints may earn from qualifying purchases through the clearly labeled affiliate link on this page, at no added cost to you.
Confirm the defect is on the top skin
Use neutral light and inspect the highest horizontal surface before removing the part from the plate. Photograph it from above and from a low angle. Note whether the pattern follows the infill below, appears only on small hot regions, changes partway through the spool, or lines up with toolpath travel. Those clues are more useful than calling every uneven top layer "bad flow."
If the damaged face touched support, use the TPU support-scar branch. If the defect is mainly hairs across open moves, use the TPU stringing diagnostic. If one repeated restart line is raised, use the TPU seam-bump guide.
Match the surface pattern to the first check
| What you see | Likely cause | First proof |
|---|---|---|
| Lines sag between the infill pattern below | Weak roof support | Repeat a small roof coupon with one supported top-thickness or infill change |
| The top is glossy, pushed, or smeared on a small hot feature | Retained heat | Restore the supported profile and compare a longer layer-time coupon |
| Random fuzz, pinpricks, bubbles, or changing gloss appear | Spool-condition drift | Run a controlled same-spool dry-versus-exposed comparison |
| Parallel tracks follow the final top toolpath | Top speed or flow mismatch | Change one top-surface control, not global flow and speed together |
| A raised ridge is scraped on later travel moves | Nozzle contact | Observe the first contact event before the later scar |
Check 1: restore the exact supported TPU baseline
Verify the selected printer, nozzle, nozzle size, TPU preset, filament variant, and any saved overrides. A profile copied from another hardness or extruder can make every later comparison ambiguous. Start with the current machine- and material-supported profile, then record nozzle temperature, bed temperature, top-surface speed, top thickness, infill, cooling, and flow before changing one item.
Do not mix TPU formulas during diagnosis
Ordinary 95A TPU, high-speed TPU, softer grades, foaming formulations, and filled flexible materials can have different requirements. Confirm the exact spool label and manufacturer page. Prusa's current flexible-materials guide also emphasizes that flexible filament handling and speed need more care than rigid-filament defaults. A successful profile for a different flexible spool is evidence to investigate, not a universal recipe.
Check 2: prove whether the roof has enough support
If the rough pattern mirrors infill or appears over a wide cavity, inspect the sliced preview layer by layer. Look for sparse lines beneath the first solid roof, large unsupported gaps, a thin top shell, or a top surface that starts over an internal bridge. The visible final pass cannot fully erase an unstable first closing layer.
Change support below the roof before finish tuning
Use one supported change: add top solid thickness, give the roof denser support, or alter the geometry so the visible face spans less empty space. Prusa's current infill guide and layers and perimeters guide document the separate roles of infill and top solid layers. Keep the TPU profile otherwise unchanged and see whether the pattern that followed infill disappears.
Check 3: separate retained heat from weak support
A smeared, shiny, or pushed top on a small feature points more strongly to soft upper layers than to an unsupported roof. Compare the same shape at the supported temperature baseline and observe whether short layer times keep the area hot. Do not assume more fan is automatically safe for every TPU and geometry; use only the supported cooling range and watch the rest of the part for bond changes.
Use geometry or layer time as a clean test
Repeat the coupon with a second copy spaced apart, a small sacrificial tower, or another supported way to increase time between passes. If the top improves while support, spool, speed, and temperature stay fixed, retained heat becomes more likely. If it still collapses in the same places above infill, return to roof support instead of chasing colder extrusion.
Check 4: test spool condition with the same TPU
Move moisture higher in the list when a spool printed cleaner before exposure, the roughness is random rather than geometric, or the print also has popping, fuzz, inconsistent gloss, or new stringing. Use the exact filament maker's drying and storage instructions. Do not borrow a time and temperature from a different TPU formulation or assume a storage box actively dries a wet spool.
Run a same-spool comparison
Slice one small roof coupon once. Print it before the approved drying process and again afterward with the same machine, plate, nozzle, profile, and room setup. Then keep the recovered spool protected during the second run. If random fuzz and surface noise fall while the infill-following sag remains, moisture was one cause but not the only one. The TPU-after-sitting-out diagnostic covers that narrower timeline.
Check 5: isolate top-surface speed and flow
Use the slicer's preview to confirm which moves are actually classified as top surface. If the roof is supported and the spool is stable but parallel finish lines remain ridged, test one supported top-surface speed change. If neighboring walls, infill, and other surfaces are also overfilled or starved, move to a broader flow or extrusion diagnosis instead of hiding it with a top-only setting.
Do not change speed, flow, and ironing together
Three simultaneous finish changes can produce one attractive coupon without showing which change helped or whether another weakened the part. Ironing can also push a soft, already-raised surface rather than rescue it. Prove ordinary top-skin closure first, then evaluate a finishing feature only if the exact material and slicer workflow support it.
Check 6: watch for nozzle drag
Listen for rubbing and watch the first place the nozzle touches a raised top line. A later scar can be the consequence of an earlier ridge, corner curl, seam bump, or excess deposit. Check that the part is stable on the plate and that the toolhead is not collecting material. Do not use extra travel lift as the first fix until the raised feature itself is identified.
Branch when scraping is broader than the top layer
If contact also occurs on infill, walls, or multiple heights, use the nozzle-scraping diagnosis. If only one soft zipper line is being hit, return to the TPU seam-bump branch. Fix the first raised feature, then rerun without adding several travel workarounds.
Check 7: inspect geometry and orientation
A broad cosmetic roof, a thin flexible lid, and a small solid pad do not ask the same thing of TPU. Thin upper geometry can deflect under the nozzle, while a large roof may expose sparse support and long finish paths. Preview an orientation that reduces the most visible unsupported top, but keep load direction and functional flexing requirements in view.
Do not trade a cosmetic fix for a structural failure
Reorientation can move seams, change interlayer loading, create support scars, or make the part flex in a different direction. Use a representative part, not only a decorative cube, when appearance and function both matter. The TPU soft-jaw material guide shows why accepted part behavior matters beyond one clean surface.
Apply only the fix your evidence supports
- Infill-following sag: increase supported top thickness, improve roof support, or reduce the unsupported span.
- Heat smear on small features: restore the supported temperature and cooling baseline, then prove whether longer layer time helps.
- Random fuzzy or pebbled texture: follow the exact TPU drying guidance and keep the same spool protected during the repeat.
- Parallel finish ridges: test one top-surface speed control after confirming that global extrusion is stable.
- Scraped raised lines: correct the first ridge, curl, seam, or excess deposit that creates nozzle contact.
- Geometry-specific failure: change orientation or roof design while preserving the part's load and flex requirements.
Run one controlled roof test
Use a short coupon with a roof wide enough to show the defect and the same infill pattern as the failed part. Keep printer, nozzle, TPU spool, profile, plate, and room conditions fixed. Save the slice, photograph the first solid roof layer and final top, and record the dominant pattern. Apply only the highest-confidence fix and repeat twice.
Define acceptance before tuning
Accept the change when the roof closes without infill-shaped valleys, random fuzz, raised finish ridges, or travel scars and the part still meets its flex and bond requirements. A single smooth top after changing support, heat, speed, flow, cooling, and drying together is not a diagnosed fix.
Use limits: when a smoother TPU top still is not a passing part
A closed, smooth-looking TPU top proves only that the visible roof printed more consistently on that run. It does not prove the part kept its dimensions, flexes in the intended direction, survives repeated compression or bending, seals, or remains stable after heat, moisture, cleaners, oils, or outdoor exposure.
- Grip, bumper, foot, soft jaw, strap, flexure, or protective pad: print the real feature in its final orientation and test the intended compression, bend radius, recovery, and cycle count. Reject a cosmetic fix that leaves weak layer bonding, permanent set, a sharp crack starter, or a finish pass that peels under flex.
- Gasket, plug, dust cover, bellows, or fluid-adjacent part: a smooth roof does not establish leak tightness or chemical compatibility. Inspect the entire sealing path, measure the compressed fit, and run a bounded leak and exposure test that matches the actual fluid, temperature, pressure, and consequence. Do not treat a top-surface coupon as pressure qualification.
- Mating face, captured insert, snap feature, bearing contact, or dimensional interface: added top thickness, flow, heat, or ironing can move material and change fit. Let the part cool, measure the controlling dimensions, and test the real mate before accepting the finish.
- Warm, wet, outdoor, oily, cleaning-chemical, vibration, or fatigue service: repeat the representative part under the expected exposure and duty cycle. One room-temperature roof coupon does not qualify creep, hydrolysis, abrasion, UV resistance, chemical resistance, or long-term elastic recovery.
- Skin-contact, food-contact, medical, lifting, vehicle-retention, electrical-safety, fire-safety, or other consequence-heavy use: appearance and a hand-flex check are not a compliance or safety case. Use an appropriate validated material, process, inspection plan, safety factor, and qualified alternative where failure could injure someone or damage critical equipment.
Release sequence: repeat the controlled roof coupon, then print the actual critical feature in its intended orientation. Let it cool, inspect the top and layer edges, measure the important interfaces, flex or compress it through the representative range, and run the needed cycle, leak, load, or exposure check. Repeat the job before treating the profile as stable.
Stop finish tuning if the surface changes between identical coupons, the extruder clicks or buckles filament, walls become thin or wavy, layers peel, or nozzle contact continues away from the roof. Those signs point back to feed-path stability, spool condition, melt consistency, bond quality, or a raised feature elsewhere. Also stop adding heat, flow, or ironing when the roof is physically deflecting under the nozzle; support or redesign the feature instead.
Evidence boundary: Prusa's current flexible-material guidance emphasizes slow, controlled printing and careful filament handling, while its layers-and-perimeters guidance treats top solid layers as only one part of shell construction. A cleaner finish therefore does not qualify the complete TPU part.
Avoid these common failed fixes
- Starting with retraction: retraction does not support a sagging roof and can distract from the exact top-skin symptom.
- Lowering temperature until feed becomes unstable: a colder profile can introduce poor flow without correcting missing roof support.
- Increasing global flow to fill valleys: this can raise lines and worsen nozzle drag when the real problem is support below.
- Calling every rough top wet TPU: moisture evidence is random and timeline-linked; infill-shaped sag needs a different fix.
- Adding ironing immediately: a finishing pass cannot reliably rescue an unstable or raised base surface.
- Testing only a rigid-filament profile: use the exact flexible material, printer, and feed path that produced the failure.
Choose the next troubleshooting branch
If roughness appears on every wall and layer, use the under-extrusion workflow. If the roof is rough because strands sag across a completely open gap, use the bridge-sag diagnostic. If only the first layer has separated lines, use the TPU first-layer-gap branch. Keep this page for the upward-facing top skin only.
Common questions
Why does my TPU top layer follow the infill pattern?
The first solid roof layers are probably spanning support that is too sparse for that geometry and flexible material. Confirm it in the sliced preview, then test one supported top-thickness or roof-support change.
Should I lower nozzle temperature for a rough TPU top?
Only when the evidence points to retained heat or smearing and the change stays inside the exact material's supported range. Lower temperature will not create support beneath a sagging roof.
Can wet TPU cause a rough top surface?
Yes, especially when the surface is randomly fuzzy, pitted, bubbly, or changing in gloss and the spool became worse after exposure. Prove it with a controlled same-spool comparison instead of drying and retuning everything at once.
Will more top layers fix rough TPU?
They can help when the first closing layers lack support, but they are not a universal answer. A smeared top, moisture noise, or nozzle scrape can remain even with a thicker roof.
Should I use ironing on TPU?
First make the ordinary top skin close cleanly. A finishing pass adds heat and contact to a soft surface, so evaluate it only after support, spool condition, speed, flow, and nozzle drag are stable for the exact material.
