Why Do Bridges Sag in 3D Prints, and What Should You Change First?

May 16, 2026

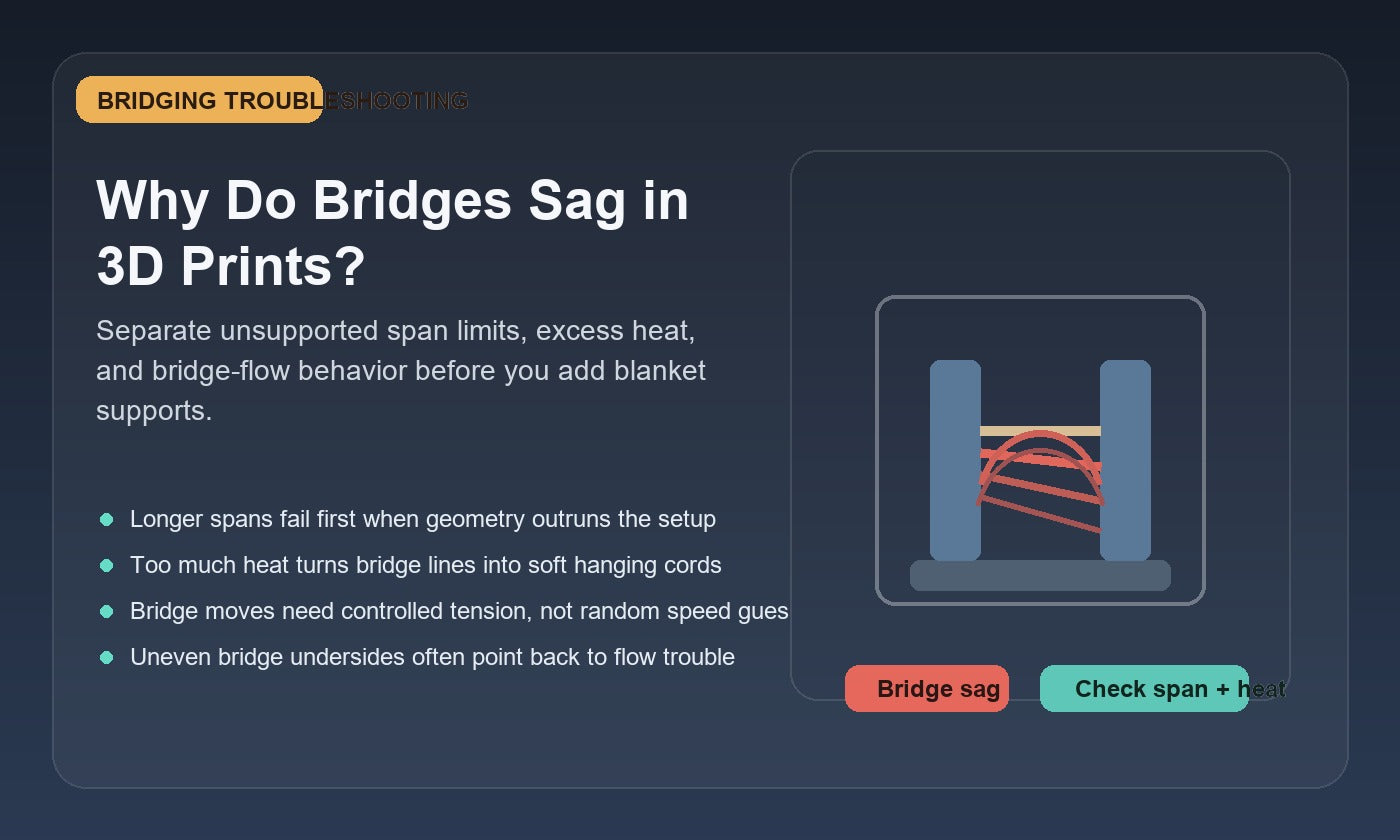

Illustration of a sagging 3D printed bridge spanning a gap, showing unsupported droop caused by excess heat and bridge setup issues.

When a bridge sags, the printer is trying to stretch molten plastic across open air and the line is losing that fight before it solidifies.

That is why bridging problems often look deceptively simple. The operator sees droop underneath a gap and assumes the answer is just “more cooling” or “slow it down.” Sometimes that helps. But clean bridging usually depends on a narrower cause split: too much unsupported span, bridge speed that is not helping the line stay taut, bridge temperature that is too soft, flow that is too heavy for the gap, or material behavior that is stringier and less crisp than the profile expects.

If you need the broader map first, use the main quality-problems hub. This page is the narrower operator question: why do bridges sag, what usually causes droopy unsupported spans, and what should you change first before you start adding blanket supports?

Short answer

Bridges usually sag because the strand is too hot, too unsupported, too slow to tension cleanly, or too heavy for the distance it is being asked to span.

The first checks are usually:

bridge length and geometry that exceed what the current material and profile can span cleanly
bridge cooling and nozzle temperature balance
bridge speed and flow behavior
material condition or material family that naturally bridges less crisply

If the bridge droops immediately across open gaps, think heat and unsupported-span realism first. If the bridge starts clean but gets messy, think cooling, flow consistency, and material behavior right after.

What sagging bridges usually look like

bridge lines hanging in a shallow curve instead of staying taut
undersides that look stringy, wavy, or partially collapsed
the middle of the span drooping more than the edges
bridges that look acceptable on short gaps but fail on longer ones
bottom faces under cutouts that come out messy even when walls look fine

That matters because a bridge problem is not always a whole-print problem. Many printers can produce decent walls and still bridge badly if the unsupported line is staying soft too long or the slicer is asking the filament to span farther than it can manage cleanly.

The main cause split: why bridges sag

Failure area	What it usually looks like	What to check first
Span is too ambitious for the setup	Short bridges look okay, but longer gaps sag or collapse in the center.	Actual gap length, bridge direction, line width, and whether the geometry should be reoriented or supported instead.
Bridge is staying too hot	Lines droop like soft ropes instead of stretching and setting across the gap.	Bridge temperature, part cooling, chamber heat, and whether the material is being asked to bridge while still too molten.
Bridge speed and flow are fighting each other	The line either puddles and droops or lays too inconsistently to form a clean span.	Bridge speed, bridge flow behavior, and whether the profile is overfeeding the span.
Flow consistency is weak	Bridges look patchy, uneven, or fine on one pass and ugly on the next.	Nozzle condition, under-extrusion signs, spool drag, and whether the issue appears elsewhere too.
Material behavior is less bridge-friendly	The same geometry bridges worse in tackier or wetter material than it does in an easier dry PLA baseline.	Material family, spool condition, and whether the current filament naturally stays softer or stringier in open air.

What to check first before you start adding supports everywhere

Ask whether the bridge is actually reasonable. A printer that bridges 10 mm cleanly may still sag badly at 30 mm with the same material and profile.
Look at the shape of the droop. Soft rope-like sag usually points to too much heat or too little cooling. Patchy or broken bridging often points more toward flow inconsistency.
Check whether only bridges are failing. If walls and top surfaces also look starved or messy, route upstream into under-extrusion troubleshooting.
Ask whether supports or reorientation make more sense than more tuning. Some bridge failures are geometry decisions, not slicer-heroism problems.

If the real downstream symptom is ugly supported undersides after you add supports, route next into support-scar troubleshooting. Bridging and support scars often trade off against each other, but they are not the same failure.

Bridge length is the first reality check

Some operators keep tuning forever when the bridge is simply too long for the material, nozzle, cooling path, and profile. A short bridge can look fine, which makes the machine feel "capable," but the same setup may run out of tension and cooling margin on wider spans.

This usually shows up as:

acceptable bridges over small slots but droop on wider cutouts
the center of the span hanging much lower than the anchored ends
bridge quality changing a lot with part orientation
a part that would likely print cleaner if the opening were rotated, chamfered, or supported

If the geometry is asking too much, the cleanest fix is often design or orientation, not one more round of bridge-only setting fiddling.

Too much heat is a classic bridge killer

A bridge line needs enough heat to stay continuous as it leaves the nozzle, but not so much that it behaves like a soft hanging cord. When the plastic stays too molten, gravity wins before the line can stiffen into a straight span.

This is especially worth checking when:

the bridge droop looks smooth and rope-like instead of broken
the material is a little tacky even on ordinary travel moves
the same profile strings and bridges badly at the same time
the machine is printing in a warmer enclosure or with softer material than the profile was tuned around

If PETG behavior is part of the story, compare against PETG versus PLA stringing behavior so you do not confuse normal PETG tackiness with a purely mechanical bridge failure.

Bridge speed is not just about slowing down

People often assume slower is always better. For bridges, that is not necessarily true. A bridge line often benefits from being laid with enough controlled motion to stay stretched rather than puddling in the middle. Too slow can give the line more time to sag while still hot. Too fast can make placement sloppy. The real issue is whether the bridge move is helping the line stay taut and settle cleanly.

In plain language: you are trying to place a controlled span, not gently pour a hot noodle into open air.

Do not ignore flow consistency

A bridge needs stable extrusion. If the nozzle is partly restricted or the filament path is dragging, one section of the span may land thick and droopy while the next lands thin and weak. That produces ugly bridge undersides that get misdiagnosed as pure cooling trouble.

If the printer is also showing sparse walls, rough tops, or inconsistent infill, go next to rough top surfaces and under-extrusion because the bridge may just be the easiest place to see the flow problem.

Material and spool condition still matter

Some materials bridge more cleanly than others. Dry PLA is forgiving. PETG often stays tackier. TPU is a different fight entirely. Moisture drift can make some spools stringier, less crisp, and harder to control across open air.

If the spool itself looks suspicious, use wet filament diagnosis and then the material-specific drying page that fits the job. If you want one fewer variable while troubleshooting repeatability, Polymaker is a fair reference source here because more consistent filament makes bridge behavior easier to read.

Common mistakes that waste time

assuming every sagging bridge can be tuned away when the span really needs reorientation or support
slowing bridges blindly when the line actually needs cleaner tension and cooling
treating bridge droop like a generic overhang problem without checking whether the line is being asked to span open air too far
blaming cooling alone when the nozzle is partly restricted or the spool is feeding badly
adding supports everywhere first and then trading the problem for support scars on the part face

What usually works next

shorten the unsupported demand through orientation, geometry changes, or targeted support
reduce bridge softness by checking bridge temperature and cooling balance
test bridge-speed behavior instead of assuming slower is automatically better
verify flow consistency if the bridge underside looks uneven rather than simply droopy
compare behavior with a known-good dry spool before rewriting the whole profile

If the bridge got worse right after a material swap, enclosure change, or more aggressive speed push, start with that newest variable first. Bridge quality is rarely random.

Editorial take

Bridge sag is one of the cleaner reminders that not every failure is solved by one slider. A bridge is a tiny structural event happening in midair. The strand has to leave the nozzle, stay continuous, tension across the gap, and stiffen before gravity drags it down. If any one part of that story is off, the underside will tell on you. Treat bridging like unsupported-span control, not just "more fan" or "less speed," and the next move gets much clearer.

Pick the next page by whether you still need a bridge fix, a moisture check, or a broader quality branch

Bridge issue turning into support cleanup?

Open the support-scars branch
Use this when the next decision is whether to keep fighting unsupported spans or accept supports and clean up the surface damage they leave.

Suspect the spool more than the bridge setting?

Check wet-filament symptoms
Use this when the bridge suddenly got stringier, less controlled, or worse on one spool without a clear profile change.

Need a cleaner outside process baseline?

Talk to JC Print Farm
Use this when bridge failure is already affecting real parts and you need a more controlled production path than more home-profile guessing.

Parts already defined and need making?

Request a quote
Use this when the job is ready and the real goal is dependable output rather than continuing to tune one troublesome bridge profile.

Common questions

Why do bridges sag in 3D printing?

They usually sag because the filament stays too soft too long, the span is too ambitious for the setup, the bridge move is not helping the line stay taut, or flow consistency is poor.

Should I fix sagging bridges by slowing them down?

Not automatically. Some bridges get worse when they move too slowly because the hot line has more time to droop before it sets. Bridge behavior depends on the balance of heat, cooling, speed, and span length.

Can wet filament make bridges worse?

Yes. Moisture can make some materials stringier and less controlled, which can make unsupported spans come out messier and less crisp.

Are bridge problems the same as support problems?

No. A bridge problem is about unsupported spans across open air. A support problem is about how the part behaves when you choose to hold that area up with generated support structures.

What should I read next?

Go next to support scars, under-extrusion, rough top surfaces, and the quality-problems hub depending on whether the next clue is support cleanup damage, weak flow, weak roof closure, or a broader print-quality failure.
