TPU seam bumps usually happen because the filament stays soft, the feed path stays a little spring-loaded, and each layer restart drops extra material in the same spot. On real prints that often looks like one raised zipper line, stacked soft seam pimples, or a glossy ridge on one wall where the nozzle keeps restarting too loaded.
The best first move is usually not random retraction changes across the whole profile. TPU seam defects get easier to solve when you split the problem into four branches first: seam placement, delayed restart pressure from a compressible feed path, too much retained heat, and moisture or nozzle residue making each restart messier than it should be.
This page is for the exact symptom where TPU leaves one repeated seam line, one soft raised zipper lane, or one visible restart ridge on the wall. If the bumps are scattered around the part, jump to TPU blobs or zits troubleshooting. If the print is leaving hairs between travel moves, go to TPU stringing troubleshooting instead.
Short answer
- TPU seam bumps usually mean the layer restart is too delayed, too soft, or too visible.
- If the marks stack into one controlled line, treat it as a seam problem before you call it random wall-quality trouble.
- TPU makes seam defects look heavier because pressure release is slower and the material does not snap away from the nozzle cleanly.
- The first checks are seam placement, feed-path compression, retained heat, and whether the spool or nozzle is making the restart dirtier.
- If the bumps wander around instead of lining up, leave the seam lane and branch into TPU blobs, wet-filament checks, or broader extrusion-instability troubleshooting.
Why TPU seam bumps look different from generic seam bumps
TPU is not just a softer version of PLA. Flexible filament stores compression in the feed path and then gives that pressure back a little late. That is why a TPU seam can look rounder, softer, and more swollen than a seam on a stiffer material even when the printer is technically following the same toolpath logic.
Compared with the broader general seam-bumps guide, the TPU version needs a narrower diagnosis split:
- feed-path compression matters more because TPU can stay spring-loaded before the restart
- retained heat matters more because soft flexible walls can stay tacky at the seam
- moisture matters more because damp TPU can add fuzz, tiny spits, or unstable seam restarts
- cosmetic wall finish matters more because TPU gaskets, sleeves, bumpers, and flexible housings often show one restart lane very clearly

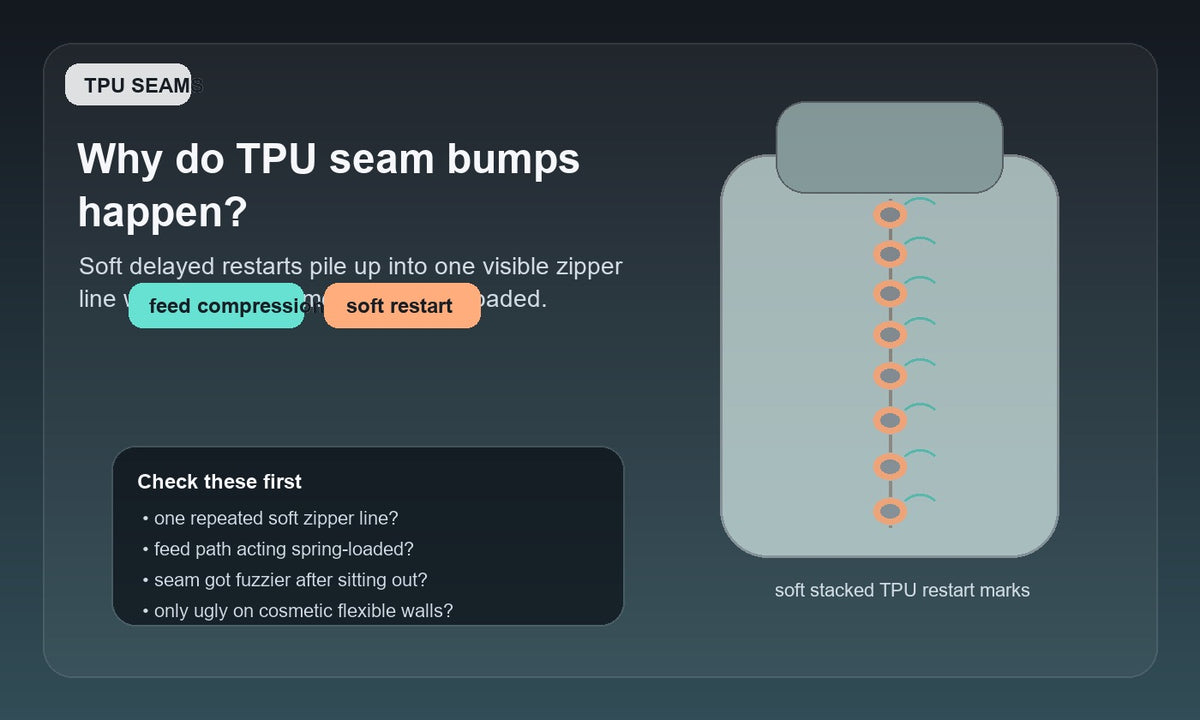

What TPU seam bumps usually look like
- one repeated zipper line climbing up the same wall
- soft stacked restart bumps instead of crisp dry dots
- a seam that looks worse on flexible rounded walls than on flat utility faces
- tiny hairs or sticky tails feeding into the seam spot
- one ugly cosmetic face while the rest of the print still seems usable
The biggest clue is repeatability. If the marks keep landing in one disciplined lane, you are usually looking at restart behavior, not random TPU chaos.
What usually causes TPU seam bumps
1. Delayed restart pressure is stacking up at one spot
TPU can stay slightly compressed in the feed path and then release that pressure late. When the next layer begins in nearly the same place, the seam gets a repeated raised bump instead of a cleaner handoff.
2. The filament is too soft and heat-soaked at the restart
If the material is still too warm and tacky when the seam begins again, TPU leaves a swollen rounded restart mark instead of a smaller dry scar. This shows up especially clearly on flexible cosmetic parts, sleeves, and soft housings.
3. Moisture is exaggerating a normal seam
A spool that has picked up moisture can turn one acceptable TPU seam into a fuzzy or spit-prone seam. That overlap is why TPU seam bumps often blur into TPU stringing and wet-filament symptoms.
4. Seam placement is landing on the worst cosmetic face
Sometimes the seam itself is not catastrophic, but it is landing on the outward curve of a bumper, the show side of a flexible cover, or the visible face of a grip sleeve. That makes a normal TPU seam look unacceptable.
5. Nozzle residue or a sticky tail is getting folded into each restart
If the nozzle is carrying a little TPU booger or string tail, the seam can inherit that contamination again and again. That creates a bigger restart lump than the slicer settings alone would suggest.
Check the TPU seam in this order
Change one variable per repeat print. A perimeter must start and end somewhere, so a vertical seam is not automatically a defect. The failure here is a raised restart bump that repeats at that location. Prusa's seam-position guide confirms that perimeter start and end points can form a visible vertical seam; use that as the location baseline before treating every mark as random extrusion trouble.
- Prove that the bumps follow the layer starts. Preview the sliced seam, mark its intended face, and compare it with the physical zipper line. If bumps wander away from those starts, leave this page for TPU blobs or zits, moisture, or unstable-feed diagnosis.
- Move the seam once without changing extrusion settings. Put it on another deliberate face or paint a short seam on a duplicate test body. If the same bump moves with it, the restart is confirmed. If only the visibility problem disappears, placement may be the complete cosmetic fix.
- Restore the exact TPU baseline. Record the filament brand, hardness, dryness state, nozzle, slicer profile, seam mode, retraction or wipe behavior, flow or pressure compensation state, speed, and temperature. Do not borrow a PLA value or another TPU hardness and call it equivalent.
- Separate seam-only trouble from spool or nozzle noise. Fuzz between islands, popping, random pits, wandering blobs, or rough extrusion away from the seam raises moisture, residue, or feed instability above seam tuning. Use the TPU drying decision or wet-filament check when those clues appear.
- Watch the feed path through several restarts. Check for spool drag, a sharp PTFE bend, TPU buckling, gear damage, or excessive idler squeeze. Prusa's flexible-material guidance treats flex feed and retraction as their own workflow; a rigid-filament assumption is not a safe baseline.
- Test retraction and wipe from the supported profile, one step at a time. A bump beside an underfilled notch suggests an over-correction or delayed recovery; a swollen restart with no adjacent gap suggests excess material or poorly controlled pressure. Keep the best prior sample and stop when the next step trades the bump for stringing, a void, or weak wall fusion.
- Use flow or pressure calibration only when the printer and TPU workflow support it. Do not assume an automatic calibration valid for rigid filament is valid for soft TPU. Bambu Lab's TPU printing guide, for example, tells users to turn off flow dynamics calibration for that documented TPU workflow. That is a platform-specific boundary, not a universal instruction for every machine.
- Change heat or wall speed last. Compare one bounded change against the filament maker's profile, then inspect the whole wall. Reject any apparent seam win that creates gloss bands, sag, poor detail, under-extrusion, or weaker layer bonding elsewhere.
What to change first based on the pattern
| What the TPU seam looks like | Most likely branch | What to check first |
|---|---|---|
| one soft zipper line | delayed restart pressure and seam placement | separate placement from seam quality before changing unrelated global settings |
| swollen rounded seam bumps | too much retained heat or soft restart behavior | treat it like a TPU soft-restart problem first |
| seam plus wispy tails | moisture or sticky nozzle residue | compare with TPU stringing and TPU drying |
| bumps do not line up | not mainly a seam issue | branch into TPU blobs or zits or wet-filament checks |
Apply the fix that the check proved
| Evidence from the repeat print | First bounded fix | Do not conclude |
|---|---|---|
| The bump moves exactly with the painted or aligned seam | Place the seam on a hidden, non-sealing, low-stress face | That the extrusion restart itself is fixed |
| The bump moves with the seam and stays swollen | Return to the exact TPU profile, then test one retraction, wipe, or supported pressure-control change | That more retraction is always better |
| A bump sits beside a notch, thin wall, or delayed refill | Undo the last aggressive restart change and re-establish continuous wall extrusion | That hiding the notch on another face makes the part sound |
| Fuzz, spits, or random marks appear away from the seam | Stabilize spool condition, nozzle cleanliness, and feed before seam tuning | That seam placement caused the off-seam defects |
| The seam changes when spool drag, idler squeeze, or a tight bend changes | Correct the feed path and rerun the unchanged slice | That a slicer rewrite is required |
| The seam is small but lands on a seal or visible face | Move the seam or redesign the start location, then test the actual interface | That cosmetic acceptance proves sealing or fatigue life |
Run one controlled TPU seam test
Use a small representative wall with a real perimeter start on every layer, not Spiral vase mode. Print the same geometry, orientation, layer height, nozzle, spool, drying state, temperature, speed, and cooling at least three times. First print the saved baseline. Second, move only the seam. Third, change only the single restart variable supported by the evidence. Photograph the same face and height on every sample.
A useful pass is repeatable: the bump stays within the declared cosmetic allowance, no void or thin wall appears beside it, off-seam surfaces remain stable, fit is unchanged, and bending the cooled wall in its intended direction does not open the seam lane. If the result changes randomly between identical copies, return to feed, spool, nozzle, and machine-condition checks instead of declaring one slicer value solved it.
What not to do
- Do not call every TPU wall bump a seam issue.
- Do not randomize the seam before learning whether the seam quality itself is bad.
- Do not ignore moisture when the seam is paired with fuzz, hairs, or inconsistent wall texture.
- Do not keep adding heat if the restart already looks soft and gummy.
- Do not treat a hidden TPU foot the same way you treat a glossy visible flexible sleeve.
How this differs from TPU blobs or TPU stringing
TPU blobs or zits can show up all over the wall. TPU stringing is about hairs and ooze across open travel. A TPU seam-bumps page is narrower: the defect stacks at the repeated layer-change location and creates one visible seam scar.
If your TPU part is also showing underside damage, first-layer flare, or messy roof finish, these nearby pages may be the better next branch:
Where filament quality fits naturally
Filament quality matters when you are trying to separate normal TPU softness from spool inconsistency. If you want a cleaner baseline while narrowing variables, Polymaker is a reasonable source. Just keep the order honest: seam behavior first, spool baseline second.
Use limits: a smaller seam bump does not qualify every TPU part
A clean test wall proves one saved process, not the finished part's seal, fatigue life, assembly margin, temperature range, chemical resistance, or safe load. Qualify the cooled production geometry with the same filament identity, hardness, spool condition, orientation, nozzle, profile, and post-processing used for the accepted test.
- Visible covers, grips, and bumpers: define an allowable height and viewing face before the run. Hiding a bump may be a valid cosmetic fix only when it does not move the restart into a functional interface.
- Gaskets, sleeves, and sealing walls: mate the real counterpart and repeat the bounded leak or seal check. Sanding a seam can change local thickness and is not automatic proof of a sound seal.
- Repeated bending, stretching, or compression: cycle several complete parts in the real direction. Reject whitening that grows, a notch beside the seam, a split, or permanent set that breaks fit.
- Press fits, screws, inserts, or clamps: assemble with the real hardware and controlled force or torque. A seam that looks acceptable before assembly can still become the first tear point.
- Heat, outdoor, wet, oil, cleaner, or other chemical exposure: condition representative parts, then repeat fit and load checks. The TPU label alone does not qualify every formulation for every environment.
- Pressure, lifting, restraint, protective, electrical-safety, vehicle-control, food-contact, medical, or other consequence-heavy use: this guide is not a design standard or certification method. Use the applicable engineering controls, standards, inspection, and qualified process.
Stop tuning the same wall when the bump, adjacent void, or restart notch persists after location, feed, spool, nozzle, and supported calibration checks are stable. Move the seam to a defensible feature, soften or relocate the transition, change the wall path, choose a more suitable material or process, and rerun qualification. For repeat cosmetic TPU work that needs an outside production path, request a quote or review JC Print Farm.
Bottom line
TPU seam bumps usually happen because soft delayed restart pressure is piling up at the layer-change point. The fastest path is to separate seam placement from seam quality, then check feed-path compression, retained heat, and moisture before gutting the rest of the profile.
If the marks stack into one soft zipper line, stay in the seam branch first. If they wander randomly, leave the seam lane and move into TPU blobs, wet-filament, or broader extrusion-instability troubleshooting instead.
Common questions
Why are TPU seam bumps worse than PLA seam bumps?
TPU stores compression in the feed path and releases it later, so the restart can leave a rounder, softer, and more obvious lump than the same seam behavior would leave in PLA.
Can wet TPU make seam bumps worse?
Yes. Wet TPU can add fuzz, tiny spits, and unstable restart behavior at the seam, which makes a normal restart scar look heavier.
Should I fix seam placement first or drying first?
If the marks form one disciplined zipper line, confirm the seam branch first. If the seam also got fuzzier or stringier after the spool sat out, drying moves much higher on the list.
Are TPU seam bumps the same as TPU blobs or zits?
No. Seam bumps are tied to the repeated layer-start location. Blobs or zits can be scattered, travel-related, moisture-related, or caused by feed instability or nozzle residue across the whole part.
