Why Do TPU Prints Get Elephant Foot, and What Should You Change First?

June 30, 2026

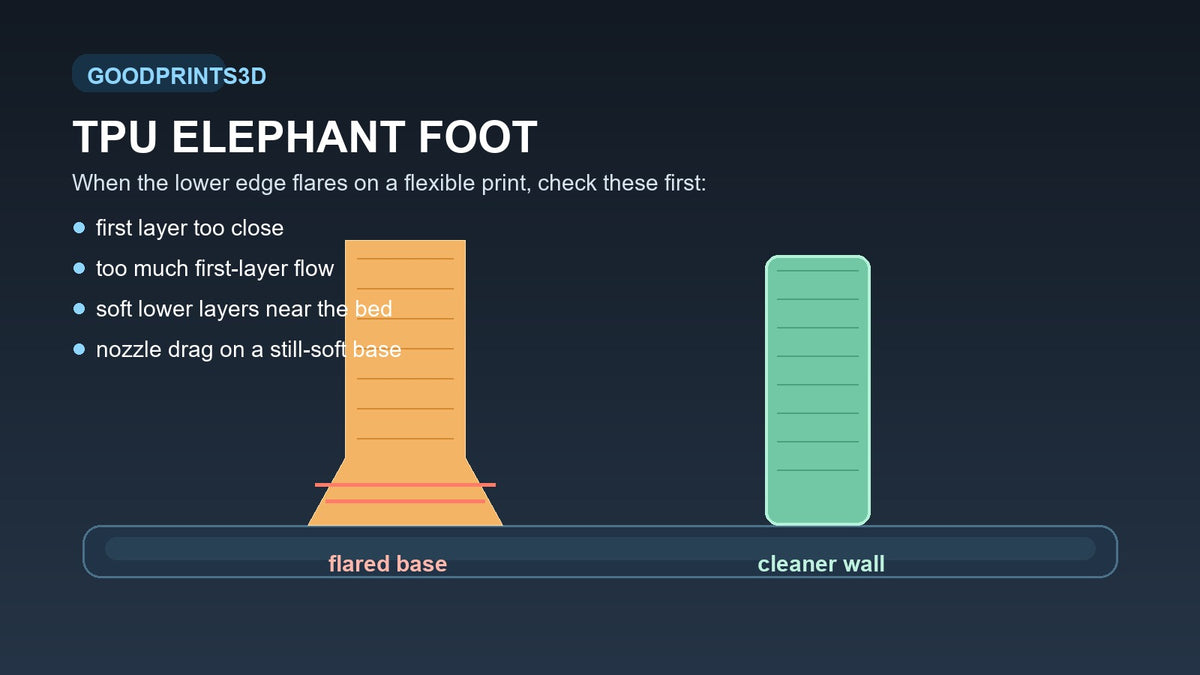

TPU elephant foot troubleshooting hero image showing a flexible print with a flared bottom edge and base-heat callouts

TPU elephant foot is the flared lower edge that makes the base of a flexible print come out wider than the walls above it. On a soft material, that bottom-edge bloom can wreck fit fast. Tabs bind, slots get tight, pads sit crooked, and parts that should flex cleanly start with a distorted footprint before the real geometry even begins.

The trap with TPU is assuming every swollen base is just bad bed leveling. A too-close first layer is common, but TPU also stays soft longer than stiffer filaments. That means the first few layers can keep spreading or getting rubbed outward even when layer one itself does not look catastrophic. On grippy flexible prints, excess first-layer flow and overbuilt bed hold can make the same symptom worse.

This page is for that narrower defect: a TPU part that prints with a fat base or flared lower edge. If the whole first layer already looks wavy and overworked, pair this with first-layer ripple troubleshooting. If the problem is mainly support damage on the underside after removal, go to TPU support scars instead.

Short answer

TPU elephant foot usually happens because the lower layers are too compressed, too soft, or too overbuilt at the bed.
The first split is whether the flare is obvious on layer one or whether it keeps growing for the first few millimeters.
If the opening layer looks mashed, start with Z offset and first-layer flow.
If layer one looks acceptable but the base still blooms outward, think retained lower-layer heat, slow soft-material timing, and nozzle drag near the bed next.
Compensation is a cleanup move, not the first rescue move.

What TPU elephant foot usually looks like

a visible lip around the bottom edge
base corners that look rounder or fatter than the upper walls
pads, gaskets, bumpers, and soft feet that fit poorly right at the bottom
holes or slots near the bed line coming out tighter than expected
a defect that is worse on broad flat TPU parts than on narrow towers

The useful clue is how high the flare climbs. A one-layer squish problem behaves differently from a soft lower-zone heat problem.

What usually causes TPU elephant foot

Cause	What it usually looks like	What to check first
First layer is too close	The base looks crushed immediately, the first-layer bead spreads hard, and edges look flattened from the start.	Z offset, whether the first layer looks overly glossy or mashed, and whether the defect is already obvious on layer one.
Too much first-layer flow on a soft material	The bead is fat and the outline widens even when nozzle height is not wildly wrong.	First-layer extrusion width and flow, especially if you tuned for grip by just feeding more material.
Lower TPU layers stay soft too long	Layer one looks tolerable, but the flare continues upward for several lower layers before the wall settles.	Bed heat, early-layer pacing, part size, and whether the material is being rubbed while still soft.
Nozzle drag across a still-soft base zone	The lower walls look scraped, smeared, or pushed outward rather than simply over-squished.	Whether the nozzle is grazing the part, especially on slow small TPU prints or very grippy build surfaces.
Overbuilt bed hold on a flexible part	The base stays pinned wider than intended after stacking strong first-layer grip, extra flow, and warm lower-layer settings.	Whether you solved adhesion anxiety by piling on grip harder than the geometry really needs.

What to check first

1. Does the first layer already look over-compressed?

If yes, start there. TPU spreads easily when the nozzle starts too low. If the opening layer looks shiny, broad, or heavily flattened, fix that before chasing anything fancier. If the whole base looks washboarded or overworked instead of just flared, compare with the rippled first-layer guide.

2. How many layers does the flare affect?

If the part keeps blooming outward for a few lower layers instead of just one squished opening layer, treat it as a softness-and-heat problem too. TPU simply stays more rubbery near the bed than PLA or ABS, so the lower zone can keep moving after layer one is done.

3. Did you tune for grip by adding more material than the part really needs?

Flexible materials make people nervous about bed adhesion, so they often push first-layer flow, squish, or base hold harder than necessary. That can keep the part stuck, but it can also widen the footprint enough to create a new fit problem.

4. Is the nozzle rubbing the lower wall while the material is still soft?

TPU can show a subtle scrape-and-smear version of elephant foot. The lower wall is technically there, but it is still soft enough for the nozzle to shove it outward. That is more believable on slow small parts, broad pads, or prints where the nozzle keeps traveling close to the fresh lower edge.

What usually works next

Fix obvious first-layer squeeze before anything else

If the first layer is clearly too close, clean that up first. Do not skip to elephant-foot compensation while the base is still being mashed outward from the start.

Trim extra first-layer flow if the bead is simply too fat

TPU does not need a giant puddled first layer to stay put on every surface. If you built grip by increasing flow too aggressively, back that down before you start questioning the whole printer.

Reduce lower-zone softness if the flare climbs upward

If the bloom continues for several lower layers, the base is staying too soft too long. That is your signal to question lower-layer heat, slow early-layer timing, and whether the material is being rubbed before it stabilizes.

Use compensation only after the baseline is already mostly clean

Compensation helps when the process is already close and the remaining flare is mild. It is not the first fix for a crushed opening layer or a smeared soft base.

What not to do

Do not blame moisture first. Wet TPU causes real problems, but elephant foot is usually a base-process problem before it is a wet-spool problem.
Do not keep adding grip because the material is flexible. Enough adhesion is enough.
Do not assume every flared base is just poor leveling. Multi-layer flare often means softness and nozzle interaction matter too.
Do not hide a broken first layer with compensation.

Where drying fits naturally

TPU moisture still matters for the broader print-quality picture, especially if the same spool is also stringing, leaving fuzzy surfaces, or printing rough on top skins. If that sounds more like your real problem, continue with TPU stringing troubleshooting, TPU blobs or zits, or TPU rough top surfaces. But if the main symptom is a fat bottom edge, work the base-zone cause first.

When this becomes a real production problem

If the flared lower edge is already ruining fit on gaskets, soft pads, anti-rattle inserts, or repeat TPU parts, this stops being a cosmetic annoyance and becomes a process-control problem. JC Print Farm is a sensible next step when you need repeatable flexible parts more than another round of base-tuning experiments.

Bottom line

TPU elephant foot usually happens because the base is too compressed, too soft, or too overbuilt at the bed. The fastest fix is separating a crushed first layer from a soft lower-zone smear before you start sanding, trimming, or hiding the problem with compensation.

If the flare starts immediately, fix the first layer first. If it keeps climbing for the first few millimeters, think lower-layer softness, extra base flow, and nozzle drag next.

Common questions

Is TPU elephant foot always a nozzle-too-close problem?

No. A too-close first layer is common, but TPU can also flare because the lower layers stay soft longer and get pushed outward after the first layer is already down.

Can too much first-layer flow cause TPU elephant foot?

Yes. Flexible-material profiles sometimes use extra first-layer flow for grip, and that can widen the footprint even when nozzle height is only slightly off.

Does wet TPU cause elephant foot?

Usually not as the main cause. Wet TPU is more likely to show up as stringing, fuzz, or inconsistent surface quality than as the main reason the base is flaring outward.

Should I lower bed temperature right away?

Not automatically. First decide whether the base is really too squished, too overfed, or being rubbed while still soft. Lowering heat blindly can trade one problem for adhesion trouble.
