TPU overhangs curl upward because the unsupported edge stays soft and elastic long enough for the next pass to catch it, stretch it, and lift it even farther. What starts as a slightly ugly underside can turn into repeated nozzle rub, shiny drag marks, and a feature that gets worse every layer because the same lip keeps getting clipped again.
This is not the same thing as a bridge sagging across open air or a support-facing surface looking rough after cleanup. This page is for the narrower TPU symptom where the overhang edge itself bends upward during the print. TPU is especially touchy here because it can stay softer and springier at the edge than stiffer filaments, so heat, cooling, and path timing show up faster and more obviously.
TPU overhangs curl upward when the unsupported edge does not firm up fast enough before the next layer or travel-adjacent pass.
Start by checking TPU nozzle heat, part cooling, and overhang speed before you start thrashing retraction or flow settings.
If the same lip keeps curling in the same place, orientation and local geometry deserve attention too.

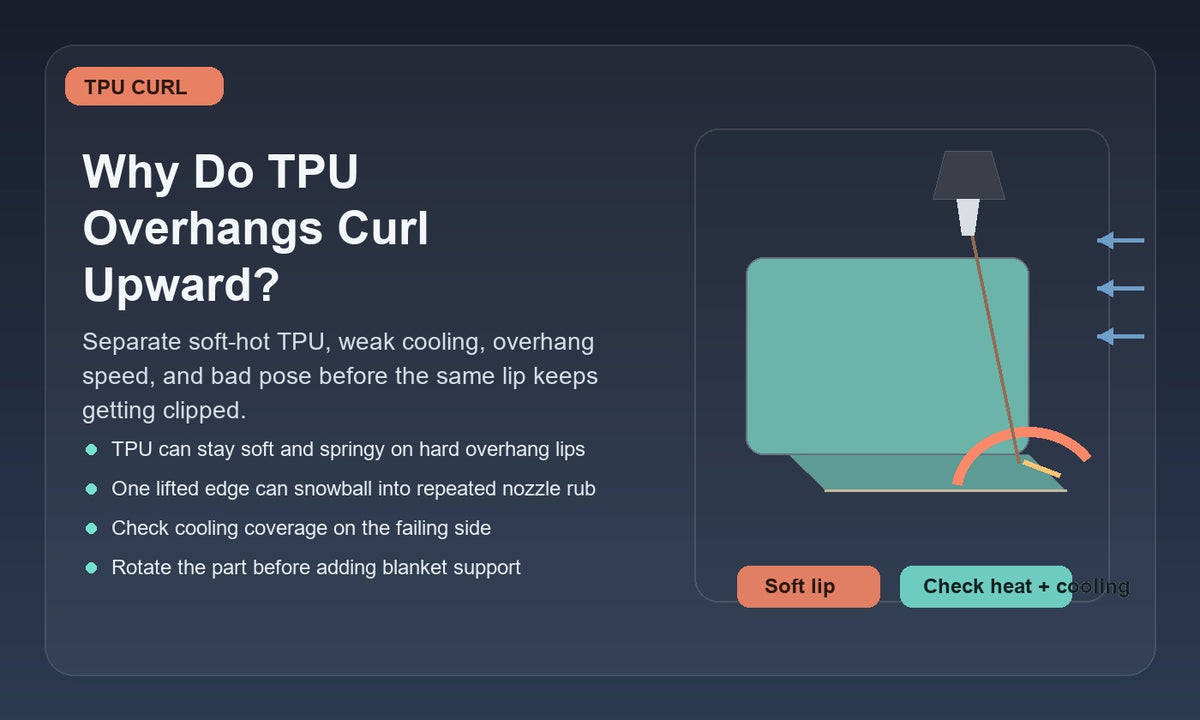

What TPU overhang curl actually looks like
The giveaway is that the unsupported edge starts turning upward toward the nozzle instead of simply looking a little rough underneath. You may hear light scraping, see glossy rub marks on the same lip, or notice that every pass makes the same edge worse because the nozzle keeps touching the lifted section again.
- If the whole span droops across a gap, that is closer to bridge sagging.
- If the underside only looks ugly after support comes off, that is closer to support scars.
- If the TPU edge itself lifts toward the nozzle during the print, stay here.
Why TPU overhangs are touchier than stiffer-material overhangs
TPU can hold heat and softness at the edge longer than PLA, and it can feel springier than PETG when the nozzle comes back around too soon. That makes it easier for a lip to stretch or rebound upward instead of settling flat. The material can still look “fine enough” overall while being too soft locally on hooks, slots, vent edges, and cutouts.
That matters because operators often blame TPU overhang curl on support settings or generic flexible-filament pain when the real issue is more specific: too much heat, weak edge cooling, overhang speed that outruns solidification, a part pose that keeps exposing the hardest lip to poor airflow, or wet or unstable TPU making the edge even less crisp.
Main cause split: what usually makes TPU overhangs curl upward
| Cause area | What it usually looks like | What to check first |
|---|---|---|
| TPU is printing too hot for the edge | The lip looks glossy, soft, and easy to drag upward on the next pass. | Nozzle temperature, recent speed changes that pushed heat up, and whether the trouble started after a hotter profile. |
| Cooling is weak where the overhang lives | The edge stays soft too long and the same side gets worse layer after layer. | Part cooling, airflow direction, and whether one side of the part always curls first. |
| Overhang speed outruns TPU edge settling | The overhang looks acceptable at first, then one lip rises because the printer keeps returning before the edge calms down. | Outer-wall and overhang-specific speed on that feature, not just whole-print speed. |
| The part pose exposes a bad lip | One hook, opening, or ledge always curls in the same orientation while the rest looks fine. | Rotation, support placement, and whether a pose change would shorten or better cool the edge. |
| Wet or unstable TPU is muddying the edge | The overhang edge looks fuzzy or messy while the spool also strings, blobbies, or restarts less cleanly elsewhere. | Spool condition, storage, and whether the current feed path is already making TPU behave less predictably. |
What to check first before you keep slicing blindly
- Watch whether the nozzle is hitting the same lip again. Once TPU starts lifting, the defect can feed itself with every pass.
- Back down heat modestly if you are already near the warm side for that TPU. The goal is cleaner edge set, not a giant random temperature drop.
- Check real cooling, not just fan percentage. TPU overhangs care about whether the edge actually sees airflow.
- Slow the overhang feature before slowing the whole print. Local overhang speed often matters more than broad profile panic.
- Rotate the part if one opening or lip always causes trouble. Orientation is often cleaner than blanket support.
If the whole machine baseline feels shaky beyond this one edge, use the setup checklist before pretending the issue lives only in one TPU profile checkbox.
Heat is usually the first TPU-specific clue
TPU is less forgiving than PLA when the nozzle temperature stays a little too high for cosmetic overhang work. A profile that still gives decent layer bonding can leave overhang lips too soft to survive the next pass cleanly. If the edge looks glossy, drags easily, or got worse after a speed increase that needed more heat, believe that clue.
If the spool is also leaving webs between features, continue with TPU stringing because the same soft-hot behavior often shows up there too.
Cooling matters, but only on the edge that is failing
Some TPU parts fail on one side because the fan duct favors one face more than the other. That can make the problem look mysterious when the real issue is simply that one overhang lip is living in worse airflow. If only one side of a hook, vent opening, or slot keeps curling first, local cooling coverage is a stronger suspect than a broad slicer failure.
Do not confuse TPU overhang curl with bridge sagging
Bridge sagging means the material is spanning open air and dropping because there is nothing under it. Overhang curl is different. The edge is partly supported by the layer below, but TPU is still too soft or too springy to stay put at that angle under the current heat and cooling balance.
If the defect really looks like open-air span weakness instead of a lifted lip, go to bridge sagging and the broader overhang and bridging guide.
Orientation can beat support on TPU
If the critical visible edge can rotate into a friendlier pose, that is often better than throwing support everywhere and trading curl for cleanup damage. TPU support contact can be annoying to clean and can blur the real diagnosis, so the cleanest fix is often making the lip easier rather than trying to prop up the hardest version of it.
If that is the real decision, go next to the orientation guide and support scars.
When spool condition or TPU path behavior is part of the mess
Wet TPU or a spool that has drifted since it last printed cleanly can make overhang edges fuzzier and harder to diagnose. Moisture is rarely the only reason a lip bends upward, but it can make the edge less crisp and more likely to smear or drag. If the same roll is also stringing, leaving soft wall zits, or behaving less consistently than it used to, pair this page with wet-filament diagnosis, the TPU dryer page, and TPU symptom separation.
What usually works next
- lower TPU heat modestly if the edge looks glossy and easy to drag
- improve cooling on the actual failing side instead of assuming fan percentage alone tells the story
- slow only the overhang feature before slowing the whole job into the ground
- rotate the part if one lip is simply a bad thermal pose
- use support deliberately only after orientation and local cooling still leave the edge unstable
If TPU top skin is also getting dragged after you stabilize the edges, continue with TPU rough top surfaces. If broader symptom sorting is still fuzzy, branch into the quality-problems hub.
Editorial take
TPU overhang curl gets mislabeled as generic flexible-filament pain all the time. Usually the real story is smaller and more fixable than that: one TPU edge is too hot, too soft, too fast, or badly posed for the airflow it is getting. Once you solve that local thermal problem, the part often stops looking like a support emergency.
Common questions
Why are TPU overhangs worse than PLA overhangs?
TPU often stays softer and springier at the edge for longer, so the next pass can drag the lip upward more easily if heat and cooling are not well balanced.
Should I lower temperature first for TPU overhang curl?
If you are already on the warmer side, yes, that is one of the best first checks. But pair it with cooling and local overhang speed instead of assuming temperature is the whole answer.
Can wet TPU make overhang curl worse?
It can make the edge messier and harder to read, especially if the spool is also stringing or leaving other flexible-filament defects elsewhere, but upward curl still usually needs a heat, cooling, or pose problem too.
Should I just add support to fix TPU curling edges?
Not automatically. Support can help, but on TPU it can also create its own cleanup tax. Orientation and local thermal control are often cleaner first moves.
What should I read next?
Go next to the broader overhang and bridging guide, TPU stringing, TPU rough tops, TPU symptom separation, and the quality-problems hub depending on whether the next clue is soft-hot travel behavior, top-skin drag, moisture or feed-path drift, or broader symptom sorting.
