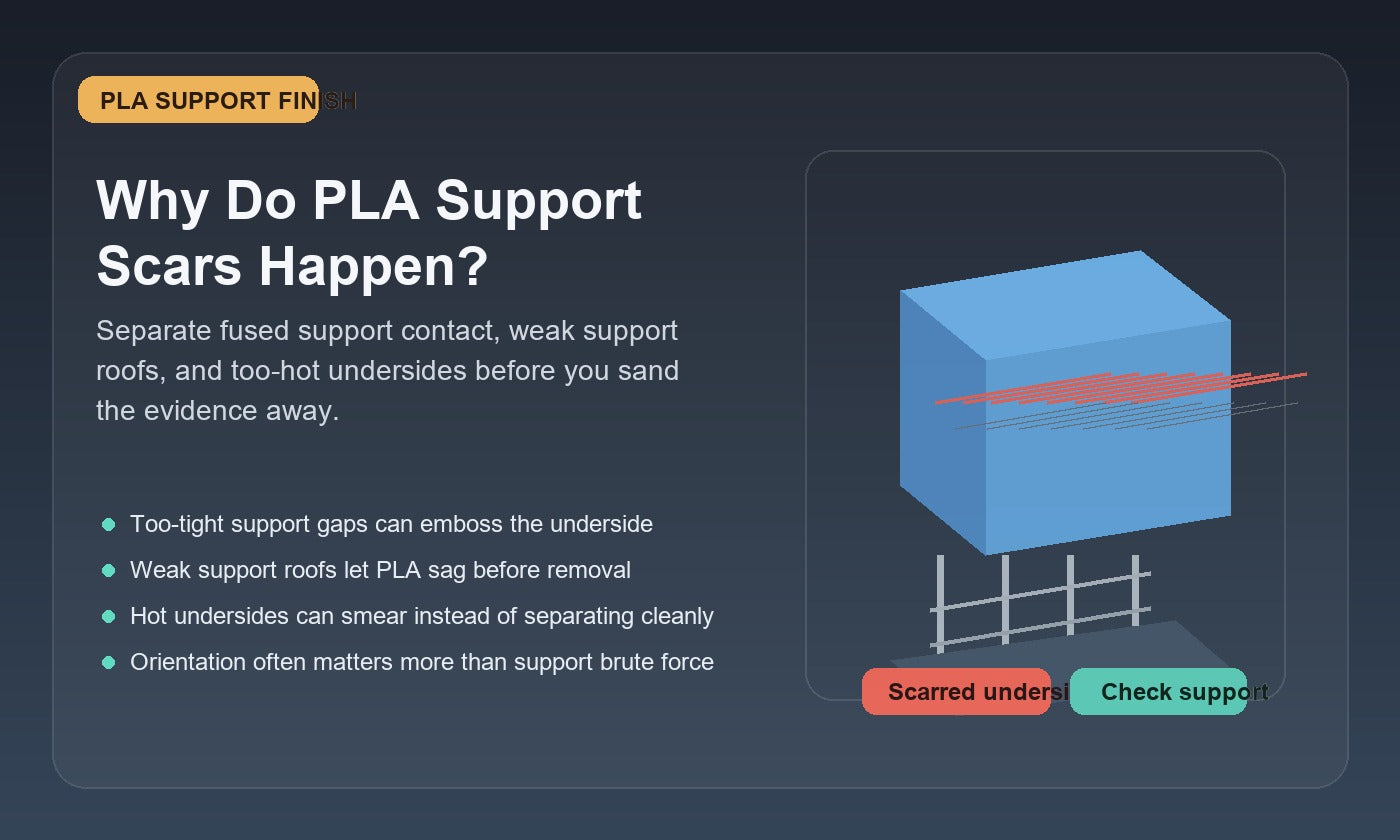

Direct answer: if the face that touched support comes out rough, torn, pitted, or gouged, first determine whether the damage formed during printing or during support removal. A sagged or fused underside points toward orientation, support contact, interface, heat, or cooling. A surface that looked usable before removal but chipped when the support broke away points toward removal direction, tool access, or a support that bonded too firmly.
This guide covers one exact symptom: a support-facing surface that looks damaged after the support is removed. It does not cover random rough walls, ringing, top-surface pillowing, or ordinary layer lines. Preserve the current profile, inspect the failed face, and work through the checks below in order so one change produces useful evidence.
Disclosure: GoodPrints may earn from qualifying purchases through clearly labeled affiliate links on this page, at no added cost to you.
Match the scar pattern to the first likely cause
| What the supported face looks like | Best first lead | Check before changing |
|---|---|---|
| Drooping lines and a soft, rounded underside | Unsupported span or weak interface roof | Orientation, support coverage, underside speed, and cooling |
| A regular support-grid pattern is welded into the face | Contact is too aggressive | Contact gap, interface layers, temperature, and material behavior |
| Chunks tear out only while support is removed | Removal-created damage | Removal direction, tool access, and whether support can be split into sections |
| Fine hairs, pimples, or fuzzy residue surround the scar | Material condition or ooze is adding noise | Same-spool baseline, temperature, and moisture symptoms |
| Only one important cosmetic face is scarred | Orientation put the wrong face on support | Whether another orientation protects that face without weakening the part |
Check 1: confirm the defect is actually a support scar
Look for a boundary that follows the support-contact region in the slicer preview. If the damaged area extends far beyond that boundary, the better lead may be general under-extrusion, overheating, a warped part, or a rough wall rather than support itself. Compare the failed face with a nearby unsupported face printed at the same height.
Photograph the part before cleanup if possible. The useful distinction is whether the surface was already sagged or fused when the print finished, or whether it became damaged as the support was pulled away. That single observation prevents a removal problem from being treated as a cooling problem and prevents a weak underside from being hidden by more aggressive tools.
Check 2: protect the important face with orientation
Open the model in the slicer and identify the face whose appearance, fit, or seal matters most. If that face is resting on support, test whether the part can be rotated so the face prints upward or vertically. Orientation often changes support scars more than another small support-density adjustment because it moves the cosmetic or mating surface away from the intentionally imperfect support interface.
Do not rotate blindly. The functional-part orientation guide explains the trade among surface finish, layer direction, support demand, and part strength. A cleaner face is not a win if the new orientation puts the main load across a weak layer boundary.
Check 3: verify that support is needed in that region
Inspect the support preview rather than assuming every highlighted overhang needs full contact. Small chamfers, short bridges, hidden recesses, and noncritical undersides may print acceptably with less support after a controlled test. Removing unnecessary contact removes the opportunity for a scar.
Use the support-reduction guide to distinguish safe contact reduction from wishful slicing. If the span is truly unsupported, keep the support and improve how it carries the underside instead of deleting it.
Check 4: inspect contact gap before changing density
The support must sit close enough to carry the first supported lines but far enough away to release. Too much separation lets the underside droop before it finds support. Too little separation can fuse the interface to the part and tear the face during removal. The correct control and unit vary by slicer, layer height, nozzle, and support style, so do not copy one universal number without checking what the field means in the current profile.
Start from the printer or slicer's supported profile. Change only the relevant top-contact separation for one small test, and save both results. If release improves but the underside becomes visibly looser, the change moved past the useful balance.
Check 5: inspect the support interface or roof
A sparse support body can still carry a more consistent interface layer immediately below the part. If the supported lines are falling into large gaps, check whether the interface or support roof is enabled, continuous enough for the geometry, and actually present in the preview. If the interface is extremely dense and firmly bonded, it may leave a crisp grid pattern or pull material from the part.
Change interface behavior before raising support density everywhere. The functional support-settings guide provides the broader control map. Keep the present support body constant while testing one interface change so the result remains interpretable.
Check 6: separate underside cooling from excess heat
The first lines printed above support have less solid material beneath them than an ordinary wall. If they stay too soft, they can sag into the interface, smear, or bond more strongly. Check whether the material profile, fan behavior, minimum-layer-time controls, enclosure state, and underside speed are appropriate for that filament and printer.
Do not simply maximize fan or slash temperature. ABS, ASA, nylon, PETG, PLA, and TPU tolerate different cooling and heat tradeoffs, and a change that makes one supported face prettier can create weak layers or warping elsewhere. Use a maker-supported baseline and change one variable at a time. For a span that is failing even without support, use the overhang and bridging guide.
Check 7: rule out material-condition noise
Support contact is often blamed for every mark in the area, but wet or inconsistent filament can add fine strings, bubbles, fuzzy extrusion, or rough restarts around the same face. If those symptoms also appear away from support, compare the same spool and file after conditioning the filament according to its maker's guidance. Keep support settings unchanged during that comparison.
Use the wet-filament diagnosis guide when the evidence extends beyond the supported underside. If the scar remains but the surrounding fuzz disappears, moisture was a second problem rather than the main support-contact cause.
Check 8: change removal technique only after the print is cool
Let the part reach a safe handling state. Identify the direction in which the support separates most naturally, remove it in smaller sections, and support thin walls or tabs so the cleanup force does not flex the printed part. Pulling a large support tree sideways across a delicate face can gouge a surface that printed reasonably well.
Use cutters or a deburring tool only where the tool can be controlled and kept away from functional dimensions. Eye protection and the tool maker's handling guidance matter because clipped support can leave quickly and sharp edges can remain. If support has fused across a broad face, stop escalating force and correct contact or interface behavior on the next test.
Run one controlled support-scar test
- Crop or create a small sample that reproduces the same supported face, layer height, material, nozzle, and support style.
- Print the current profile as the control and photograph the face before and after support removal.
- Change only the highest-priority lead: orientation, support need, contact gap, interface, heat/cooling, or removal method.
- Compare underside shape, release force, torn material, and the amount of cleanup needed. Do not judge only from one flattering camera angle.
- Confirm the better setting on the real geometry before applying it to every profile.
The goal is not a perfectly smooth supported face; unsupported and support-facing surfaces are different manufacturing conditions. The goal is a repeatable surface that meets the part's cosmetic and functional requirement without creating unnecessary removal labor.
Apply the fix that matches the evidence
| What the test proved | Fix | Next proof |
|---|---|---|
| Another orientation protects the important face | Use that orientation if strength and fit remain acceptable | Load-test or fit-check the reoriented part |
| The current contact gap welds support to the part | Test a less aggressive supported-profile contact relationship | Confirm release without introducing new sag |
| Supported lines fall between interface paths | Improve the interface or roof instead of densifying all support | Compare the underside and support-removal time |
| Only removal tears the face | Cool fully, split support, change removal direction, and improve tool access | Inspect the face before and after cleanup |
| Roughness exists beyond the support area | Diagnose filament, flow, or heat as a separate issue | Repeat with support settings unchanged |
Material-specific next steps
Use a material page only after the broad cause is clear. These routes keep the same support-scar symptom while addressing different release, heat, cooling, and moisture behavior:
- PLA support scars
- PETG support scars
- ABS support scars
- ASA support scars
- TPU support scars
- Nylon support scars
Common fixes that usually waste time
- Raising support density everywhere. It adds material and cleanup without proving whether the interface or contact gap was wrong.
- Changing gap, interface, temperature, fan, and speed together. Even a better print will not tell you which change mattered.
- Sanding before diagnosing the print. Cleanup hides whether the scar formed during printing or removal.
- Copying a support gap from another slicer. Similar labels can represent different controls or units.
- Using more force on fused support. That turns a profile problem into torn geometry and a safety problem.
What to do next
If orientation removes support from the important face, confirm the new layer direction and fit on the real part. If support remains necessary, use one small A/B print to balance contact, interface support, heat, cooling, and clean release. If the surface looks acceptable before removal but tears afterward, fix removal access and direction rather than rebuilding the whole print profile.
When the defect does not stay inside the support-contact area, move to the 3D print quality problem map and diagnose the broader surface symptom. When the part is already usable and the remaining issue is safe cleanup, use the support-scar and edge-cleanup guide.
Common questions
Can a supported underside look as smooth as a top face?
Do not assume it will. A support-facing line is built over a removable interface rather than continuous model material. Orientation or a different process may be the better answer when the face has a strict cosmetic or mating requirement.
Should I reduce the support gap first?
Only when the underside is sagging from too little support contact. If the support is welded to the face, reducing separation can make removal damage worse. Match the change to the observed scar pattern.
Do more interface layers always improve support scars?
No. A more consistent roof can support the underside, but an aggressive interface can also bond too firmly. Test the interface independently from the support body.
Is wet filament the main cause of support scars?
Not usually by itself. Moisture can add strings, bubbles, or rough extrusion that makes the area look worse. Prove that broader material symptom separately while keeping support settings fixed.
When should I use a cleanup tool?
Use one after the part has cooled and only where the tool can be controlled without changing a critical dimension. A cleanup tool cannot correct a fused interface, bad orientation, or unsupported sag on the next print.
