Nylon is the best starting filament for repeatedly loaded robot gripper fingers, pivots, and compact end-effector structures when fatigue, impact, and wear matter. PETG is the better default for lower-force shop automation, prototypes that may stay in service, and teams that need easier repeatability. TPU is usually not the whole gripper; it is the contact pad, compliant finger, belt, bumper, or sacrificial surface. PLA Pro is excellent for proving reach, bolt patterns, sensor clearance, and jaw geometry, but it should not become the final answer by accident when heat, shock, or continuous clamping enters the job.
The best robot gripper is often a mixed-material assembly. A rigid body carries actuator load, a tougher finger transmits force, a soft pad creates friction without marking the workpiece, and metal hardware handles threads and pivots. Choosing one spool for every component is convenient, but it usually produces either an unnecessarily difficult workflow or a weak contact system.
For a low-consequence robot suction-cup manifold, start with PETG only when the printed part is a rigid cup carrier with external, purpose-made vacuum tubing and fittings. Move to unfilled nylon for a carrier that needs more impact tolerance, or a documented PA-CF grade when measured flange and cup alignment require extra stiffness. Keep TPU to separate seals, bumpers, strain relief, or compliant contact features. Use an exact polycarbonate grade only when measured heat or impact justifies the harder process. If the print contains vacuum passages, carries a consequential payload, or participates in the robot safety function, leak-test and proof-test it under containment—or use a rated commercial manifold and end effector.
Quick recommendation by gripper job
Choose unfilled nylon for loaded fingers, impact-prone links, repeated flex, and compact joints where a little ductility is useful.
Choose PETG for low-force parallel grippers, camera or sensor end effectors, vacuum-cup manifolds, cable guides, and utility fixtures that need an accessible shop-floor default.
Choose TPU for removable jaw pads, compliant fingertips, anti-slip faces, bump stops, and delicate-part contact.
Choose PLA Pro for first-fit bodies, reach studies, hole-pattern checks, and low-consequence demos that can be reinspected easily.
Use metal or a rated commercial end effector when dropping the payload can hurt a person, damage expensive equipment, contaminate a controlled process, or stop a production line.
Nylon vs PETG vs TPU vs PLA Pro for robot grippers
| Decision factor | Nylon | PETG | TPU | PLA Pro |
|---|---|---|---|---|
| Best role | Loaded finger, pivot link, wear-prone part | Everyday rigid body or low-force finger | Grip pad or compliant feature | Geometry and motion prototype |
| Repeated motion | Strong starting point when dry and well bonded | Reasonable for modest cycles and bounded load | Useful where intentional flex is designed in | Better for proving motion than owning fatigue duty |
| Dimensional crispness | Grade and moisture dependent | Good with calibrated holes and cooling | Low for bearing and datum features | Very useful for early fit checks |
| Workflow burden | High: drying, storage, enclosure, validation | Low to moderate | Moderate: constrained feed and slow tuning | Low |
| Main failure risk | Wet-spool inconsistency or weak layer orientation | Creep, hot-service drift, or brittle layer split | Excess deflection, poor location, or pad peel | Heat deformation or shock fracture |
Separate the load path from the contact surface
A gripper finger has at least two jobs: transmit force from the actuator and interact with the workpiece. Those jobs rarely want the same material. The structural spine needs predictable stiffness, strong roots, sound pivot bores, and enough toughness for an off-center pickup. The contact face needs friction, conformity, workpiece protection, and easy replacement after contamination or wear.

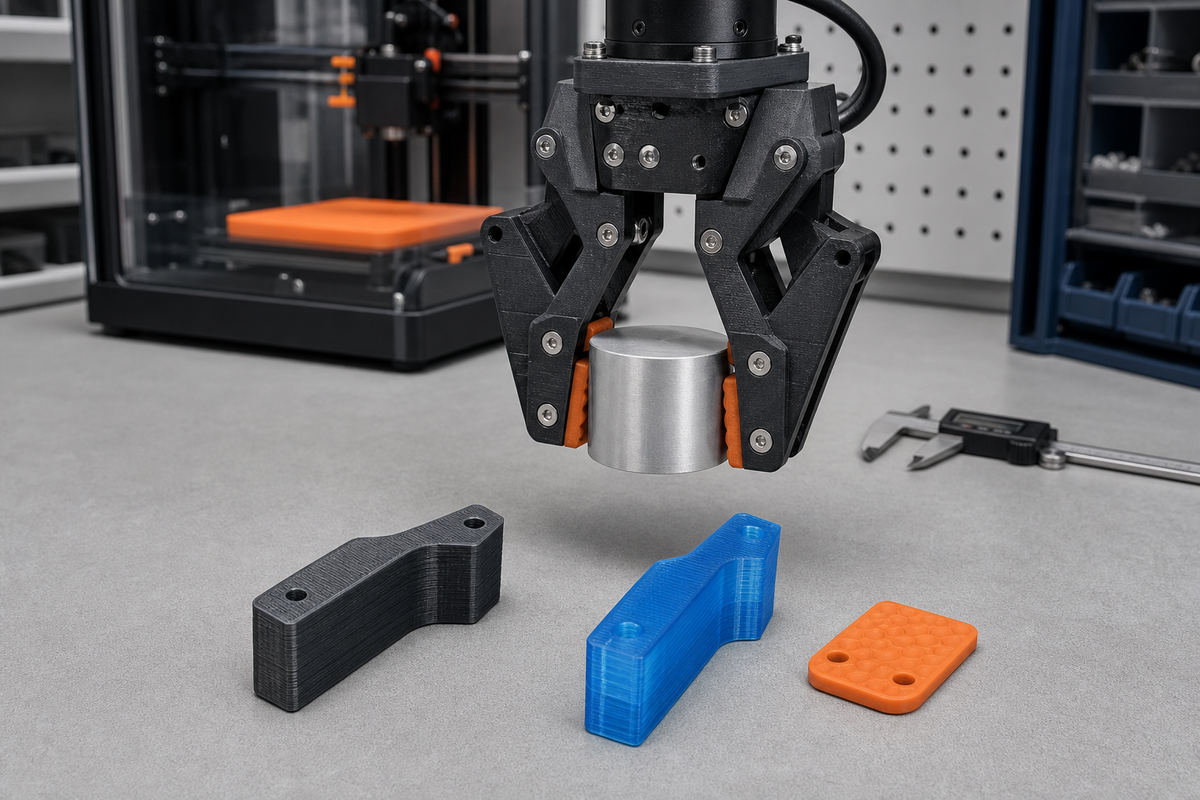

A practical build is a PETG or nylon finger with a mechanically retained TPU pad. Use screws, dovetails, undercuts, or captured edges so the pad cannot peel away during a sideways extraction. Adhesive alone is hard to qualify because TPU chemistry, surface texture, oil, coolant, and cleaning cycles change the bond. Make the pad a controlled wear item with a revision and inspection limit.
Do not assume softer always grips better. A very soft pad can roll, shear, or squeeze out of position and make the object center unpredictably. A thin 95A TPU pad with ribs may locate a part more consistently than a thick very-soft pad. For other repeated-flex features, the snap-fit material guide explains why root geometry and strain control still matter after the material choice.
When nylon earns the harder workflow
Unfilled nylon is the strongest general starting point here when the finger experiences repeated impacts, slight misalignment, rubbing at a pivot, or a load that benefits from ductility instead of room-temperature rigidity. It can survive abuse that turns a sharp PLA-family root into a crack starter. It also suits replaceable links and fingers that may be knocked during setup.
Nylon is not automatically more accurate or stronger in every printed direction. Moisture, chamber stability, wall layout, orientation, and the exact grade control the result. A damp spool can produce a rough, variable melt and misleading dimensions. A finger printed with layer lines opening across its root can still split. Use the nylon worth-it guide before accepting the process cost, and the nylon enclosure guide before treating one small successful print as a stable production recipe.
Carbon-fiber nylon is a different branch. Its added stiffness and dimensional behavior can help a rigid mounting plate or larger end-effector frame, but it is abrasive, usually less forgiving at thin flexing sections, and does not eliminate moisture control. For compact impact-loaded fingers, unfilled nylon may be the better mechanical choice. The Polymaker PolyMide CoPA review shows one unfilled-nylon lane; the approved Polymaker catalog route is useful only after the base-polymer decision is settled.
When PETG is the better operating default
PETG makes more sense when the gripper is modestly loaded, the cycle count is limited, the environment stays cool, and the real requirement is getting a dependable part onto several ordinary printers. It is a sensible material for vacuum-cup carriers, vision-camera brackets, cable strain-relief bodies, sensor mounts, light parallel jaws, and bench automation where failure is contained.
Its advantages are operational. PETG is easier to source, dry, print, replace, and reproduce than many nylons. A shop can often hold the same color, wall plan, and machine profile across several utility tools. That repeatability can be more valuable than a higher material tier whose dry state and chamber history are poorly controlled.
The limits are creep and temperature. A PETG finger that stays clamped around a part between cycles may relax. A motor-adjacent body can distort if local heat is ignored. Thin pivot walls can crack between layers after a collision. If the joint is the weak point, use the heat-set insert material guide rather than solving every fastener problem with more infill.
What should you print a robot suction-cup manifold in?
Use PETG for the first low-force, low-consequence suction-cup carrier when it holds commercial cups, tubes, and fittings and remains cool. Choose unfilled nylon when the carrier needs more forgiveness during setup bumps or occasional contact. Choose a documented PA-CF grade only when reduced deflection protects cup spacing, flange alignment, or a sensor datum. TPU belongs in a separate compliant element, not the rigid manifold body. Reserve exact polycarbonate for a measured heat or impact requirement that PETG or nylon cannot meet.
The word manifold hides two different jobs. A printed plate that positions commercial suction cups is mainly a structural end-effector component. A part with internal vacuum galleries is also a fluid boundary. FDM layer paths, seams, fittings, cleaning, and collision damage can create leaks that a stiff-looking bench print does not reveal. Treat those two jobs separately before ranking materials.
| Material | Best first role | Important limit |
|---|---|---|
| PETG | Cool, guarded prototype or low-force rigid cup carrier with external tubing | Qualify creep, layer-direction impact, fitting loads, local motor heat, and every vacuum path; do not assume the print is airtight. |
| Unfilled nylon | Impact-prone carrier, bracket, or cup arm that benefits from ductility | Dry and condition the exact grade; absorbed moisture and print orientation can move dimensions and change results. |
| PA-CF | Stiff mounting plate or datum carrier after deflection is measured | Filled nylon is abrasive and grade-specific; extra stiffness can trade away forgiving flex at thin collision features. |
| TPU | Separate bumper, hose strain relief, compliant pad, or replaceable seal | It does not provide the stable cup spacing, thread support, or sensor datum expected from the rigid carrier. |
| Polycarbonate | Exact-grade heat or impact case that has been measured, not guessed | The harder print process, warping risk, moisture control, and layer qualification must earn their place; family name alone proves no safety rating. |
Keep vacuum hardware and the printed load path distinct
Schmalz describes vacuum grippers as the connection between machine and workpiece and distinguishes flat cups, bellows cups, suction spiders, and complete vacuum end effectors. That matters because cup shape, workpiece surface, height variation, lateral force, and cycle rate belong to the vacuum-hardware selection—not to the filament ranking. Use purpose-made cups, fittings, valves, and tubing sized for the actual workpiece and motion. Let the print position those parts only after the vacuum system is selected.
Do not print a check valve, ejector, safety valve, vacuum switch body, or pressure-rated fitting because the geometry is convenient. If a printed gallery is still appropriate for a harmless, guarded trial, add accessible test ports, avoid blind debris traps, use metal thread inserts or captured commercial fittings where the fitting maker permits them, and proof every revision. A leak can reduce holding force without changing the plate's appearance.
Design for robot motion, torque, alignment, and collision recovery
- Keep mass and moment close to the flange: a stronger filament does not cancel the bending load from a long cup arm or a heavy valve block.
- Reference the cups from real datums: use broad pads, dowels, metal bushings, or replaceable locator features where repeatable cup spacing matters. Do not ask printed threads alone to preserve alignment.
- Separate compliance from location: put flexibility in the commercial cup, spring plunger, or replaceable TPU feature while a rigid carrier controls the sensor and flange datums.
- Route tubes for the full motion envelope: check bend radius, snag points, torsion, fitting side-load, and robot wrist rotation at every pose.
- Make the collision path sacrificial: a cheap arm, shear feature, bumper, or replaceable cup plate should fail before the robot flange, sensor, valve block, or cable bundle.
If the same assembly also carries a trigger flag or guarded bumper, keep their failure decisions distinct. The limit-switch cam-flag guide covers repeatable sensor triggering, while the mobile-robot bumper-mount guide covers a separate rigid carrier and compliant contact element. Neither page makes a printed suction manifold part of a certified robot safety function.
Leak-test and proof-test before the robot carries anything
- Inspect the dry part for incomplete walls, seams, damaged ports, cracked fastener bosses, and fitting stress.
- Test each cup circuit with the actual commercial hardware. Record vacuum decay, pickup time, release time, and switch behavior instead of judging by sound.
- Use a non-damaging surrogate payload inside a guard. Test the worst reachable orientation, acceleration, emergency stop, tube tug, blocked cup, partial seal, and expected surface variation.
- Repeat after temperature conditioning, realistic cycles, cleaning, a bounded setup bump, and any fitting removal. Reinspect datum shift and fastener torque.
- Set retirement rules for cracks, leakage, permanent warp, loose fittings, damaged cup mounts, unexplained vacuum-switch drift, or a collision outside the qualified envelope.
A successful static pickup is not a payload rating. If a dropped item can injure someone, damage costly equipment, contaminate a process, or stop production, use a manufacturer-rated end effector or obtain an engineering review with containment and redundant loss-of-vacuum controls. For a controlled prototype or small batch, use the material-before-quote checklist and include the flange pattern, cup model, payload, center of gravity, acceleration, tube routing, temperature, chemical exposure, required life, inspection plan, and consequence of loss when requesting a manufacturing review.
Where TPU belongs in an end effector
TPU is usually a contact technology, not a structural-body replacement. It can add friction to smooth metal, spread load over a cosmetic surface, absorb small positioning errors, damp an impact, or create a compliant finger for a fragile object. It is particularly useful for interchangeable pads that let one rigid gripper handle several workpiece finishes.
Pad geometry controls the result. Thin ribs create local conformity without allowing the whole pad to buckle. Grooves can clear chips or dust, but deep channels reduce contact area. A curved pocket can center a cylinder, while a flat high-friction face is better for boxes. If the pad captures a food, medical, cleanroom, or chemically sensitive item, do not assume generic TPU satisfies the process. Material declarations, cleanability, particle shedding, and contamination control are separate requirements.
Very soft TPU raises feed and dimensional difficulty while reducing location stiffness. Start with a well-supported 95A grade unless the application proves it needs more conformity. Mechanically capture the pad and set a replacement criterion based on tears, glazing, permanent compression, contamination, or loss of grip.
Where PLA Pro still makes sense
PLA Pro is ideal for the first gripper body because early failures are usually geometric. The fingers miss the centerline, the actuator collides at full stroke, the camera is blocked, the cable bends too tightly, the mounting holes are wrong, or the workpiece cannot be released. PLA Pro prints quickly and crisply enough to expose those errors without committing to a nylon workflow.
It can remain in service on a low-force demonstration rig, inspection fixture, or guarded classroom mechanism when failure is harmless and the part stays cool. Do not let stiffness become a proxy for toughness. A rigid PLA Pro jaw can look excellent and then crack at a pivot after one collision. Heat from a motor, lamp, enclosure, or sunny window can also move a datum that appeared stable on the bench.
Choose the material by exact gripper component
| Component | Best starting point | Key qualifier |
|---|---|---|
| Low-force parallel-gripper body | PETG | Validate creep, local motor heat, and hard-stop load |
| Impact-prone or repeatedly loaded finger | Unfilled nylon | Dry the exact grade and orient the root for the real load |
| High-stiffness mounting plate or camera frame | PETG or qualified CF nylon | Use CF nylon only when stiffness earns abrasive-hardware burden |
| Replaceable workpiece contact pad | TPU 95A | Capture mechanically and qualify surface compatibility |
| Compliant finger for fragile objects | TPU or nylon | Model deflection and keep the payload contained during tests |
| Pivot bushing or sliding wear insert | Nylon | A commercial bushing may be cheaper and more predictable |
| Reach, stroke, and collision prototype | PLA Pro | Freeze final material only after load and environment review |
Geometry usually decides whether the material succeeds
The finger root is the first feature to review. Use broad transitions, generous inside radii, and enough section depth to keep bending strain out of one sharp corner. Move fastener holes away from the highest bending zone. If the finger must be thin near the workpiece, taper into that section gradually instead of creating a sudden notch.
Keep the load close to the actuator and robot flange. Long fingers multiply bending moment, reduce positional stiffness, and turn a small off-center pickup into a large root load. A stronger filament may mask this in a bench test but still overload bearings, servo gears, or the robot wrist. The material choice does not change the actuator's rated moment or the robot's payload envelope.
Use replaceable wear geometry. Bushings, pads, hard stops, and sacrificial finger tips should be separate when they experience different damage. The bushing and wear-pad guide covers that narrower sliding-contact decision.
Threads, pivots, and datums need deliberate hardware
Printed threads are useful for covers and adjustments, but actuator mounts and pivot joints usually deserve metal hardware. Use through-bolts with washers, shoulder screws, dowel pins, captive nuts, inserts, or commercial bearings where the joint controls alignment. Do not clamp directly across a soft printed wall and expect torque to remain stable through temperature and cycles.
Separate location from retention. A dowel, shoulder, pocket, or broad machined face should establish position; the screw should hold the assembly together. When one undersized printed hole must both locate a pin and resist pullout, every material and printer variation becomes a geometry variation. For realistic production expectations, the FDM tolerance guide is the stronger next step.
Calibrate bores and spacer stacks with coupons printed in the production orientation. The spacer and shim material guide helps when the gripper's alignment depends on small printed stand-offs rather than the main finger material.
Print orientation and process control
- Align continuous perimeters with the main bending path. Avoid opening layer interfaces at the finger root or pivot boss.
- Use walls before extreme infill. Gripper fingers are shell-dominated parts; thick perimeters and sensible radii often help more than a nearly solid weakly oriented print.
- Dry hygroscopic materials before qualification. Nylon and TPU behavior can drift enough to change surfaces, bores, and layer strength.
- Print hole and pad coupons. Do not tune an entire end effector around one nominal CAD dimension.
- Record the production recipe. Keep exact filament grade and color, dry state, printer, nozzle, orientation, walls, layer height, hardware, and acceptance checks.
- Inspect each damage event. A robot collision can create a hidden white line, layer crack, oval bore, loose insert, or compressed pad even when the gripper still moves.
The filament moisture-control toolkit separates active drying, sealed storage, dry feeding, and verification for teams trying to hold that recipe across a spool backlog.
How to qualify a printed gripper safely
- Define the payload and consequence. Record mass, center of gravity, surface condition, temperature, value, sharp edges, and what happens if the object drops.
- Measure real clamp force. Do not infer it only from actuator pressure, servo torque, or motor current. Include linkage position and pad compression.
- Test in containment. Keep people clear and use a tray, tether, soft catch, or guarded cell while the design is unproven.
- Run worst-case orientation. Test vertical lift, acceleration, deceleration, off-center pickup, and the orientation that puts the largest moment on the fingers.
- Cycle beyond the demo. Watch pad compression, finger spread, pivot wear, fastener loosening, heat, and positional drift over a representative cycle count.
- Introduce bounded faults. Check a slightly misplaced part, missed feature, dirty contact face, and commanded hard stop without exceeding safe equipment limits.
- Reinspect after dwell. Hold the clamped state long enough to reveal creep and permanent pad set.
- Freeze acceptance criteria. Set limits for cracks, deflection, bore wear, grip force, pad damage, fastener torque, and replacement interval.
What common failures are telling you
A crack across the finger root usually points to load path, radius, or print orientation before it points to a missing premium filament. An oval pivot bore points to bearing pressure, clearance, heat, or inadequate wear hardware. A part that slowly slips after a good initial grip points to pad compression, polymer creep, actuator leakage, or insufficient friction. A gripper that locates differently after warmup points to motor heat, wall stiffness, joint preload, or datum design.
A nylon finger with rough surfaces and inconsistent holes may be a moisture-control problem rather than a CAD problem. A PETG finger splitting between layers after a collision needs a layer-bond and orientation review. If the feature is a latch or thin retention tab, the nylon clip-cracking diagnosis provides a useful geometry-specific troubleshooting branch.
When a printed end effector is the wrong answer
Use a commercial or engineered metal gripper when a dropped payload can injure someone, when the workpiece is expensive enough that one failure erases the tooling savings, when the cell needs a validated safety function, or when heat, chemicals, cleanliness, sterilization, pressure, or regulatory requirements exceed what the printed process can document. Printed fingers can still be valuable as replaceable product-specific tooling on a rated gripper body.
Also consider machining the flange and actuator interface while printing only the geometry that touches the product. This hybrid approach keeps critical datums and threads in metal but preserves fast changeover, cushioning, and shape-specific contact. It is often the most credible production architecture.
Bottom line
Use nylon for repeatedly loaded, impact-prone gripper fingers and joints when the workflow can support dry, controlled printing. Use PETG for low-force utility end effectors where process repeatability matters more than maximum material capability. Use TPU at the contact surface or in intentionally compliant features, not as an automatic whole-gripper material. Use PLA Pro to prove motion and fit, then deliberately release or replace it after reviewing heat, shock, duty cycle, and failure consequence.
