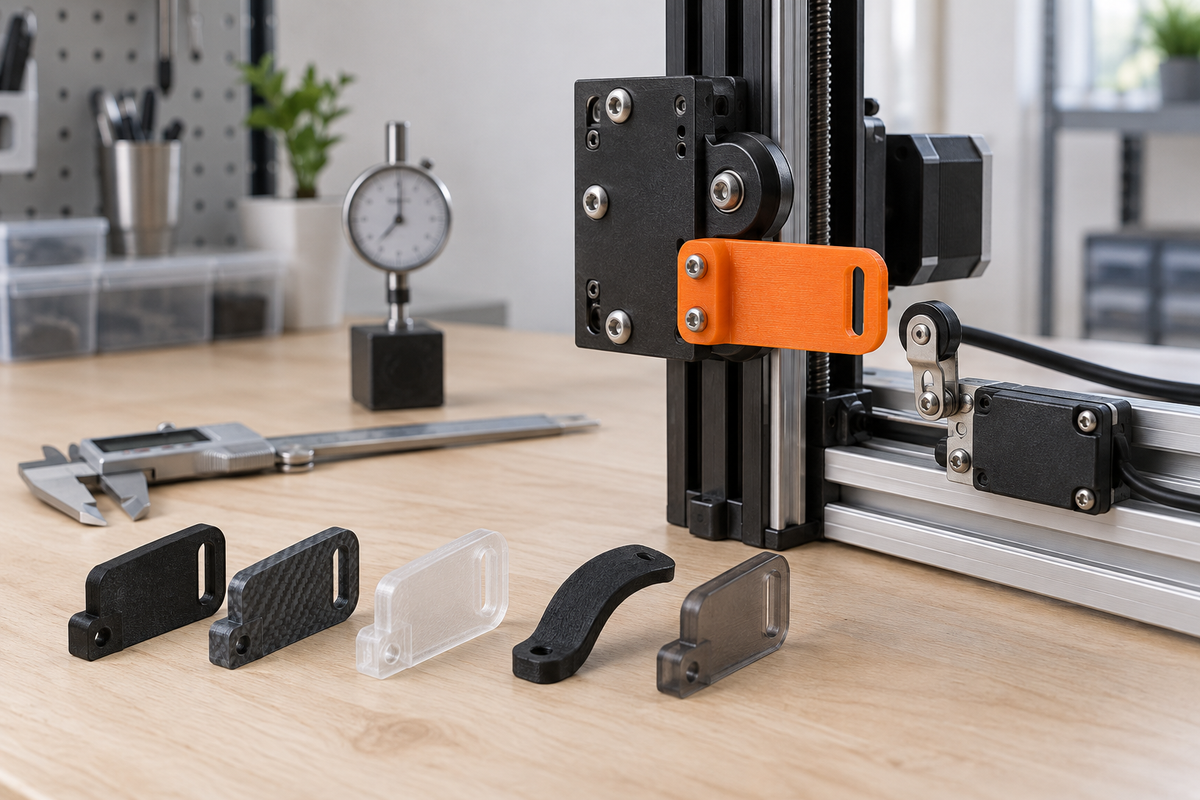

Best Filament for Limit-Switch Cam Flags

Use a documented unfilled nylon as the first material to qualify for a low-consequence, non-safety limit-switch cam flag that may take occasional contact. Move to an exact PA-CF grade when measured flag deflection or sensor-position drift is the real failure mode and the collision path is already controlled. Use PETG for fit and motion prototypes, not as the automatic production answer. Keep TPU in a separate bumper or wiper rather than the feature that defines the switch point. Consider a specific polycarbonate grade only when measured heat or impact demands it and the printer can reproduce the thin flag accurately.

The material is only one part of the decision. A cam flag must present the right edge to the right actuator, at the intended speed and approach angle, while staying inside the switch maker's pretravel, operating-position, overtravel, release, and mechanical-life boundaries. It must also clear the robot through the whole envelope, survive fastener clamp, and fail without driving the switch past its allowed travel. A thicker or stiffer flag can make the mechanism less forgiving if the collision energy has nowhere else to go.

Never make a home-printed cam flag the sole safety limit, guard interlock, emergency stop, or primary hard stop. Use the robot or machine manufacturer's rated hardware and validated safety architecture for personnel protection. This guide is for accessible, inspectable position sensing in a controlled prototype or low-consequence machine—not a safety-function design or a universal load rating.

Evidence boundary: GoodPrints did not hands-on test a particular robot, switch, motor, printed grade, speed, collision, duty cycle, or safety circuit for this article. The recommendations combine current limit-switch manufacturer guidance with current material documentation. They are a qualification plan, not proof of torque capacity, positional accuracy, fatigue life, functional safety, or crashworthiness.

Quick material decision

Material	Best cam-flag lane	Main risk	Stop or upgrade trigger
Nylon	First qualification for impact-tolerant, replaceable non-safety flags	Moisture-dependent dimensions, printing difficulty, and excess flex in a long thin flag	The operating point shifts after conditioning, warm cycling, dwell, or a controlled bump
PA-CF	Stiff, compact flags when repeatable sensor position matters more than collision compliance	Abrasive printing, anisotropy, brittle edge damage, and false confidence from stiffness	Edge chips, fastener-boss cracks, poor layer bonding, or impact transferred into the switch
PETG	Geometry, clearance, wiring, approach-angle, and low-cycle prototype checks	Creep at the clamp, warm-state bending, and edge wear	The trigger coordinate changes after dwell, heat, or repeated actuation
TPU	A separate bumper, noise pad, cable guide, or sacrificial compliant insert	Hysteresis and speed-dependent deflection blur the switching position	The switch fires at a different coordinate by direction, speed, temperature, or load
Polycarbonate	An exact hot or impact-demanding grade after a measured requirement defeats nylon	Warping, moisture, grade variation, poor thin-feature repeatability, and difficult bonding	Flatness, edge location, hole position, or layers cannot be reproduced batch to batch

Start with the switch motion, not the filament

Rockwell Automation's current limit-switch technical data separates pretravel, operating position, overtravel, release position, movement differential, and total travel. Those terms matter because a flag is not simply “touching a switch.” The machine must move far enough to produce a stable state, must not force the actuator beyond its allowed travel, and must release predictably on the return move. The exact values belong to the exact switch, actuator, mounting orientation, and catalog number.

Build a motion budget before drawing the part. Record the switch's permitted approach direction, actuator geometry, operating force or torque, operating position, allowed overtravel, release behavior, maximum approach speed, and mechanical-life assumptions. Add robot positioning tolerance, joint backlash, frame flex, bracket tolerance, flag deflection, thermal movement, and assembly variation. The resulting worst-case stack—not a nominal CAD screenshot—must still switch and release without a hard strike.

Rockwell's precision-limit-switch instructions also warn that the operating mechanism must not drive the switch beyond its overtravel limit under normal or emergency conditions. Treat that as a geometry requirement. Provide a separate rated hard stop when the machine needs one. A longer flag, a more powerful motor, or a faster axis does not create more allowable overtravel.

Why nylon is the best first qualification material

Prusa's current polyamide guidance describes nylon as strong, heat resistant, suitable for technical parts, and hygroscopic. That combination fits a replaceable cam flag that needs some impact tolerance without behaving like a rubber spring. The flexibility that helps a nylon flag survive a minor bump can also move the trigger edge, so the design should keep the working length short and put the contact edge close to a supported section.

Choose an exact grade and follow its drying, nozzle, enclosure, and bed instructions. Then condition the finished part for the environment in which it will run. Measure the switch-edge coordinate, mounting-hole spacing, flatness, and thickness after conditioning—not only when the part is warm and dry from the printer. Run the robot in both directions and at the slowest and fastest qualified approach speeds, because compliance, switch differential, and control latency can reveal different positions.

Do not use a printed hole as an uncontrolled hinge or clamp. A through-bolt with a broad washer or a captured metal insert can spread clamp load, but the hardware stack still needs an anti-rotation datum. A single screw in a slot can make adjustment easy while allowing a collision to rotate the flag. If adjustment is necessary, use a defined datum, witness marks, and a torque process, then verify the switch point after every service event.

When PA-CF earns the extra process burden

PA-CF is appropriate when plain nylon survives the motion and bump tests but the flag bends enough to move the switch point outside the allowed position window. Prusa's composite-material guidance stresses that filled filaments are abrasive and need suitable hardened hardware; it also makes clear that the base polymer and formulation still matter. “Carbon fiber” alone does not define moisture response, heat behavior, impact performance, or layer bonding.

A stiff PA-CF flag can improve edge repeatability while reducing warning before fracture. Use generous root radii, avoid a thin sharp notch beside the fastener, and orient the layers so the routine actuator load does not peel the flag away from its mount. Keep the switch contact face broad enough for the actuator but outside adjacent pinch or snag paths. Chamfer the leading edge only as allowed by the required approach geometry; an arbitrary ramp can increase travel, side load, or release error.

Do not “solve” repeated collisions by selecting a stiffer composite. Find out why the axis reaches the flag with excess energy. Reduce speed, correct the commanded limit, add a separate energy-absorbing feature, change the switch approach, or install rated hardware. The flag should indicate position; it should not be the machine's crash absorber.

PETG is useful for prototypes, not automatic production

Prusa describes PETG as tough, low-warp, and suitable for mechanical parts. It is a practical material for checking connector clearance, full-axis motion, the switch approach direction, actuator engagement, mounting access, and whether the flag fouls a cable or cover. Its accessibility also makes it useful for a sacrificial first motion test at reduced speed and torque.

PETG's weakness here is sustained stress around the mounting clamp and a thin cantilever. A flag can look accurate immediately after installation and still rotate, bow, or move its edge after warm dwell or thousands of cycles. Draw a witness line across the mount, record the trigger coordinate in both directions, and remeasure it warm and after rest. Retire the PETG design if a clamp imprint grows, the slot elongates, the edge polishes unevenly, or the controller needs repeated offset changes.

Put material in the load path rather than hiding it in a high infill percentage. The functional wall-thickness guide explains why continuous shells, root geometry, and local thickness usually matter more than indiscriminate infill.

Keep TPU out of the position-defining edge

Prusa's TPU 95A guidance positions the material for flexible, impact-resistant parts. That makes TPU useful as a separate bumper, cable strain-relief feature, noise pad, or replaceable contact insert when its deflection does not define the machine coordinate. It is normally the wrong choice for the cam surface that must trigger a switch at a repeatable position.

A TPU flag can bend differently with direction, speed, temperature, dwell, and actuator force. That hysteresis may be acceptable for a soft presence detector, but it undermines a calibration or homing reference. Do not compensate by driving the axis farther into the switch: that consumes overtravel and transfers the uncertainty into the actuator. If a compliant insert is deliberate, locate the rigid datum separately and qualify the combined assembly through the full speed and temperature range.

Use polycarbonate only for a measured need

Prusa's current polycarbonate guidance describes PC as tough, strong, and heat resistant, but difficult to print. A named PC grade can make sense beside a warm motor, inside a heated enclosure, or where a qualified impact requirement exceeds the selected nylon. “PC” is not a finished-part rating, and a high material data-sheet number does not prove a thin FDM flag will stay flat or hold a precise edge.

Reject warped parts, uncertain drying, lifted corners, rough mounting holes, inconsistent layer bonding, or an edge location that changes between prints. If the machine needs a thin, highly repeatable flag in heat, a formed or machined metal flag may be simpler to inspect and more stable than a difficult printed geometry.

Design the complete sensing and collision path

Separate sensing from stopping. Give the switch enough permitted actuation travel, then use a distinct hard stop or control envelope to contain the axis. Do not ask the switch lever or printed flag to absorb motor torque.
Approach the actuator correctly. Follow the exact switch maker's permitted direction, cam angle, speed, and overtravel. Avoid side loading, scraping across an unsupported lever, or contacting the roller at an edge.
Control the datum. Use two locating features or an anti-rotation face in addition to the clamp. Make adjustment measurable with a slot scale, gauge block, or documented setup dimension.
Protect wiring and neighbors. The flag must clear cable loops, drag chains, brackets, covers, and adjacent axes through normal travel, homing, power-off movement, and service poses.
Define the collision hierarchy. Decide which inexpensive part should yield first and where the energy goes. A replaceable flag is only sacrificial if its failure cannot jam the mechanism, damage the switch, create a sharp loose fragment, or defeat another sensor.
Keep a second reference. For consequential motion, use the machine maker's redundant travel monitoring, rated limit device, brake, hard stop, or validated safe-motion function. A printed flag and basic switch are not a safety system.

If the larger job is carrying the motor, use the motor-mount material guide. For a fixture that establishes a measured datum rather than actuating a switch, use the inspection-fixture guide.

Qualify the flag on the complete machine

Record the baseline. Identify the exact switch and flag revision. Measure the mount, flag edge, actuator rest position, operating point in both directions, controller coordinate, permitted overtravel, and distance to the independent stop.
Check the entire envelope with power controlled. Move the mechanism slowly under the manufacturer's safe service procedure. Look for cable contact, side loading, lever override, binding, pinch points, and a flag that can catch during reverse motion.
Run reduced-energy tests. Begin at low speed and torque. Confirm reliable make and release from both directions before increasing toward the intended duty. Stop if the switch chatters, the flag skips the actuator, or the axis reaches the hard stop.
Cycle at the real duty. Include starts, stops, direction reversals, warm motor conditions, enclosure temperature, vibration, and the actual control sequence. Log the trigger coordinate rather than relying only on an indicator lamp.
Add a bounded bump test. Apply only a controlled, low-consequence disturbance that represents the intended sacrificial event. Inspect the flag root, edge, fasteners, switch lever, bracket, and wiring before resuming motion.
Recheck after conditioning and dwell. Measure dry, conditioned, warm, and rested states. Compare both approach directions and speeds. Any permanent coordinate change is a design result, not calibration noise.
Set retirement limits. Define allowable trigger-position drift, edge wear, rotation, crack size, clamp movement, lever damage, and cycle count before service. Replace the part when any limit is reached.

When a printed cam flag is the wrong route

Use manufacturer-specified metal or molded hardware when the switch participates in personnel protection, guarded access, overtravel prevention on a high-energy axis, lifting, braking, autonomous public operation, or any failure that can injure someone or release dangerous motion. Also choose rated hardware when the flag is inaccessible for inspection, the environment includes cutting fluid, aggressive chemicals, fire exposure, conductive debris, high heat, or impact that cannot be bounded.

For a controlled prototype or small batch, freeze the CAD revision, exact material and conditioning process, printer, nozzle, orientation, profile, fasteners, switch model, approach geometry, controller settings, inspection method, cycle test, collision protocol, and acceptance limits. The material-before-quote checklist helps organize that handoff. Use JC Print Farm while geometry or process still needs review, or request a quote when the dimensions, quantity, switch identity, material boundary, and proof plan are defined.

Final recommendation

Start with a short, supported, process-controlled nylon flag for a low-consequence non-safety switch, and qualify it in the moisture state, speed, direction, temperature, and collision conditions it will actually see. Move to PA-CF only when measured positional deflection justifies more stiffness and the exact composite can pass edge, root, impact, and cycle checks. Use PETG for fit and motion prototypes, TPU only as a separate compliant feature, and an exact PC grade only for a proven thermal or impact requirement. Preserve the switch's allowed travel and keep rated stops and safety functions independent of the printed part.
