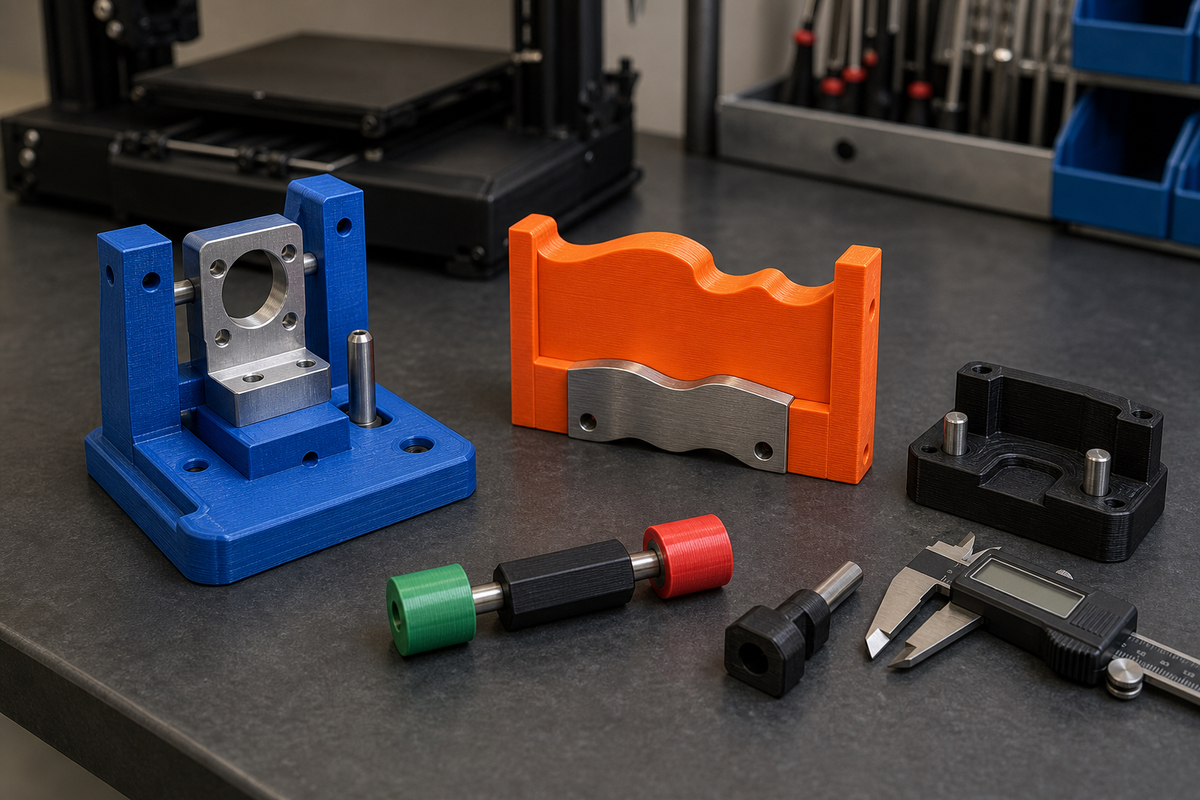

PLA Pro is the best default for most 3D printed inspection fixtures, locating nests, contour checks, and low-volume go/no-go tools used in a cool indoor shop. It is rigid, prints predictably, holds a crisp reference surface, and is inexpensive enough to replace on a controlled schedule. Choose PETG when the tool will be dropped, washed, carried into a humid or warmer area, or used as a protective handling fixture. Use nylon selectively for wear inserts, compliant fingers, and repeatedly sliding contact points after drying and dimensional validation. For a true acceptance gauge, the smartest design is often a printed body with metal pins, bushings, or replaceable qualified contact inserts—not an all-plastic gauge pretending to be metrology hardware.
The real decision is not which filament is strongest. An inspection fixture has to locate the part the same way, resist hand pressure, avoid scratching finished surfaces, and tell the same story after dozens or hundreds of checks. Toughness can help a dropped tool survive, but too much flexibility can move the measurement. A material can print beautifully and still creep around a pin, absorb moisture, wear at the contact line, or change enough with temperature to create false passes and false failures.
This guide is for production aids, first-article checking nests, assembly verification fixtures, contour templates, hole-presence checks, and bounded go/no-go features. It is not a substitute for a calibrated plug gauge, thread gauge, CMM, optical comparator, or a formal inspection plan when the drawing, customer, or quality system requires one.
Best material for an assembly locating nest under clamp load
Use PLA Pro for a broad, well-ribbed locating nest in a cool indoor cell when repeatability matters more than drop survival. Use PETG when rough handling, washdown, or moderate warmth is the bigger risk and the geometry can be made stiff enough. Use unfilled nylon only for replaceable wear shoes, compliant fingers, or resilient contacts unless testing proves the whole nest stays dimensionally stable. Move to an exact PA-CF grade when sustained clamp load, higher temperature, or a stiffness-to-weight need defeats the easy materials. Use polycarbonate only for a measured heat or impact requirement that the selected grade, printer, orientation, and inspection plan can actually qualify.
That recommendation assumes the printed nest locates and supports a part; it does not authorize a polymer contact to become an unverified acceptance standard. Put repeatable datums, bushings, threaded reaction points, and heavily loaded clamp seats in metal or replaceable qualified inserts when their movement can change the assembly result.
| Material | Use it when | Main reason to reject it |
|---|---|---|
| PLA Pro | Cool indoor service, broad supported datums, short clamp cycles, easy revision control | Warm storage or service, sharp impact, or a clamp left loaded long enough to make heat and creep credible |
| PETG | Drops, moisture, washing, and everyday handling matter more than maximum body stiffness | Tall posts or thin datum walls visibly deflect under the real clamp force, or an insert relaxes during a hold test |
| Unfilled nylon | A small replaceable contact needs toughness, sliding wear, or controlled compliance | A large nest body must stay rigid and repeatable across drying, conditioning, humidity, and operator load |
| PA-CF | A documented exact grade earns its keep through higher stiffness, temperature capability, or lower mass under sustained shop loads | The shop cannot control drying, an abrasive filament path, contact finish, lot/profile identity, or dimensional requalification |
| Polycarbonate | Measured heat and impact exposure exceed a qualified easier material and the exact PC grade prints repeatably on the available system | The choice is based on the family name rather than an exact datasheet, stable print process, clamp test, and dimensional evidence |
Size the structure from clamp reactions, not filament marketing
Draw the force path from each clamp pad through the workpiece, locator, nest wall, base, and bench fastener. Keep locating contacts close to ribs or deep sections; do not place a critical pin on a thin tower and then try to solve bending by changing filament. A clamp should seat the part against defined supports, not flex the nest until an incorrect part appears to fit. Use mechanical stops or torque-controlled hardware when operator force can otherwise vary the result.
For each critical contact, record unloaded position, position at the normal clamp force, and position after the intended dwell. Then remove the load and measure recovery after a defined interval. That separates immediate elastic deflection from time-dependent set. Repeat at the warmest credible cell temperature. If the pass boundary moves enough to matter, shorten the load path, enlarge the section, relocate the clamp, add a metal insert, or change the process before buying a more exotic spool.
Treat PA-CF as a grade-specific engineering choice
Carbon-filled polyamide is not one universal material. Fiber fraction, base resin, conditioning, print direction, wall strategy, and the supplier's test method all change the delivered behavior. Prusa's current composite-material guidance notes that filled polymers can improve dimensional stability while adding abrasive printing requirements and different failure tradeoffs; its PA11-CF page is evidence for that exact product, not proof that every PA-CF spool behaves the same.
PA-CF is useful when a long-lived nest needs more rigidity than unfilled nylon and the cell can manage a documented dry-print-and-condition workflow. Keep fiber-filled surfaces away from cosmetic workpieces unless a sacrificial pad proves acceptable, and use hardened wear components in the filament path. Re-measure the released nest after conditioning and after the first production interval instead of treating the dry, just-printed dimension as permanent.
Use impact tests that preserve the locating decision
A nest surviving a drop is not enough. After the representative edge, corner, or bench-height event, inspect for whitening and layer cracks, verify pins and threaded inserts have not shifted, and rerun a known-good and known-bad part. PETG, nylon, PA-CF, and PC can all fail differently; a tough-looking body may still move a datum. PLA Pro can remain the better choice when damage is visible and replacements are controlled, while a more ductile body can hide a permanent positional change.
Markforged's current assembly-fixture overview illustrates why custom tooling is an iterative manufacturing application, and UltiMaker's jigs-and-fixtures guidance emphasizes fast validation and replacement. Those are useful workflow principles, not transferable proof for this nest. Qualify the exact geometry, material, machine, profile, clamp, part, and environment.
A practical release test for dimensional repeatability
- Condition first: let the nest reach the intended room and moisture state before final measurement.
- Verify the datums: measure the actual locating pins, pads, stops, and clamp reaction features rather than only the outside size.
- Run clamp cycles: use the real force, dwell, and sequence; include more than one operator when loading is manual.
- Challenge the decision: use known-good, boundary, and known-bad parts or a controlled master. Record false seating and ambiguous results.
- Apply environment and impact: test the credible warm, wet, dirty, or drop event, then repeat the datum and part checks.
- Set a recheck rule: define a cycle count, calendar interval, impact quarantine, wear limit, and revision identifier before release.
If the assembly nest will approve customer-facing parts, control torque, or drive a narrow acceptance boundary, include the responsible quality owner and use appropriate calibrated references. For a production-ready outsourced nest, send the clamp force, load duration, environment, critical datums, expected cycle count, inspection method, and replacement rule with the CAD package; the quote-prep checklist and JC Print Farm quote route provide the next step.
Quick recommendation by inspection-tool type
Locating nest or visual check fixture: start with PLA Pro and add metal dowel pins where repeatable location matters.
Contour template or quick fit checker: use PLA Pro for stiffness; use PETG when impacts, washing, or warmer handling conditions are credible.
Sliding go/no-go contact: keep the printed body, but use a replaceable metal or qualified polymer contact insert rather than letting a raw printed edge own the tolerance indefinitely.
Repeated clip, latch, or resilient feeler: test nylon or PETG in a long, low-strain feature; do not assume a stiff PLA Pro finger will tolerate high cycles.
Customer acceptance or safety-critical gauge: follow the drawing and gauge-control system. A printed shop aid may support the process, but it should not quietly replace required calibrated equipment.
PLA Pro vs PETG vs nylon at a glance
| Decision factor | PLA Pro | PETG | Nylon |
|---|---|---|---|
| Best role | Rigid indoor fixture bodies and crisp references | Rough-handling and moisture-exposed shop aids | Wear inserts and resilient repeated-contact features |
| Rigidity | Usually strongest default of these three | More flexible under hand or clamp load | Tough but commonly too compliant for a broad gauge body |
| Dimensional workflow | Easy to tune and reproduce indoors | Good after profile and cooling control | Needs dry handling and stronger lot control |
| Impact tolerance | Improved over standard PLA but still inspect after drops | Good everyday abuse margin | Excellent candidate where toughness is useful |
| Heat and humidity | Weakest hot-environment choice | Better moderate-heat and wet-area default | Heat capable by grade, but moisture changes matter |
| Wear surface | Use replaceable or metal contacts | Acceptable for low-cycle broad contact | Best polymer candidate for qualified sliding inserts |
| Default verdict | Best starting point | Environment-driven alternative | Selective specialist |
Why PLA Pro is usually the best fixture-body material
A checking nest succeeds when its datums stay put while the operator loads the part. PLA Pro's useful advantage is stiffness combined with a mature, low-drama printing workflow. Broad bases, ribs, bosses, and vertical locating walls feel solid instead of springy, so a part is less likely to rock simply because the operator touched it. Crisp edges also make it easier to see whether a tab, flange, or molded contour is seated.
PLA Pro also makes version control economical. If an engineering change moves one hole or changes a contour, the shop can print a new controlled revision instead of protecting an expensive fixture that no longer matches the released part. The PLA Pro versus standard PLA guide explains the broader upgrade: tougher PLA helps a handled shop tool, while the base PLA family still gives the rigidity that makes it useful for inspection.
The limit is heat. A blue fixture left on a sunny windowsill, in a service van, beside a drying oven, or near a warm machine enclosure can move without looking dramatically melted. PLA Pro improves toughness; it does not turn PLA into ASA or a high-temperature engineering polymer. Mark storage location and maximum service temperature as part of the fixture requirement.
When PETG is the better inspection-fixture choice
Choose PETG when the shop aid is more likely to be dropped than gently stored, when it will be carried between work cells, or when coolant mist, washdown, outdoor transfer, and moderate heat are credible. A protective checking cradle, shipping verification nest, or large template can benefit from PETG's ductile feel. It is less likely than a typical PLA-family part to chip at a thin corner after one bad landing.
The tradeoff is compliance. A tall PETG post or thin locating wall can bend under the same thumb pressure that barely moves a PLA Pro feature. That does not make PETG inaccurate by definition; it means the geometry must prevent operator force from becoming measurement error. Shorten posts, thicken datum towers, add ribs, support the contact near its base, and avoid cantilevering an acceptance edge farther than necessary.
PETG also deserves a creep check when a pin, insert, or clamped plate stays loaded. A dimension that is correct immediately after assembly can relax over time. For fits that depend on holding a bore around hardware, the bearing-seat and bore-holding material guide covers the same stiffness-versus-creep problem in more detail.
Where nylon belongs—and where it does not
Nylon is attractive because it handles repeated motion, wear, and abuse better than many easy filaments. That makes it useful for a replaceable sliding shoe, a compliant retention finger, a low-mark contact pad, or a guide that sees hundreds of insertions. It is rarely the first choice for the entire dimensional fixture. Many nylon grades are flexible enough that a large body deflects, and their moisture response complicates a tool whose job is to represent a stable boundary.
A good hybrid fixture uses a rigid printed base, metal locating pins, and small nylon inserts only where wear or resilient contact earns them. Each insert can have a controlled replacement interval. If the nylon feature changes after drying, conditioning, or a humid week, the base fixture does not have to be discarded. The nylon worth-it guide helps determine whether fatigue and wear justify the extra material discipline.
Carbon-fiber-filled nylon may print stiffer and with cleaner dimensional behavior than an unfilled grade, but it introduces abrasive wear, grade-specific moisture control, and rougher contact risk. Do not let a fiber-filled surface rub a cosmetic part without testing. A hardened nozzle and a premium spool do not make a gauge traceable.
A go/no-go gauge is a boundary, not a printed shape
The words go and no-go imply a defined acceptance boundary. That boundary needs a relationship to the drawing tolerance, the gauge maker's process capability, wear allowance, temperature, measurement uncertainty, and the quality system. Printing a hole at nominal size and labeling it “go” is not gauge design.
For a low-risk internal process check, begin with the part requirement and decide what decision the fixture is allowed to make. A presence gauge may only confirm that a feature exists. A seating fixture may reveal a grossly bent flange. A contour template may separate obvious deformation from an acceptable part. If the tool will reject paid production or approve customer-facing parts, involve the responsible quality owner and define how it will be verified.
Commercial metal gauge pins, bushings, threaded inserts, and ground stops often provide the cleanest acceptance surface. The printed body locates those components and makes the tool ergonomic. That division of labor is usually more credible than forcing a layer-textured polymer wall to hold a narrow tolerance through wear.
Build the fixture around datums, not the entire part
A strong inspection fixture does not need to hug every face. It should locate the same functional datums used on the drawing or in assembly. Use a clear primary support plane, then enough secondary and tertiary contacts to constrain the remaining motion without overconstraining a warped or variable part. Relief pockets keep flash, elephant foot, labels, and noncritical texture from falsely holding the part up.
Metal dowel pins are excellent for repeatable hole and edge location. Captured magnets can aid handling, but they should not pull a flexible part into a false pass. Spring plungers and clamps should seat the work gently against known datums, not distort it until the light turns green. Add finger clearances so every operator loads and removes the sample without prying against a reference edge.
Separate locating, checking, and protecting surfaces
One material does not have to own every function. A PLA Pro base can provide rigidity. Metal pins can own repeatable location. A TPU bumper can protect a painted face. A nylon shoe can take sliding wear. A replaceable PETG contour insert can provide a broad low-risk comparison surface. Designing these roles separately makes maintenance visible and prevents one worn corner from invalidating a large fixture.
This is also why printed spacers should not quietly become reference standards. The spacers and shims material guide addresses stack height, compression, and creep. If a spacer controls the inspection result, record its measured delivered thickness and replacement rule instead of trusting the CAD number indefinitely.
Design rules that matter more than the filament label
- Put datums near structural support. A short thick tower moves less than a long cantilever.
- Use generous section depth. Ribs and box sections increase rigidity without making every wall solid.
- Keep layer lines out of peel loads. Orient pins, stops, and clamp reactions so the tool does not split between layers.
- Relieve noncritical geometry. The part should contact intended datums, not random print texture.
- Make wear parts replaceable. Inserts are easier to verify and renew than a whole-body contact edge.
- Prevent wrong loading. Asymmetry, color contrast, and clear nests reduce operator interpretation.
- Add a check feature. A known master, gauge pin, or measured artifact should reveal when the fixture has drifted.
- Identify the revision. Engrave or label tool ID, drawing revision, material, print date, and status without relying on color alone.
Printer accuracy does not equal fixture accuracy
A printer specification is not a guarantee that every fixture dimension will land within that number. Hole shrink, first-layer expansion, seam placement, orientation, extrusion width, cooling, machine maintenance, and slicer compensation all affect the delivered tool. Even a dimension that measures correctly at one point can have taper, ovality, or local texture that changes how a part seats.
Print a short qualification coupon before a large fixture. Include the same hole directions, slot widths, pin fits, wall heights, and contact orientations used by the final tool. Measure the cooled coupon with equipment appropriate to the feature, then apply controlled compensation. The custom printed-part tolerance guide explains why critical features, inspection method, delivered condition, and first-article approval matter more than a universal accuracy claim.
Control temperature before chasing hundredths
Polymers and the parts being checked expand with temperature. A fixture printed in a warm enclosure, measured immediately, and used later in an air-conditioned inspection room has not yet shown its stable dimensions. Let the tool cool and condition in the use environment before final measurement. Avoid checking a hot molded part against a cold fixture unless the inspection plan intentionally defines that state.
The tighter the acceptance boundary, the less sensible it is to let an unmonitored polymer edge own it. Temperature compensation, calibrated masters, and metal gauging surfaces may be necessary. A printed fixture can still be valuable by locating the part, speeding presentation, and preventing measurement variation even when the final number comes from a caliper, indicator, height gauge, or CMM.
Use color and labels for status, not material assumptions
Color can make a fixture easier to use: contrasting pins are visible, red no-go features stand out, and revision families are easier to sort. Do not assume every blue tool is PLA Pro or every black tool is nylon. Suppliers can change pigments and formulations, and two materials can look identical after printing. Put the material, tool ID, revision, and release status on the fixture or on a durable controlled label.
Avoid using color alone to communicate pass or fail. Operators may have color-vision differences, shop lighting changes the appearance, and grime can hide a small mark. Pair color with shape, text, or a physical loading cue. If a tool is awaiting verification, quarantine it physically rather than relying on a different filament color to prevent use.
How to qualify a printed inspection fixture
| Qualification step | What to record | Failure it catches |
|---|---|---|
| Dimensional inspection after conditioning | Datums, pin locations, contact gaps, flatness | Print and thermal drift |
| Known-good and known-bad trials | Expected result and operator observations | A fixture that cannot separate outcomes |
| Repeatability study | Repeated loads by multiple operators | Force, seating, and interpretation variation |
| Drop and handling inspection | Cracks, pin movement, remeasurement | Invisible damage after abuse |
| Cycle checkpoint | Contact wear and master check at a set count | Gradual wear and creep |
| Revision release | Tool ID, file hash or revision, material, profile, date | Mixed or obsolete tooling |
Use a master part or verification artifact
A printed tool needs a way to prove it still agrees with the intended state. A protected master part can work for low-risk internal fixtures if the organization controls it. Gauge pins, measured blocks, or a dedicated verification artifact are often better because they isolate the features the fixture checks. Store the master separately so it does not wear alongside the production tool.
Define what happens after a failed master check. Quarantine the fixture, stop using its results, inspect recent product as appropriate, and determine whether the issue is wear, a loose pin, heat exposure, damage, or a wrong revision. Reprinting without investigating can reproduce the same error.
When PETG-CF or another composite makes sense
PETG-CF can be useful when a PETG fixture needs more stiffness, lower visible warping, or a cleaner matte surface while keeping more heat margin than PLA Pro. It is not automatically better for contact surfaces. Fibers can make an edge abrasive, filled materials require wear-rated hardware, and the finished dimension still depends on flow, orientation, and the exact grade.
Use the PETG-CF versus PETG guide when stiffness is the observed PETG problem. If ordinary PETG already holds the fixture geometry and survives handling, adding carbon fiber creates supply and maintenance cost without improving the decision the tool makes.
When a printed inspection fixture is overkill
A dedicated nest is overkill when one accessible dimension with a normal hand tool answers the question faster, when the part revision is still changing daily, or when volume is too low to recover fixture design and validation time. A simple annotated inspection sheet and a caliper may be more controlled than an elaborate unverified print.
The opposite boundary matters too. A printed fixture is underqualified when it becomes the only acceptance method for a safety-critical fit, calibrated thread, pressure boundary, medical feature, or regulated characteristic without documented approval. Use printed tooling to reduce handling variation and speed the workflow, then preserve the measurement method the requirement actually demands.
What to send a print farm for a controlled fixture build
Send more than an STL. Include the fixture's job, the part revision, critical datums, nominal and acceptance boundaries, intended environment, expected cycle count, contact surfaces, metal hardware, color or identification needs, and how the finished fixture will be verified. State whether inserts arrive buyer-supplied, whether the farm installs them, and which dimensions must be inspected after assembly.
JC Print Farm can help turn a released fixture file into repeatable printed tooling, but the customer or responsible quality owner must define what the fixture is authorized to accept. For an outside production handoff, use the small-batch 3D printing service guide so material, quantity, revision, finish, hardware, and inspection expectations arrive together.
Bottom line
Use PLA Pro for most cool indoor inspection fixture bodies because rigidity and predictable replacement matter more than maximum toughness. Move to PETG when drops, moisture, washing, or moderate heat are the real risks. Use nylon as a qualified wear or resilient-contact material, not as an automatic whole-body upgrade. For any meaningful go/no-go decision, separate the printed ergonomic body from the acceptance surface, add metal or replaceable contacts where needed, verify the tool with known artifacts, and control its revision and replacement interval.
