Use a documented unfilled nylon as the first material to qualify for a low-consequence mobile-robot bumper mount. It is the best starting balance of toughness, fatigue resistance, and controlled flex for a rigid carrier that sees vibration and occasional low-energy contact. Move to an exact PA-CF only when measured mount deflection shifts the bumper or sensor geometry. Use PETG for fit and slow-motion prototypes, TPU as the separate compliant bumper or strain-relief element rather than the locating bracket, and an exact polycarbonate grade only when a measured heat or impact requirement justifies its harder print process.
A printed mount is not a safety rating. Robot mass, speed, stopping distance, contact geometry, bumper travel, switch actuation, sensor fields, fasteners, layer direction, payload, floor traction, and control logic can dominate the outcome. Do not replace or modify a manufacturer-certified bumper, safety edge, scanner, emergency-stop circuit, or protective function with an unvalidated printed part. For robots operating around people, public traffic, valuable equipment, or high stored energy, use the robot maker's approved hardware and a qualified machine-safety review.
Evidence boundary: GoodPrints did not test a particular robot, bumper, sensor, filament, crash speed, load, print profile, duty cycle, or safety function for this guide. The recommendation combines current robot-manufacturer documentation with current material guidance. It is a qualification plan, not a collision, fatigue, stopping-distance, or functional-safety claim.
Quick material decision
| Material | Best role | Main risk | Escalation trigger |
|---|---|---|---|
| Nylon | First rigid carrier to test for vibration, repeated motion, and bounded contact | Moisture-conditioned fit and too much flex in a long bracket | Bumper position drifts, holes loosen, or the bracket takes a permanent set |
| PA-CF | Stiffer carrier when measured deflection changes actuation or sensing | Abrasion, moisture, anisotropy, and brittle-looking failure without warning | Cracks at fasteners, transferred damage, or inconsistent printed bonding |
| PETG | Fit, cable-clearance, and slow low-consequence prototypes | Creep around clamps and warm-state shape change | Fastener preload falls or bumper alignment changes after dwell |
| TPU | Separate impact pad, compliant skin, cable relief, or non-locating spacer | Hysteresis and excess motion hide or delay bumper actuation | The robot travels farther before the original bumper or switch responds |
| Polycarbonate | Exact-grade hot or impact-demanding bracket after a measured need | Warp, moisture, and variable layer bonding defeat mounting accuracy | The print cannot reproduce hole spacing, flatness, or bond quality |

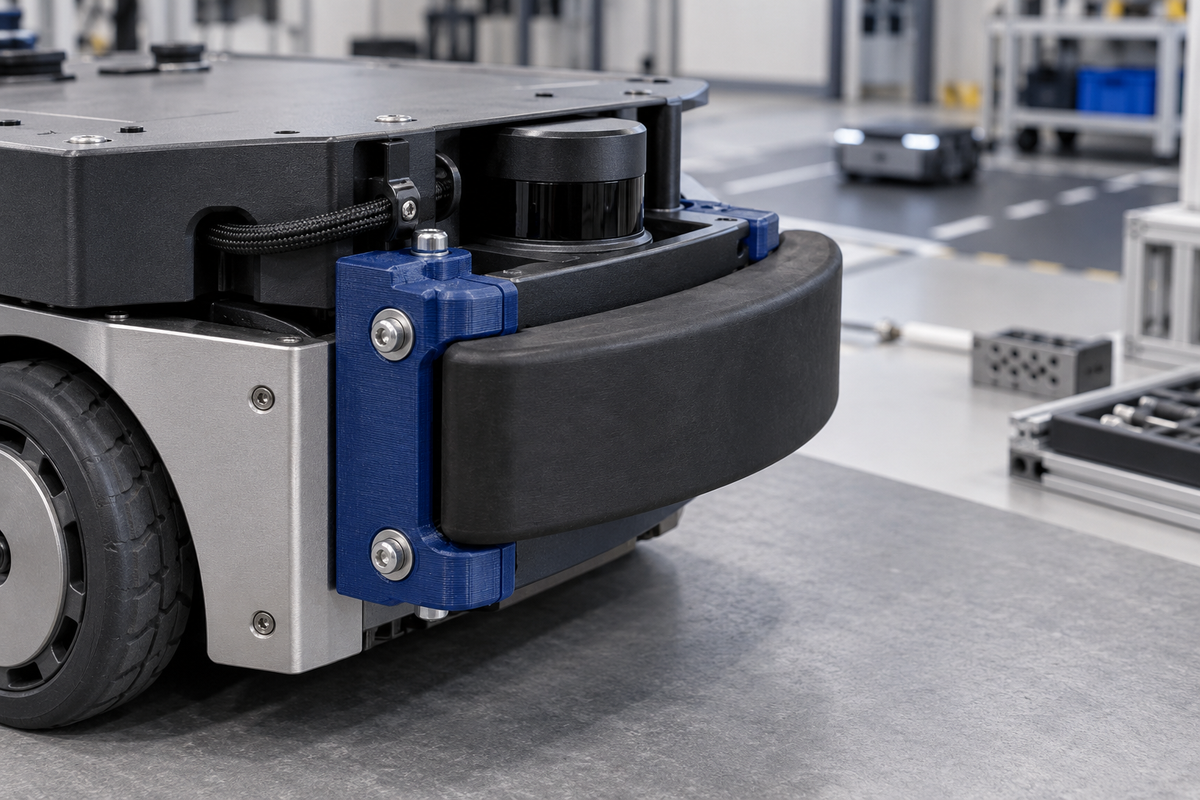

Separate the rigid mount from the compliant bumper
The mount and bumper do different jobs. The mount establishes position, fastener load, cable routing, switch geometry, and clearances. The bumper or edge absorbs limited contact travel or transfers contact to the original sensing element. Combining both into one vaguely flexible print makes it hard to control when the bumper moves, when a switch changes state, and where collision energy goes.
Keep the manufacturer's bumper travel and sensing path intact. Do not let a printed bracket become a hard point in front of a compliant edge, bridge two independently moving bumper sections, block a safety scanner field, or carry a load into a camera or lidar housing. OMRON's current LD documentation treats the bumper as part of the platform control and emergency-stop system; that is a strong boundary against treating a printed replacement as ordinary cosmetic trim.
SICK's current mobile-robot safeguarding guidance describes non-contact detection as a way to detect people or objects in the robot path and avoid the mechanical damage associated with contact bumpers. That does not make a scanner and bumper interchangeable. It reinforces the need to assess the complete protective concept rather than claiming one printed bracket makes a moving robot safe.
Why nylon is the best first rigid bracket to test
Prusa's current polyamide guidance describes nylon as strong, heat resistant, and suitable for technical parts while warning that it is hygroscopic and harder to print. Those tradeoffs fit a bumper carrier: some toughness is useful when the bracket sees floor vibration and bounded contact, but moisture and process variation can move holes and datum faces.
Choose a specific grade and follow its drying and print instructions. Condition test parts for the environment in which the robot will run, then measure chassis datum to bumper face, left-right symmetry, switch gap, sensor clearance, and fastener-hole condition. A dry, fresh print can fit differently after weeks on a humid warehouse floor.
Use metal fasteners, washers, inserts, sleeves, or captive backing plates where the chassis permits. Put generous radii around mount ears, keep load paths short, and orient the print so a frontal or corner contact does not peel layers apart. If the bracket must be thin, carries an approved safety device, or cannot fail into a benign state, use the original metal or molded part.
When PA-CF earns the extra process burden
PA-CF can reduce deflection and improve shape retention, which may help when the bumper's actuation point or a nearby sensor's pose moves under acceleration. Current Prusa composite guidance also stresses that fiber-filled materials are abrasive and require appropriate hardware, and that behavior depends on the base polymer and exact formulation.
Do not select PA-CF because it sounds stronger. A stiffer bracket can transfer more collision energy into the chassis, switch body, sensor housing, fastener, or bumper rail. Qualify the exact dry grade, layer direction, nozzle condition, hole finishing, inserts, clamp load, and conditioned dimensions together. Upgrade only when plain nylon passes contact and cycle testing but its measured deflection still exceeds the geometry budget.
PETG is useful for geometry, not an assumed production answer
PETG is a practical material for confirming mounting holes, wheel and floor clearance, bumper travel, service access, cable loops, cover removal, and sensor sightlines. It is also easier for many teams to reproduce than nylon or PC.
The limitation is sustained load and temperature. A PETG bracket clamped near a motor, charger, battery, or warm electronics bay can change around fasteners even when it survives a brief bench push. Record the starting bumper position and switch gap, hold the assembly at representative clamp load and temperature, and remeasure after dwell. Use the functional wall-thickness guide to design the load path rather than trying to solve every weakness with infill percentage.
Use TPU as a separate compliant feature
TPU can make a useful replaceable rub strip, dust seal, cable strain relief, corner pad, or non-locating spacer. It usually should not establish the position of a bumper switch or alignment-sensitive sensor. Flexible material stores energy, returns through hysteresis, and may make contact response depend on speed and temperature.
If TPU is added ahead of an original bumper, measure whether it changes first contact, required force, travel, reset, and the robot's response. Reject a design that jams compressed, masks damage, drags on the floor, becomes the normal hard stop, or delays the approved sensing element. A soft-looking part is not automatically a safer part.
Use polycarbonate only for a measured requirement
Prusa's current PC guidance describes polycarbonate as tough, strong, and heat resistant, but difficult to print. An exact PC grade may make sense near sustained heat or after nylon cannot meet a proven impact or stiffness requirement. It is not a generic premium choice.
Reject prints with warped chassis faces, shifted hole spacing, lifted corners, wet extrusion, or variable layer bonding. Compare the finished, conditioned bracket to its drawing and installation datums. A nominally strong polymer that moves the bumper or sensor out of position is the wrong result.
Design the whole contact and sensing path
- Map first contact. Check straight, corner, glancing, low, high, and wheel-adjacent contacts. A narrow mount must not punch through a compliant bumper or create a snag.
- Preserve travel and reset. Measure the original bumper's free position, actuation point, overtravel, and repeatable return. Do not let a bracket or cable become the stop.
- Protect sensors independently. A camera, lidar, ultrasonic sensor, or limit switch needs its own clearance, field of view, calibration, and load path. See the depth-camera bezel guide for that adjacent decision.
- Control fasteners. Use a defined torque method, broad bearing surfaces, anti-rotation features, and inspection marks where appropriate. Do not clamp a printed wall until it creeps or cracks.
- Route cables for full motion. Leave a controlled service loop, strain relief away from impact faces, and protection against tire, caster, floor, and cover edges.
- Define the sacrificial element. Decide whether the pad, mount, bumper rail, fastener, or another replaceable component should yield first without disabling a required protective function.
Qualify the mount on the complete robot
- Record a baseline. Measure bracket datums, bumper face position, switch gap, free travel, sensor pose, ground clearance, wheel clearance, and fastener condition.
- Check unpowered motion. Where the manufacturer permits it, move the bumper through its full travel and inspect for binding, cable tension, cover contact, hidden hard points, and incomplete reset.
- Run controlled low-energy contacts. Start below normal operating energy in a protected test area. Check straight and corner contacts against representative shapes without people in the test path.
- Cycle and dwell. Include vibration, acceleration, braking, temperature, moisture conditioning, repeated bumper operation, and representative clamp time.
- Remeasure the system. Inspect cracks, whitening, loose inserts, hole growth, permanent set, bumper travel, switch response, sensor calibration, cables, and chassis marks.
- Set retirement limits. Define allowable position change, play, crack size, fastener movement, bumper reset, and sensor error before deployment.
Stop the printed route if the robot cannot be isolated for testing, if contact can hurt someone, if the mount changes certified safeguarding, or if failure could cause uncontrolled motion. A successful slow bench push does not establish production stopping performance.
Final recommendation
Start with a specific, dry, process-controlled nylon for a rigid, low-consequence bumper carrier while preserving the original bumper and safety system. Move to PA-CF only for a measured stiffness or alignment problem, use PETG for fit and slow prototypes, keep TPU in a separate compliant role, and choose an exact PC grade only for a proven heat or impact need. Validate mounting datums, bumper travel, switch response, sensor fields, cables, fasteners, conditioned dimensions, controlled contacts, cycles, and retirement limits on the complete robot.
For an early prototype or controlled small batch, freeze the CAD revision, robot model, material grade, dry-state process, printer, nozzle, orientation, hardware, inspection plan, contact protocol, and acceptance limits. The material-before-quote checklist helps organize those inputs. Use JC Print Farm while geometry or process still needs review, or request a quote once the critical dimensions, quantity, material boundary, hardware, and proof plan are defined.
Sources
- OMRON: LD Platform Peripherals User's Guide
- SICK: Hazardous area protection on a mobile robot
- Prusa Knowledge Base: Polyamide (Nylon)
- Prusa Knowledge Base: Composite materials
- Prusa Knowledge Base: PETG
- Prusa Knowledge Base: Prusament TPU 95A
- Prusa Knowledge Base: Polycarbonate (PC)
