Depth-Camera Bezel Filament: Nylon, PA-CF, PETG or PC?

Use unfilled nylon for the main protective bezel when occasional robot collisions are credible and you can control moisture, dimensions, and print quality. Use PA-CF when the bezel also acts as a stiff alignment fixture and impacts are tightly limited; its extra stiffness is useful, but it should not be mistaken for a forgiving crash material. PETG is the practical choice for fit prototypes and low-energy indoor robots. Choose a documented polycarbonate grade when sustained heat and rigidity exceed PETG's margin. Use TPU as a replaceable outer bumper or isolator, not as the datum that holds a stereo depth camera in alignment.

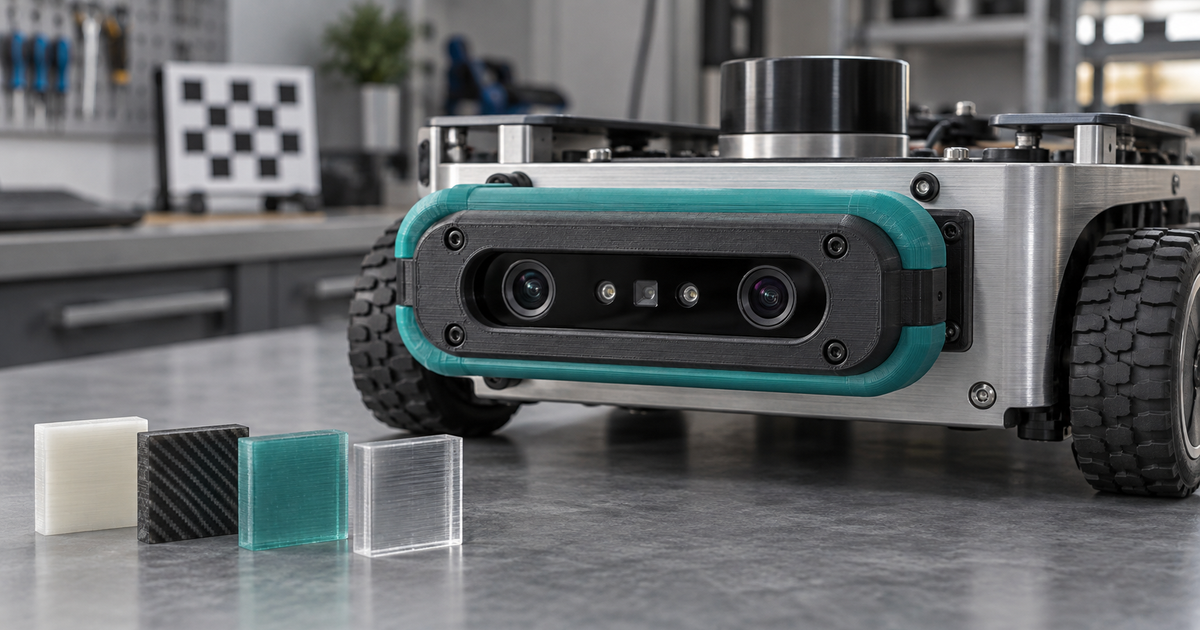

The most robust design is usually a two-part assembly: a rigid, accurately located nylon, PA-CF, PETG, or PC carrier plus a sacrificial TPU impact ring that cannot enter the optical field, cover an emitter, press on the camera face, or drag the camera out of calibration. If a collision can drive the guard into the lens window or camera housing, change the load path before changing filament.

Fast recommendation by job

Bezel job	Best starting route	Main advantage	Main limit
Occasional low-energy contact on a mobile robot	Unfilled nylon rigid bezel, optionally with a separate TPU bumper	Tough, resilient, and better suited to surviving a deflect-and-recover event than a very rigid shell	Moisture, conditioning, creep, and print dimensions must be controlled
Alignment-critical carrier with guarded collision exposure	Named PA-CF grade	High stiffness and reduced flex can help preserve a defined camera pose	Abrasive to print; material and layer behavior must be validated for notches and impacts
Prototype, light-duty indoor rover, or easy-to-replace guard	PETG	Accessible, dimensionally practical, and quick to iterate	Do not assume it will retain alignment under sustained heat, clamp load, or repeated hits
Warm enclosure or heat-loaded rigid carrier	Exact documented PC or PC-blend grade	Useful heat and stiffness margin when printed well	Demanding process; a rigid part can transmit collision force into the camera or mount
Sacrificial perimeter bumper or compliant cable isolator	TPU 95A or another exact qualified flexible grade	Compliance, energy absorption, grip, and easy replacement	Too compliant for the camera datum; can sag, creep, obscure optics, or change pose
Human-safe collaborative robot or consequential machine-vision function	Machine maker's rated guard and a qualified integration process	Addresses the complete machine, stopping system, optics, calibration, and failure consequences	A filament comparison cannot establish machinery safety or perception reliability

Protect the camera without becoming part of its calibration problem

A depth-camera bezel has two different duties that should not be blurred together. The camera carrier establishes the camera's position relative to the robot. The guard intercepts a tool, wall edge, cable, bin, or loose workpiece before it reaches the camera. One printed part can perform both duties, but a replaceable guard attached to a rigid carrier is easier to inspect and less likely to turn a harmless scrape into a calibration shift.

Luxonis' current OAK integration guidance explains why this matters: stereo depth depends on stable camera intrinsics, the translation and rotation between the stereo cameras, and rectification. Its mechanical guidance calls for a rigid assembly free from stress, load, and torque, with mounting and cable entry arranged so forces do not rotate or translate the cameras. That is a stronger design rule than “pick the stiffest filament.” Route impact and cable loads into the robot frame, not through the camera body or stereo pair.

The current RealSense D400-series datasheet makes the model-specific boundary concrete. It supplies mechanical dimensions, depth origin, field-of-view behavior, minimum working distance, front-glass reference, and mounting data for cameras such as the D455. Those values are model-specific. Build from the exact camera maker's drawing or CAD model and validate with the actual device; do not scale a generic bezel from a product photo.

Why unfilled nylon is the impact-tolerant default

Unfilled nylon is the best general starting point when the bezel may be bumped because it can flex and recover without needing the whole part to be soft. Prusa's current polyamide guide describes nylon as a functional technical material with strong mechanical and thermal resistance. The benefit here is not a universal strength number. It is the opportunity to design a rounded guard that deflects slightly while its mounting feet and camera datum stay outside the impact path.

Nylon also has real process costs. It absorbs moisture, can warp, and may change dimensions with conditioning. A bezel that fits immediately after printing can behave differently after it reaches equilibrium in the robot's environment. Dry and print the exact grade according to its maker, then condition and measure production parts before setting final offsets. Do not compensate for unknown moisture state by tightening screws harder; clamp load can distort the bezel, the camera housing, or the robot panel.

Use generous radii around the guard ring, put fasteners behind the expected contact face, and avoid a thin bridge directly above a lens or emitter. If the robot can strike a hard corner at speed, add a frame-mounted stop or metal standoff so the nylon cannot collapse into the optical face.

PA-CF is for stiffness and repeatability, not automatic crash survival

A carbon-fiber-filled polyamide can be a good carrier when camera pose, screw preload, and thermal drift matter more than large elastic deflection. Prusa's composite-material guidance notes that filled filaments behave differently from their unfilled bases and require abrasion-resistant printing hardware. The PA-CF decision must therefore use an exact grade's datasheet and printed-part tests, not the assumption that “carbon fiber” always means stronger in every direction.

Put PA-CF in a protected load path: a stiff backplate or camera saddle behind a separate sacrificial bumper. Avoid sharp notches at screw holes, abrupt section changes, and exposed ears that take a side hit. Washers, metal compression sleeves, or captured inserts can keep the fastener stack from crushing polymer, but they need enough edge distance and a documented installation process. If the same thin PA-CF ring must flex repeatedly during collisions, unfilled nylon or a hybrid assembly is usually the more defensible first prototype.

PETG is the prototype and light-duty answer

PETG is appropriate when the robot is slow, indoor, easy to inspect, and the bezel can be replaced without consequence. It is a good material for proving lens clearance, cable routing, fastener access, and the relationship between the guard and the chassis. It also lets you iterate the optical opening before spending time dialing in nylon or PC.

Do not let a successful fit prototype become a production guard by accident. Check sustained enclosure temperature, motor and compute heat, screw preload, vibration, sanitizer or cleaner exposure, and the consequence of gradual camera-angle drift. A bezel that remains unbroken can still fail its job if a loaded arm creeps a fraction of a degree or the opening moves into the usable image.

Use polycarbonate only when the heat case is real

A documented PC or PC-blend grade makes sense when the camera lives near a warm compute module, motor, lighting assembly, or enclosed robot and a thermal survey shows PETG does not have enough margin. Prusa's current PC guidance treats polycarbonate as a demanding material and recommends an enclosure for its PC Blend process. That printing burden is justified only when the exact grade's heat and mechanical data address the measured environment.

PC does not solve impact architecture. A very rigid ring can pass a shock into the camera screws or chassis, and poor layer bonding can make a nominally capable material unreliable. Keep the collision surface rounded, separate the replaceable nose from the calibrated carrier, and validate the exact print orientation. If heat is not the limiting condition, nylon often gives a simpler impact-first design.

TPU belongs on the perimeter, not under the calibration datum

TPU is useful as a snap-on bumper, corner cap, cable strain isolator, or contact pad. Prusa's current TPU 95A guide presents it as a mechanically resistant flexible printing material, which fits a sacrificial impact layer well. A bumper can absorb small contacts and protect people or nearby surfaces from a hard printed edge.

Keep TPU out of the camera's precision stack. It can compress under screw load, relax over time, and allow the camera pose to change as the robot accelerates or a cable pulls. Design positive hard stops in the rigid carrier so the TPU cannot be over-compressed. Retain it mechanically so it cannot peel into the lens or projector aperture. Give the bumper a visible wear limit and make replacement possible without disturbing camera alignment.

Design the optical opening from rays, not appearance

Start with the camera maker's current mechanical drawing, field of view, minimum depth distance, depth origin, emitter locations, vents, status lights, cable bend radius, and mounting instructions. Create a three-dimensional keep-out volume from each optical element through the near and far working envelope. A front opening that looks clear in CAD can still clip wide-angle rays, create a near-field invalid region, reflect infrared energy, or become visible after tolerance stack-up.

Keep the guard forward but outside every optical cone. Include build variation, camera pose tolerance, bumper deflection, and chassis flex.
Avoid glossy or light internal surfaces. Use geometry and a suitable matte finish to reduce stray reflections, then verify with actual depth and confidence data rather than appearance.
Do not bridge vents or heat paths. Confirm the exact device's thermal requirements and measure temperature in the final robot duty cycle.
Protect connectors separately. Cable force should enter a strain-relieved chassis feature, not pull on the camera or bezel.
Make contact evidence visible. A replaceable bumper, witness mark, or controlled breakaway feature should reveal an event that requires inspection and recalibration.

The dimensional accuracy and hole-fit guide helps separate printer error from intentional clearance. The wall-thickness and perimeter guide explains why the load path matters more than a high infill percentage by itself.

Orient and fasten for the real collision direction

Map the likely contact directions before slicing. A front-on push, side swipe, cable snag, and downward tool strike load different sections and layer interfaces. Put continuous perimeter paths around mounting bosses and the guard ring. Avoid relying on a thin top skin over sparse infill where the impact will land. Print coupons and subassemblies in competing orientations, then compare dimensional stability, fastener retention, layer opening, permanent set, and post-impact camera pose.

Use the motor-mount material guide for nearby heat, vibration, and clamp-load decisions. For moving tooling, the robot gripper and end-effector guide covers the separate load-bearing structure; a camera bezel should not inherit those loads accidentally.

A validation ladder before the robot returns to service

Define the use envelope. Record robot speed, mass, stopping behavior, expected contacts, tool and payload, camera model, cable routing, temperature, vibration, cleaners, UV, duty cycle, and failure consequence.
Freeze the optical keep-out. Use the maker's current CAD and optical data. Check every lens, stereo imager, projector, illuminator, vent, indicator, and connector across tolerances.
Record the print process. Capture exact material and lot, moisture conditioning, nozzle, layer height, orientation, walls, temperatures, cooling, inserts, fastener torque, and post-processing.
Measure the assembly. Verify datums, hole locations, camera pose, clearance, bumper retention, cable strain relief, and chassis contact. Do not use screw force to pull a warped part into shape.
Run optical baselines. Save representative RGB, depth, confidence, invalid-pixel, and calibration checks across the real working distances before impact testing.
Apply guarded contacts. Use controlled front, side, corner, cable, and repeated low-energy loads without putting a person in the hazard area. Escalate only within an approved test plan.
Recheck pose and data. Inspect for cracks, whitening, loose inserts, permanent set, lens-window contact, temperature change, image occlusion, depth artifacts, and camera translation or rotation.
Set retirement rules. Define which impact, mark, crack, fastener movement, calibration change, or bumper wear takes the robot out of service.

A short bench pass is not a machinery-safety rating. If depth data participates in collision avoidance, safeguarding, navigation near people, or another consequential control function, use the camera and robot makers' approved integration, validation, and safety process. A printed guard must not create a false sense that the perception system is safe after an impact.

Final recommendation

For a depth-camera protective bezel, choose unfilled nylon as the impact-tolerant rigid default. Choose PA-CF when stiffness and repeatable alignment dominate and a separate bumper or chassis stop controls impacts. Use PETG for fit prototypes and low-consequence indoor service. Move to a documented PC grade only for a measured heat and rigidity need. Use TPU as a replaceable outer bumper, never as the primary camera datum.

If the guard will be produced repeatedly, package the exact camera CAD, optical keep-out, robot load cases, material grade, print process, fastener stack, and acceptance test together. Review the pre-quote material guide, see JC Print Farm's production workflow, or request a scoped prototype or production quote. A manufacturing quote does not replace robot, camera, optical, or safety validation.

Sources and evidence boundary

These sources support the optical and mechanical integration boundary and the broad material tradeoffs. They do not certify a particular printed bezel, collision energy, robot speed, service interval, calibration tolerance, or safety function. No first-hand testing is claimed.
