Why Do Nylon Snap-Fit Clips Crack Between Layers, and What Should You Change First?

July 13, 2026

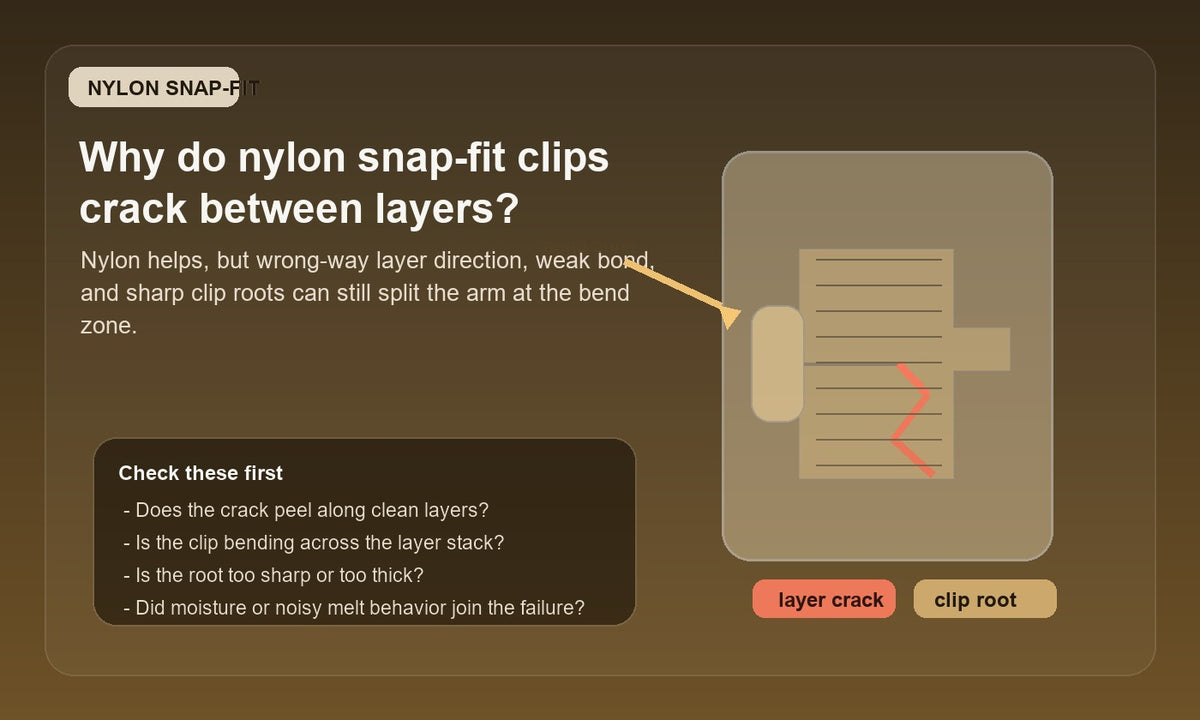

Illustration of a nylon snap-fit clip cracking along the layer lines at the clip root during flex.

Nylon snap-fit clips usually crack between layers because the clip arm is bending across a weak layer stack, the root geometry is concentrating too much stress into one flex zone, or the print bond is worse than the material label led you to expect. On real parts that usually shows up as a latch tab splitting at the base, a clip arm peeling open along one wall during the first serious test fit, or a nylon snap that seemed tougher than PETG but still fails exactly where the flex wants to pull layers apart.

This is narrower than generic nylon layer cracking. A nylon bracket that splits under load and a nylon retention clip that fails during a snap motion are not quite the same diagnosis. Snap features add repeated bending, root stress, and direction-sensitive weakness, so the first checks need to separate orientation, bond quality, geometry stiffness, moisture-driven melt inconsistency, and the possibility that the clip design still needs softer geometry even if nylon was the right material family.

If your nylon parts are cracking more generally, start with the broader nylon crack-between-layers page. If the real question is whether nylon belongs in the part at all, branch into the snap-fit material guide, the PETG-versus-TPU-versus-nylon clip page, and the nylon worth-it page.

Short answer

Most nylon snap-fit layer cracks are still orientation-and-geometry failures before they are mystery spool failures.
If the clip bends across the layer stack, even nylon can peel open cleanly at the root.
Moisture matters here because nylon can look "tough enough" while still printing with weaker, noisier bond quality than the clip needs.
Nylon buys you more margin than PLA or PETG, not infinite margin. Some root shapes and travel demands still ask for geometry changes first.
Start by checking where the crack begins: the clip root, the first bend zone, or a visible layer seam.

What this failure usually looks like

a clip arm splitting at the root where it leaves the body
a latch tab cracking during the first serious snap test after looking fine off the printer
one wall of the clip peeling open along visible layers
a nylon snap surviving a light fit check but failing on deeper travel or repeated reuse
a part that feels tougher than PETG until one concentrated flex point suddenly lets go

The useful clue is that the break usually starts in the bending zone, not somewhere random across the part. That points you toward clip-specific stress and layer direction sooner than it points toward a broad machine problem.

Why nylon snap-fit clips crack between layers

What is happening	What it usually looks like	What to check first
The clip is bending across the layer stack	The root peels open along clean layer lines as soon as the tab flexes deeply enough.	Whether the snap arm is oriented so the bend is trying to separate layers instead of letting strands carry the flex.
Layer bond is weaker than the clip geometry requires	The clip looks clean but fails with a tidy layered break rather than a more stretched-looking failure.	Whether the break surface looks peeled apart near the root or first flex zone.
The clip arm is too short, too thick, or too sharp at the root	The crack starts exactly where the arm leaves the body or at a hard inside corner.	Whether the geometry is forcing nylon to hinge around one concentrated stress point instead of spreading the flex.
Moisture drift is muddying melt behavior and bond quality	The clip also strings more, prints noisier walls, or becomes less repeatable after the spool has been sitting out.	Whether the same spool recently got hairier, rougher, or less consistent while snap failures got worse.
The clip is still overreaching the design margin	The part survives a light fit but fails on repeated deep travel or a harsher retention move.	Whether the feature needs more travel, a softer root, or a different snap geometry rather than more faith in nylon.

The first split is orientation versus geometry-versus-bond overreach

If the crack follows the layers cleanly right at the root, orientation is high on the list immediately. If the print survives a little use but keeps failing under deeper travel or repeated snaps, the geometry-versus-bond fit becomes more important. Nylon can be the right material and still fail when the clip root is too sharp or the arm is trying to peel layers apart.

This is where the troubleshooting page should stay honest. Nylon deserves more credit than PLA or PETG for many snap jobs, but that does not mean the material can compensate forever for a bad bend direction or a brutal root shape. If the clip needs more redesign discipline, the material comparison page and the nylon overkill page are the better next branch than pretending nylon automatically solved the clip.

What to check first

Look at the crack path. If it peels neatly between layers at the root, stay in the orientation-and-bond lane first.
Ask how the clip is bending in real use. If the flex is trying to pull layers apart instead of letting strands carry the movement, orientation is probably the real failure.
Check the root geometry. Sharp inside corners and short thick clip arms can still make nylon behave much less forgivingly than you hoped.
Compare first-install failure versus repeated-use failure. First-install breaks lean toward orientation, bond, or over-stiff geometry. Delayed repeated-use breaks lean more toward fatigue and design overreach.
Check whether the spool has been sitting out or printing noisier. If the failures arrived with more strings or messier walls, read the wet-filament check before blaming the model alone.

What usually helps next

1. Reorient the clip so the arm flexes with stronger strand direction

This is usually the biggest win. A nylon latch that fails because it is peeling layers apart can become much more believable once the clip arm bends with the stronger printed direction instead of fighting the layer stack.

2. Treat clean layered breaks like a bond problem, not a nylon-toughness disappointment

If the break surface looks tidy and peeled rather than stretched and ugly, the part probably needed better layer-bond confidence. That is where the weak-layers page becomes the right next branch instead of random geometry guessing.

3. Calm the clip root before you demand more from the same design

Nylon clips still crack sooner when the root is too sharp, too thick, or too short for the amount of travel they need. Snap-fit failures often come from stress concentration more than from some broad statement that the material is not tough enough.

4. Dry or verify the spool when the failures got worse gradually

If the exact same nylon clip design used to survive more cycles and now fails early, moisture drift deserves a hard look. Pair this page with nylon stringing troubleshooting if the spool is also getting hairier and less controlled.

5. Admit when the part still needs geometry work more than a tougher filament

If the clip needs deep travel, a hard retention snap, or a repeated-open service move, the better answer may be redesigning the arm and root rather than only leaning harder into the same material. Nylon helps, but it is not an excuse to skip snap-fit discipline.

When nylon is usually still the right lane

repeated-use clips that need more flex life than PETG usually gives
service latches that will be opened more than a few times
snap features where a tougher, more forgiving branch really is justified
parts where the geometry can still be softened enough to spread the flex better

When the clip probably needs more than "use nylon"

root shapes that stay sharp and concentrated no matter the material
arm orientations that force the flex to peel layers apart
deep-travel snaps that are still too thick or too short for the move
spools that are printing too inconsistently to reveal the true geometry limit

That is the point of this page. Nylon can absolutely be the right branch, but the operator still has to separate material choice from clip design and bond quality.

What not to do

Do not assume nylon means orientation suddenly stops mattering.
Do not ignore moisture just because the material is already supposed to be tougher.
Do not treat a repeated-flex latch like a one-time install clip.
Do not keep thickening the clip arm if the real problem is a sharper root and a worse bending path.
Do not call every nylon clip failure a reason to jump to an even harder material before fixing the geometry.

Where filament quality fits naturally

If you are trying to prove whether the failure is geometry-only or spool-quality drift, a steadier nylon baseline can help, which is where Polymaker is a fair source. But keep the order honest: solve orientation and clip stress first, then use filament consistency to remove noise from the diagnosis.

When to stop tuning and move the job to a production path

If the clip is part of a customer-facing assembly, a service latch, or a repeat batch where field failure matters more than bench experimentation, small snap-fit cracks stop being a hobby annoyance and turn into a release risk. When that happens, request a quote or use JC Print Farm if the real need is a repeatable part and a cleaner material-and-geometry decision, not another round of guesswork.

Common questions

Why does my nylon clip crack right at the base?

Usually because the clip root is concentrating stress and the arm is bending in a way that peels the printed layers apart. Root shape and orientation still matter, even with nylon.

Is nylon good for snap-fit clips?

Often yes. Nylon is one of the better branches for repeated-flex clips and latches. But a bad bend direction or a brutal root shape can still make a nylon clip fail along the layers.

Can wet nylon make snap-fit clips fail sooner?

Yes. Moisture drift can make melt behavior noisier and layer-bond confidence worse, especially if the spool is also getting stringier or rougher.

Should I thicken the clip arm if it keeps cracking?

Not automatically. A thicker arm can raise root stress if the geometry and bending path are already wrong. Check orientation and root shape first.

What should I read next?

Go next to nylon crack-between-layers troubleshooting, weak layers, the broader snap-fit material guide, and the nylon worth-it page depending on whether the next problem is print bond, geometry, or material fit.
