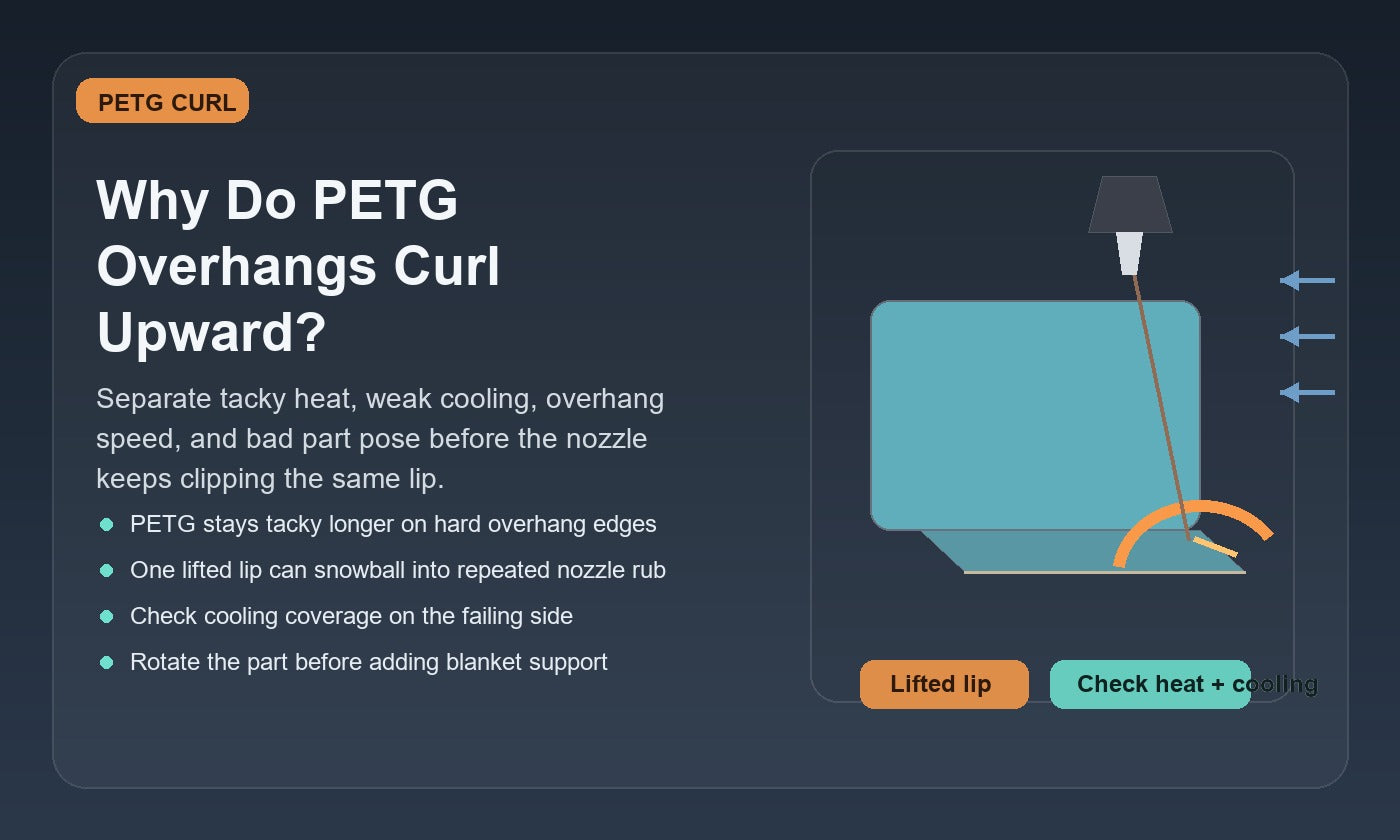

PETG overhangs curl upward because the fresh edge stays soft and sticky longer than it should, then the next nozzle pass catches that lip and lifts it even more. What begins as a slightly ugly underside can turn into repeated nozzle rub, shiny drag marks, and eventually a part that fails because the same edge keeps climbing into the toolpath.
This is not the same thing as a bridge sagging across open air or a support-facing surface looking rough after cleanup. This page is for the narrower PETG symptom where the overhang edge itself bends upward during the print. PETG is especially good at this because it often stays tackier than PLA, so heat, cooling, and edge speed show up faster and more obviously.
PETG overhangs curl upward when the unsupported edge does not solidify fast enough before the next layer or travel-adjacent pass.
Start by checking PETG nozzle heat, part cooling, and overhang speed before you start thrashing extrusion settings.
If the same lip keeps curling in the same place, orientation and local geometry deserve attention too.
What PETG overhang curl actually looks like
The giveaway is that the unsupported edge starts turning upward toward the nozzle instead of just looking a little rough underneath. You may hear light scraping, see glossy rub marks, or notice that every pass makes the same lip worse because the nozzle keeps touching the lifted edge again.
- If the whole span droops across a gap, that is closer to bridge sagging.
- If the underside only looks ugly after support comes off, that is closer to support scars.
- If the PETG edge itself lifts toward the nozzle during the print, stay here.
Why PETG overhangs are touchier than PLA overhangs
PETG often holds heat longer and stays tackier at the edge than PLA. That makes it more likely to smear, stretch, or lift if the next pass arrives before the line has settled. The material can look "strong enough" overall while still being too soft locally on overhang lips and window openings.
That matters because operators often blame PETG overhang curl on support settings or generic "bad overhang performance" when the real issue is a very local thermal mismatch: too much heat, not enough cooling, too much speed on the wrong edge, or a part pose that keeps exposing the hardest lip to the weakest airflow.
Main cause split: what usually makes PETG overhangs curl upward
| Cause area | What it usually looks like | What to check first |
|---|---|---|
| PETG is printing too hot for the edge | The lip looks glossy, sticky, and easy to drag upward on the next pass. | Nozzle temperature, recent speed changes that pushed heat up, and whether the trouble started after a hotter profile. |
| Cooling is weak where the overhang lives | The edge stays soft too long and the same side gets worse layer after layer. | Part cooling, airflow direction, and whether one side of the part always curls first. |
| Overhang speed outruns PETG edge solidification | The overhang looks acceptable at first, then one lip rises because the printer keeps returning before the edge calms down. | Outer-wall and overhang-specific speed on that feature, not just whole-print speed. |
| The part pose exposes a bad lip | One opening, hook, or ledge always curls in the same orientation while the rest looks fine. | Rotation, support placement, and whether a small pose change would make the edge shorter or better cooled. |
| Wet or inconsistent PETG is muddying the edge | The overhang edge looks fuzzy or messy at the same time the spool also strings or leaves rougher surfaces elsewhere. | Spool condition, storage, and whether the same roll used to print the geometry more cleanly. |
What to check first before you keep slicing blindly
- Watch whether the nozzle is hitting the same lip again. Once PETG starts lifting, the defect can feed itself with every pass.
- Back down heat modestly if you are already near the warm side for that PETG. The goal is cleaner edge set, not a dramatic random temperature drop.
- Check real cooling, not just fan percentage. PETG overhangs care about whether the edge actually sees airflow.
- Slow the overhang feature before slowing the whole print. Local overhang speed often matters more than broad profile panic.
- Rotate the part if one opening or lip always causes trouble. Orientation is often cleaner than blanket support.
If the whole machine baseline feels questionable beyond this one edge, use the setup checklist before pretending the issue lives only in one PETG profile checkbox.
Heat is usually the first PETG-specific clue
PETG is less forgiving than PLA when the nozzle temperature stays a little too high for cosmetic overhang work. A profile that still gives decent layer bonding can leave overhang lips too soft to survive the next pass cleanly. If the edge looks glossy, drags easily, or gets worse after a speed increase that required more heat, believe that clue.
If the spool is also leaving webs between features, continue with PETG stringing because the same tacky heat problem often shows up there too.
Cooling matters, but only on the edge that is failing
Some PETG parts fail on one side because the fan duct favors one face more than the other. That can make the problem look mysterious when the real issue is simply that one overhang lip is living in worse airflow. If only one side of a vent opening, hook, or slot keeps curling first, local cooling coverage is a stronger suspect than a broad slicer failure.
Do not confuse PETG overhang curl with bridge sagging
Bridge sagging means the material is spanning open air and dropping because there is nothing under it. Overhang curl is different. The edge is partly supported by the layer below, but PETG is still too soft or too sticky to stay put at that angle under the current heat and cooling balance.
If the defect really looks like open-air span weakness instead of a lifted lip, go to bridge sagging and the broader overhang and bridging guide.
Orientation can beat support on PETG
If the critical visible edge can rotate into a friendlier pose, that is often better than throwing support everywhere and trading curl for cleanup damage. PETG support contact can scar and bond more aggressively than people expect, so the cleanest fix is often making the lip easier rather than trying to prop up the hardest version of it.
If that is the real decision, go next to the orientation guide and support scars.
When spool condition is part of the mess
Wet PETG or a spool that has drifted since it last printed cleanly can make overhang edges fuzzier and harder to diagnose. Moisture is rarely the only cause of an upward-bending lip, but it can make the edge less crisp and more likely to smear or drag. If the same roll is also stringing, roughening top skin, or printing less consistently than it used to, pair this page with wet-filament diagnosis and the PETG dryer page.
What usually works next
- lower PETG heat modestly if the edge looks glossy and easy to drag
- improve cooling on the actual failing side instead of assuming fan percentage alone tells the story
- slow only the overhang feature before slowing the whole job into the ground
- rotate the part if one lip is simply a bad thermal pose
- use support deliberately only after orientation and local cooling still leave the edge unstable
If PETG corner lift or larger thermal stress is also showing up, continue with PETG warping. If the visible top skin is rough after you stabilize the edges, continue with PETG rough top surfaces.
Editorial take
PETG overhang curl gets mislabeled as generic overhang weakness all the time. Usually the real story is smaller and more fixable than that: one PETG edge is too hot, too sticky, too fast, or badly posed for the airflow it is getting. Once you solve that local thermal problem, the part often stops looking like a support emergency.
Common questions
Why are PETG overhangs worse than PLA overhangs?
PETG often stays tackier and softer at the edge for longer, so the next pass can drag the lip upward more easily if heat and cooling are not well balanced.
Should I lower temperature first for PETG overhang curl?
If you are already on the warmer side, yes, that is one of the best first checks. But pair it with cooling and local overhang speed instead of assuming temperature is the whole answer.
Can wet PETG make overhang curl worse?
It can make the edge messier and harder to read, especially if the spool is also stringing or roughening surfaces elsewhere, but upward curl still usually needs a heat, cooling, or pose problem too.
Should I just add support to fix PETG curling edges?
Not automatically. Support can help, but on PETG it can also create its own cleanup tax. Orientation and local thermal control are often cleaner first moves.
What should I read next?
Go next to the broader overhang and bridging guide, PETG stringing, PETG warping, PETG rough tops, and the quality-problems hub depending on whether the next clue is tacky heat, wider thermal stress, top-skin damage, or broader symptom sorting.
