Bedslinger layer shifts on tall or heavier prints usually happen because the printer is asking a moving bed to stay perfectly truthful under more momentum than the current motion path, hardware grip, or collision margin can handle. The useful first move is separating bed-mass stress, belt or pulley slip, nozzle collisions, and axis drag before you keep treating the problem like a random slicer glitch.
This page is for the narrower case where a bedslinger printer looks mostly fine on smaller jobs, then starts shifting layers once the print gets taller, the bed gets busier, or the part adds enough travel stress that the moving Y bed becomes the weak link. If the defect happens on many printer styles and many job sizes, compare with the broader layer-shift guide. If the print is not actually stepping sideways and only shows ripples near corners, use ghosting or ringing instead.

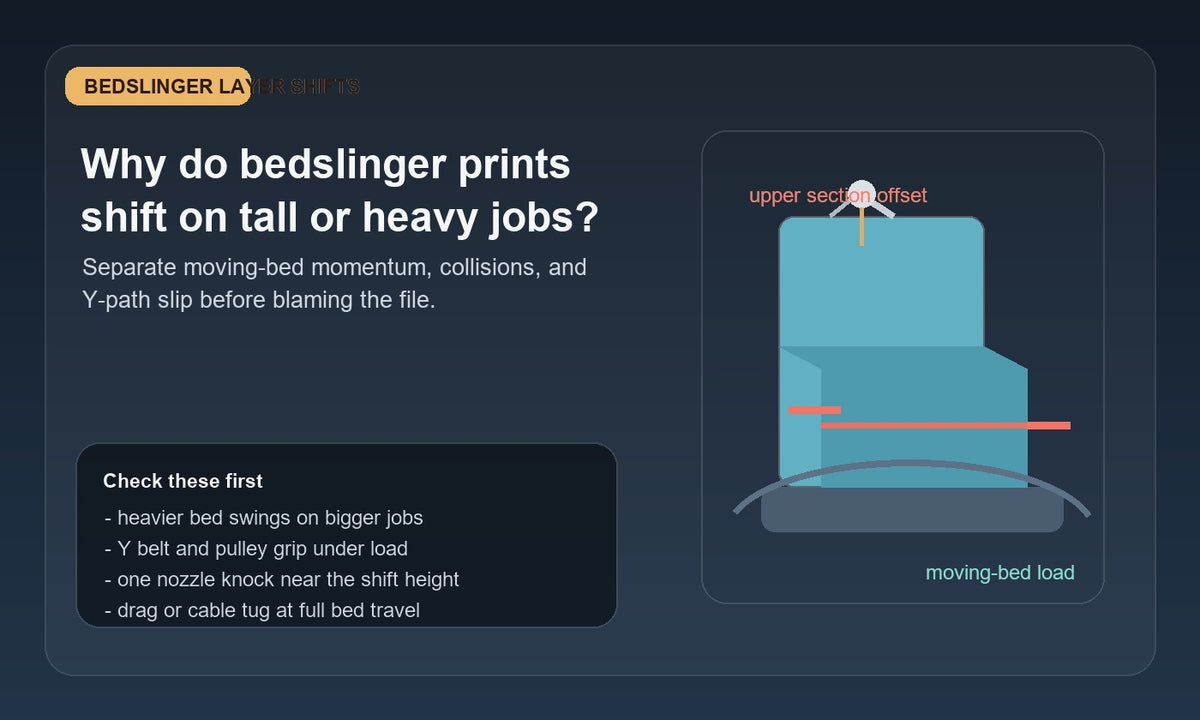

Tall or heavier bedslinger prints shift layers when the moving bed, the motion hardware, or the part itself crosses the point where one axis can no longer repeat the commanded move cleanly.
Start by separating bed-mass stress, loose belts or pulleys, nozzle impacts, and drag on the Y travel path.
If the failures show up more on taller prints, larger footprints, or harder bed-whipping travel, the moving-bed architecture belongs in the diagnosis.
What this bedslinger layer-shift problem usually looks like
- smaller parts finish fine, but taller or heavier jobs suddenly step sideways mid-print
- the shift tends to line up with the moving-bed axis more often than the gantry axis
- the printer sounds harsher on long travel or infill moves before the offset appears
- the same machine feels stable on compact low-mass jobs and much less calm on bigger bed-swinging work
- one collision, one skip, or one over-hard direction change turns the upper section into scrap
If a curled edge or lifted corner got hit right before the shift, compare with overhang curl and the relevant material warping page as well. If the whole machine baseline feels suspect outside this one symptom, use the setup checklist.
Why bedslingers shift layers more easily on taller or heavier jobs
| Cause area | What it usually looks like | What to check first |
|---|---|---|
| The moving bed is carrying more momentum than the Y path likes | The machine sounds fine on small jobs but harsher on tall or larger-footprint parts, especially during quick Y reversals. | Whether the failures cluster on faster Y travel, hard direction changes, or larger bed-swinging prints. |
| Belt or pulley grip is only barely holding under higher load | The axis behaves on easier work, then slips once a heavier job asks more from the same motion path. | Y belt tension, pulley set screws, and whether the shift direction matches the bed axis. |
| The nozzle is colliding with a taller or more flexible problem area | A tall wall, curled edge, proud infill line, or wobblier upper feature gets clipped once and the print keeps going offset. | Whether you heard a knock, saw travel scraping, or can identify one high-risk feature at the failure height. |
| Y travel drag or cable tug becomes worse at certain bed positions | The printer feels mostly free until one bed zone, cable path, or full-travel move adds enough resistance to lose position. | Smoothness of full bed travel, cable-chain pull, debris on rollers or rails, and whether full-stroke motion feels different. |
| Motion settings outrun what this bedslinger can repeat cleanly | Profiles that looked fine on light prints or a different machine class start losing steps once the moving bed and taller part raise the workload. | Travel speed, acceleration, infill speed, bed mass, and whether the profile came from a calmer CoreXY or a lighter setup. |
The moving bed is the point, not just background machine trivia
On a bedslinger, the print rides the Y axis. As the job gets taller or the footprint gets larger, that moving mass becomes a bigger part of the story. A machine that feels perfectly reasonable on smaller brackets or low utility prints can get much closer to its motion limit once the bed is carrying a taller part through faster reversals.
That does not mean bedslingers are bad. It means this symptom deserves a bedslinger-specific diagnosis instead of flattening every layer shift into one generic hardware checklist.
Why taller prints and larger footprints expose the issue harder
Taller parts increase leverage and collision risk. Larger footprints often mean more infill, longer travel, and more time with the bed changing direction under real load. That is why operators often say the machine is fine until one bigger job suddenly is not. The printer may be telling the truth: it is fine inside one motion envelope and less fine outside it.
If the upper part also looks shakier before the shift, compare with ghosting or ringing and Z banding so you do not miss the broader motion-baseline clue.
Nozzle impacts matter more once the print gets tall enough to fight back
A single clipped edge can create a one-time violent shift. Bedslingers are especially sensitive to this when a taller part, a curling overhang, or a slightly proud infill path gets hit during a hard move. The problem is not always that the printer was globally too fast. Sometimes one feature simply crossed into the nozzle path and the bed motion made the impact worse.
If you heard one knock right before the shift, move collisions much higher on the list than firmware theory.
What to check first
- Ask whether the failure is tied to bigger jobs. If small prints finish and taller or wider jobs do not, the moving-bed load story matters.
- Check whether the shift direction matches the bed axis. That pushes Y-path load, grip, or drag higher in the diagnosis.
- Listen for one collision or harsher bed-swing sound before the offset. That clue separates impact from slow hardware drift.
- Inspect the Y belt and pulley grip before chasing software ghosts. Higher-load jobs expose half-secure hardware fast.
- Move the bed through full travel and watch the cable path. A full-stroke tug or rough zone matters more than a short unloaded hand check.
If the printer is also struggling with broader baseline setup issues, use the setup checklist. If curled geometry is creating the impact, route next into overhang curl or the relevant material warping page before you only calm the motion profile.
What usually helps next
- tighten or secure the Y motion path properly if the bed-axis grip is only barely holding under heavier work
- calm acceleration and travel on the jobs that make the bed work hardest instead of assuming one aggressive profile suits every bedslinger load case
- fix collision triggers first if a taller feature, curled lip, or proud infill line caused the skip
- clean up drag sources across the bed travel range if one position or cable path is adding hidden resistance
- treat bigger-job failures as a motion-envelope clue instead of a reason to distrust every STL you load
Editorial take
This is one of the better examples of why machine architecture still matters in troubleshooting. A bedslinger can print excellent parts, but tall or heavier jobs ask more from a moving bed than easy low-mass work does. When the layer shift only appears once the job gets bigger, that is not random bad luck. It is usually the printer telling you which part of its motion envelope is no longer comfortable.
Common questions
Why do bedslingers shift layers more on tall prints?
Because taller jobs raise collision risk and often make the moving bed work harder through direction changes, which exposes weak belt grip, drag, or motion settings sooner.
Why do small prints finish but bigger ones shift layers?
Smaller prints stay inside an easier motion envelope. Bigger jobs add bed momentum, longer travel, taller geometry, and more chances for one collision or lost step to knock the axis off truth.
Should I blame the file if the shift only happens on one large model?
Usually not first. Large models can expose motion load, collisions, or drag that smaller parts never trigger, even when the file itself is fine.
What should I read next?
Go next to the broader layer-shift guide, ghosting or ringing, Z banding, overhang curl, and the quality-problems hub depending on whether the next clue is pure position loss, broader motion vibration, taller-wall instability, or one collision-prone feature.
