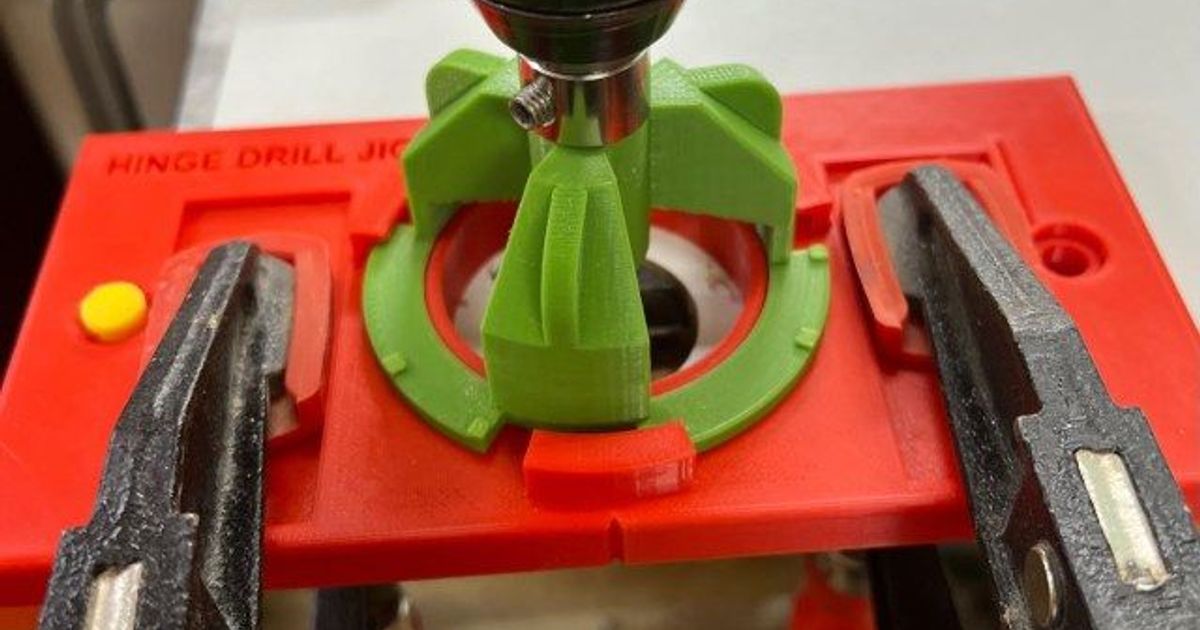

Usually, print a hinge drill jig only if you need a low-cost, custom, occasional-use setup helper. Buy one if you want a longer-life tool with stronger repeatability and less doubt when drilling expensive cabinet doors.
That is the practical split. A printed hinge drill jig can absolutely help you place 35 mm concealed-hinge cup holes more consistently. But the real decision is whether you need a one-project drilling helper, a custom offset solution, or a tool you expect to trust across repeated cabinet and furniture work.
If the job is small, one-off, or layout-specific, printing can be the smarter move. If the jig is about to become part of your normal installation workflow, buying usually makes more sense.
Quick answer
- Print one if you need a cheap, custom, occasional, or proof-of-concept hinge drilling guide.
- Buy one if you want stronger wear resistance, cleaner repeatability, and a more durable long-term cabinet-hinge setup tool.
- Print one first, then buy later if you are still validating spacing, offsets, or your concealed-hinge workflow before spending more.
When printing a hinge drill jig makes sense
A printed hinge drill jig is strongest when the main goal is solving one narrow cabinet-layout problem fast.
- you only need it for one cabinet project, one vanity, or one furniture build
- you want to test concealed-hinge placement before buying a dedicated jig
- you need unusual edge offsets, stop features, or geometry a standard jig does not match well
- you already print woodworking helpers and understand that a printed guide is not always a forever tool
- you want a lower-cost way to reduce layout mistakes before drilling finished door panels
That is the lane where printing stops being a novelty and becomes a sensible buying decision.
When buying one is the smarter move
If concealed-hinge drilling is something you expect to do regularly, buying is usually the cleaner answer.
- you are building or installing many cabinet doors
- you want a tool that stays trustworthy through repeated use
- you care more about long-term repeatability than minimum up-front cost
- you do not want to reprint a worn guide or second-guess alignment drift
- multiple people will use the jig, or it needs to survive a busier workflow
That is where a bought jig stops being overkill and starts being the more honest tool for the job.
What actually separates a printed jig from a bought one?
| Question | Printed hinge drill jig | Bought hinge drill jig |
|---|---|---|
| Up-front cost | Usually lower if you already print and only need one jig. | Usually higher, but easier to trust immediately. |
| Customization | Strong advantage for custom offsets, edge references, or one-off door geometry. | Usually more fixed unless the jig system is adjustable. |
| Wear resistance | Lower if repeated routing or drilling contact loads the same plastic reference areas. | Usually better for repeated cabinet-door work. |
| Repeatability under heavier use | Can be good for lighter-duty work, but depends heavily on design, print quality, and material. | Usually the safer choice when the workflow is bigger than a one-project install. |
| Best fit | Occasional cabinet work, custom furniture, layout experiments, proof-of-concept drilling helpers. | Repeat installs, bigger runs, longer tool life, and lower uncertainty. |
Do you need a more durable guide surface?
For many buyers, this is the real decision point. A printed hinge drill jig can still be useful, especially if you only need it for one cabinet job or a few doors. But if the same reference edges and guide features are going to take repeated abuse, long-term trust matters.
That does not mean every printed jig is a bad idea. It means the printed route is strongest when project volume is lower, the geometry is custom, or the jig is acting more like a setup helper than a forever drilling tool.
Is a printed hinge drill jig accurate enough?
Often yes for one-off installs, furniture builds, and lighter-duty cabinet work. Not always the best choice for heavier repeat use.
Accuracy depends on more than the STL. It depends on print quality, material stiffness, how the jig references the door edge, how much flex shows up under drilling pressure, and whether you keep a consistent setup across every panel.
If you are printing one, the material decision matters more than many people expect. Read Best Filament for 3D Printed Drill Guides and Hole Jigs: PLA Pro or PETG? before assuming any random spool will hold alignment equally well.
When should you print one first?
Printing first is smart when you are still deciding whether the workflow deserves a permanent bought tool.
- you are testing concealed hinges on one furniture build
- you want to prove spacing and offset assumptions before buying a dedicated jig
- you need a custom helper for one cabinet style, one hinge family, or one awkward door layout
- the cost of reprinting later is acceptable if the project grows
This is also where the existing Hinge Drill Jig featured-file guide becomes useful: it shows what the printed route looks like when the goal is cleaner concealed-hinge setup rather than buying a dedicated jig first.
When should you skip printing and just buy?
Skip the printed route when the project scale or tool expectations are already high enough that uncertainty costs more than the purchase price.
- you are doing a full kitchen, repeated cabinet installs, or shop work for clients
- you want a tool that stays trustworthy with less monitoring
- you do not want to think about wear, flex, or reprint cycles
- you expect the jig to become part of a regular cabinetry workflow
At that point, buying is not anti-printing. It is just the cleaner decision.
What should you choose if you still want to print one?
If you still want the printed route, make it more deliberate:
- use a stiffness-first material if alignment matters more than rough handling
- step toward PETG if warmer storage or rougher shop handling is a bigger risk than maximum rigidity
- favor designs with strong edge references and enough body around the critical guide features
- treat any wear at the drilling reference points as a replacement signal, not as harmless cosmetic damage
The site's drill-guide material guide, cabinet hardware jig guide, cabinet-hardware-jig print-vs-buy page, and pocket-hole-jig print-vs-buy page all help if you are building a more trustworthy printed shop-tool workflow instead of treating every jig like the same category.
Bottom line
Print a hinge drill jig when the job is occasional, custom, layout-specific, or cost-sensitive enough that a shorter-life printed helper still makes sense.
Buy one when the jig will be used regularly and you care more about long-term repeatability, wear resistance, and lower doubt every time you drill a door panel.
If you are on the fence, the smartest move is often to print first to validate the workflow, then buy later if the jig earns a permanent place in your cabinet-install toolkit.
