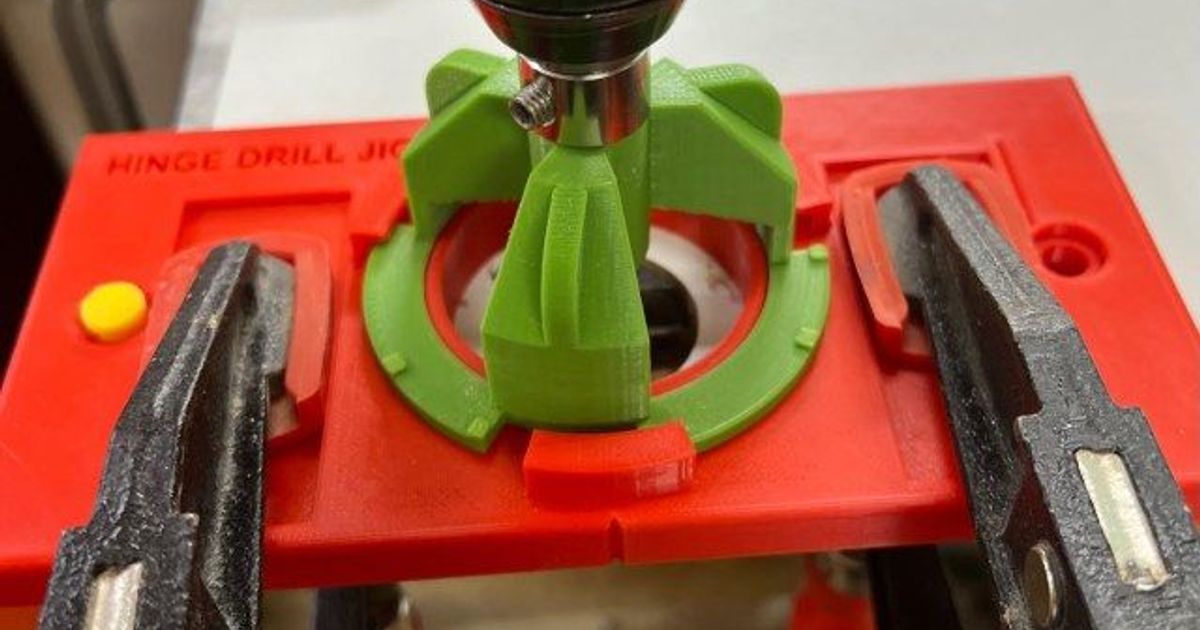

HINGE DRILL JIG on Printables is exactly the kind of featured file that makes sense on GoodPrints3D. The job is obvious, the shape is easy to understand from one image, and the benefit lands in a real build step instead of novelty clutter. If you have ever tried to place concealed cabinet hinges by hand, you already know how fast a small layout miss can turn into a crooked door or a wasted panel.
Direct source review shows about 311 likes, 1,451 downloads, roughly 6,977 visible views, 244 public collections, 10 makes, and 9 ratings averaging about 5.00 on Printables. That is strong enough public proof to treat this as a real user-backed woodworking file rather than a nice render with no follow-through.
If you are deciding whether a downloaded model is worth ordering, pair this with how to choose downloaded 3D models that are actually worth outsourcing for printing, what to check on rights and permissions, and how to hand a downloaded file off cleanly to a print service.
Why this file stands out
Concealed hinges are common, but drilling accurate 35 mm cups still trips people up when they only need to do a few doors, replace one bad panel, or handle a repair without investing in a dedicated commercial jig. This file gives that step a cleaner path. Instead of eyeballing offsets and hoping the bit stays where it should, the jig creates a more repeatable setup for cabinet work, built-ins, closet upgrades, and one-off furniture fixes.
- helps position 35 mm concealed-hinge drilling more consistently
- fits a very normal cabinet-door workflow instead of a niche machine-only setup
- easy to understand from the first image without reading a long explanation
- strong candidate for outsourced printing because many buyers need the jig, not a new hobby
Where it fits best
This is a strong file for DIY cabinet repairs, new built-in projects, shop fixtures with hinged doors, closet-door updates, and furniture work where concealed European-style hinges are already the plan. It also makes sense for homeowners doing a small kitchen or laundry-room refresh who want a cleaner hinge layout step without buying a whole drawer of seldom-used specialty tooling.
It stays distinct from the site's existing pocket-hole jig, self-centering gauge, and extrusion drill-guide coverage because the reader intent here is concealed-hinge cup placement on cabinet doors, not joinery, center marking, or frame-hole alignment.
Printing and use notes
A jig like this only earns its keep if it prints cleanly and holds its geometry. Dimensional consistency matters more than surface cosmetics, and a crisp result around the bit-guidance areas matters more than color or display appeal. That makes it a sensible outsource candidate when you want a finished helper ready to use instead of spending time testing scale and reprints yourself.
- Verify hinge size first: this article is centered on the common 35 mm concealed-hinge workflow described on the source listing.
- Use the exact file when quoting: jigs depend on geometry, offsets, and hole placement more than a generic description does.
- Think about material fit for shop use: PETG can make sense if the jig may get knocked around, though many indoor jigs also live happily in PLA.
- Order more than one if you batch doors: having a spare or a second station can make sense during a bigger cabinet run.
If you need broader help turning downloaded utility files into finished parts, JC Print Farm is the broader service path for one-offs and small batches built from supplied models.
Why this makes a strong GoodPrints3D feature
This file broadens the Featured Files lane into woodworking without drifting into vague shop decor or generic holders. It solves a real build step, has visible public traction, and gives the reader a believable reason to click Get this printed. It also works well visually because the tool's job is obvious at a glance.
When ordering one makes sense
This is a good outsource candidate when you only need the jig for a focused cabinet or furniture job, when cleaner hinge placement matters more than owning another specialty tool, or when you already know the file you want and just need a reliable print made from it. It is also a neat fit for small shops that want an inexpensive backup jig on hand for occasional hinge work.
If you want this file made for you, use this quote link: Get this printed.
Ownership and print-offer note
The public Printables page data exposes `excludeCommercialUsage: false`, which is a positive signal, but this pass did not independently confirm the exact human-readable commercial-use wording on the live source listing. Editorial coverage is clear, while production rights for the exact file should still be treated as unclear until the source terms are verified directly.
Frequently Asked Questions
What does this hinge drill jig help with?
It helps guide and repeat concealed-hinge cup drilling so cabinet-door hinge placement comes out cleaner and more consistent.
Who is this most useful for?
DIY cabinet builders, home upgraders, furniture makers, repair-focused users, and anyone drilling 35 mm concealed-hinge cups without a bigger commercial jig setup.
Why is this a strong file for outsourced printing?
Because the use case is clear, the geometry matters, and many people want the finished jig ready to use without owning a printer or tuning a one-off shop helper themselves.
Can a print service make this exact file?
Editorially, yes. Commercial production rights for the exact file should still be treated as unclear until the live source terms are confirmed directly.
