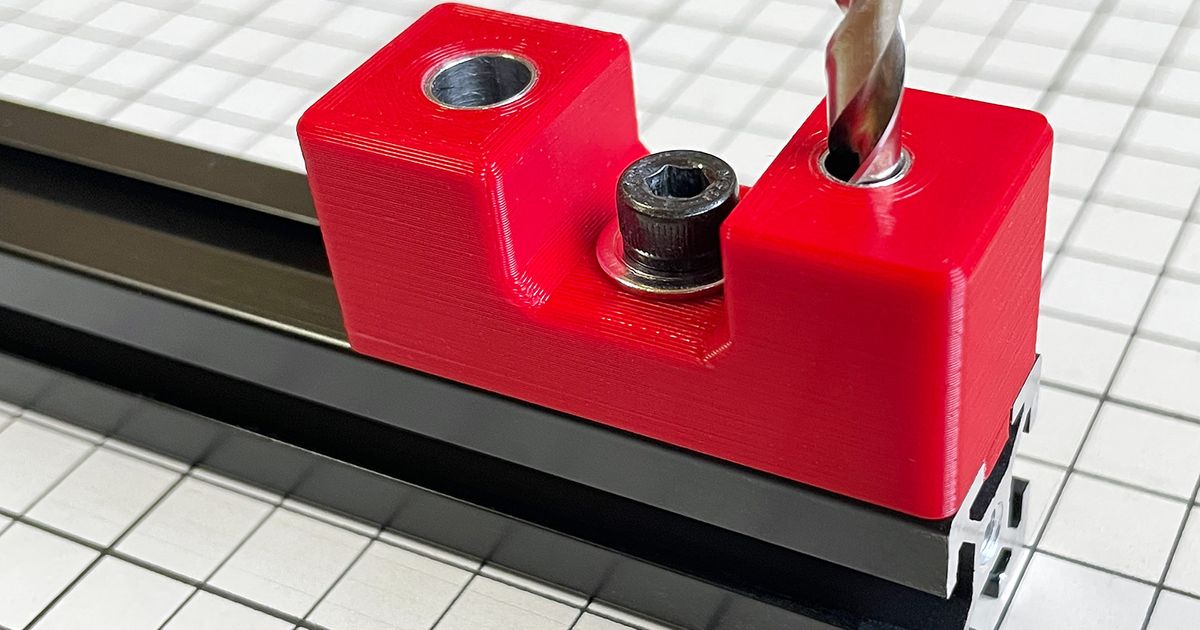

Drill Guide for 2020/3030 Aluminum Extrusion Profile on Printables solves a real maker-shop problem: once a frame build calls for accurate holes in extrusion, freehand drilling gets sloppy fast. A purpose-built guide like this gives builders a more controlled way to place holes for connectors, brackets, and hardware without treating the aluminum profile like guess-and-check stock.
Direct source review showed about 1,504 downloads, 6 makes, roughly 6,900 visible views, 394 public collections, and 4 ratings averaging about 5.00. Those are solid signals for a focused workshop jig aimed at people building machine frames, enclosures, carts, printer mods, and other extrusion-based shop projects.
If you are deciding whether a downloaded file is worth outsourcing, start with how to choose downloaded 3D models that are actually worth outsourcing for printing and what to check before ordering a downloaded model from a print service.
Why this file stands out
This is a narrow tool, but it does a job that matters. Builders using 2020 or 3030 extrusion often need straight, repeatable hole placement for custom frame work, fixture additions, or one-off shop improvements. When that step goes wrong, the whole assembly starts drifting. A printable guide like this makes the layout and drilling step easier to control without buying a specialty jig first.
- targets a very clear build problem instead of generic workshop clutter
- easy to understand from one image because the use case is obvious
- fits real maker workflows involving frames, rails, carts, and machine structures
- stays distinct from wall-drilling helpers by serving aluminum-profile build work
Who gets the most value from it
This file fits makers building 2020 or 3030 extrusion projects, small fabrication benches, DIY machine frames, camera rigs, printer enclosures, and utility carts. It makes the most sense for people who already know they need a drilling guide but would rather get one printed than model their own or gamble on rough freehand hole placement.
If your workflow starts earlier in the build, a self centering gauge helps with repeatable layout marks before the bit touches the extrusion, and a compact F-clamp holder fits the same bench-reset, fixture-building workshop lane once the project is underway.
That makes it a different use case from the site's wall drill guide coverage. The reader intent here is fixture-building and frame accuracy around aluminum extrusion, not cleaner drilling into drywall or masonry surfaces.
Print and setup notes
A guide like this lives or dies on fit and stability. The body has to sit cleanly on the extrusion, the drill path has to stay aligned, and the part needs enough strength to resist wobble while the hole is started. PETG is often a safer starting point than brittle low-end PLA for a tool that will be clamped, handled, and pressed against metal stock.
- Check profile fit first: a loose guide defeats the whole point of controlled hole placement.
- Print for stiffness: thin weak walls can let the guide flex during drilling.
- Use it as an alignment helper, not magic: careful setup and sensible drilling technique still matter.
- Order a spare if you build often: jigs are more useful when one can stay with the project kit.
For a broader material screen first, use the GoodPrints3D filament guide. If your bigger need is a cleaner handoff for a downloaded utility model, see how to hand off a downloaded model cleanly.
Why this makes a strong GoodPrints3D feature
It is useful, visually understandable, and tied to real bench work instead of novelty. It also opens a clean outsourcing path because many builders only need a jig like this once or twice per project and would rather buy the finished part than tune their own print for fit around metal extrusion.
When ordering one makes sense
This is a strong outsource candidate when you are already building with 2020 or 3030 extrusion, want cleaner repeatability than freehand drilling, or need a guide quickly for a frame or fixture project without pausing to dial in your own print settings first.
If you want this file made for you, use this quote link: Get this printed.
If you need broader help with workshop jigs, brackets, clips, or short-run utility parts, JC Print Farm is the broader service path.
Ownership and print-offer note
The public Printables page data exposes `excludeCommercialUsage: false`, which is a positive signal, but this pass did not independently confirm the exact human-readable commercial-use wording on the live source listing. Editorial coverage is clear, while production rights for the exact file should still be treated as unclear until the source terms are verified directly.
Frequently Asked Questions
What does this drill guide help with?
It helps place holes more cleanly and consistently in 2020 and 3030 aluminum extrusion during frame, fixture, and shop-build work.
Who is this most useful for?
Makers and workshop users building with aluminum extrusion for enclosures, carts, printer projects, camera rigs, and machine structures.
What material should it be printed in?
PETG is a safer starting point when the part will be pressed against metal and used as a repeat-use shop jig, because it usually handles that duty better than a brittle low-end print.
Can a print service make this exact file?
Editorially, yes. Commercial production rights for the exact file should still be treated as unclear until the live source terms are confirmed directly.
