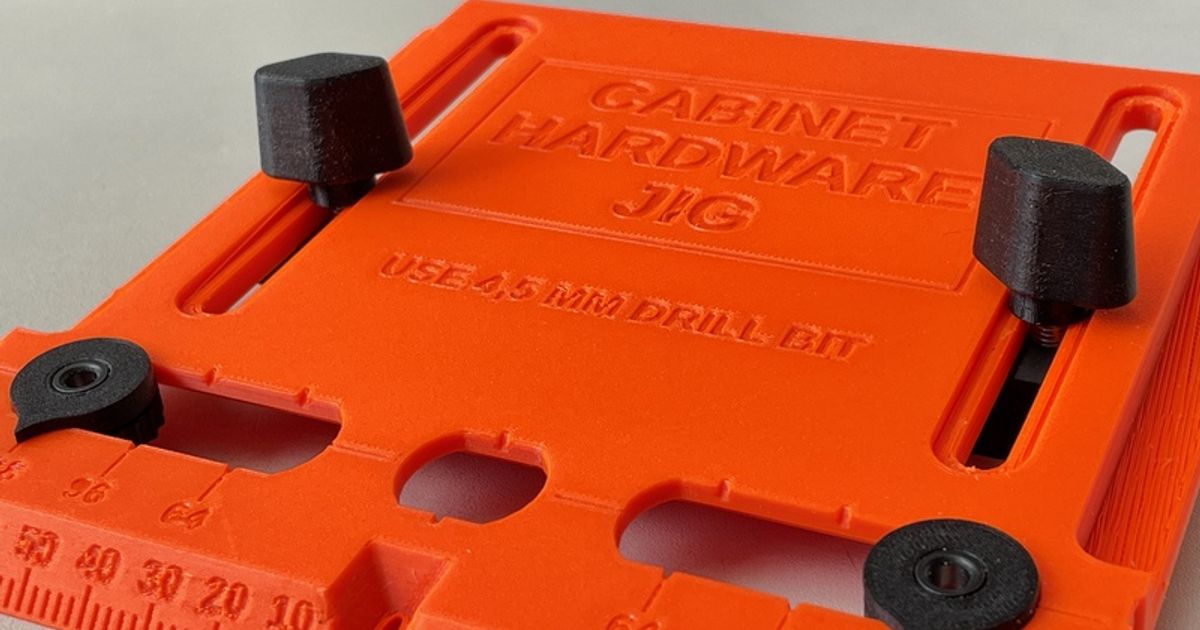

Cabinet Hardware Jig on Printables is exactly the kind of useful model that makes outsourced printing feel legitimate. Instead of being another generic shop accessory, it helps solve one of the easiest ways to make a kitchen refresh, furniture build, or rental upgrade look amateur: crooked drawer pulls and uneven cabinet handles. If the drilling pattern lands wrong, the mistake is visible every time a drawer opens.
Direct source review showed about 1,015 downloads, roughly 10,196 visible views, 376 likes, 359 public collections, 2 makes, and 3 ratings averaging about 4.67 on Printables. Those are solid public signals for a narrow installation jig that earns its place by reducing layout drift and helping repeated holes land where they should.
If you are deciding whether a downloaded model is worth ordering, pair this with how to choose downloaded 3D models that are actually worth outsourcing, what to check on rights and permissions, and how to make sure a custom 3D printing quote covers the whole job before you approve it.
What problem this model solves
Installing cabinet hardware sounds simple until you are trying to keep hole spacing, edge offsets, and left-right consistency under control across a whole row of drawers or doors. One measurement slip can turn into patched holes, off-center pulls, or hardware that looks slightly wrong forever. A printed jig changes the job from repeated marking and hoping into a more controlled drilling workflow.
- helps repeat the same handle placement across multiple drawers and doors
- reduces the chance of visibly crooked pulls during kitchen, bath, closet, or furniture work
- gives homeowners and small-shop builders a cleaner path than measuring every hole from scratch
- creates a natural outsource case for readers who want the jig made accurately without owning a printer
Why this design is worth noticing
This file is stronger than a thin spotlight because it supports a real project guide angle. Readers do not just need to know that a jig exists; they need to understand why repeatability matters when hardware is going onto a bank of drawers, replacement fronts, or a cabinet run where one bad hole can slow down the whole job.
It also sits in a useful middle ground. It is not a one-time decorative print, and it is not an obscure machine part. It is a bench helper for a common finish-stage task that many people only do occasionally, which makes outsourced production sensible. You order the jig once, use it across the install, then keep it for the next hardware swap or room refresh.
Who gets the most value from it
This kind of jig is strongest for homeowners changing out kitchen pulls, landlords resetting worn rental hardware, woodworkers building cabinets or drawers, and anyone doing a room-by-room hardware update where consistency matters more than speed alone. It is also a good fit for people who are comfortable drilling and installing hardware but would rather start from a repeatable guide than from loose tape-measure marks.
How to use the article even if you never print the file
The useful lesson here is that cabinet hardware work should be treated like a layout-control job, not a vibes job. Before drilling anything, readers should lock down three things:
- hole spacing: match the actual pull or handle center-to-center distance
- edge reference: choose one repeatable offset from the top, bottom, or side
- part grouping: separate drawer fronts, full-height doors, and mixed-width panels instead of assuming one setup fits everything
That framing makes the article useful even for readers who never click through. The file is the tool, but the real value is understanding how to avoid visible layout mistakes before they happen.
Printing and installation notes
- Verify your hardware dimensions first: do not assume pull spacing from a product listing when the actual handle can be checked with calipers or a ruler.
- Test on scrap if the project matters: a cheap practice hole on spare material is easier than filling a drawer front.
- Use the jig as part of a system: clamp or hold it consistently, confirm orientation, and keep your reference edge the same across the whole run.
- Think about drill-bit guidance wear: if the jig will see heavy repeated use, material choice and drilling method matter more than they do for a simple organizer print.
If you need help turning a downloaded file into a finished part, JC Print Farm is the broader service path for one-offs and small batches built from supplied models.
When ordering one makes sense
This file makes sense when you have a real cabinet or furniture hardware job coming up, want cleaner results than freehand marking usually produces, and would rather start with a finished guide than spend time tuning your own print. It also makes sense for repeat work: rental turns, built-ins, shop cabinets, or any project where one jig can pay off across multiple panels.
If you want this file made for you, use this quote link: Get this printed.
Ownership and print-offer note
The public Printables payload exposes `excludeCommercialUsage: false`, which is encouraging, but this pass did not independently verify the exact human-readable commercial-use wording on the live listing. Editorial coverage is clear, while production rights for the exact file should still be treated as unclear until the live source terms are confirmed directly.
Common questions
What does a cabinet hardware jig help you avoid?
It helps you avoid the slow drift that turns matching handles into a visibly uneven install. The value is not the jig as a novelty item; it is cleaner spacing, straighter repeated holes, and less rework on drawers or doors you only get one clean chance to drill.
Who should think about ordering one instead of printing it at home?
Anyone with a real cabinet refresh, rental turn, furniture build, or small shop project underway can justify ordering one if they want the install tool ready to use instead of spending setup time making it first. That is especially true when the project matters more than owning more bench gear.
What should you check before ordering one printed?
Check the hole spacing you need, the reference edges the jig expects, and whether the file's layout matches your actual pull or handle hardware. Even a good jig becomes the wrong tool if the project hardware is measured loosely.
How does this connect to the rest of the install-jig lane?
This is the right tool when the problem is repeated handle-hole layout across cabinets or drawers. If you need cleaner latch mortises on a door edge, use the router-jig path; if you just need a light-duty closure solution after installation, the sliding-door latch route is the better match.
