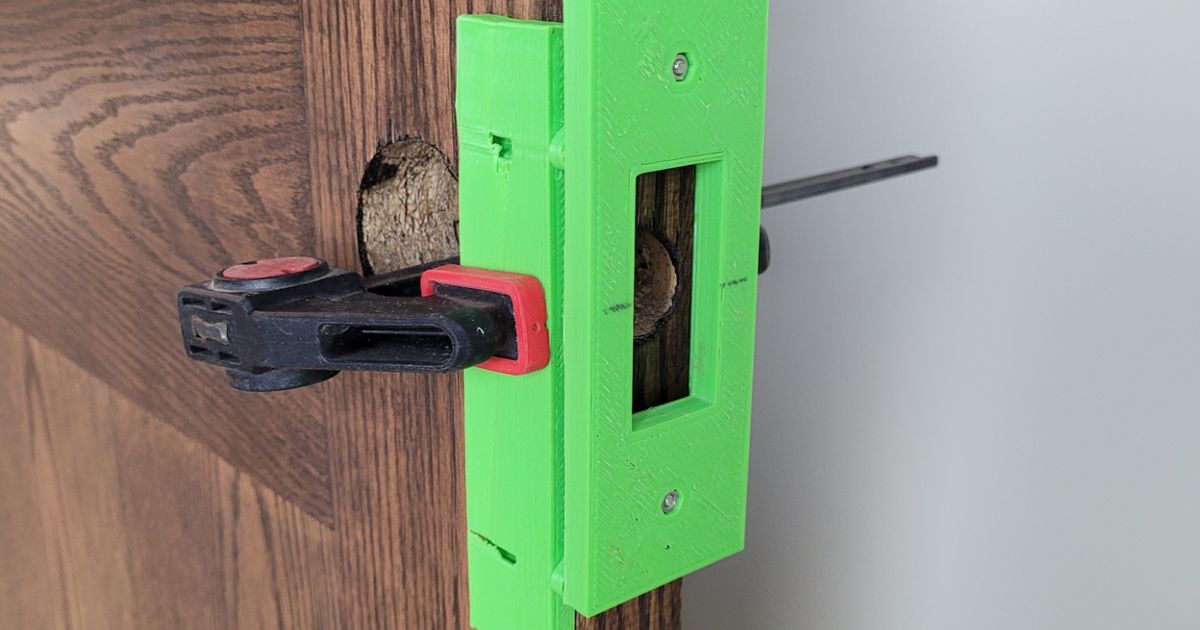

Door Knob Latch Plate Router Jig on Printables is the kind of useful file that earns a full article instead of a thin spotlight. Door hardware work can look simple right up until the latch plate mortise lands off-center, too wide, too ragged, or slightly crooked. Once that happens, the door edge tells on you every time the latch closes.
Direct source review showed about 643 downloads, roughly 4,360 visible views, 94 likes, 63 public collections, 1 makes, and 1 ratings averaging about 5.00 on Printables. Those are solid public signals for a narrow installation jig whose whole job is reducing visible finish-work mistakes.
If you are deciding whether a downloaded model is worth ordering, pair this with how to choose downloaded 3D models that are actually worth outsourcing, what to check on rights and permissions, and how to make sure a custom 3D printing quote covers the whole job before you approve it.
What problem this model solves
Installing or replacing a door latch usually means cutting a shallow mortise in the door edge so the latch plate sits flush. The annoying part is not the depth alone. It is keeping the template centered and repeatable so the routed recess looks deliberate rather than chewed out by guesswork. This jig is built to make that alignment step easier.
- helps center a router guide over the latch opening on the door edge
- supports cleaner latch plate mortises during lockset installs, replacements, and repair jobs
- reduces hand-marking drift that can turn one simple door job into patching and repainting
- gives readers a believable outsource case because fit and geometry matter more than hobby ownership
Why this design is worth noticing
The strongest GoodPrints model articles do more than say a file exists. They explain where the file removes friction from a real job. This one earns that framing because door hardware work punishes small alignment mistakes. A slightly bad organizer still holds things. A slightly bad latch mortise looks sloppy and can affect how cleanly the hardware seats.
It also fits the site's useful-project lane better than another generic wall hook or desk tidy. Readers can see the workflow immediately: center the jig, route the recess, test the plate, and move on with cleaner install work. That makes the file useful even for readers who never order this exact print, because the article teaches what to control in the job itself.
Who gets the most value from it
This jig makes the most sense for homeowners replacing worn locksets, landlords resetting interior doors between tenants, maintenance-minded readers handling trim and hardware fixes, and woodworkers or remodelers who would rather start from a repeatable routing guide than improvise every mortise with a pencil and chisel.
How to use the article even if you never print the file
The important lesson is that latch plate work is a centering and repeatability problem before it is a cutting problem. Before routing anything, lock down four things:
- plate size: confirm the latch plate length and width you actually need to seat
- reference point: center from the real latch bore and door edge, not just eyeballed door thickness
- depth control: remove only enough material for a flush plate fit
- test fit sequence: dry-fit the plate before paint, final screws, or trim-up decisions
That turns the article into a project guide instead of a file dump.
Printing and use notes
- Verify the latch plate dimensions first: not every lockset uses the same plate footprint.
- Test on scrap if the door matters: a spare board is cheaper than repairing a visible door edge.
- Use the jig as part of a controlled setup: clamp or hold consistently, confirm router offset, and check centering before cutting.
- Keep finish quality in perspective: clean geometry matters more here than decorative surface polish.
If you need help turning a downloaded file into a finished part, JC Print Farm is the broader service path for one-offs and small batches built from supplied models.
When ordering one makes sense
This file makes sense when you have actual door hardware work coming up, want a more repeatable path than freehand layout, and would rather start with a finished guide than spend time tuning your own print. It is especially believable for one-time home-repair jobs where the goal is a cleaner install, not getting pulled into printer ownership.
If you want this file made for you, use this quote link: Get this printed.
Ownership and print-offer note
The public Printables payload exposes `excludeCommercialUsage: false`, which is encouraging, but this pass did not independently verify the exact human-readable commercial-use wording on the live listing. Editorial coverage is clear, while production rights for the exact file should still be treated as unclear until the live source terms are confirmed directly.
If you want this install jig printed before the door work starts
Layout jigs are easy to underestimate until one missing dimension turns a fast install into patching and repainting. Before you order, use the model-screening guide, confirm rights and permissions, and package the request with the downloaded-model handoff guide. If door thickness, router-guide fit, or quantity still needs to be stated cleanly, add the quote-prep checklist before the job leaves your bench.
Common questions
What does a latch plate router jig actually improve?
It helps you route a cleaner recess for the latch plate so the hardware sits flush and the edge work looks more controlled. The real value is repeatability: less wandering, less hand-juggling, and fewer chances to turn a simple install into patch-and-paint work.
Who gets the most value from ordering this kind of jig?
Homeowners, landlords, maintenance teams, and remodelers get the most value when they have real door-hardware work coming up but do not want to buy a printer just to solve one installation task. It also makes sense for people who care more about cleaner results than about making the jig themselves.
What should you confirm before having one made?
Confirm the door-hardware dimensions, latch-plate style, and any thickness or router-guide details that affect fit. A jig only saves time when the printed geometry matches the hardware that will touch the door.
When is this the better starting point than a closure or handle jig?
Start here when the issue is the mortise and plate alignment on the door edge. If the install problem is drawer-pull spacing or cabinet-handle repetition, a cabinet hardware jig is the more relevant tool; if the door is installed already and just needs a light-duty catch, the sliding-door latch path makes more sense.
