You do not automatically need dual Z on a 3D printer. A well-supported single-Z design is enough for many compact, lightweight machines. Dual Z becomes more worthwhile when the X gantry is wide, carries a heavy direct-drive toolhead, changes tools, or must stay level through frequent production use. Buy the implementation, not the screw count: two screws can improve support, but only a properly designed system avoids binding and stays synchronized.
The most important distinction is not simply one screw versus two. A dual-Z printer may use two screws driven by one motor and a belt, two motors connected to one driver, or two independently controlled motors that can tram the gantry. Those systems do not provide the same ownership benefit.
Quick verdict
Single Z is usually enough for a proven compact printer with a light gantry, ordinary PLA or PETG work, and no recurring evidence that the unsupported side is drifting.
Dual Z is worth prioritizing on wider machines, heavy direct-drive gantries, tool-changing or high-throughput platforms, and printers that use independent Z control for automatic gantry tramming.
Two motors do not always mean automatic leveling. If both motors share one driver, the printer usually cannot correct left-to-right gantry tilt by commanding each side separately.
Do not reject a good printer for having one screw. Frame stiffness, gantry support, alignment, firmware, service documentation, and actual print evidence matter more than a feature-list checkbox.
What the Z system actually does
On a typical Cartesian bedslinger, the Z system raises and lowers the X gantry that carries the toolhead. A lead screw converts motor rotation into slow vertical movement, while wheels or linear rails guide the gantry. On other layouts, the Z system may move the build platform instead. Either way, the guide system carries and constrains the moving assembly; the screw provides controlled motion rather than acting as the only structural rail.
A single-Z bedslinger commonly drives one side of the X gantry. The opposite side is constrained by its guide wheels or rail and moves because the crossbeam is stiff enough to transmit the motion. This can work very well on a compact machine. It becomes less forgiving as the span, toolhead mass, or free-side leverage increases.

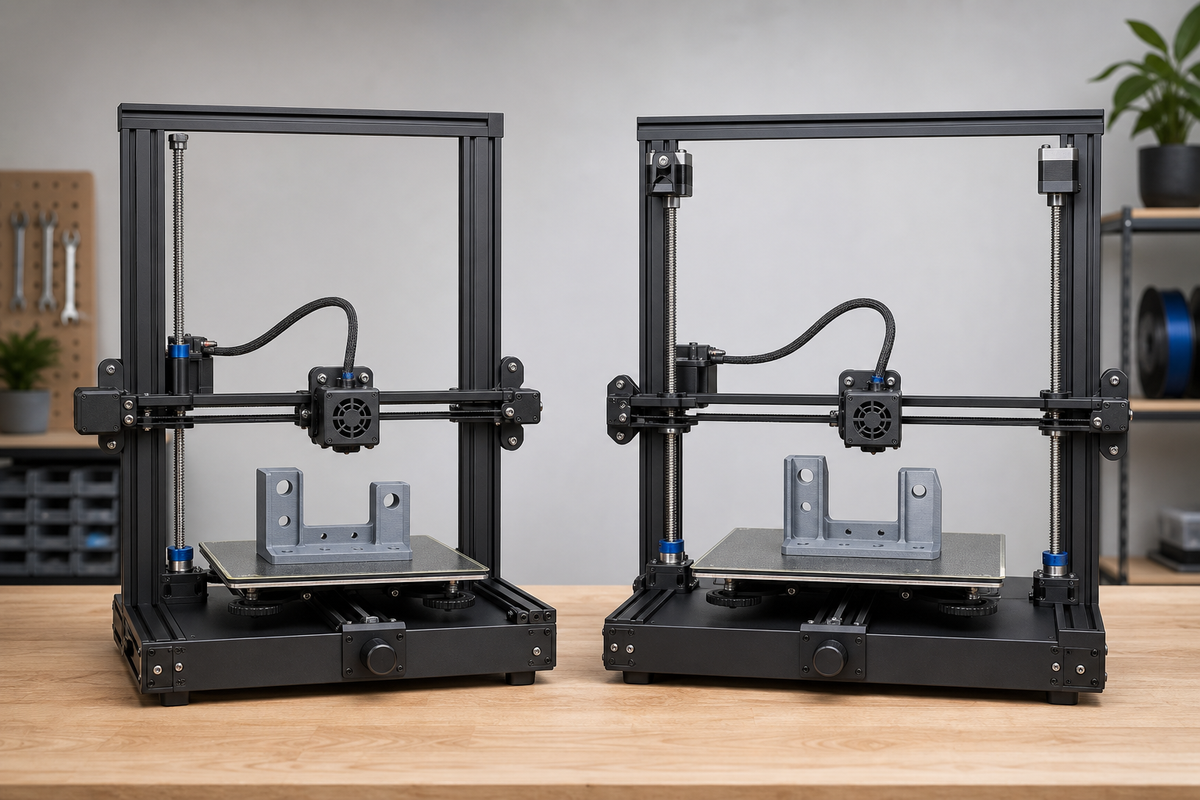

Single Z versus dual Z: the buying differences
| Buying factor | Single Z | Dual Z |
|---|---|---|
| Best fit | Compact, light, well-proven gantries | Wide or heavy gantries and repeat-use machines |
| Parts count | Fewer screws, couplers, bearings, and motors | More components to align and maintain |
| Gantry support | Relies more on crossbeam stiffness and free-side guides | Actively lifts both sides when properly synchronized |
| Automatic tramming | Not available side-to-side | Available only with independent control and suitable firmware or sensors |
| Binding risk | One screw has fewer alignment interactions | Two misaligned screws can fight the guides |
| Feature value | Can be entirely adequate, not automatically budget-grade | Useful when the complete system earns the extra complexity |
The three common dual-Z designs are not equivalent
Two screws linked to one motor
A belt can connect two lead screws to one motor so both sides turn together. This mechanically synchronizes the screws and reduces the chance that one side drops independently while power is off. It can support a wide gantry well, but belt tension, pulley security, and screw alignment become part of maintenance. It also cannot electronically tram one side against the other because there is only one motor command.
Two motors sharing one driver
Each screw has a motor, but both motors receive the same electrical command. This adds lifting support across the gantry, yet it is still not independent Z control. The sides can lose their relationship if one motor skips, a screw binds, or the gantry is moved by hand while disabled. Some printers mechanically square the gantry against fixed stops during homing; buyers should confirm that behavior rather than assume it.
Two independently controlled Z motors
Independent drivers allow firmware to move the left and right sides separately. With a suitable probe routine or separate endstops, the printer can tram the gantry to the bed or frame reference. This is the most capable version for wide and production-oriented machines, but its benefit depends on a reliable sensing strategy, correct firmware, and a mechanically square frame.
When single Z is enough
The printer is compact and the gantry is light
A short, rigid X beam with a light toolhead places less twisting load on its driven side. Many proven 180 to 220 mm-class designs produce consistent parts with one Z screw because the guide system and crossbeam are engineered for that span. The exact design and track record matter more than a universal bed-size cutoff.
You are buying a complete, validated machine
A mature printer with stable first-layer behavior, good assembly control, clear service instructions, and strong owner evidence can be the better purchase even if a competitor advertises dual Z. Adding a second screw is inexpensive on a specification sheet; aligning it well and supporting it in firmware is the harder part.
Your work is ordinary and occasional
For household parts, prototypes, organizers, toys, and light-duty brackets, single Z is unlikely to be the limiting feature on a sound machine. Hotend flow, cooling, profiles, build surface, support, and ease of recovery will usually affect ownership more often.
When dual Z is worth prioritizing
The X gantry is wide
A wider crossbeam creates more leverage between the driven side and the unsupported side. Two properly aligned lift points can reduce sag and make left-to-right height easier to preserve. Large-format buyers should still check frame stiffness, bed support, and thermal behavior; dual Z alone does not make a large printer precise.
The toolhead is heavy
Direct-drive extruders, large part-cooling systems, tool changers, and multi-material mechanisms add mass to the X assembly. Dual support becomes more defensible when that mass travels across a wide span. A lightweight direct-drive toolhead on a compact printer may still work perfectly with single Z, so use the full geometry rather than the extruder label alone.
You need repeatable start-of-job tramming
Independent Z control can correct gantry tilt during a defined homing or tramming routine. That is valuable when different operators use the printer, the machine runs long queues, or a small left-to-right error could affect a wide first layer. Confirm that the exact printer independently drives and senses both sides. Marketing phrases such as "dual Z" or "automatic leveling" do not prove this feature exists.
You expect frequent toolhead changes or maintenance
Service work can disturb a gantry. A documented automatic-tramming routine can shorten recovery, especially on a wider machine. The advantage belongs to the complete calibration workflow, not merely the presence of a second motor.
Dual Z does not replace bed leveling
Gantry tramming, bed tramming, and bed-mesh compensation solve related but different geometric problems. Dual Z can help make the X gantry parallel to a chosen reference. Manual bed adjustment sets the bed plane. A probe mesh measures local height variation so firmware can compensate during early layers.
A printer can advertise dual Z and still need an accurate Z offset, a stable bed, and a reliable probing routine. The separate guide to auto bed leveling versus manual leveling explains what that buyer feature does and does not automate.
Can dual Z improve print quality?
It can improve consistency when a single-sided gantry genuinely sags, twists, or loses height on its free side. It does not automatically sharpen detail, remove ringing, correct extrusion, or flatten a warped bed. At ordinary layer heights, a rigid single-Z machine and a well-aligned dual-Z machine can produce equally good finished parts.
Do not use one isolated defect photo as proof that a printer needed another screw. Repeating horizontal ribbing may involve several vertical-motion or extrusion causes; the Z-banding guide separates those paths. A part that leans is also not automatic evidence of single-Z failure, as the leaning-versus-skewing guide explains.
What can go wrong with dual Z?
- The screws are not aligned with the guides: two lift points can add friction or periodic error when their axes do not agree with the rails or wheels.
- The sides lose synchronization: shared-driver motor systems may drift after skipped steps, manual movement, or power-off handling.
- The top bearings over-constrain the screws: forcing imperfect lead screws into rigid alignment can transfer wobble into the gantry.
- The firmware cannot tram independently: two motors connected to one driver still behave as one commanded axis.
- The frame is not square: automatic routines cannot make a twisted frame mechanically sound.
- Maintenance is undocumented: owners need a clear way to square, synchronize, lubricate, and verify the system.
Should you add a dual-Z upgrade later?
Do not buy an upgrade kit solely because two screws look more substantial. First confirm that the printer has a documented weakness your workload exposes and that the kit matches the frame, power, wiring, motor current, firmware, and gantry geometry. A second motor plugged into a splitter usually adds support but not independent tramming.
A belt-synchronized kit may preserve the relationship between sides better than two free motors, while an independent-driver conversion can add true tramming if the controller and firmware support it. Both can create new alignment problems when installed carelessly. If the stock printer is consistent, the upgrade may add maintenance without improving accepted parts.
How to compare two printers before buying
- Identify the moving assembly: determine whether Z moves the gantry or the bed and what mass the system must carry.
- Count drivers, not only motors: ask whether dual motors are independent, shared, or mechanically synchronized.
- Find the tramming routine: look for the exact homing, probe, endstop, or fixed-stop procedure used to square the sides.
- Check the span and toolhead: wider beams and heavier toolheads make two-sided support more valuable.
- Read the service procedure: the manufacturer should explain alignment, synchronization, lubrication, and recovery after a skipped side.
- Review wide first layers and tall parts: evidence across the full build width is more useful than a small center-bed benchmark.
- Compare the whole printer: profiles, motion system, bed support, material capability, replacement parts, and support still outweigh one feature.
Buyer checklist
- How wide is the X gantry, and how heavy is the complete toolhead?
- Does each Z motor have an independent driver?
- Are the two screws connected by a synchronization belt?
- Can the printer automatically tram the gantry, and what sensor or reference does it use?
- What happens after one side skips or the gantry is moved while powered off?
- Are screw alignment and lubrication procedures documented?
- Do full-width first-layer tests look consistent?
- Do tall test parts remain square without unexplained drift?
- Would a dual-Z checkbox make you overlook better profiles, support, or reliability?
- Is an upgrade kit solving measured need or only adding parts?
Three common buyer scenarios
First compact printer for PLA and PETG
Single Z is enough when the exact printer is proven, the gantry is light, and setup support is good. Prioritize dependable profiles, bed behavior, documentation, and parts availability before paying more for dual Z.
Large bedslinger with a direct-drive toolhead
Dual Z is easier to justify because both span and toolhead mass increase the demand on the gantry. Prefer a synchronized or independently trammed design with a clear squaring procedure, not merely two motors on the specifications page.
Frequent production or multiple operators
An independently trammed dual-Z system can reduce setup variation, but the value must show up in accepted parts and recovery time. Motion architecture is a separate purchase question; use the CoreXY versus bedslinger guide if you are deciding whether the entire printer layout should change. If demand is irregular, compare whether a small business should buy a printer or use a print service.
Bottom line
Single Z is enough for many compact, well-engineered 3D printers. Dual Z is worth prioritizing when a wide or heavy gantry needs support or when independently controlled motors provide a real automatic-tramming workflow. Two screws are not a quality guarantee: alignment, synchronization, frame stiffness, firmware, and service documentation determine whether dual Z is an upgrade or simply more hardware.
For commercially important parts, consistent output may matter more than owning another machine feature. JC Print Farm is the relevant support route when you need custom parts or repeat small-batch production instead of another printer purchase.
Frequently asked questions
Does dual Z mean two motors?
Not always. Some dual-Z systems use one motor and a belt to turn two screws. Others use two motors on a shared driver or two independently controlled motors.
Can two Z motors level the gantry automatically?
Only if the printer can command the sides independently and has a suitable sensor, endstop, or tramming routine. Two motors sharing one driver cannot electronically correct one side without moving the other.
Is single Z bad on a direct-drive printer?
No. A compact, stiff gantry can carry a lightweight direct-drive toolhead successfully with one screw. Width, mass, guides, assembly quality, and owner evidence matter together.
Will a dual-Z upgrade remove Z banding?
Not necessarily. It only helps if unsupported-gantry behavior is the actual cause. Misaligned added screws can create binding or repeating artifacts of their own.
