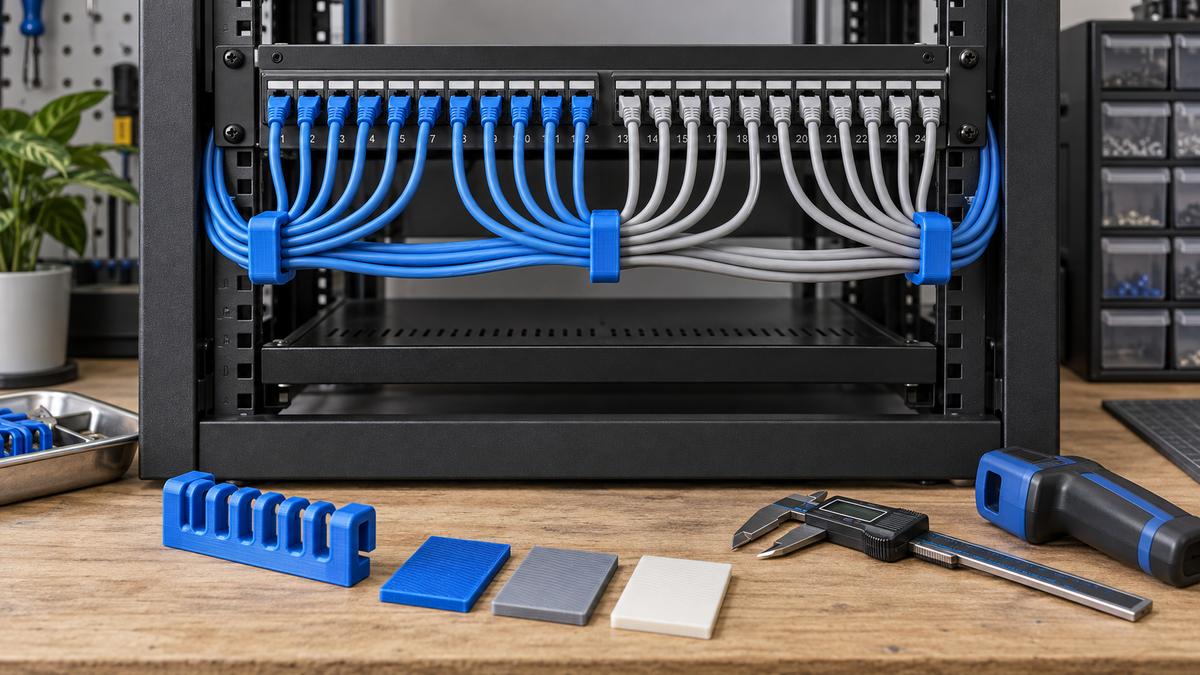

Best Filament for Patch-Panel Cable Combs?

Use PETG for most 3D-printed patch-panel cable combs in cool, indoor, low-consequence racks. It is the practical first candidate when the comb only spaces flexible low-voltage patch cords and can be replaced easily. Use ASA only when measured UV exposure or a warmer service environment justifies it. Use polycarbonate only when a measured heat, impact, or stiffness gap remains after the geometry is corrected. If a project, facility, insurer, code, or customer requires a flame-performance classification, use listed commercial cable-management hardware or an exact additive process accepted for that installation; a flame-rated filament label by itself does not qualify the printed comb.

A cable comb is an organizer, not electrical insulation, strain relief, fire stopping, cable support, bonding, shielding, or a substitute for the patch-cord manufacturer's bend-radius and installation limits. The safest design keeps every cable loose enough to move without jacket marking, preserves connector access, and lets technicians remove one cord without disturbing the bundle.

Best material by patch-panel cable-comb job

A patch-panel comb has a narrower job than it appears

The useful job is visual ordering near the patch panel: keeping adjacent cords in a known sequence, improving label visibility, and preventing a loose foreground tangle during service. That is different from supporting the cable's weight or resisting a pull. Route weight into the rack's intended horizontal or vertical cable manager. Put strain relief where the connector or equipment maker intends it. Let the comb float or mount lightly enough that it cannot turn a tug on the bundle into a lever at the modular plug.

Leviton's current network-solutions catalog describes angled patch panels as routing patch cords into vertical management and facilitating proper bend radius. It also presents cable-management hardware as part of the rack system. That supports a simple boundary: a printed comb may help present cables neatly, but the rack layout and cable-management system still own routing, bend control, and service access.

For a rack that still needs the panel itself, compare the existing 24-port keystone patch-panel route. The panel, jacks, cords, rack hardware, grounding or bonding provisions, and cable-management accessories must be selected as a system; a comb is not the system.

Electrical insulation, cable strain, heat, and access are four separate gates

1. Electrical insulation

Do not count the printed comb as an electrical barrier. It should touch only intact cable jackets in an application where the cabling, connectors, patch panel, equipment, and enclosure already meet their requirements. Keep it away from exposed conductors, terminals, mains wiring, damaged jackets, hot components, and required separation spaces. If removing the comb would make the installation electrically unsafe, the design has assigned it the wrong job.

Also avoid treating a polymer's published electrical property as approval of the printed part. Printed voids, seams, moisture, contamination, colorants, recycled content, geometry, abrasion, and aging all change the real object. For general low-consequence cable retention away from a patch panel, use the existing cable-clips and strain-relief guide; do not make this comb perform that separate function.

2. Cable strain and bend

Measure the actual cable outside diameter instead of naming a slot “Cat 6” or “Cat 6A.” Patch cords vary by construction, conductor gauge, shielding, boot, jacket, and manufacturer. Build clearance into each slot, round every contact edge, and keep the comb away from the plug latch and boot transition. The cable should slide through the slot under light finger force without polishing, flattening, or indenting the jacket.

Preserve the cable maker's minimum bend radius in the installed route. The comb should not force an attractive but tight ninety-degree turn immediately behind the connector. Test the worst port, not only the center port: outside positions often see the sharpest turn toward a vertical manager. Do not pull a bundle tight merely to make parallel lines. CommScope's PoE guidance is especially relevant here because smaller, looser, well-ventilated bundles improve heat dissipation; a dense, rigidly combed bundle can work against that objective.

3. Heat buildup

PoE changes the thermal question. Current CommScope material notes that power dissipated in bundled cabling increases cable heating, while Panduit's PoE technical brief likewise identifies bundle temperature rise as a concern. That does not produce one universal safe comb temperature or bundle size. Cable category, conductor gauge, ambient temperature, pathway, bundle geometry, loading, equipment, and installation rules all matter.

Measure temperature in the final arrangement under a representative sustained network and PoE load. Compare the loose baseline with the comb installed. Watch the center of the bundle, the warmest connector area, the rack exhaust path, and the printed slot walls. A comb that reduces spacing, blocks airflow, or encourages a larger bundle has failed even if the plastic itself remains rigid. Never “solve” unexpected cable heating by moving to PC; investigate load, cable selection, bundling, equipment, ventilation, and the applicable installation requirements first.

4. Service access

A patch field changes. Technicians need to read labels, release latches, trace one cord, move a port, and remove a failed cable without unloading twenty-three neighbors. Prefer open-top or split designs with positive but non-pinching retention. Make each comb removable with the rack in a safe service state. Avoid hidden screws, hooks behind connector latches, and one-piece bars that trap the whole bundle.

Use a visible revision mark outside the cable-contact area, and keep a spare. If the port map changes, reprint the organizer rather than forcing a cable into the wrong slot. A neat rack that slows fault isolation is not a successful cable-management design.

How PETG, ASA, PC, and flame-rated options differ

PETG: the default for ordinary indoor prototypes and replaceable organizers

PETG is the sensible starting point because most patch-panel combs do not need exotic material performance. Prusa's current PETG guidance describes a tough material with useful temperature resistance and low warping. Those general traits support prototyping, not a promised rack rating or service life. Use generous root radii, avoid thin snap fingers, orient layers so opening the slot does not peel them apart, and retire the comb when it cracks, creeps, marks jackets, or loses retention.

ASA: choose it for measured environment, not prestige

Prusa describes ASA as suitable for outdoor use because of UV and temperature resistance. That makes ASA a candidate for a sunlit or warmer enclosure, provided the entire cable system is approved for the location. ASA's printing demands and emissions controls still matter. Do not choose it for an ordinary climate-controlled rack merely because it sounds more industrial.

Polycarbonate: a problem-solving material, not the automatic longest-lasting choice

PC may help when a documented grade and qualified print process close a measured heat, stiffness, or impact gap. It can also make an over-constrained slot less forgiving, increase stress on cable jackets, and fail at layer lines or sharp roots. First enlarge radii, reduce interference, shorten unsupported spans, improve mounting, and lower the mechanical load. Then compare exact printed coupons and full combs after moisture conditioning and representative cycles.

Flame-rated filament: evidence must follow the exact process

UL Solutions explains that additive-manufacturing recognition depends on the specific material, printer, and settings, and that ratings from conventionally processed plastics do not simply carry over. UL's explanation of UL 94 also distinguishes small-scale material tests from end-use approval. Therefore, “V-0 filament” is not a universal permission slip for a cable comb in any rack. Record the exact resin, color, supplier, machine, nozzle, layer height, orientation, settings, conditioning, post-processing, geometry, location, and acceptance basis. When that chain is unavailable, use the specified commercial organizer.

Design the comb around the cable, port map, and service motion

1. Inventory the actual cords. Record manufacturer, part number, outside diameter, boot length, bend limit, shielding, PoE use, and the ports that may change.
2. Choose the route before the comb. Place horizontal and vertical management, preserve equipment airflow, and establish service loops. Add a comb only where ordering remains useful.
3. Size every slot from measurements. Use the largest permitted cable plus print and measurement variation. Add rounded lead-ins and smooth contact surfaces.
4. Separate support from presentation. Rack hardware carries weight. The comb spaces cords. Do not hang a vertical cable run from printed slot walls.
5. Keep the connector zone free. A technician should reach every latch, label, and jack without bending or removing adjacent cords.
6. Limit bundle width. Multiple small, loose groups are easier to cool and service than one dense decorative ribbon.
7. Make failure harmless. A broken comb should fall away or remain captured without touching fans, power hardware, or exposed electrical parts.

A qualification plan that tests the real decision

Print at least three representative coupons and two full combs in the intended orientation. Condition them as the material supplier requires. Measure every critical slot before installation, then perform repeated cable insertions and removals with the exact cords. Reject sharp strings, elephant-foot interference, rough seams, cracks, whitening, permanent opening, or any jacket mark.

Install one comb on a safe representative rack and preserve a loose-control section. Exercise connector latches, trace a center cord and an edge cord, replace one cable, and change a port assignment. Confirm that tools are not required near live equipment and that the comb cannot drop into fans or power hardware. Then run a representative sustained traffic and PoE load, if applicable, and compare temperatures and airflow with the loose baseline. Recheck after a dwell period and several service cycles.

Document the cable list, rack position, comb revision, material lot, printer, settings, orientation, dimensions, ambient conditions, load, temperatures, inspection results, and acceptance owner. Retire the part after a cable-type change, rack-layout change, heat excursion, chemical exposure, impact, cracking, creep, surface damage, or failed service test. For repeated or customer-facing builds, the material-before-quote checklist helps turn those observations into a buildable specification.

When the answer is no printed comb

• The rack owner, facility, insurer, code, customer, or equipment documentation requires listed or specified hardware.
• The comb would be placed in a plenum, required pathway, firestop, electrical enclosure, or other controlled location without documented acceptance.
• The cable bundle carries significant PoE load and the print would make it denser or harder to ventilate.
• The design must carry cable weight, provide strain relief, enforce separation, bond or shield equipment, or protect exposed conductors.
• The cords cannot be removed individually, their bend limits are unknown, or the slots mark their jackets.
• A standard horizontal or vertical manager, hook-and-loop retention, or the panel maker's accessory solves the job with clearer documentation.

For airflow-panel decisions elsewhere in the rack, use the server-rack blanking-panel guide. Do not turn the cable comb into an airflow baffle or blanking panel.

Sources and evidence boundary

• Leviton 2026 Network Solutions catalog for angled-panel routing, vertical management, bend-radius, and cable-management-hardware context.
• CommScope PoE guidance for loose bundles, ventilation, and heat-dissipation context.
• Panduit Power over Ethernet technical brief for bundle temperature-rise context.
• UL Solutions additive-manufacturing FAQ and UL 94 limits.
• Prusa's current PETG, ASA, and PC guides for bounded material comparisons.

This is documented design guidance, not hands-on testing, an electrical approval, a structured-cabling certification, or a universal service-life claim. Cable, equipment, facility, code, and customer requirements control the installation.

Final recommendation

Start with PETG for a cool indoor, replaceable patch-panel cable comb, but design it as a loose organizer rather than a clamp. Preserve the exact cable's bend limit, route weight into proper rack management, keep latches and labels accessible, and compare heat under representative PoE load with a loose baseline. Move to ASA only for measured UV or warmer exposure, and to an exact PC grade only for a demonstrated heat, impact, or stiffness gap. Where flame performance, listing, or formal acceptance matters, use specified commercial hardware or a documented exact additive process instead of relying on a filament label.
